Vivitar PDV3635 Manuel utilisateur

Overview

Thank you for purchasing this product!

PANOVIEW 360°Camera is a digital panoramic camera with two lenses.

Through the application of up-to-date technologies, it enables you to get

panoramic videos and photos, creating an experience of brand new

panoramic world.

Important

Before using this product, please carefully read this Manual

Prepare one 32G Micro SD card

Check the camera power. A full charging is recommended before

use (Until the charging indicator goes out)

Scan the QR Code on next page, or search for “VRCAM720” on

Apple Store and Google Play, and then download and install it

About Camera

1. OLED display

2. Power button/Mode button

3. WIFI indicator (red)

4. Power indicator（red）/Charging indicator (blue)

5. Wifi button/MENU button

6. Busy indicator (red)

7. Shutter button/OK button

8. Lens×2

9. Triangle nut

10. Interface cover (USB/TF)

11. Speaker

12. Microphone

PDV3635

QR Code:

For IOS system, please scan this QR Code to get access to Apple Store

to download and install “VRCAM720”.

or Android system, please scan this QR Code to get access to Google

Play to download and install “VRCAM720”.

Quick start guide

1. Install SD card:

Insert the Micro SD card you prepare into the slot as indicated, as

shown on the right.

Important:

A high-speed Micro SD card is Class10 above ; or else, this

product may not work normally.

3.5K@28FPS usd U3 high-speed Micro SD card.

Always turn off the camera before inserting or pulling out of the

card.

2. Power-on/off

Power-on: Press and hold Power button for about 2 seconds and

release, until it beeps. The display screen will be lighted, as shown

below, indicating the product is ready to work (the default work mode

after power-on is Shooting mode).

Important:

If power-on fails, charge the camera first, and see whether the

blue indicator lights up during charging. If yes, it indicates the

product is being charged.

Power-off:After shooting stops, press and hold Power button for about

3 seconds and release. The Display will display “GOODBYE” and turns

off. No operation on mainframe for 3 minutes under Power-save mode

(default), the camera will automatically power off.

3. Charging

Use data cable included in the product pack for camera charging. During

charging, the indicator displays in blue and lights constantly; when

charging completed, the blue indicator goes out.

Important:

If other charger is used, check the output power before use to

ensure it within 5V/1.5A above.

4. Recording or shooting

This camera has Recording mode and Shooting mode. After power-on,

press MODE (Power button) to switch between different modes, and the

corresponding mode icon will be displayed on the screen.

Video: In Recording mode, press Shutter button, and the camera get

started to work. The display screen displays the video recording timing.

Stop recording: During recording, press Shutter button to stop it. The

video will automatically be saved on your camera storage card.At that

moment, the display screen will show remaining time available for

recording as below:

Shooting: In Shooting mode, press Shooting button to take photos.

After shooting, the display screen will display the number (estimated

value) of pictures the available space on you camera storage card can

save.

5. Menu setting

To operate Menu, press and hold WIFI button for about 2 seconds to

enter menu setting (as shown below):

Menu operation:

In Menu mode, press WIFI button to move cursor. Press Shutter button

to confirm. Press and hold WIFI button to back to previous menu or exit

Menu mode.

Explanation of menu functions:

Movie Size：3.5K（28FPS）、3.5K（15FPS）、 2.7K（30FPS）、

960P（30FPS）

Resolution：24M(6912x3456) 、18M(6000x3000) 、16M(5760x2880) 、

12M(4896x2448) 、8M(4000x2000) 、4M（2880x1440）

Power Save: Set Power-save mode. You may set the camera to enter

Power-save mode after a certain period of time. The available options

are 1min/3min/5min or Power-save mode off.

Date & Time: Set system time for the camera manually.

Language: Set system language for the camera, with English as its

default language.

Factory Reset: Restore factory default settings.

System: Check system and storage card information.

Format: Format storage card.

Important:

After formatting, all existing data on the storage card will be lost due to

such formatting. Please be cautious to this operation!

6. How to use accessories properly

It is strongly recommended to use the accessories originally provided by

the manufacturer. It helps create a better product use experience and

better shooting/recording effect.

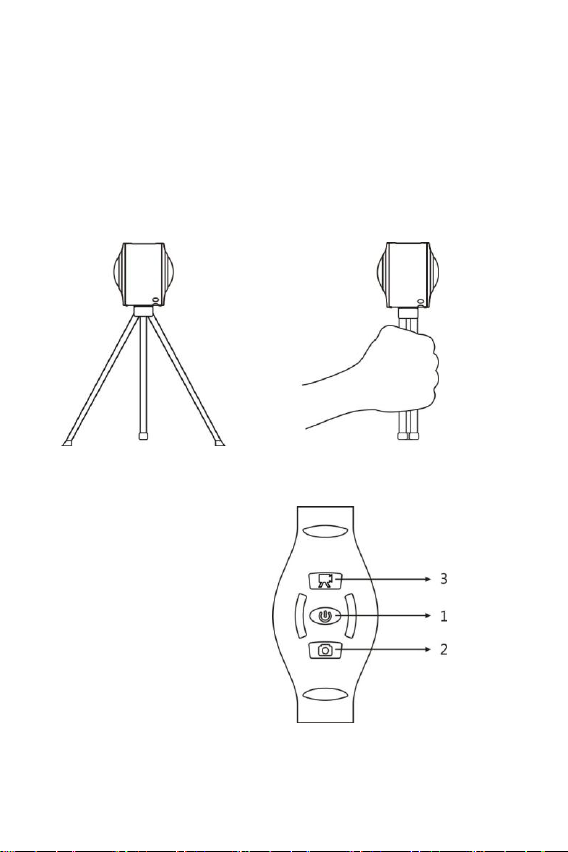

Tripod: Screw the tripod nut attached into the screw hole on the bottom

of the camera. It serves both as a hand-held or fixed device.

Fix to use tripod Hold to use tripod

7. Use of watch remoter (optional)

1. Power button

2. Shooting button

3. Recording button

Play panoramic video or picture

Note: The videos or pictures may be played in right panoramic effect

only on smart mobile phone, panel computer or PC procedures.

1. Use mobile phone or panel computer to play

Follow these steps to play panoramic videos or pictures on mobile

phone or tablet.

Download APP:

Scan QR Code on Page 2 or search for

“VRCAM720” on App Store to download and

install the product APP.

Connect mobile phone and camera: Connect mobile phone and camera

through WIFI connection

i. Turn on camera WIFI: Press camera WIFI button, and the display

screen will display “WI-FI ON”, and then “P3635SA_XXXXX”, and

initial password is “1234567890”.

ii. Turn on mobile phone WIFI, search for

AP hot “P3635SA_XXXXX” and select

Connect.

iii. If connected, the camera display screen

will display as below picture.

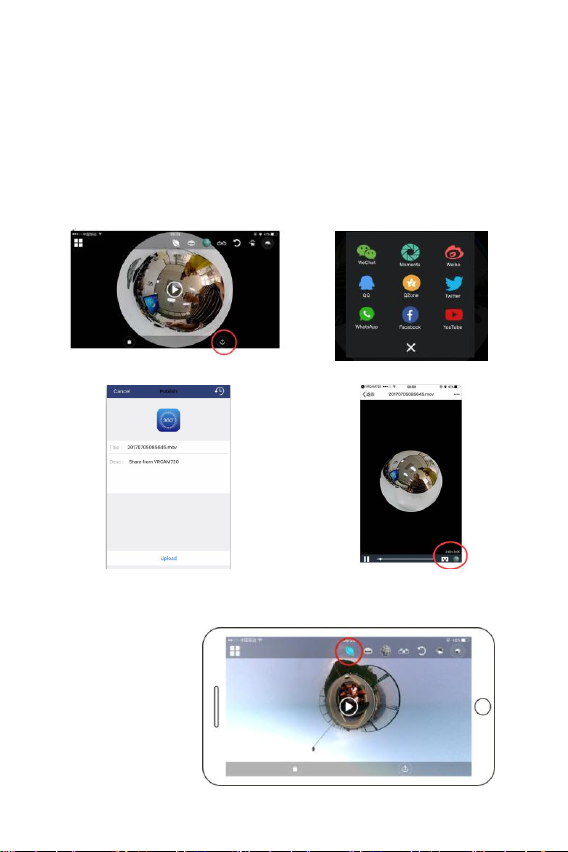

Activate APP: Activate “VRCAM720” APP on mobile phone or tablet,

and click the upper right corner to “Search for Camera”.

Download: Enter camera folder, select the file to be downloaded and

click to download.

Play: Select the file on mobile phone and click to play.

Important

It is recommended to follow the above steps in order to achieve the best

HD video or picture playing effect.

Before connection, remember to make sure the SD card properly

inserted into camera.

After connection, it will not affect 4G communication function of mobile

phone or tablet .

Videos files can be shared via Youtube, Facebook, Wechat, QQ and etc.

The sharing videos can be searched on its relevant websites or

webpages.

The share files can be played with effects playing: Plane mode、Fisheye

mode、Tiny planet mode、VR mode.

Notice: The merged video file is in .mov format.

Effect of panoramic playing

The following effects are available if played onAPP player

Tiny planet mode
