Vitek VTC-IRA40/3516 Manuel utilisateur
VITEK
VTC-IRA40/3516
750 TV Line Day/Night
IR Bullet Camera
w/150’ Range (960H)
• 1/3” High density Sony® CCD (960H)
• High Resolution of 750 Horizontal Lines
• Sony Effio-A Digital Signal Processor
• Simple Installation with External Focus and Zoom control and one
turn mount positioning lock
• True Day/Night by ICR (Infrared Cut Removal)
• E-WDR by ATR-EX (Adaptive Tone Reproduction)
• 40 Infrared LEDs at 850nm enable viewing in total darkness up to
150 feet
• 0.003 Lux (Sens-up Off) / 0 Lux (IR-ON)
• 3.5-16mm Varifocal Auto Iris Lens with External Adjustments for
Focus and Zoom
• True Day/Night by ICR - Infrared Cut Removal
• XD-DNR (2D+3D DNR) Advanced Digital Noise Reduction
• Built-in Motion Detection with a 24x16 Grid
• OSD (On Screen Display) menu and Camera ID
• Dual Glass Compartments to Eliminate Glare
• IP68 NEMA Rating
• Heavy Duty Mount with Cable Feed Through
• Secondary Video Output & OSD Control Joystick are accessible
inside a gasket sealed removable side panel
• 24VAC/12VDC Dual Voltage
Safety Precaution
03
ULTRA CLEAR RESOLUTION CAMERA
CAUTION: TO REDUCE THE RISK OF ELECTIC SHOCK,
DO NOT REMOVE COVER (OR BACK).
NO USER SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
To prevent fire or shock hazard, do not expose the unit to rain or moisture.
To prevent electric shocks and risk of fire hazards, do NOT use other than
specific power source.
Warning :
This equipment has been tested and found to comply with the limits for a Class
A digital device, pursuant to part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful interference when the equipment
is operated in a commercial environment. This equipment generates, uses, and
can radiate radio frequency energy and, if not installed and used in accordance with
the instruction manual, may cause harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful
interference in which case the user will be required to correct the interference at
his own expense.
Caution :
Any changes or modifications in construction of this device which are not expressly
approved by the party responsible for compliance could void the user's authority
to operate the equipment.
Mains power quality should be that of a typical commercial environment. If the user
of the model requires continued operation during power mains interruptions, it is
recommended that the model be powered from an uninterruptible power supply
(UPS) or a battery.
The symbol is intended to alert the user to the presence of important
operating and maintenance(servicing) instructions in the literature
accompanying the unit.
The symbol is intended to alert the user to the presence of uninsulated
"dangerous voltage" within the product's enclosure that may be of
sufficient magnitude to constitute a risk of electric shock to persons.
2
ULTRA CLEAR RESOLUTION CAMERA
Safety Precaution
04
NOTICE
The image used in this instruction manual are processed to help comprehension
and may differ from actual video of the camera.
Avoid installing areas where has shock or vibration which results in the problems.
Pay attention to safety when laying the connection cable and observe that the
cable is not subjected to heavy loads, kinks or damage and no moisture can get
in.
Never open the device such as boards or lens.
The warranty becomes void if repairs are undertaken by unauthorized persons.
Maintenance and repair have to be carried out only by authorized service centers.
Use only a mild detergent to clean the housing.
The camera should never be operated beyond the technical specifications.
This can lead to destruction.
The camera should never be operated in water.
3
ULTRA CLEAR RESOLUTION CAMERA
Contents
05
Safety Precaution
p.02~03
Contents
p.04
Features
p.05
Composition
p.05
Dimensions
p.06
Part Names
p.07
Installation Instructions
p.08~10
Operating Instructions
p.11~30
Specifications
p.31
4
ULTRA CLEAR RESOLUTION CAMERA
Features
Key Features
General Description
06
• With ICR mechanism,
- Enhances its sensitivity about 10x at night time
- Can accepts the infrared light
This is an ultra-clear resolution camera which realizes over 750TVL resolution
and a crisp color reproduction with SONY 960H CCD and Effio-A Enhanced
image signal processor.
• 1/3” High density Sony CCD (960H)
• 750TVL High-Resolution
• D-WDR by ATR-EX
• TDN with Dual Filter Switcher
• 3.5~16mm F1.2 DC Auto Iris Vari-focal Lens
• XD-DNR (2D+3D DNR) Advanced Digital Noise Reduction
• Improved IR-Optimizer
• DIS(Digital Image Stabilizer)
• Scene Preset, LSC (Lens shading compensation), Motion detection,
E-Zoom, Polygon privacy mask(up to 15), Defog, Sens-up, BLC/HLC
• External Zoom & Focus adjustment
• IR-LED 40pcs
• Up the Coaxial (UTC) communication
• OSD Menu & Video Sub-out port for easy installation & maintenance
• Circuit protection against faulty connection in power polarity
• Isolated power supply against ground loop problem
• Dual Window, One-touch 3-Axis locking bracket, Easy installation pad
• IP68 Protection
• With Effio-A series Enhanced digital imaging system,
- Delivers the crystal clear images providing 750TVL resolution in conjunction
with SONY 960H High density CCD.
- They are provided ‘D-WDR by ATR-EX’ function
- Color signal processing provides the optimum balance between the luminance
and chroma signals for high color reproducibility even for the detail scene which
contains very high spatial frequency.
- Incorporates 2D+3DNR signal processing.
5
ULTRA CLEAR RESOLUTION CAMERA
Composition
07
Dimensions
Torque Wrench:
3mm (1pc)
Video Sub-out:
Cable (1pc)
Mounting Screw:
4 x 30mm (4pcs)
Plastic Anchor:
6 x 30mm (4pcs)
Operating
Instruction
Camera
4.35” (110.5mm)
3.53” (89.6mm)
4.37” (111mm)
3.94” (100mm)
3.31” (84mm)
3.39” (86mm)
3.15” (80mm)
10.11” (256.70mm)
Cable Signal
Sticker
Wiring Connector:
(1pc)
Easy
Bracket
Assembly Screw:
4 x 14mm (4pcs)
Mounting Template
6
ULTRA CLEAR RESOLUTION CAMERA
Part Names
08
DUAL WINDOW
SUNSHIELD BOLT
SUNSHIELD
FRONT CASE
OSD Setup
CONTROL COVER
BRACKET
EASY
BRACKET
REAR CASE
CAUTION
• Extreme care should be taken NOT to scratch the window in front of lens.
• Care should be taken the cable is NOT damaged, kinked or exposed in
hazardous area.
• Do not expose the camera lens directly to a strong light source such as the sun or
spot light.
POWER CABLE
7
ULTRA CLEAR RESOLUTION CAMERA
09
Installation Instructions
Mounting Screw
: 4x30mm
Plastic Anchor
: 6x30mm
1
2
Torque Wrench

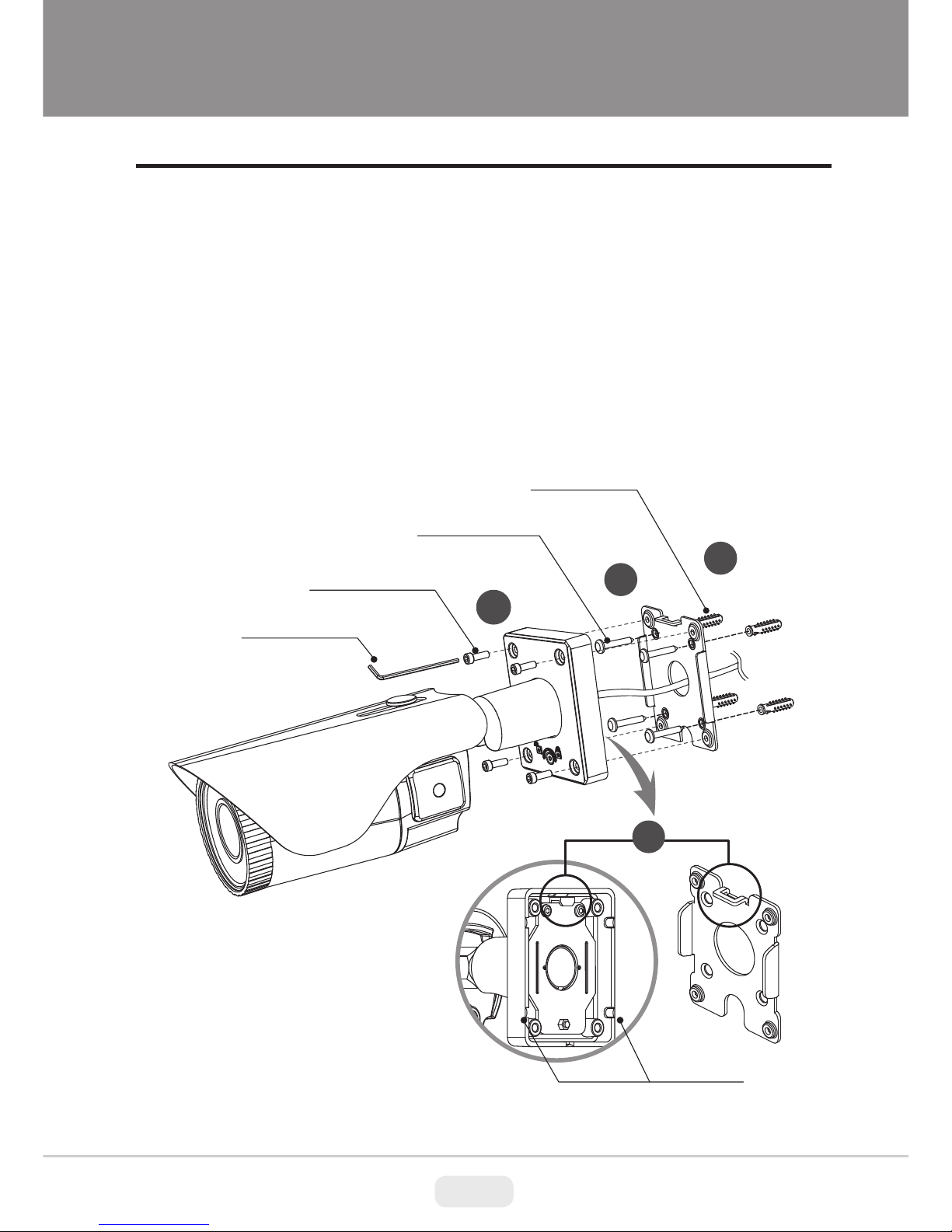

1. Place the mounting template at the installation position and drill the ceiling or
wall if needed. ( *The easy bracket can not be installed on the ceiling)
2. Place the easy bracket on pre-drilled position and attach using the mounting
screws(4x30mm). Skip this step when an easy bracket is not installed.
3. Route the power cable to the connecting place.
Hook up the camera bracket with the easy bracket as illustrated below.
4. Attach the camera bracket through using assembly screws (4x14mm).
5. Set the camera’s viewing angle.
6. Place the sunshield onto the camera unit and tighten the sunshield-bolts.
REAR VIEW
3
Cable exit
4
Assembly Screw
: 4x14mm
8
ULTRA CLEAR RESOLUTION CAMERA
Installation Instructions
10
Pan & Tilt adjustments
1) Pan limit:
Pan is limited to +/- 90°.
3) Inclination limit
(Horizontal image alignment):
Inclination limited to +/-90° max.
2) Tilt limit:
Tilt is limited to 0°(2°) min ~ 90° max.
for wall(ceiling) installation respectively
with reference to the wall(ceiling) when
the inclination of camera module is 0°,
that is, the image is aligned horizontally.
• Unlock the screw on the camera bracket through using the torque wrench supplied
• Set the camera’s viewing angle then lock the screw on the bracket.
90° 90°
80°
90°
±90°
•on the wall
•on the ceiling
■Adjustment of viewing angle
with one-touch 3-Axis bracket
Torque
wrench
Lock/Unlock
Screw
9
ULTRA CLEAR RESOLUTION CAMERA
Installation and commissioning Instructions
• Make sure the power is removed before the installation.
• Follow the order for applying power.
First, connect the low voltage (AC24V or DC12V), then plug the AC adapter into
AC outlet to avoid an improper reset from power jitter and damage from the
surge voltage when no load.
Power Supply Connections
Camera can work with either 24VAC or 12VDC, dual voltage power.
Primary and secondary grounds are completely isolated to avoid possible
ground-loop problems
Installation Instructions
11
Zoom & Focus adjustments
• Turn the Focus gear to “N”(Near) or “∞”(Far)
until the sharpest focus is made.
• To widen the viewing angle, turn the Zoom to
“W”(Wide) and to obtain a closer view, turn it
to “T”(Tele)
Use the torque wrench supplied.
VIDEO (BNC)
AC24V/GND
AC24V/DC12V
N/A
N/A
※ Attach the Signal Assignment Sticker
in a visible spot for wiring reference.
10
