Vitek Transcendent Series Manuel utilisateur

VITEK

VTC-TNB2LPR

Transcendent Series

2 MegaPixel License Plate

Recognition WDR IP Motorized

Bullet Camera

QUICK START GUIDE

FEATURES:

• Advanced Starlight Technology Offers Dramatically Higher Sensitivity to

Light Producing Color Images in Very Dark & Night Scenes

• 1/2.8” 2.0 Megapixel CMOS Image Sensor

• 1080P (1920 × 1080), 720P (1280 × 720), D1, CIF, 480 × 240

• 7~22mm @ F1.6 Motorized Varifocal Lens

• Field of View - H: 44°~17.6°; V:25.6°~10°; D: 49.7°~20.2°

• 6 Matrix IRs with up to 325’ IR Range

• True Wide Dynamic Range (120db)

• True Mechanical Day/Night function by ICR

• XD-DNR (3D & 2D Digital Noise Reduction)

• License Plate Recognition (LPR), Abnormal Video, Scene Change

• LPR Snapshot: Overview and Cutout of Plate, White List: 10,000

• LPR Capture Speed Range: 0-44m/h (0~70km/h) [Installation Dependent]

• Smart H.265 / H.265+ / H.265 / Smart H.264 / H.264+ / H.264 / MJPEG

Compression

• MicroSD Card Slot for Local Recording (Up to 128GB)

• One Channel Audio Input + One Channel Audio Output*

• One Channel Alarm Input + One Channel Alarm Output

• Remote Viewing via CMS, Internet Explorer, and iOS & Android Apps

• ONVIF Compliant

• IP67 Weather Resistance

• Wall Mount Included and Optional Junction Box VT-TJB01 Available

• 12VDC & PoE (Power over Ethernet) Operation

• 3-Year Warranty

*Please research local, state and federal laws regarding audio surveillance.

PLEASE NOTE:

Complete User Guide, Software, Tools, and Updates are

available online. Scan the QR Code or visit:

http://www.vitekcctv.com/Downloads

2 3

Reset

Components and Accessories

Overview

Hex Wrench Anchors

Cable Connections

Weather Resistant Network Coupler

First connect the weather resistant cap to an ethernet patch cable,

then connect the cameras ethernet adaptor. If not powering the

camera with PoE, also connect the power cable to an approved

12VDC power supply.

1. Loosen the nut from the Weather Resistant Network Coupler,

2. Run ethernet cable through coupler, then attach a RJ-45 connector.

3. Tighten the nut and coupler for a weather resistant seal.

weather resistant cap

4 5

Installation

Before beginning installation, make sure that the wall or ceiling is

strong enough to withstand 3 times the weight of the camera. The

mounting steps are as follows:

1. Attach the drill template to

the place where you want to

install the camera, then drill

4 screw holes and 1 cable

hole (if you want to route the

cables through the mounting

base) according to the drill

template

2. Route the cables and connect the power & video cables, use the

rubber plug to fill the gap of the mounting base. then secure the

mounting base to the ceiling or wall with screws.

2.54”

.2”

Installation

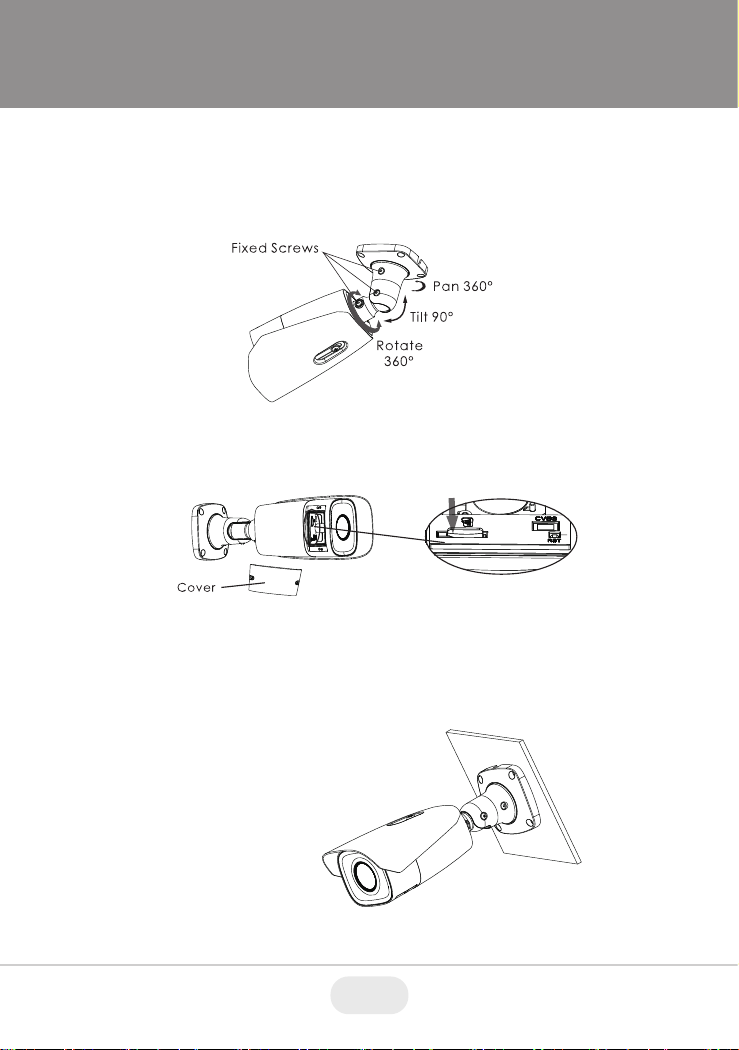

3. Loosen the mount lock to adjust the Pan and Tilt of the camera, then

tighten the mount lock to secure the viewing angle adjustments.

4. Open the cover of the camera as shown in the following figure,

then insert a MicroSD card.

Insert MicroSD Card

5. Re-install the cover back on the camera and close it with screws.

Be sure to re-install the cover evenly.

6 7

LAN Configuration

The camera can be accessed on the local network either using the

IP-Tool or directly in a web browser.

Accessing the Camera Using the IP-Tool

1. Make sure the camera and PC are connected to the LAN.

2. Locate the IP-Tool installer at www.

vitekcctv.com/Downloads/Soft-

ware/Transcendent-IPTool_v2.0.2.zip

, then install on the PC. Open

the installed application.

3. Modify the IP address. The default IP address is 192.168.226.201.

Click the information of the camera listed in the above table to show

the network information on the right side. Modify the IP address and

gateway of the camera and make sure its network address is in the

same local network segment as the computer’s. Please modify the

IP address of your device according to the practical situation.

For example, the IP address of your computer

is 192.168.13.4. So the IP address of the

camera should be changed to 192.168.13.X.

After modifying, please input the password

of the administrator and click “Modify” button

to modify the setting.

** Default admin password: “123456".

IP Camera

Network Cable Network Cable

Switch

Router Computer

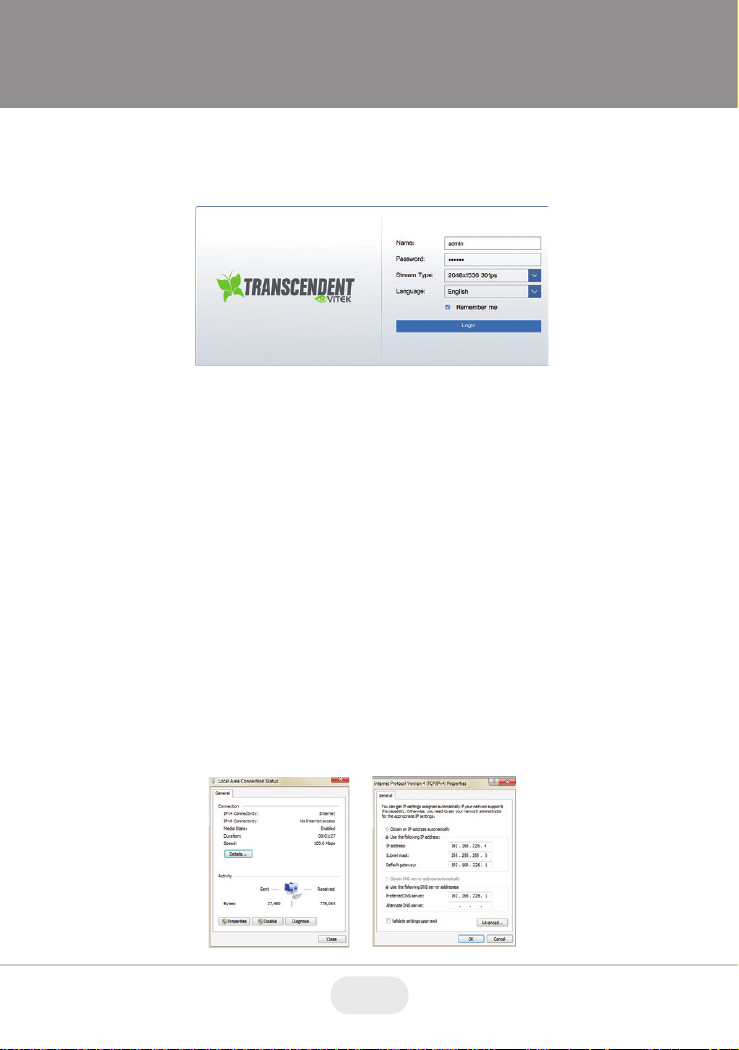

4. Double-click the IP address and then the system will pop up the web

browser to connect IP-CAM . IE browser will download the Active X

control. After downloading, a login window will pop up as shown

below:

Input the user name and password to log in.

Default user name: admin / Default password: 123456.

Directly Access Through a Web Browser

The default network settings are as shown below:

IP address: 192.168.226.201 HTTP: 80

Subnet Mask: 255.255.255.0 Data Port: 9008

Gateway: 192.168.226.1

You may use the above default settings when you log in the camera for

the first time.

1. Manually set the IP address of the PC. The network segment should

be the same as the default settings of IP-CAM. Open the network

and share center. Click “Local Area Connection” to pop up the

following window.

Select “Properties” and then select Internet protocol according to the

actual situation (for example: IPV4). Next, click “Properties” button to

set the network of the PC.

8 9

2. Open the IE Browser and input the default address of IP-CAM and

confirm. The IE browser will download Active X control.

3. After downloading Active X control, the login dialog box will pop up.

4. Input the default username and password and then enter to view.

WAN Configuration

Access the camera by the router or virtual server for example.

1. Make sure the camera is connected to the LAN; Then log into the

camera via LAN and go to System Congfig→Network Config→Port

menu to set up the port number.

2. Enter System Config→Network Config→IP Address menu to modify

the IP address.

4. Open the web browser and input its WAN IP and HTTP port to

access the IP-CAM.

3. Go to the router’s management interface through IE browser to

forward the IP address and port of IP-CAM in the “Virtual Server”.

5. For additional setup, features and functions, please scan the

QR code on the front page of this quick guide and download

the complete manual.

Image Sensor 1/2.8” 2.0 Megapixel Progressive Scan CMOS

Image Size 2 MegaPixel (1920 × 1080)

Resolution 1080P (1920 × 1080), 720P (1280 × 720), D1, CIF, 480 × 240

Min. Illumination 0.0026 [email protected],AGC ON; 0 lux with IR / 0.005 [email protected], AGC ON; 0 lux with IR

Electronic Shutter 1 / 25 s ~ 1 / 100000s

Lens 7~22mm Motorized Varifocal Lens @ F1.6

IR LEDs, Distance 6 Matrix Style IRs, Up to 325’

Video Compression Smart H.265/(+), H.265, Smart H.264/(+), H.264, MJPEG

Audio Compression G.711A / G.711U

Main-Stream 60Hz: 1080P/720P (1~30fps); HFR Mode: 1080P/720P (60Hz:

1~60fps; 50Hz: 1~50fps) 50Hz: 1080P/720P (1~25fps)

Sub Stream, Third Stream 60Hz: 720P/D1/CIF (1~30fps); 50HZ: 720P/D1/CIF/480x240

(1~25fps)

Bit Rate / Type 64 Kbps ~ 6 Mbps / VBR + CBR

Wide Dynamic Range 120dB

Digital Noise Reduction XD-DNR (3D & 2D-DNR)

Other Features Backlight / Hightlight Compensation, Defog

Image Setting ROI, Saturation, Brightness, Chroma, Contrast,

Sharpen, NR; Adjustable through client software or browser

Analytics License Plate Recognition, Abnormal Video, Scene Change

Alarm

Smart Alarm

1 Ch. Alarm In + 1 Ch. Alarm Out*

Motion Detection, SD Card Error, SD Card Full

General Functions Watermark, IP Filter, Video Mask, Illegal Login Lock

Region of Interest (ROI) Each ROI to be configured separately

Network RJ45

Hardware Reset Yes

Analog Video Output No

Audio 1 Ch. Audio In + 1 Ch. Audio Out*

Local Storage Built-in Micro SD card slot up to 128GB

Remote Viewing CMS / Web Browser / Mobile (iOS/Android)

Supported Browsers Internet Explorer, Chrome and Firefox with IE Tab

Interface Protocol ONVIF

Weather IP67

Power Input

Consump. (12VDC, PoE)

12VDC / PoE

(12VDC) 210mA (IRs Off) / 545mA (on), (PoE) 4W (IRs off) / 7.8W (on)

Working Environment -22°~140° / < 95% Humidity

Weight

Dimensions L x W x H

36.69.5 oz. / 2.29 lbs. / 1.04kg

3.95” x 3.54” x 11.00” (100.3mm x 89.9mm x 279.5mm)

DETAILED SPECIFICATIONS - VTC-TNB2LPR

10 11

Consider These

Other Great

Transcendent Products!

Pair with VITEK

Transcendent Series

Network Recorders

Supporting Advanced

Analytics and PoE!

VT-TJB01

Optional Junction

Box for Use with

Select

Transcendent Bullet

Cameras including

VTC-TNB2LPR

Accessories

Recorders

VT-TPLMT

Transcendent

Universal Pole

Mount

VT-TCNMT

Transcendent

Univeral

Corner Mount
