Vitek VTD-TND8RMA4 Manuel utilisateur

VITEK

QUICK START GUIDE

VTD-TND8RMA4

Transcendent Series 8 MegaPixel

[4K] Gen. IV Advanced A.I.

Motorized IP Vandal Dome Camera

FEATURES:

• 1/2.8” 8.0 Megapixel [4K] CMOS Image Sensor

• NDAA Compliant

• Up to 30fps live view @ 8 MegaPixel (3840x2160)

• 2.8~12mm Motorized Varifocal Lens

• Matrix IR (up to 165’ IR Range)

• True Wide Dynamic Range

• True Mechanical Day/Night function by ICR

• XD-DNR (3D & 2D-DNR) Noise Reduction

• Gen. IV Advanced Analytics: Abnormal Video, Face Detection, Regional

Intrusion Detection, Regional Entrance / Exiting Detection, Line

Crossing, Target Counting Detection

• Smart H.265/H.265+/H.265/Smart H.264/H.264+/H.264/MJPEG

• 1 Ch. Audio In + 1 Ch. Audio Out + Built-in Mic*

• 1 Ch. Alarm Input + 1 Ch. Alarm Output

• CVBS Out

• Remote Viewing via CMS, Internet Explorer, iOS & Android Apps

• ONVIF Compliant

• MicroSD Card Slot for Local Recording (256GB)

• IP67 Weather Resistance + IK10

• Optional Junction Box (VT-TJB010), Wall Mount (VT-TWMT-A2 [reqs.

VT-TJB010]), Pendant Mount (VT-TPDMT-A2 [reqs. VT-TJB010]), and

In-Ceiling Semi Flush Mount (VT-TFMT-L2) Available

(see pg. 9 for additional mounting options)

• 12VDC & PoE (Power over Ethernet) Operation

*Please research local, state and federal laws regarding the implementation of audio surveillance.

PLEASE NOTE:

Complete User Guide, Software, Tools, and Updates are

available online. Scan the QR Code or visit:

http://www.vitekcctv.com/Downloads

2 3

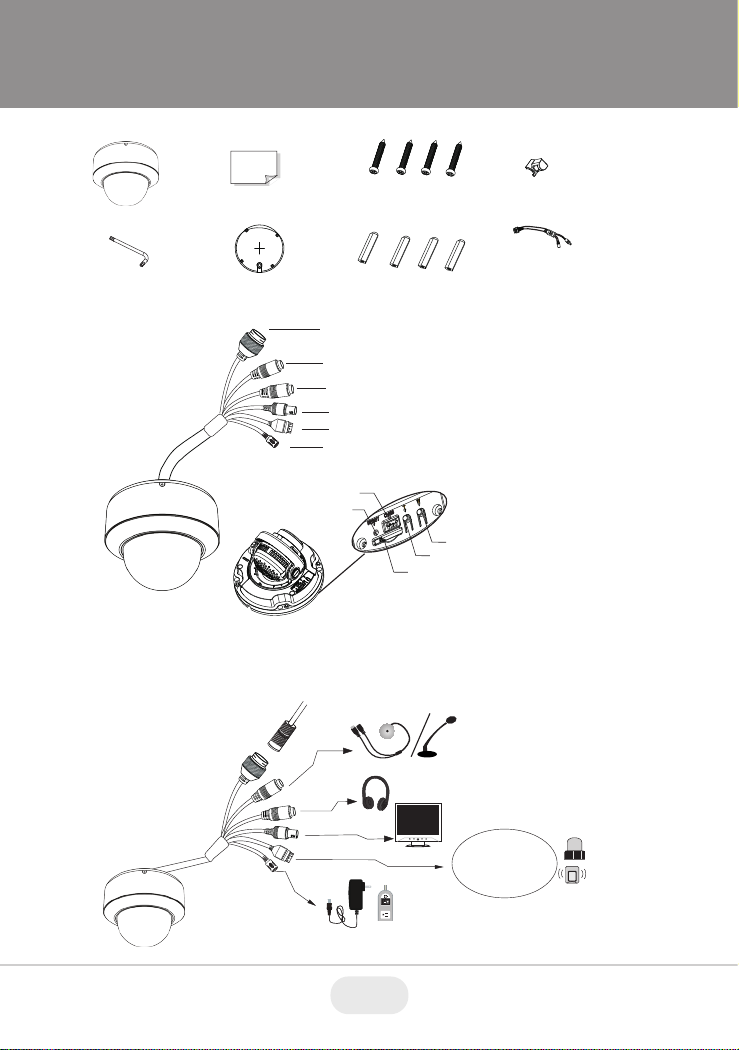

Components and Accessories

Overview

Connect the Weather Resistant Cap to an Ethernet patch cable.

Connect the cameras ethernet adaptor. If not powering the camera

with PoE, also connect the power Cable to an approved 12VDC

Power supply.

Camera Quick start guide

Plastic plug ×4

Drill template

Rubber plug

4 tapping screws PA 4×2

ALARM

4 3 2 1

1 Ethernet Connector

2Audio Input (MIC)

3Audio Output (HP)

4CVBS Video Output

5 Alarm Input/Output

6DC12VPowerConnector

7 Zoom-

8 Zoom+

9 Micro SD Card Slot

10 Reset

11 DC IN & CVBS

Security cap

1- -A L M - C O M

2- -A L M - O P E N

3- - A L M - I N A

4- - A L M - G N D

D C 1 2V

ALAR M

4 3 2 1

Allen Key

CVBS&DC

IN cables

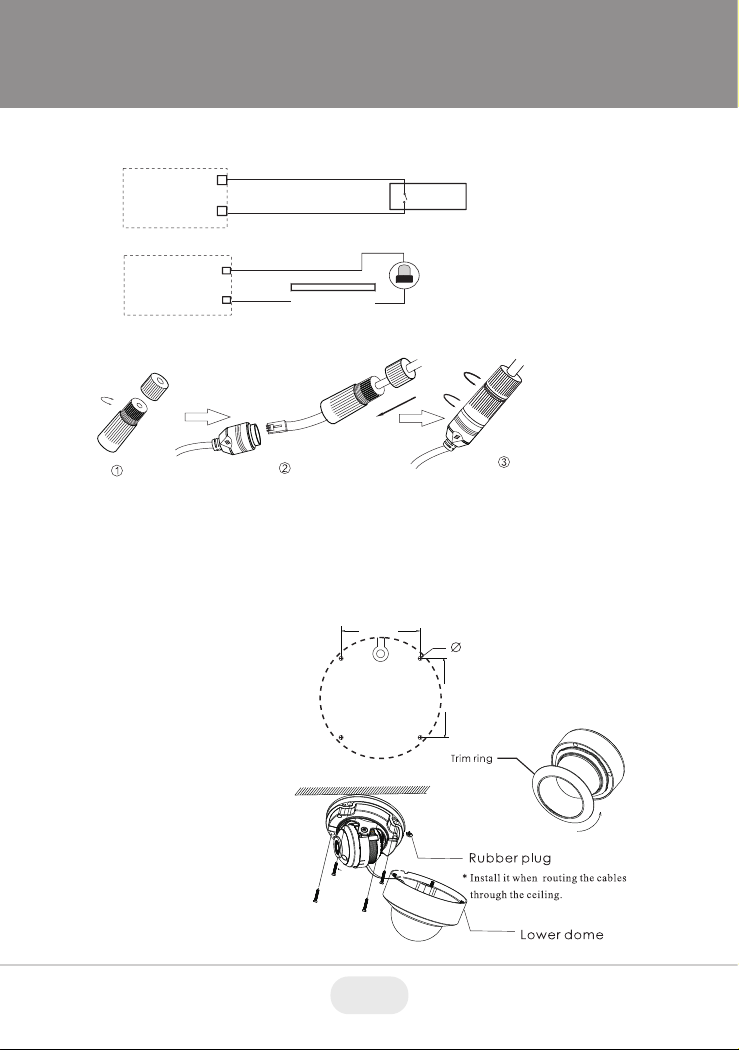

Installation

Weather Resistant Network Coupler

1. Loosen the nut from the Weather Resistant Network Coupler,

2. Run ethernet cable through coupler, then attach a RJ-45 connector.

3. Tighten the nut and coupler for a weather resistant seal.

Before beginning installation, make sure that the wall or ceiling is

strong enough to withstand 3 times the weight of the camera. The

mounting steps are as follows:

A lar m

P ower S our ce

IPC

A L A R M -C O M

A L A R M -O P E N

C onnecti ng A l ar m I nput/O utput

A lar m I nput

A lar m O utput

Sensor

IPC

A L A R M -I N

A L A R M -G N D

2. Loosen the screws to open

the lower dome and then

loosen the lock screw to

remove the mounting base.

1. Attach the drill template to

the place where you want to

install the camera, then drill

the screw holes and 1 cable

hole according to the drill

template.

1A. Rotate the trim ring counterclockwise to remove.

3.55”

0.18”

4 5

6. Install the dome bubble on the camera with the included screws. Put

the trim ring back on the lower dome and turn it clockwise until it locks.

Finally, carefully remove the protective film from the bubble to complete.

4. Before adjusting the three-axis camera mount, preview the

camera on a monitor, then adjust as necessary to achieve the

optimum viewing angle.

3. Route the cables and

connect the power & video

cables, use the rubber plug

to fill the gap of the mounting

base. Then secure the

camera to the ceiling

or wall with the screws

provided.

Insert a MicroSD card if desired. Adjust the Zoom or Focus

to obtain an optimum image by pressing the T or W

buttons to adjust.

LAN Configuration

The camera can be accessed on the local network either using the

IP-Tool or directly in a web browser.

Accessing the Camera Using the IP-Tool

1. Make sure the camera and PC are connected to the LAN.

2. Locate the IP-Tool installer at www.

vitekcctv.com/Downloads/Soft-

ware/Transcendent-IPTool_v2.0.2.zip

, then install on the PC. Open

the installed application.

3. Modify the IP address. The default IP address is 192.168.226.201.

Click the information of the camera listed in the above table to show

the network information on the right side. Modify the IP address and

gateway of the camera and make sure its network address is in the

same local network segment as the computer’s. Please modify the

IP address of your device according to the practical situation.

For example, the IP address of your computer

is 192.168.13.4. So the IP address of the

camera shall be changed to 192.168.13.X.

After modification, please input the password

of the administrator and click “Modify” button

to modify the setting.

** Default admin password: “123456".

IP Camera

Network Cable Network Cable

Switch

Router Computer

6 7

4. Double-click the IP address and then the system will pop up the web

browser to connect IP-CAM . IE browser will download the Active X

control. After downloading, a login window will pop up as shown

below:

Input the user name and password to log in.

Default user name: admin / Default password: 123456.

Directly Access Through a Web Browser

The default network settings are as shown below:

IP address: 192.168.226.201 HTTP: 80

Subnet Mask: 255.255.255.0 Data Port: 9008

Gateway: 192.168.226.1

You may use the above default settings when you log in the camera for

the first time.

1. Manually set the IP address of the PC. The network segment should

be the same as the default settings of IP-CAM. Open the network

and share center. Click “Local Area Connection” to pop up the

following window.

Select “Properties” and then select Internet protocol according to the

actual situation (for example: IPV4). Next, click “Properties” button to

set the network of the PC.

2. Open the IE Browser and input the default address of IP-CAM and

confirm. The IE browser will download Active X control.

3. After downloading Active X control, the login dialog box will pop up.

4. Input the default username and password and then enter to view.

WAN Configuration

Access the camera by the router or virtual server for example.

1. Make sure the camera is connected to the LAN; Then log into the

camera via LAN and go to System Congfig→Network Config→Port

menu to set up the port number.

2. Enter System Config→Network Config→IP Address menu to modify

the IP address.

4. Open the web browser and input its WAN IP and HTTP port to

access the IP-CAM.

3. Go to the router’s management interface through IE browser to

forward the IP address and port of IP-CAM in the “Virtual Server”.

5. For additional setup, features and functions, please scan

the QR code on the front page of this quick guide and

download the complete manual.

8 9

Image Sensor

Image Size

Resolution

Min. Illumination

Lens

Day / Night

IR LEDs / IR Distance

Video Compression

Audio Compression

Main-Stream

Bit Rate / Type

Wide Dynamic Range (WDR)

Digital Noise Reduction (DNR)

Image Setting

Gen. IV Advanced Analytics

Smart Alarm

Region of Interest (ROI)

Network

Audio

Video Out

Alarm

Local Storage

Remote Viewing

Supported Browsers

Connection Protocol

Resistance

Power Input

Power Consumption 12VDC, PoE

NDAA Compliant

Working Environment

Weight, Dimensions Dia ×H

1/2.8” 8.0 Megapixel [4K] CMOS Image Sensor

8 MegaPixel (3840 × 2160)

8MP(3840 × 2160 ), 6MP(3072 × 2048 ), 5MP(2592 × 1944), 4MP(2592 × 1520 ),

3MP(2304 × 1296), 1080P(1920 × 1080 ), 720P(1280 × 720), D1, CIF, 480 × 240

0.01 lux @F1.2, AGC ON; 0 lux with IR, 0.015 lux @ F1.4, AGC ON; 0 lux with IR

Motorized 2.8-12mm

True Day/Night by ICR

3 Matrix / 165’

Smart H.265 / H.265+ / H.265 / Smart H.264 / H.264+ / H.264 / MJPEG

G.711A / G.711U

1~30fps: 8MP, 6MP, 5MP, 4MP, 3MP, 1080P, 720P, D1, CIF, 480x240

64Kbps ~ 12Mbps / VBR, CBR

120dB Super WDR

XD-DNR (2D-DNR & 3D-DNR)

Saturation, Brightness, Contrast, WDR, Noise reduction

Face Detection, Target Counting, Intrusion, Region Entrance/Exit, Line Crossing, Scene Change, Video Blur

Motion Alarm / Sensor Alarm

Each ROI to be Configured Separately

RJ45

1 In (One-way Audio) + 1 Ch. Audio Out + Built-in Mic*

1 Ch. CVBS Video Out

1 Ch. Alarm Input + 1 Ch. Alarm Output

MicroSD Card Slot (Up to 256GB)

CMS / Web Browser / Mobile (iOS/Android)

Microsoft Internet Explorer

ONVIF

IP67 Weather Resistance + IK10

12VDC / PoE

350mA (LEDs Off) / 600mA (LEDs On), < 9.5W

YES

-22° ~140° / < 95% Humidity

40.21 0z / 2.51 lbs. / 1140g, 5.91” × 4.49” (150 mm × 114 mm)

VTC-TND8RMA4 Detailed Specifications

*Please research local, state and federal laws regarding the implementation of audio

surveillance.

VT-TPLMT

Transcendent

Universal Pole Mount

VT-TCNMT

Transcendent Universal

Corner Mount

OPTIONAL ACCESSORIES

AND RELATED PRODUCTS

FOR VTD-TND8RMA4

VT-TJB010

Optional Junction

Box

VT-TPDMT-A2

Pendant Mount

- reqs. VT-

TJB010

VT-TFMT-L2

Optional Semi

Flush Mount

VT-TWMT-A2

Wall Mount -

reqs. VT-TJB010

5.48”

7.68”

5.47”

5.54”

5.48”

7.84”

9.17”

8.46”

6.43”

8.46”

8.47”

10 11
