Vitek VTM-TLM191 Manuel utilisateur

VITEK

FEATURES

• 19” & 24” Wide Screen LED Display Panel

• HDMI, VGA, and Looping BNC Composite Video Inputs & Stereo Audio

Input

• Resolution up to 1920 x 1080 (1080P)

• Contrast Ratio of 10,000:1

• <5ms Response time

• 170° Horizontal Viewing Angle

• Front Panel Controls

• VESA Standard Mounting

• Professional grade display designed for 24/7 continuous use in security

applications with 50,000 Hour Panel Life

VTM-TLM191

VTM-TLM240

19” & 24” Professional LED Monitors with

HDMI, VGA, and Looping BNC

Table of contents

Important safety information 2

In The Box 4

Connections 4

Rear interface 4

Control Layout 5

How to connect your monitor 5

On-Screen Display (OSD) Operation 7

AV Input Configuration 7

HDMI Input Configuration 9

VGA Input Configuration 12

IMPORTANT SAFETY INFORMATION

ENVIRONMENT

•Do not install the monitor outdoors or in any hostile environment. To

prevent fire or electric shock, do not expose monitor to rain or

moisture. Avoid placing the monitor in areas subject to extreme

temperature such as direct sunlight or near a heating

appliances/equipment (such as amplifiers, etc) as this may result in

overheating and damage.

•This monitor is designed to be used in the office or home. Do not

subject it to vibrations, dust or corrosive gases.

•To obtain a clear picture, do not expose screen to direct

illumination or sunlight. Using the monitor against a bright background

and where sunlight or other light sources shine directly on to the

monitor can increase eye fatigue

POWER CORD

•Neither the monitor itself nor any other heavy object should rest

on the power cord.

•Protect the power cord from being walked on or pinched

particularly at plugs, convenience receptacles and the point where

they exit from the monitor.

•Firmly grasp the plug when disconnecting the power cord. Do not pull

the power cord itself.

•Do not modify or damage the cord. Damage to a power cord can

cause fire or electric shock.

•This monitor is designed to operate on 100-240V AC supply. Take

caution in connecting it to the correct supply using the correct power

cord.

MOUNTING

•Always place the monitor on a secure table or have it properly

mounted to the wall. Do not hang anything on the monitor.

•Ensure the monitor is located close to a power outlet that is easily

accessible, as removing the power cord is the only way to isolate

power

IMPORTANT SAFETY INFORMATION

ENVIRONMENT

•Do not install the monitor outdoors or in any hostile environment. To

prevent fire or electric shock, do not expose monitor to rain or

moisture. Avoid placing the monitor in areas subject to extreme

temperature such as direct sunlight or near a heating

appliances/equipment (such as amplifiers, etc) as this may result in

overheating and damage.

•This monitor is designed to be used in the office or home. Do not

subject it to vibrations, dust or corrosive gases.

•To obtain a clear picture, do not expose screen to direct

illumination or sunlight. Using the monitor against a bright background

and where sunlight or other light sources shine directly on to the

monitor can increase eye fatigue

POWER CORD

•Neither the monitor itself nor any other heavy object should rest

on the power cord.

•Protect the power cord from being walked on or pinched

particularly at plugs, convenience receptacles and the point where

they exit from the monitor.

•Firmly grasp the plug when disconnecting the power cord. Do not pull

the power cord itself.

•Do not modify or damage the cord. Damage to a power cord can

cause fire or electric shock.

•This monitor is designed to operate on 100-240V AC supply. Take

caution in connecting it to the correct supply using the correct power

cord.

MOUNTING

•Always place the monitor on a secure table or have it properly

mounted to the wall. Do not hang anything on the monitor.

•Ensure the monitor is located close to a power outlet that is easily

accessible, as removing the power cord is the only way to isolate

power

2 3

USING A WALL MOUNT

Caution: Any wall mount must bear a minimum of 5x the monitor’s net weight

to mount safely. The stand must be removed first before mounting this way.

1. Place the monitor face down on a surface that is soft, yet strong

enough to hold the monitor.

2. Use a screwdriver to remove the screws from the four holes on each

side of the bottom of the monitor’s base.

3. Make sure all cables are already connected to the monitor.

4. Follow the directions included with the wall mount to fix the monitor to

the wall.

STORAGE

•Unplug the monitor when unused for long periods of time.

VENTILATION

•Never cover or block the ventilation slots in the monitor. A minimum

distance of at least 4” inches should be maintained around the unit for

sufficient ventilation.

•Never insert any foreign object, metal or liquid into the ventilation

slots, as this could result in fire or electric shock.

•Avoid installing a DVR or other equipment too close to the

monitor. Keep such equipment at least 12” inches away from the

monitor.

WATER AND MOISTURE

•The monitor should not be exposed to any moisture or liquid.

•Do not use the monitor near water.

•Do not touch the monitor or cable with wet hands as this may cause

electric shock or damage.

CLEANING

•Unplug the unit from the wall outlet before cleaning.

•Do not use liquid or aerosol cleaners. Use a dry soft lint-free cloth for

cleaning. If dust is persistent, wipe with a slightly damp cloth.

IN THE BOX

1 x LCD Monitor, 1 x AC adapter, 1 x VGA cable, 1 x Audio cable, 1 x User

Manual

CONNECTIONS

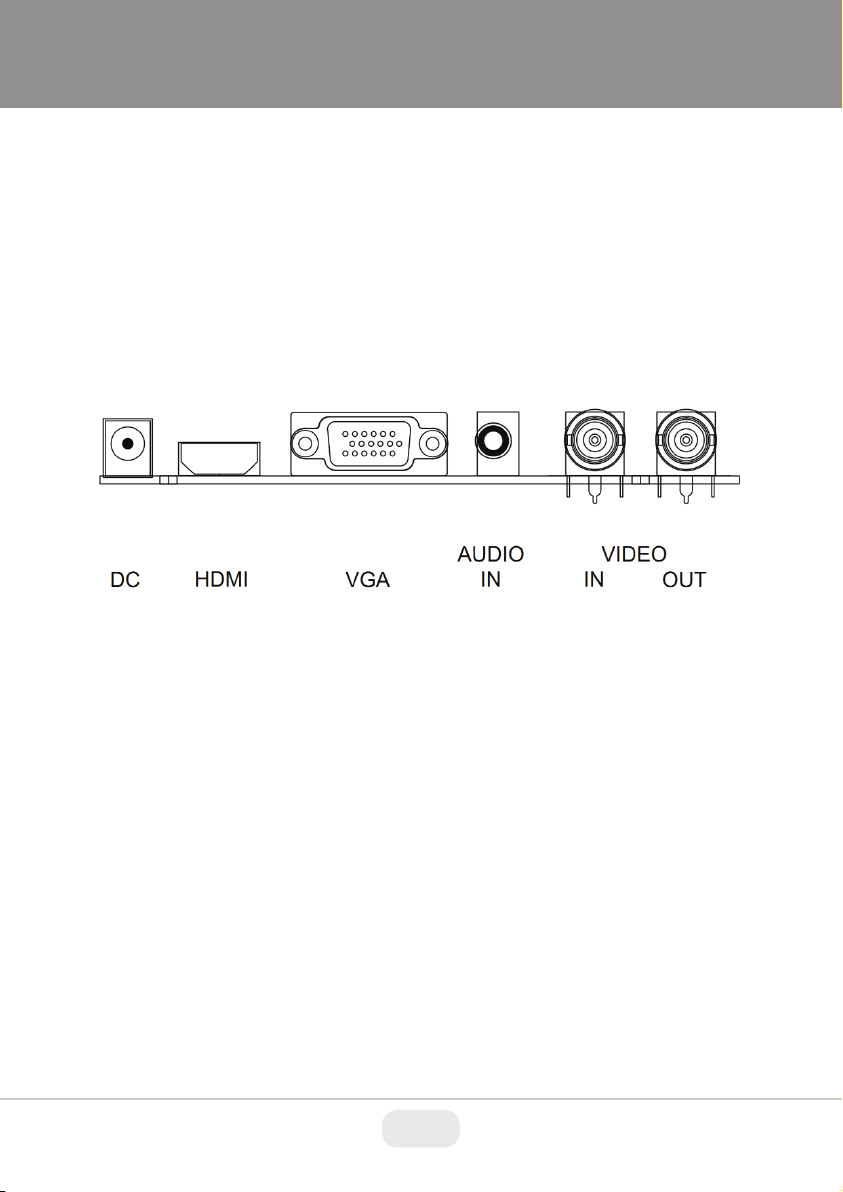

Rear Interface

DC: Only use the 12v DC power supply included with the monitor.

HDMI: (High-Definition Multimedia Interface) supports digital video and audio

connections.

VGA: 15 pin D-sub cable for standard VGA connection.

Audio IN:

3.5 mm stereo jack connection for audio input when using VGA /AV

connector.

VIDEO/AV IN:

BNC connections supporting composite video inputs from equipment

such as Cameras or DVR’s.

VIDEO/AV OUT:

Composite video loop though output – connect a second monitor.

IN THE BOX

1 x LCD Monitor, 1 x AC adapter, 1 x VGA cable, 1 x Audio cable, 1 x User

Manual

CONNECTIONS

Rear Interface

DC: Only use the 12v DC power supply included with the monitor.

HDMI: (High-Definition Multimedia Interface) supports digital video and audio

connections.

VGA: 15 pin D-sub cable for standard VGA connection.

Audio IN:

3.5 mm stereo jack connection for audio input when using VGA /AV

connector.

VIDEO/AV IN:

BNC connections supporting composite video inputs from equipment

such as Cameras or DVR’s.

VIDEO/AV OUT:

Composite video loop though output – connect a second monitor.

4 5

CONTROL LAYOUT

The control buttons are located on the right hand rear side of the monitor.

5keys series

SOURCE - + MENU

POWER

7keys series

SOURCE - + ∨∧MENU POWER

SOURCE: Selects input mode – AV, HDMI, VGA.

MENU: Access to the On Screen Display (OSD) menu.

＋and －:Volume controls up/down, confirm input source selection

and navigation in the OSD.

POWER: Turns the monitor on or off.

HOW TO CONNECT YOUR MONITOR

1. Connecting using AV - Composite Video

Connect your video cable with BNC connector to either the AV1 or

AV2 connector on the rear of the monitor, and the other end to your

DVR/Camera etc.

If audio input is required, connect the audio (red and white) cables to

the AUDIO INPUT R and L connectors on the rear of the monitor and

to the Audio Output connector on the DVR/Camera etc.

Connect power to the monitor and video source, and switch on. Using

the SOURCE button, press repeatedly until either ‘AV1’ or ‘AV2’

(depending on the connection used) is highlighted on the display at

the top of the monitor's screen, and press ‘+’ to select.

2. Connecting using HDMI

Connect one end of a HDMI cable (not supplied) to the HDMI

connector on the rear of the monitor, and the other to the HDMI out

connector on the PC/DVR. This connection will support both video and

audio transmission.

Connect power to the monitor and video source, and switch on. Using

the SOURCE button, press repeatedly until ‘HDMI’ is highlighted on

the display at the top of the monitor's screen, and press ‘+’ to select.

3. Connecting using VGA

Connect one end of a 15-pin monitor cable to the VGA connector on

the monitor and the other end to the PC/DVR. Note - if your PC/DVR

connector isn't 15-pin D-sub you may need an adapter to connect

with this cable.

If audio is required, connect one end of the 3.5 mm stereo audio cable

(sometimes referred to as 1/8" stereo jack) to the PC Audio IN

connector on the back of the monitor and the other end to the audio

output on the PC/DVR.

Connect power to the monitor and video source, and switch on. Using

the SOURCE button, press repeatedly until ‘VGA’ is highlighted on the

display at the top of the monitor's screen, and press ‘+’ to select.

Ensure all cable connections are secure - tighten all cable screws.

Movement and vibration may dislodge cables that are improperly

connected. Route all wiring and cabling away from any heat sources

and sharp metal edges to avoid damage.

If audio input is required, connect the audio (red and white) cables to

the AUDIO INPUT R and L connectors on the rear of the monitor and

to the Audio Output connector on the DVR/Camera etc.

Connect power to the monitor and video source, and switch on. Using

the SOURCE button, press repeatedly until either ‘AV1’ or ‘AV2’

(depending on the connection used) is highlighted on the display at

the top of the monitor's screen, and press ‘+’ to select.

2. Connecting using HDMI

Connect one end of a HDMI cable (not supplied) to the HDMI

connector on the rear of the monitor, and the other to the HDMI out

connector on the PC/DVR. This connection will support both video and

audio transmission.

Connect power to the monitor and video source, and switch on. Using

the SOURCE button, press repeatedly until ‘HDMI’ is highlighted on

the display at the top of the monitor's screen, and press ‘+’ to select.

3. Connecting using VGA

Connect one end of a 15-pin monitor cable to the VGA connector on

the monitor and the other end to the PC/DVR. Note - if your PC/DVR

connector isn't 15-pin D-sub you may need an adapter to connect

with this cable.

If audio is required, connect one end of the 3.5 mm stereo audio cable

(sometimes referred to as 1/8" stereo jack) to the PC Audio IN

connector on the back of the monitor and the other end to the audio

output on the PC/DVR.

Connect power to the monitor and video source, and switch on. Using

the SOURCE button, press repeatedly until ‘VGA’ is highlighted on the

display at the top of the monitor's screen, and press ‘+’ to select.

Ensure all cable connections are secure - tighten all cable screws.

Movement and vibration may dislodge cables that are improperly

connected. Route all wiring and cabling away from any heat sources

and sharp metal edges to avoid damage.

6 7

BASIC ON-SCREEN DISPLAY SETUP

1. To access the OSD Menu press ‘MENU’.

2. Use the ‘＋’ or ‘－’ buttons to select the required menu item, then press

the ‘SOURCE’ button to select the Sub menu.

3. Continue to use the ‘SOURCE’ button to highlight the required field, then

press ‘＋’ or ‘－’ to adjust the setting.

4. Press the ‘MENU’ button to return to previous menu.

5. Press the ‘MENU’ button again to exit the OSD Menu completely.

6. N.B. To Lock or Unlock OSD settings after set up.

Press and hold "menu" button for 5 seconds.

The layout of the OSD will change depending on the input

that is selected.

AV - Input Configuration

1. Picture

CONTRAST: (0–100) Set the difference between the light and dark

areas of the picture.

BRIGHTNESS: (0–100) Set how bright the display is.

HUE: -50 to +50 (only available if NTSC)

SATURATION:(0-100)

SHARPNESS: (0-100)

COLOR TEMP: Select the color temperature. (Normal/Warm/Cool)

PICTURE MODE: Select defaults or save user setting. (

User/Standard/Soft/Vivid)

2. OSD

LANGUAGE: Select preferred language for OSD.

(En/Ch/Ger/Fr/Sp/It/Pt/Pl/Ru)

H-POSITION: (0-100) Set the horizontal position of the OSD.

V-POSITION: (0-100) Set the vertical position of the OSD.

DURATION: (5-60) Set seconds for the OSD to automatically

close.

BACKLIGHT: Set power level in use by backlight (HIGH/MID/LOW)

MEM-RECALL: Restore all factory defaults.

3. Function

HSTART: Set left alignment point of image.

HSIZE: Set horizontal size of image.

VSTART: Set lower alignment point of image.

VSIZE:Set vertical size of image.

SHARPNESS: (0-100)

COLOR TEMP: Select the color temperature. (Normal/Warm/Cool)

PICTURE MODE: Select defaults or save user setting. (

User/Standard/Soft/Vivid)

2. OSD

LANGUAGE: Select preferred language for OSD.

(En/Ch/Ger/Fr/Sp/It/Pt/Pl/Ru)

H-POSITION: (0-100) Set the horizontal position of the OSD.

V-POSITION: (0-100) Set the vertical position of the OSD.

DURATION: (5-60) Set seconds for the OSD to automatically

close.

BACKLIGHT: Set power level in use by backlight (HIGH/MID/LOW)

MEM-RECALL: Restore all factory defaults.

3. Function

HSTART: Set left alignment point of image.

HSIZE: Set horizontal size of image.

VSTART: Set lower alignment point of image.

VSIZE:Set vertical size of image.

8 9

4. Audio

BASS: (0-100)

TREBLE: (0-100)

BALANCE: (-50 to +50)

SOUND MODE: Set user or preset audio configurations.

(User/Standard/Movie/Music)

AVC: (ON/OFF) Automatic Volume Control

HDMI - Input Configuration

1. Picture

CONTRAST: (0–100) Set the difference between the light and dark

areas of the picture.

BRIGHTNESS: (0–100) Set how bright the display is.

COLOR TEMP: Select the color temperature Menu.

COLOR TEMP: Select color temperature preset.

USER - R: Set RED color level.

USER - G: Set GREEN color level.

USER - B: Set BLUE color level.

2. OSD

LANGUAGE: Select preferred language for OSD.

(En/Ch/Ger/Fr/Sp/It/Pt/Pl/Ru)

H-POSITION: (0-100) Set the horizontal position of the OSD.

V-POSITION: (0-100) Set the vertical position of the OSD.

DURATION: (5-60) Set seconds for the OSD to automatically

close.

BACKLIGHT: Set power level in use by backlight (HIGH/MID/LOW)

MEM-RECALL: Restore all factory defaults.

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Vitek Moniteur

Vitek

Vitek VTM-LCD174P Manuel utilisateur

Vitek

Vitek VTM-LCD351 Manuel utilisateur

Vitek

Vitek VTM-101C Manuel utilisateur

Vitek

Vitek VTM-LCD172 Manuel utilisateur

Vitek

Vitek VTM-LCD203P Manuel utilisateur

Vitek

Vitek VTM-LCD151 Manuel utilisateur

Vitek

Vitek VTM-LCD173P Manuel utilisateur

Vitek

Vitek VTM-14A Manuel du propriétaire

Vitek

Vitek VTM-TLM28P-4K Manuel utilisateur

Vitek

Vitek VT-SCT-U4 Manuel utilisateur

Vitek

Vitek VTM-LCD143 Manuel utilisateur

Vitek

Vitek VTM-LCD601 Manuel utilisateur

Vitek

Vitek ITMF24I141FHD Manuel utilisateur

Vitek

Vitek VTM-LCD220P Manuel utilisateur

Vitek

Vitek VTM-LCD202 Manuel utilisateur

Vitek

Vitek LS22AB2 Manuel utilisateur

Vitek

Vitek Transcendent VTM-TLM241 Manuel utilisateur

Vitek

Vitek VTM-LCD601 Manuel utilisateur

Vitek

Vitek VTM-LCD193 Manuel utilisateur

Vitek

Vitek VTM-LCD251 Manuel utilisateur

Vitek

Vitek VTM-17A Manuel du propriétaire

Vitek

Vitek VTM-LCD194M Manuel utilisateur

Vitek

Vitek VTM-143C Manuel utilisateur

Vitek

Vitek VTM-LCD174P Manuel utilisateur

Manuels Moniteur populaires d'autres marques

Linear Acoustic

Linear Acoustic LQ-1000 Manuel utilisateur

AOC

AOC I2579V Manuel utilisateur

Gateway

Gateway FPD1520 Manuel utilisateur

Furuno

Furuno Mu 120c Manuel utilisateur

Asus

Asus VB171D - 17" LCD Monitor Manuel utilisateur

Dell

Dell S2230MX Instructions d'utilisation

Philips

Philips 107C64 Manuel utilisateur

Dell

Dell S2409WFP Manuel utilisateur

EverFocus

EverFocus EN-7517E Manuel utilisateur

Panasonic

Panasonic TH152UX1 - 152" PLASMA TV Manuel utilisateur

Dell

Dell Precision 7680 Mode d’emploi

LG 50PM1M - - 50" Plasma Panel Manuel utilisateur

Bosch

Bosch DDU 9 Manuel utilisateur

Acer

Acer A231HL Manuel utilisateur

Philips

Philips 86BDL4152T Manuel utilisateur

NEC

NEC AccuSync LCD5V Manuel utilisateur

Emay

Emay SleepO2 Manuel utilisateur

IBM

IBM 6360 Instructions d'installation
