Vitek VTM-LED220P Manuel utilisateur

VTM-LED220P

VTM-LED240P

22” & 24” Professional LED Monitor

w/HDMI, VGA, and Dual Looping BNC’s

• 22” / 24” Wide Screen LED Display Panel

• HDMI, VGA, and Dual Looping BNC Composite Video Inputs & Stereo Audio Input

• Resolution up to 1920 x 1080 (1080P)

• Contrast Ratio of 10,000:1

• <5ms Response time

• 170° Horizontal Viewing Angle

• Picture In Picture (PIP) / POP (Picture On Picture) Display Options

• Top Panel Controls with included IR Remote Control

• VESA 100mm Standard Mounting

• 50,000 Hour Panel Life

VITEK

1DU00L7B-A.1

Introduction and Package Contents

Introduction

Congratulations on your VITEK LED Monitor purchase. You can expect

only the sharpest and most brilliant color images from this monitor.

Featuring OSD controls and built in speakers, you will find this monitor

both easy to use and a pleasure to view.

Please unpack your monitor with care, and verify that all the parts

listed below are included. If any parts are missing, please contact

your distributor immediately.

Please save the packing box for possible future return for service.

Package Contents

•LED Monitor – VTM-LED220P or VTM-LED240P

•12 Volt DC Power Adapter / Power cord

•HDMI Cable

•D-Sub 15-pin VGA connector Cable

•User's Guide

•IR Remote Controller

Hardware Installation

The following sections in this guide give clear, step-by-step

descriptions of the installation process and explain how to use the

monitor for optimum results.

Please pay attention to the Regulations and Warnings Section of this

user’s manual before setting up the display monitor. Failure to do so

may inadvertently result in personal injuries or product damage.

1DU00L7B-A.1

Specifications

VTM-LED220P

VTM-LED240P

Screen Size

21.5”

23.6”

Display Type

LED

Aspect Ratio

16:9

Resolution

1080P (1920x1080)

Response Time

<5ms

Contrast Ratio

10,000:1

Display Color

16.7 Million

Brightness

300cd/m²

Pixel Type

Active Matrix TFT

Pixel Pitch

0.24825 x 0.24825 mm

0.2715 x 0.2715 mm

Viewing Angle (H/V)

170° / 160°

Video System

NTSC/PAL

Video In/Out

2 BNC Inputs / 2 BNC Outputs (Looping)

VGA In

1 (15Pin D-Sub)

HDMI In

Audio Input

Stereo RCA & 1/8" PC

Built In speaker

Yes (1.5W x 2 )

PIP / POP

Analog / Digital

Remote

Optional

3D Comb Filter

YES

3D De-Interlace

YES

Noise Reduction

YES

Multi-Language

English, Spanish, German, French, Italian, Russia, Turkish, Japanese, Polish

Stand Tilt

0°~15°

Vesa Mount Size

100mm x 100mm

Power Adapter

12VDC (AC100/240 [50/60])

Power Consumption

30W Max

35W Max

Certifications

UL, FCC-DOC, CE, ROHS

Operating

Temperature

32° to 104° F (0° to 40° C)

Operating Humidity

10% to 90% relative, non-condensing

Dimensions (w/Stand)

20.63” x 14.76” x 6.7” (524 x 375 x

170mm)

22.83” x 16.02” x 6.7” (580 x 407 x

170mm)

Weight

7.93 lbs (3.6Kgs)

9.7 lbs (4.4Kgs)

1DU00L7B-A.1

VGA Timing

ITEM

RESOLUTION

H FREQ.(KHZ)

V FREQ.(HZ)

640x400@70

31.460

70.080

640x480@60

31.469

59.940

640x480@72

37.861

72.809

640x480@75

37.500

75.000

720x400@70

31.460

70.080

800x600@56

35.156

56.250

800x600@60

37.879

60.317

800x600@72

48.077

72.188

800x600@75

46.875

75.000

1024x768@60

48.363

60.004

1024x768@70

56.476

70.069

1024x768@75

60.023

75.029

1280x1024@60

63.981

60.020

1280x1024@75

79.976

75.025

1920x1080@60

67.500

60.000

Note:

1. Please note, selecting frequencies outside these ranges may result in an abnormal

Images.

2. The resolution will be showed on the screen while VGA mode be selected.

For example:

1DU00L7B-A.1

IN/OUT Panel Diagram/Descriptions:

1DU00L7B-A.1

Monitor and OSD Control

The VITEK VTM-LED220P and VTM-LED240P LED color monitors have a

simple control layout for control and OSD (On Screen Display)

functions. The table below summarizes the control keys and their

related functions.

Key Feature

KEYS

FUNCTION DESCRIPTION

Power

Toggle the display between standby mode and on.

(Press “Power” and wait 6 sec., monitor will be activated for

display )

Select

Switch mode ”AV1”, ”AV2”, “VGA”, “HDMI” - Toggle

using +/-

Enter the main menu of the on-screen display (OSD).

Select

Select to Toggle between functions to be adjusted

Increase the value of the chosen function.

－

Decrease the value of the chosen function.

Vol +

Increase the value of volume.

Vol -

Decrease the value of volume.

Control Diagram/Descriptions

1DU00L7B-A.1

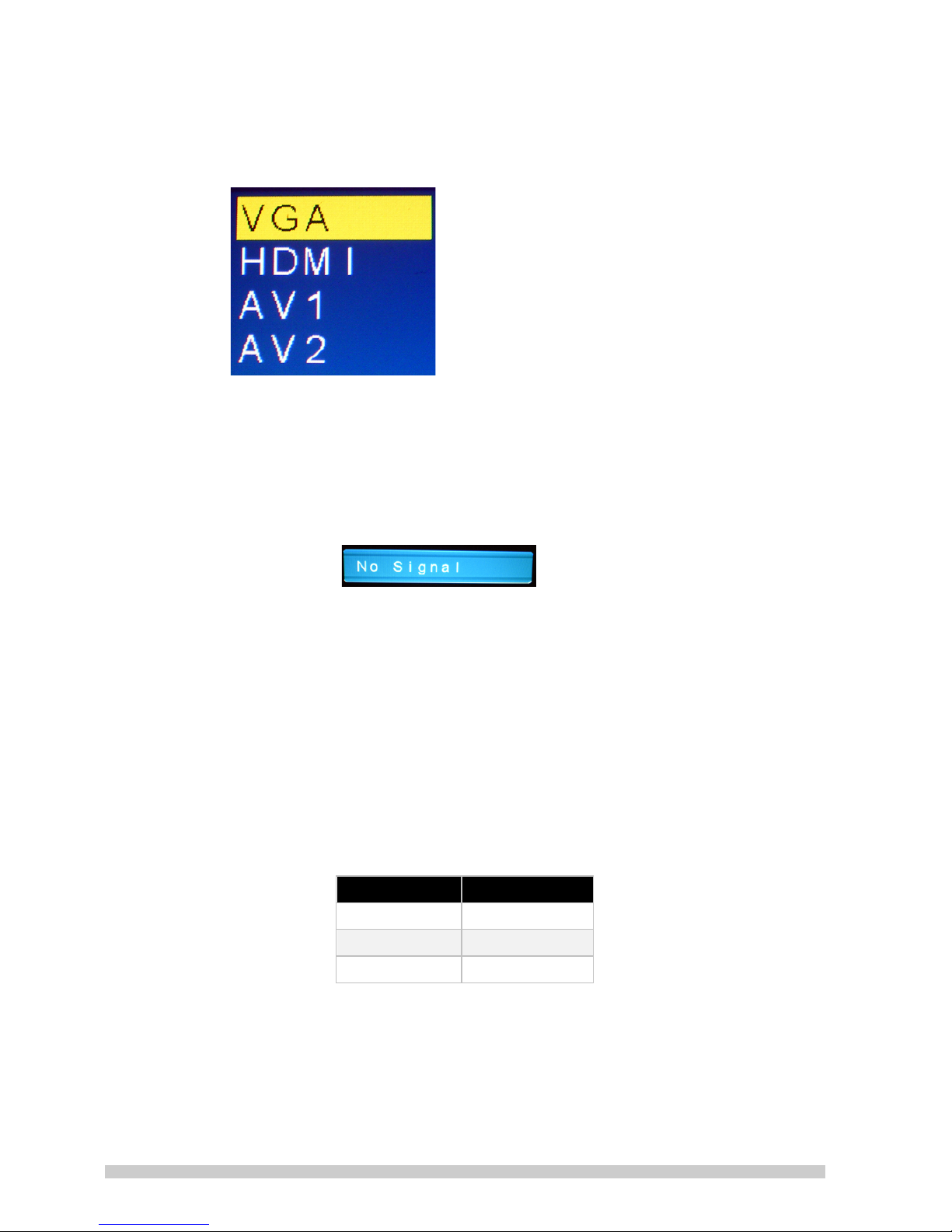

Source Select

Press the Select button to bring up source selection

Use the －OR ＋keys to advance to the proper selection and press

Select button to confirm the setting.

Note:

The message will be displayed on the

screen if there is no VGA signal detected in VGA mode, and the power will

shut off automatically after 10 seconds. Please press the

power button again to restart the monitor.

LED Status Display

The following table describes the various power states of the LED

monitor as represented by different LED colors.

Note: The LED will also be red if AV1, AV2 or HDMI is selected and there is no video

signal detected.

Power State

LED Color

Green

Standby

Red

No power

Blank

1DU00L7B-A.1

Picture Mode

1. Picture Mode

Press (－) OR (＋)to select the picture mode

“User, Standard, Movie, Vivid ”

2. Contrast

This is used to set the brightness of the screen.

Press (－) OR (＋)to adjust the parameter.

3. Brightness

This is used to adjust the image contrast.

Press (－) OR (＋)to adjust the parameter.

4. Tint

This is used to adjust the image Tint.

Press (－) OR (＋)to adjust the parameter.

5. Saturation

This is used to adjust the image saturation.

Press (－) OR (＋)to adjust the parameter.

6. Sharpness

Adjust the sharpness. It makes the image become soft.

Press (－) OR (＋)to adjust the parameter.

7. Color Temp.

Press (－) OR (＋)to adjust the color tones.

“ Cool , Warm , Normal “

8. DNR

Press (－) OR (＋)to adjust the noise reduction.

“High , Low, Off, Mid “

Note: VGA Mode －Contrast, Brightness, Color Temp., Auto Adjust.

Sound Mode

1. Volume

Press (－) OR (＋)to adjust volume level.

2. Mute

Press (－) OR (＋)to select sound “ Off, On ”.

OSD Control Function

1DU00L7B-A.1

Setting Mode

VGA Mode

1. Language

Press (－) OR (＋)to select language.

2. H. Position

Move the display picture left or right.

Press (－) OR (＋)to adjust the parameter.

3. H Zoom

Adjust the H-size of the display picture

Press (－) OR (＋)to adjust the parameter.

4. V Position

Move the display picture up or down.

Press (－) OR (＋)to adjust the parameter.

5. V Zoom

Adjust the V-size of the display picture

Press (－) OR (＋)to adjust the parameter.

6. Clock

Press (－) OR (＋)to adjust the parameter.

7. Phase

Press (－) OR (＋) to adjust the parameter.

8. Scale Mode

Adjust the V-size of the display picture

Press (－) OR (＋)to adjust “ Full, 16:9 ”.

9. Reset

Recall Default value.

Note: “ Clock” and “Phase ” setting only in VGA Mode

AV/HDMI Mode

1DU00L7B-A.1

PIP/POP Setup Mode

1. Multi Window

Press (－) OR (＋)to select “PIP, POP, Off ” mode.

2. Sub Source

Press (－) OR (＋)to select “AV, VGA” mode.

3. Size

Adjust the size of Sub Source window.

Press (－) OR (＋)to select “Large, Small ”

4. Position

Move the position of Sub Source window.

Press (－) OR (＋)to select “U L, B L, B R, U R” position.

5. Border Color

Choose the border color of Sub Source window.

Press (－) OR (＋)to select “Black, Blue” color.

6. Sound Source

Press (－) OR (＋)to select “Main, Sub” mode.

7. Swap

Press S/Select to Swap the Source of Main and Sub.

Note:

1. AV1 and AV2 cannot be displayed at the same time on the monitor in PIP / POP mode,

nor can HDMI and VGA be displayed together in PIP/POP mode. The Source must

always be one composite Video and the Sub- source may be either VGA or HDMI.

2. If POP mode is selected both images are scaled to fit the screen.

PIP

POP
