TM-RX Receiver

User Manual

Rugged, Battery Powered

Mesh Video Receiver

TM-RX Receiver May 2021

Visual Engineering

Video solutions. Integrated

visualengineering.co.uk Page 2

Document History . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Warranty and Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Safe Operating Procedure. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

User Guide. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

TM-RX Kit. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

TM-RX Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

The Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Battery Insertion . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Start Up . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

TM-RX Receiver Menus . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Viewer App . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Menu Overlay . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Full Screen video . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Cameras App. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Edit Camera Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Add a Camera . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Change Camera Name . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Change Stream URL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Select Transport Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Adjust Cache Size . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

GPS App . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Radio App . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Presets . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Settings App . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Cursor On Target . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Home Screen. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Recording. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Player App . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Video Export - DEMS 360. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Security App . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Info App . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Download Recordings - Web Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

Upload User Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

Export User Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

Upload Camera Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Export Camera Settings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Battery Charging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Table of Contents

TM-RX Receiver May 2021

Visual Engineering

Video solutions. Integrated

visualengineering.co.uk Page 3

Maintainer Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Activating the Web Interface. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Login Prompt . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Basic RF Setup. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

Switching Radio Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

Preset Tab - Transmitter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

Preset Tab - Encryption . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

Preset Tab - Mesh. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

Status Overview Settings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

Status Overview Signal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

Status Tab - Spectra . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

Status Tab - Maps. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

GPS Map Downloader. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

Select Area. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

Download . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

Save . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

Firmware Update. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

File Uploader . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

JSON Example Files . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43

 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44

Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45

TM-RX Receiver May 2021

Visual Engineering

Video solutions. Integrated

visualengineering.co.uk Page 4

Document History

Warranty and Support

All Visual Engineering products are supplied as standard with a 12 month ‘Return to Base’ warranty.

Please note: Any unauthorised product disassembly, modication or the removal of tamper

proof labels will void the warranty.

In the event of a suspected product failure, users should contact the Visual Engineering support

team on the telephone number +44 (0) 1206 211842 or please email us at:

[email protected]

Should the fault persist or if the support team are unable to resolve the fault, it may be necessary

to return the equipment.

Equipment should only be returned using the RMA (Returns Management Authorisation) process.

Users should contact the support team on the above number and request an RMA number.

Version Date Change Summary Author

v1.00 12/12/2017  RE

v1.01 29/03/2019 Product Updates RE

v1.02 13/08/2020 Feature Updates RE

v1.03 07/08/2020 Adding a Custom Camera RE

v1.04 15/03/2021  RE

v1.05 30/03/2021 Orientation Sensor RE

v1.06 04/05/2021 Firmware Update Procedure RE

Safe Operating Procedure

• The equipment should be operated within the environmental limits as detailed in the

 section of this user manual.

• Only authorised and trained personnel should operate the equipment.

• There are no functions that require the user to gain access to the interior.

• Changes to the radio settings as described in the Maintainer Guide section should only be

carried out by personnel that have had the appropriate training.

TM-RX Receiver May 2021

Visual Engineering

Video solutions. Integrated

visualengineering.co.uk Page 5

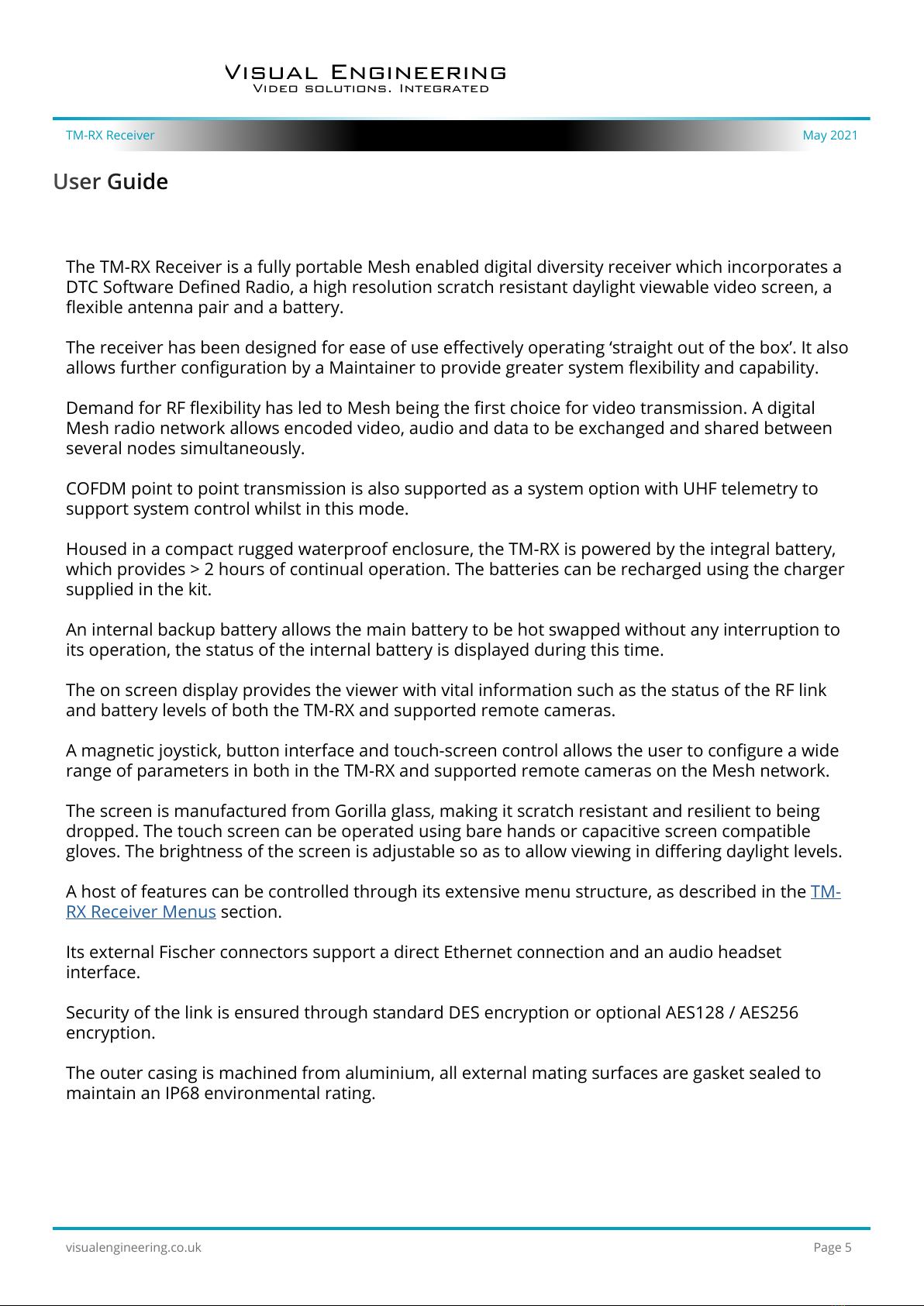

The TM-RX Receiver is a fully portable Mesh enabled digital diversity receiver which incorporates a











Mesh radio network allows encoded video, audio and data to be exchanged and shared between

several nodes simultaneously.

COFDM point to point transmission is also supported as a system option with UHF telemetry to

support system control whilst in this mode.

Housed in a compact rugged waterproof enclosure, the TM-RX is powered by the integral battery,

which provides > 2 hours of continual operation. The batteries can be recharged using the charger

supplied in the kit.

An internal backup battery allows the main battery to be hot swapped without any interruption to

its operation, the status of the internal battery is displayed during this time.

The on screen display provides the viewer with vital information such as the status of the RF link

and battery levels of both the TM-RX and supported remote cameras.



range of parameters in both in the TM-RX and supported remote cameras on the Mesh network.

The screen is manufactured from Gorilla glass, making it scratch resistant and resilient to being

dropped. The touch screen can be operated using bare hands or capacitive screen compatible



A host of features can be controlled through its extensive menu structure, as described in the TM-

RX Receiver Menus section.

Its external Fischer connectors support a direct Ethernet connection and an audio headset

interface.

Security of the link is ensured through standard DES encryption or optional AES128 / AES256

encryption.

The outer casing is machined from aluminium, all external mating surfaces are gasket sealed to

maintain an IP68 environmental rating.

User Guide

Introduction

TM-RX Receiver May 2021

Visual Engineering

Video solutions. Integrated

visualengineering.co.uk Page 6



In addition to the TM-RX Receiver the kit also includes all necessary antennas, connecting leads,

batteries, a battery charger and a mains power adaptor.

The kit contents are shown here and listed below, along with their part numbers.

TM-RX Kit

Part Description Part Number

TM-RX Receiver & Antennas Frequency Band Dependant

Li-Ion Batteries 110-8401

Dual Li-Ion Battery Charger 110-8709

 110-0077

AC/DC Power Supply with Adaptors 110-8661

TM-RX Receiver May 2021

Visual Engineering

Video solutions. Integrated

visualengineering.co.uk Page 7

Power/Home

Button

Joystick

Control Buttons

HD Display

Battery Hatch

Telemetry

Antenna Position

Ethernet

Control

Ext Power &

Audio Headset

GPS Antenna

Mounting

Strap Locators

Ambient Light

Detector

Diversity Flexible

Antennas

TM-RX Features

TM-RX Receiver May 2021

Visual Engineering

Video solutions. Integrated

visualengineering.co.uk Page 8

The battery is the VE SLI-50 with a 48Wh capacity, which

is used to power the TM-RX. It can be used in either

orientation to simplify battery changes.

The battery incorporates a gas gauge circuit which

accurately measures the power in and out of the cell,

providing an accurate time remaining indicator, both

under charge and discharge conditions.

To check the power remaining in the battery simply press

the indicator button to get the power level to display on

the LED power level meter for several seconds.

The Battery

Indicator Button

LED Power

Level Meter

Battery Insertion

Open the battery hatch by releasing the locking

mechanism as indicated in the image on the

right.

Battery

Insertion

Release Battery Latch

Insert the battery into the open battery hatch

with the LED indicator facing outwards, as

shown.

It is possible to insert the battery in either

orientation, with the indicator button on the

right or the left.

Push the battery home, close the battery hatch

door and secure the battery latch.

The battery being inserted on the right is

showing its remaining charge on its power level

meter as the indicator button has recently been

pressed.

Note: An extra internal backup battery allows the main battery to be hot swapped without any

interruption to its operation. The internal battery will support unit power for 15 seconds to allow

the battery swap to be completed.

TM-RX Receiver May 2021

Visual Engineering

Video solutions. Integrated

visualengineering.co.uk Page 9

A long press on

the Power/Home

Button will start the

boot up procedure.

The TM-RX unit is ready to use after booting up. The unit will boot up into the lowest light level, the

user can increase this using the ‘+’ button on the unit.

Powering on in sub-zero temperatures

If the TM-RX is turned on in sub-zero temperatures the boot sequence will include a pre-heat cycle,



to indicate the internal heaters are operational. Once the required internal temperature has been

reached the unit will boot as normal.

The pre-heat time will vary depending on the internal temperature and can vary from a few seconds

to several minutes in very extreme conditions.

Start Up

TM-RX Receiver May 2021

Visual Engineering

Video solutions. Integrated

visualengineering.co.uk Page 10

The TM-RX will boot directly

into the Viewer App screen,

which shows the video feed

from the remote camera.

If a remote camera is not

powered on, or if the video

stream is lost due to a loss of

RF signal the TM-RX will show

a black screen on the Viewer

App.

Viewer App

TM-RX Receiver Menus

Pressing the Power/Home button from any screen view takes the user to the Home Screen, which

displays the various Apps including: Viewer App, Cameras App, Radio App and the Settings App.

Main icons can be selected using the touch-screen, however the tabs associated to the control

buttons are not touch sensitive.

Other Apps and camera functions can be controlled via menus which are accessed using the control

buttons on the side, which include:

• +/- Mode - Allows the user to select the function of the + and - hard keys on the TM-RX. The

available options of Zoom, Camera and Brightness are cycled through with each press.

• Cameras - A shortcut to the Cameras App, where all available cameras are displayed.

• Snapshot - Grabs a still image of the video on the screen.

• GPS - A shortcut to the GPS App which displays the GPS tracking of the TM-RX and any

paired camera that supports GPS positioning.

Overlay

• Menu - Allows access to the following menu options:

• Zoom - Operates the zoom on the paired camera.

• Camera - Change which camera is being viewed and controlled.

• Brightness - Adjusts the brightness of the TM-RX display.

Table des matières

Autres manuels visual engineering Appareil photo numérique

visual engineering

visual engineering MFR-HD Manuel utilisateur

Manuels Appareil photo numérique populaires d'autres marques

Mercury

Mercury 350K Manuel utilisateur

Pentax

Pentax Optio LS 465 Manuel utilisateur

Sanyo

Sanyo VPC-S1085 Manuel utilisateur

GE SMART A1255 Manuel utilisateur

Point Grey

Point Grey Gazelle Manuel utilisateur

Nikon

Nikon COOLPIX A Manuel utilisateur

Pentax

Pentax P-5 Manuel utilisateur

BlazeVideo

BlazeVideo A280 Manuel utilisateur

Sony

Sony MCA-20 Manuel utilisateur

Sony

Sony Alpha DSLR-A290 Manuel utilisateur

ATIK Cameras

ATIK Cameras One Manuel utilisateur

CohuHD Costar

CohuHD Costar 3930 Series Manuel utilisateur

Leica

Leica M10-R Manuel utilisateur

FujiFilm

FujiFilm FinePix A700 Manuel utilisateur

Lorex

Lorex LNZ81P25 Series Manuel utilisateur

GE J1470S Manuel utilisateur

Sony

Sony A6700 Guide de l'utilisateur

Canon

Canon EOS ELAN7 Manuel utilisateur

visual engineering DTC TM-RX Manuel utilisateur

Manuels Appareil photo numérique populaires d'autres marques
