Vista VIP Series Manuel utilisateur
VIP Series Eyeball, Fixed Dome & 360 Range Quick Guide Ver 1.4 2023-01-19
IP Eyeball, Fixed Dome & Fisheye
1
Before You Begin
Please read this guide before installing or operating the product. You
must have knowledge of CCTV, IT and electrical wiring and products.
Technical Support
If you still have questions after referring to the guide, or require more
information, please contact Vista Technical Support or use the QR code.
Vista Technical Support - +44 (0) 118 912 5125
Norbain SD, Inspired, Easthampstead
Road, Bracknell, Berkshire RG12 1YQ
* WARNING: Improper use can cause severe bodily injury or
equipment damage.
This guide is intended for multiple product models. Illustrations and
descriptions, etc may vary from actual appearance.
Eyeball
VIP-T5MP27V135IRM
VIP-T5MP28IRM
VIP-T5MP28IRWLM
VIP-T5MP40IRM
VIP-T5MP40IRWLM
VIP-T8MP28IRM
VIP-T8MP28IRWLM
VIP-T8MP28V12IRM
VIP-T8MP40IRWLM
Fixed
Dome
VIP-D2MP27V135IRVRMAUAL
VIP-D2MP28IRVRAUAL
VIP-D5MP27V135IRVRMAUAL
VIP-D5MP28IRVRAUAL
VIP-D8MP28V12IRVRMAUAL
3600
VIP-F5MP14IRMAUAL
2
1. Packing List
Please contact Norbain if any items are missing or damaged and note
contents will vary according to each camera model number.
➢Camera
➢Waterproofing items*1
➢Fixing Screws*2
➢Template*3
➢This guide
*1Including waterproofing components such as tape and sealing grommets.
*2Fixing screws and\or hex key according to camera model and requirement
*3Drilling template
2. Safety & Maintenance Instructions
•Use only correctly rated PSU\PoE delivery devices meeting
requirements shown in section titled “Powering Up”.
•Keep lens cover in place until installation completed - prevent damage.
•Ensure Ethernet/power cable lengths are within specification for
correct operation to avoid power or data loss.
•Ensure wall, ceiling and fixings are adequate to support the weight of
the camera and any bracket.
•Remove dust from the lens gently using oil-free brush or blower.
•Do not use organic solvents (benzene\alcohol) to clean bubbles etc.
•Where waterproofing accessories are provided, please ensure they
are fitted and in the correct order. Also fit weather plugs to unused DC
power sockets (below)
DC interface
Plug
3
3. Drilling and Mounting - All Cameras
Common to all cameras is the template and drilling procedure.
1. Hold supplied template to ceiling or wall and drill 6mm to 6.5mm
diameter holes to 30-mm depth.
2. Drill hole for fly lead cable to pass through (1)
3. Insert plastic anchors (2).
Now refer to the section for your specific camera model number.
VIP-T5MP27V135IRM & VIP-T8MP28V12IRM
Appearance and cable identification may vary between each model.
1. Camera base
2. Housing
3. Mic
4. Lens
5. Power interface(12 VDC)
6. Ethernet interface
IP
Network
1
2
3
5
6
4
2
1
4
1. Loosen lock screw on camera and remove housing by turning to the
position (1) shown below.
2. Connect cables and secure camera base to the wall\ceiling
3. Align housing as shown below-right to engage it correctly, then
rotate clock/counter clockwise at least 8 degrees to lock it.
4. Adjust camera direction and elevation as required, ensuring shroud
does not obstruct view or LED illumination, then tighten lock screw
Note: Do not adjust camera direction by force with screw fully tightened!
Loosen the screw first.
Now refer to section titled 4. Power-up and Access Camera
1
Attach bottom ring to ceiling with
taping screws
Connect cable and protect it
with waterproof tape
(Optional) insert a
micro SD card
5
VIP-T5MP28IRM, VIP-T5MP40IRM
VIP-T5MP28IRWLM, VIP-T5MP40IRWLM
VIP-T8MP28IRWLM, VIP-T8MP28IRM,
VIP-T8MP40IRWLM
Appearance and cable identification may vary between each model.
Type A Type B
1. Camera base
2. Housing
3. Mic*
4. Lens
5. Power interface(12 VDC)
6. Ethernet interface
7. (Optional) Alarm*
8. (Optional) Audio*
*Not included for VIP-T5MP28IRM, VIP-T5MP40IRM
(Optional) Insert Micro SD Card
For cameras supporting Micro SD, insert card after
opening the bottom cover of camera. Do not hot
plug SD cards - power-down first!
1
2
3 4
5
6
7
8
1
2
3
5
6
7
8
4
6
Type A
Type B
1.Loosen locking screw and
remove housing by turning to
position shown below (1).
1. Remove housing from base by
aligning marks (below).
2. Connect cables and screw
camera base to wall\ceiling. Use
waterproof tape.
2. Connect cables and screw
camera base to wall\ceiling. Use
waterproof tape.
3. Mount the housing, adjust
position and elevation, then
tighten lock screw.
3. Mount housing –refer to
install marks below!
Now refer to section titled 5. Power-up and Access Camera
1
Install mark
Install mark
slot
Install mark
Install mark
7
VIP-D2MP27V135IRVRMAUAL
VIP-D5MP27V135IRVRMAUAL
VIP-D8MP28V12IRVRMAUAL
Appearance and cable identification may vary between each model.
1. Audio input/output/GND
2. Alarm input (IN,GND) Alarm output(N,P)
3. Power interface
4. Ethernet interface
(Optional) Insert Micro SD Card
Insert SD card into
slot for local storage
function. Hot
plugging is not
recommended.
Power off first!
Safety wire
Transparent
dome cover
Micro SD
card slot
Reset
button
34
2
1
Micro SD
Reset CVBS
8
1. Fix camera to wall\ceiling and connect all
cables required (right).
2. Adjust position and elevation of camera for
the required coverage - tighten screws
(below).
3. Mount transparent dome cover (below).
Now refer to section titled 4. Power-up and Access Camera
Lens base
Rotate the lens base
horizontally.
1
Fastening screw
2Loosen the fastening
screws and rotate the
lens vertically.
Lens
Rotate the lens horizontally.
3
Align the screw holes
in the base, and
tighten the three torx
screws on the edge of
the transparent dome
cover to fix it.
9

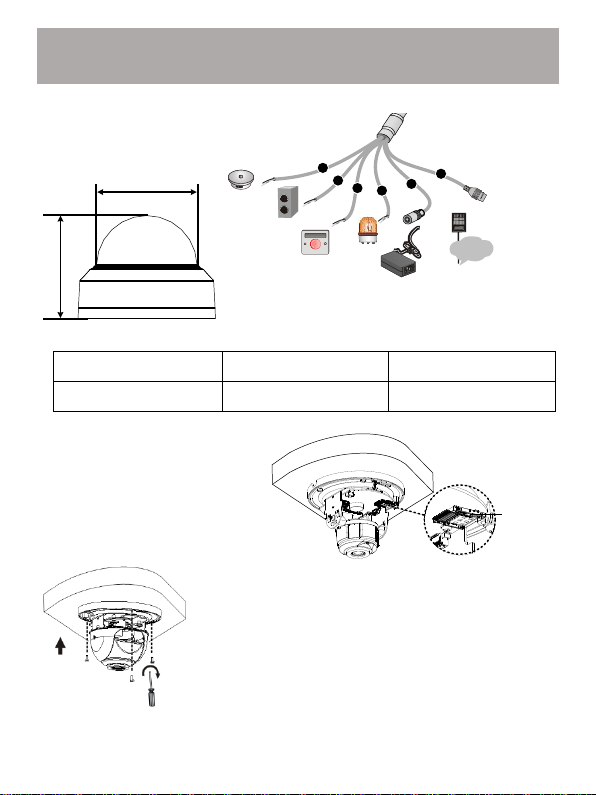

VIP-D2MP28IRVRAUAL
VIP-D5MP28IRVRAUAL
1.Audio\Mic In
2.Audio Out
3.Alarm In
4.Alarm Out
5.Power (12 VDC)
6.Ethernet interface
(Optional) Insert Micro SD
Card
Insert SD card into slot (right)
for local storage function. Hot
plugging not recommended.
Power off first!
1. Fix camera base to wall/ceiling. Pass through
and connect all cables.
79.4mm
(3.1'')
81.0mm
(3.1'')
Audio input
(Sound pickup)
Audio output
(Outdoor sound
box)
Alarm input
(Voice
activated
switch)
Alarm
output
(Alarm
indicator) Power
adapter
Network access
device
connected
through copper
interface
6
12345
IP
Network
Mi cr o SD car d
sl ot
