Vista Vizion Series Manuel utilisateur
Vizion DVR & NVR Recorder Range Quick Guide Ver 1.0 2022-11
DVR & NVR NDAA Recorder Range
1
Before You Begin
Please read this guide before installing or operating the product. You
must have knowledge of CCTV, IT and electrical wiring and products.
Technical Support
If you still have questions after referring to the guide, or require more
information, please contact Vista Technical Support or use the QR code.
Vista Technical Support +44 (0) 118 912 5125
Norbain SD, Inspired, Easthampstead Road,
Bracknell, Berkshire RG12 1YQ
* WARNING: Improper use can cause severe bodily injury or
equipment damage.
This guide is intended for multiple product models. Illustrations and
descriptions, etc may vary from actual appearance.
DVR
VA-DVR0405MP
VA-DVR0805MP
VA-DVR1605MP
NVR
VIP-NVR0408MP
VIP-NVR0808MP
VIP-NVR1608MP
VIP-NVR1612MP
VIP-NVR3212MP
2
1. Packing List
Please contact Norbain if any items are missing or damaged and note
contents will vary according to each camera model number.
➢Recorder
➢USB Mouse
➢UK mains lead or
PSU*1
➢Rack ears*1
➢Single HDD Data and
Power Lead *2
➢Alarm block
connector
➢This guide
*1Dependant on chassis type.
*2Dependant if recorder supplied without HDDs being fitted
2. Safety & Maintenance Instructions
•Use only correctly rated PSUs supplied with the device.
•Do not use this apparatus near water
•Do not install near any heat sources such as radiators, stoves, or
other apparatus (including amplifiers) that product heat.
•Do not block any ventilation openings.
•Protect the power cord from being walked on or pinched.
•Only use attachments/accessories specified by the manufacturer.
•Unplug this apparatus during lightning storms.
•Refer all servicing to qualified service personnel only. Servicing is
required when the apparatus has been damaged in any way, such
as power-supply cord or plug is damaged, liquid spillage etc.
CAUTION - THESE SERVICING INSTRUCTIONS ARE FOR USE
BY QUALIFIED SERVICE PERSONNEL ONLY. TO REDUCE
THE RISK OF ELECTRIC SHOCK DO NOT PERFORM ANY
SERVICING OTHER THAN THAT CONTAINED IN THE
OPERATING INSTRUCTIONS UNLESS YOU ARE QUALIFIED
TO DO SO.
3

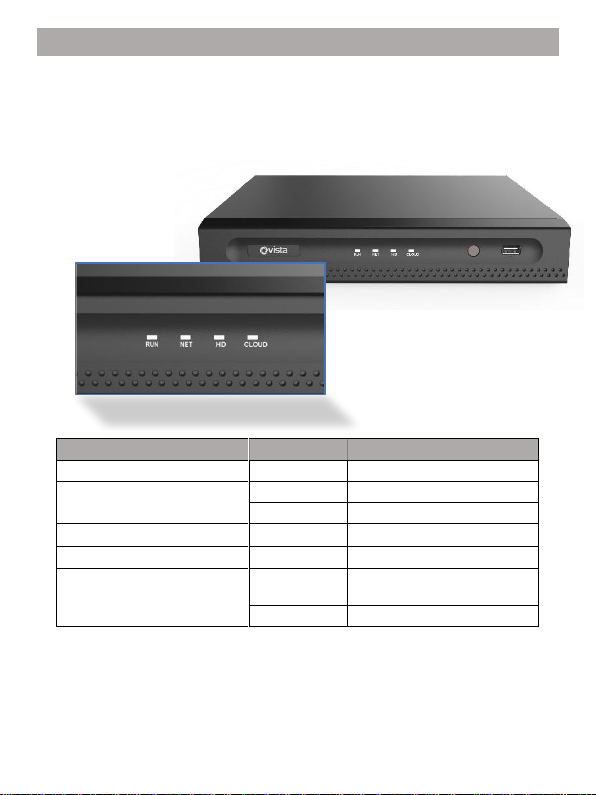

3. Indicators
Refer to the below image and accompanying table for a description of
the front mounted LED indicators*.
*VIP-NVR04 and VA-DVR04 used as an example.
LED
Status
Description
PWR(Power)
Steady on
Connected to power.
RUN(Operation)
Steady on
Normal.
Blinking
Starting up.
NET(Network)
Steady on
Connected to network.
CLOUD
Steady on
Connected to cloud.
HD(Hard disk)
Steady on
No disk; or disk is
abnormal.
Blinking
Reading or writing data.
4

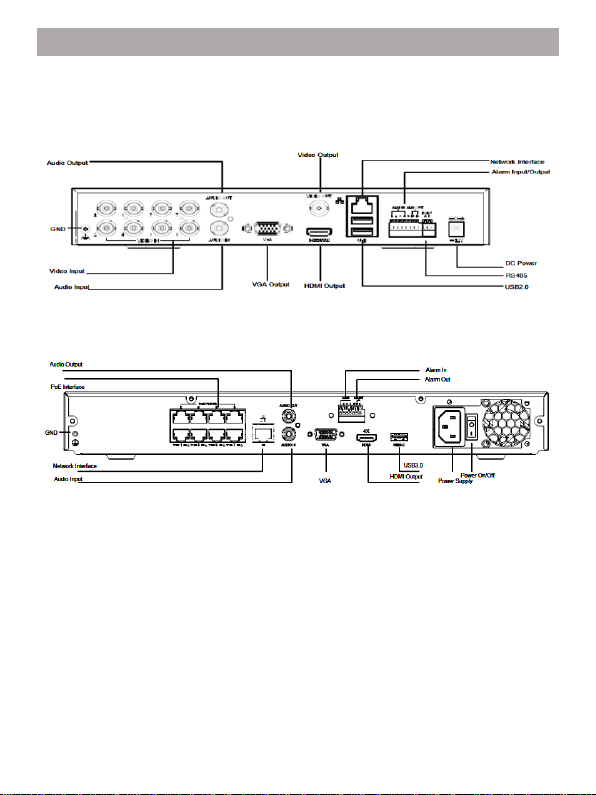

4. Interfaces
Interface identification is provided below via three example recorders.
Your actual unit may therefore vary slightly.
VA-DVR0805MP
VIP-NVR0808MP
5
VIP-NVR3212MP
5. Disk Installation
Your recorder will normally be specified and provided with the required
HDD storage already installed. However, if adding your own additional
HDDs, please refer to the below section. Images are provided as an
illustration and reference only, as your actual device may vary.
Preparation
•You will require a 1# or 2# Philips screwdriver and pair of
antistatic gloves or a wrist strap.
•Disconnect power before installation.
6
Insert two rear screws only & screw-in
only halfway!

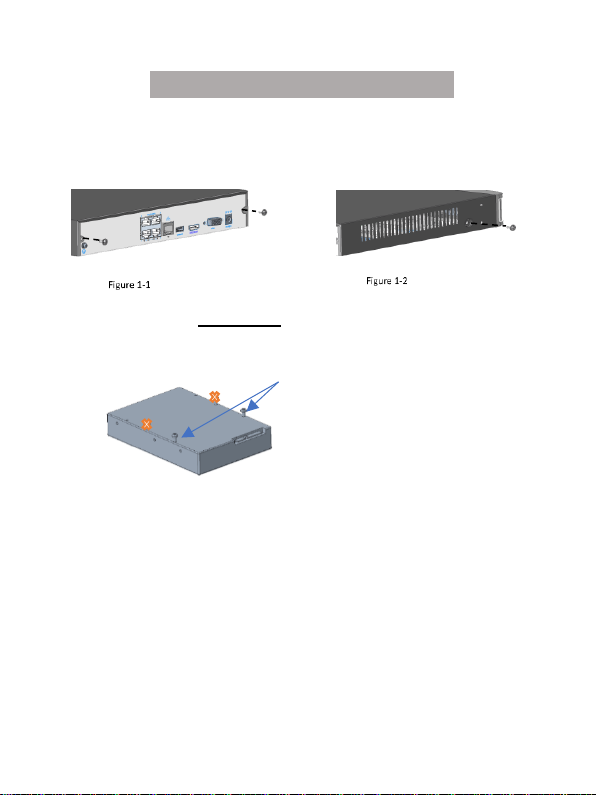

1 and 2 HDD Chassis
1. Loosen the screws on the rear and side panel (below) then remove
the upper cover.
Rear Panel
Side Panel
2. Insert just the two rear screws in the HDD - those closest to the
power and data connectors as indicated below. Screw them in only
halfway!
3. Offer the HDD into the base of the chassis and engage the two
screwheads into the two keyholes in the bottom of the chassis –
refer to the image of the underside of chassis below.

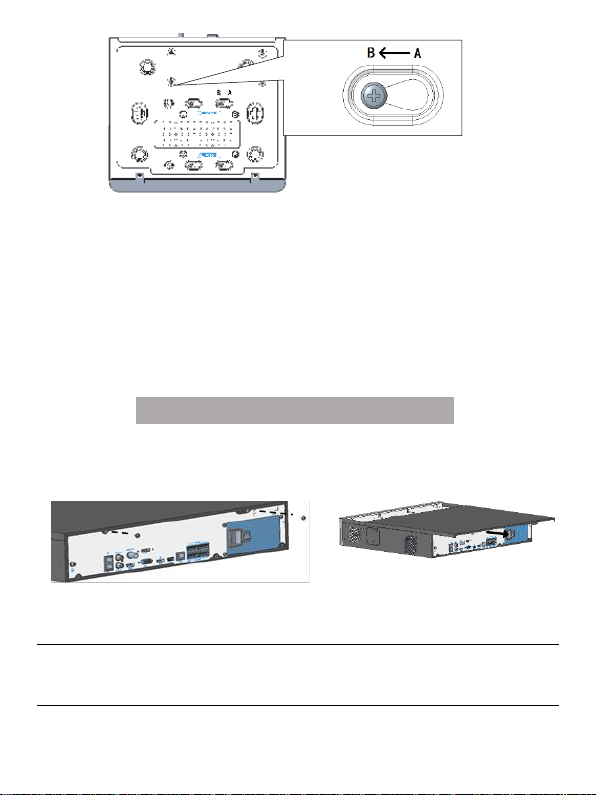

4. Slide the disk intoplace so the two screwheads move from position
A to the lock position B in the keyholes (below). Now insert and
tighten the two remaining screws into the HDD from the underside of
the chassis and finally tighten the two screws in the keyhole position.
7
Underside of 2 HDD Chassis
5. Connect the power and data cables to the new HDD.
6. Replace the top cover and tighten the screws.
This completes this part of the procedure. Format the new HDDs once
logged into the recorder.

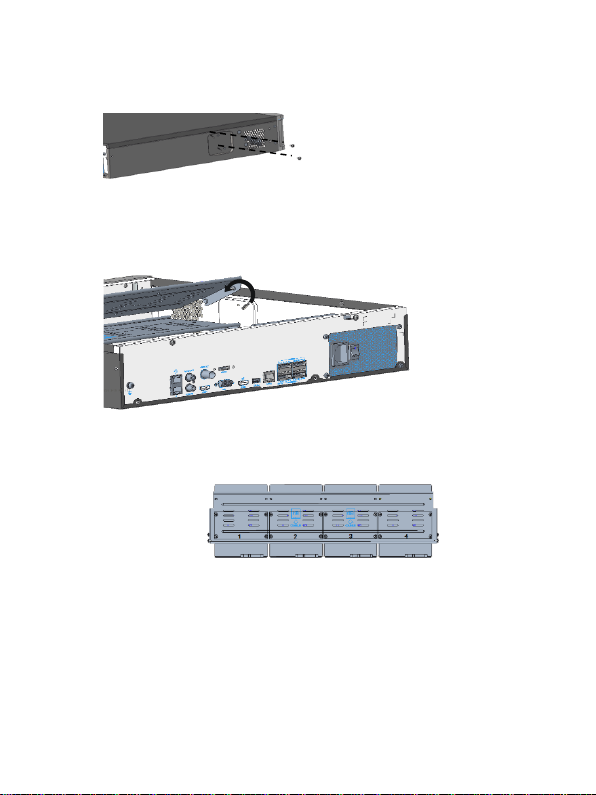

4 HDD Chassis
1. Loosen the screws on the upper cover and slid it rearwards and
remove (below).
Note: The actual installation procedure for HDDs differs according
to your chassis having either (1.) mounting plate or (2.) disk
bracket. Please refer and go to the relevant section.
8
Mounting Plate HDD Install
1. Loosen the screws, of the chosen or next free mounting plate, on the
side panels.
2. Turn the upper mounting plate in the direction shown, then remove
the plate.
3. Secure the disks on the mounting plate. Fix the screws according to
the figure below and avoid damaging the disk in the process.

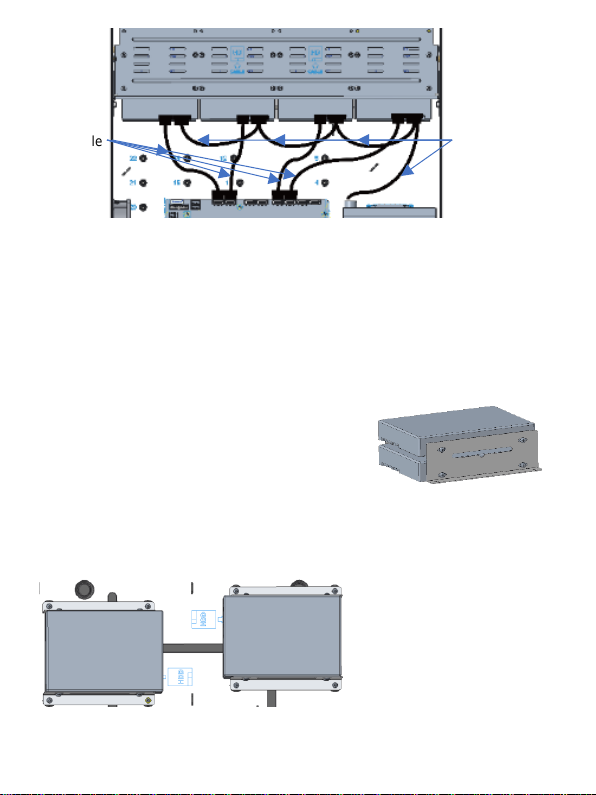

4. Put the mounting plate back in place. Connect power and data
cables as shown below. Repeat the steps to connect all the disks.
9
Power cable
Data cable
5. Refit cover and secure it as well as the mounting plate screws.
This completes this part of the procedure. Format the new HDDs once
logged into the recorder.
Disk Bracket HDD Install
1. Fasten HDDs to the brackets (right).
2. Fasten the brackets, with the new attached HDDs, to the base of the
chassis (below).
