VisionTek VT2600 Manuel utilisateur
MULTI DISPLAY MST DOCK
VT2600
USER MANUAL
1
TABLE OF CONTENTS
SAFETY INSTRUCTIONS......................................................
INTRODUCTION..................................................................
FEATURES............................................................................
CONTENTS..........................................................................
SYSTEM REQUIREMENTS....................................................
DOCKING STATION PORTS................................................
DOCKING STATION SETUP.................................................
SUPPORTED RESOLUTIONS...............................................
DRIVER INSTALLATION (Windows)....................................
WINDOWS SETUP...............................................................
DRIVER INSTALLATION (macOS) ......................................
DISPLAYLINK MANAGER CONFIGURATION (macOS)......
DISPLAY SETTINGS (macOS).............................................
NOTICE...............................................................................
WARRANTY / SUPPORT.....................................................
2
3
3
3
4
5
7
12
13
15
17
20
23
25
26
2
SAFETY INSTRUCTIONS
COPYRIGHT STATEMENT
DISCLAIMER
WEEE DIRECTIVE & PRODUCT DISPOSAL
Always read the safety instructions carefully.
Keep the User Manual for future reference.
Keep this equipment away from humidity.
If any of the following situations arise, have the equipment checked by a service technician immediately:
• The equipment has been exposed to moisture.
• The equipment has obvious signs of breakage.
• The equipment has not been working well or you cannot get it to function according to this manual.
No part of this publication may be reproduced in any form by any means without prior written permission.
All trademarks and brand names mentioned herein are trademarks or registered trademarks of their
respective companies.
Information in this document is subject to change without notice. The manufacturer does not make any
representations or warranties (implied or otherwise) regarding the accuracy and completeness of this
document and shall in no event be liable for any loss of profit or any commercial damage, including but not
limited to special, incidental, consequential, or other damage.
At the end of its serviceable life, this product should not be treated as household or general waste. It should
be handed over to the applicable collection point for the recycling of electrical equipment, or returned to the
supplier for disposal.
3
Transform your laptop into a workstation. Extend up to 3 displays, 2 x 4K @ 30Hz, 1 x 1920 x 1080 @ 60Hz
(depending on the host device). Expand your laptop capabilities - add USB ports, charge your mobile
devices and deliver up to 100W of power to your laptop through one convenient USB-C Cable.
FEATURES
INTRODUCTION
CONTENTS
• Compatible with USB-C DP Alt Mode systems
• USB-C Power Delivery up to 100W
• USB-C Power Delivery mobile device charging up to 30W
• Supports up to 3 Displays via DP Alt Mode
• Supports extended and mirrored modes
• USB 3.2 Gen 2 10Gbps USB-A / USB-C ports
• SD/microSD Card Reader
• Gigabit Ethernet
• Standard and Nano Kensington Lock Support
• VT2600 Multi Display MST Dock
• 150W Power Adapter
• USB-C to USB-C Cable
• User Manual
4
Compatible Devices
System with USB-C port that supports DisplayPort over USB-C (DP Alt Mode MST) for video or MacBook with
USB-C port that supports DisplayPort over USB-C (DP Alt Mode SST) for video
For USB-C charging, a system with a USB-C port that supports USB-C Power Delivery 3.0 is required
Operating System
Windows 11, 10, 8.1, 8, 7
macOS 10.12 or Later
SYSTEM REQUIREMENTS
*Note: Maximum resolution and number of extended displays is dependent on host system specifications.
5
DOCKING STATION PORTS
6
Port Description
1. USB-C 3.1 Gen 2 Port Connect a USB-C device, supports 10Gbps transfer speeds
PD3.0 5V/3A,9V/3A,12V/2A,20V/1.5A; 30W Max
2. USB-A 3.1 Gen 2 Port Connect a USB-A device, supports 10Gbps transfer speeds, up to 7.5W charging
3. USB-A 3.1 Gen 2 Ports Connect a USB-A device, supports 10Gbps transfer speeds, up to 4.5W charging
4. SD/microSD Card Reader SD 4.0 card reader 312MB/s, microSD 3.0 card reader 104MB/s
5. Audio Jack Connect headphones, headset or other devices with 3.5mm connector
6. Power Switch Power Switch with LED indicator light
7. RJ45 Gigabit Ethernet Connect a network router or modem at 10/100/1000 Mbps
8. HDMI 1.4 Port (DP Alt Mode) Display 3 - Connect a display with a HDMI port to stream video up to 4K@30Hz*
9. DP 1.4 Port (DP Alt Mode) Display 2 - Connect a display with a DP port to stream video up to 4K@60Hz*
10. DP 1.4 Port (DP Alt Mode) Display 1 - Connect a display with a DP port to stream video up to 4K@60Hz*
11. HDMI 2.0 Port (DP Alt Mode) Display 1 - Connect a display with a HDMI port to stream video up to 4K@60Hz*
12. USB-C 3.1 Gen 2 Ports Connect a USB-C device, supports 10Gbps transfer speeds, up to 7.5W charging
13. 20V DC Power Supply In Connect the included 150W 20V/7.5A Power Supply
14. Kensington Security Slot Attach a standard or nano Kensington Lock to secure docing station
15. USB-C Host Upstream Port Connect to a laptop or PC, up to 10 Gbps to host, DP Alt Mode Video and USB-C
Power Delivery charging up to 100W
DOCKING STATION PORTS (Continued)
*Note: 4K @ 60Hz max single display resolution, maximum resolution dependent on host system
specifications.
7
DOCKING STATION SETUP

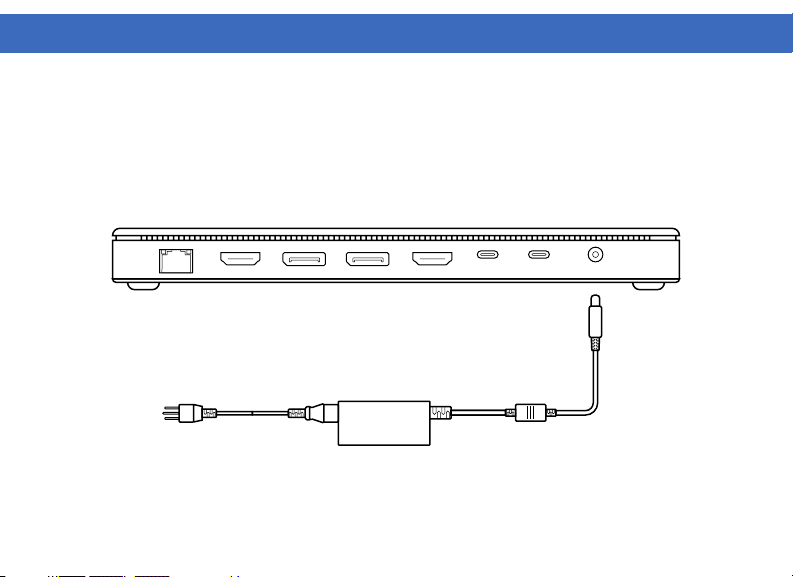

Connecting Power
1. Plug the power adapter into the 20V DC Power In port on the back of the dock. Connect the
other end into a power outlet.
Note: Power supply is required for dock operation.
8
Connecting Systems
1. Connect the included USB-C cable to the USB-C Host port on the side of the VT2600. Connect the other
end to your host laptop, PC or Mac.
2. The VT2600 has high resolution DP and HDMI outputs. Resolutions up to 3840 x 2160 @ 60Hz are
supported depending on monitors connected and the host system capabilities.
DOCKING STATION SETUP (Continued)
USB-C to Host
9
DOCKING STATION SETUP (Continued)

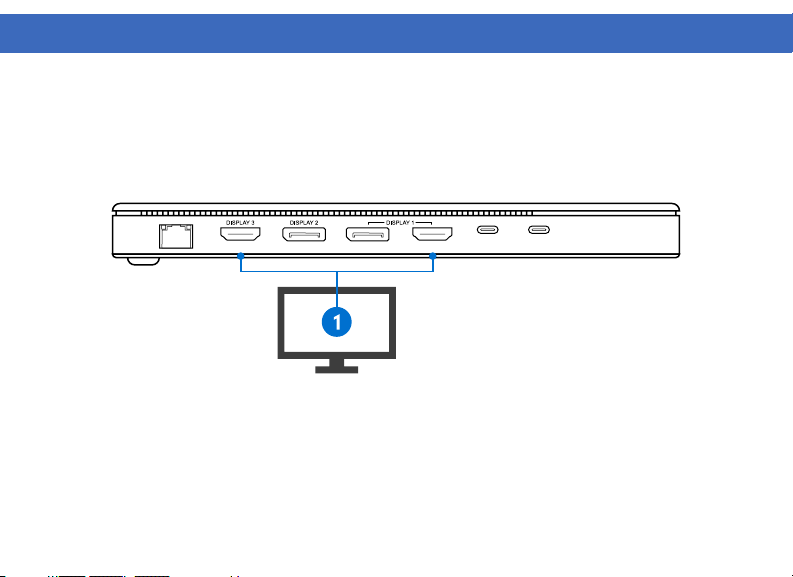

Single Display Setup
1. Connect your monitor to the Display 1 - DisplayPort or HDMI, Display 2 - DisplayPort or Display 3 - HDMI.
Note: Display 1, 2 and 3 output video via USB-C DP Alt Mode and will only output video when connected to
a host system with this feature.
