Vision ZA1002US-5 Manuel d'utilisation

ZA1002US-5

Z-Wave Smart Gateway

Installation&UserGuide

(ForPC)

WELCOME

Congratulations on purchasing the ZA1002US-5. The ZA1002US-5 integrates multiple

complicated control, automation and internet protocols into one simple plug-and-play device.

It is a central controller that integrated and control of all wireless Z-wave devices used for

home automation and keeps connect and control of your home easily, nomatter where you

are.Please take a few minutes toread this guide to set up your ZA1002US-5 and Z-wave

network smoothly.

Table of Contents

Chapter 1 Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . . . . . . . . . . . . . . . . . 4

1.1 Key Features . . . . . . .. . . . . . . . . . . . . . . . . . . . . .. . . . .. . . . . . . . . . . . . . . . . . . . . . . . .. . . 4

1.2 .Technical Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . . . . . . . . . . . . . . . . . 4

1.3 .Hardware Overview . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . . . .. . . . . . . . . . . . . . . . . . 5

1.3.1 Front Panel . . . . . .. . . . . . . . . . . . . .. . . . . . . . . . . . . . . . . . . .. . . . . . . . . . . . . . . . . . . 5

1.3.2 Back Panel . . . . . .. . . . . . . .. . . . . . . . . . . . .. . . . . . . .. . . . . . . . . . . . . . . . . . . . . . . . . 6

Chapter 2 Quick Install. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . . . 7

2.1 Unpacking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . . .. . . . . . . . . . . . . . . . . . . . . . . . . . .7

2.2 The Procedure of Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

2.3Find the IP address of your

ZA1002US-5 . . . . . . . . . . . . . . . . . .. . . . . . . . . . . . . . . . . . . . . . .. . . . .. . . . .8

2.4 Setup Wi-Fi for your

ZA1002US-5. . . . . . . . . . . . . . . . . .. . . . . . . . . . . . .. . . . . . . . . . . . . . . . .. . . . .. . . . .8

2.4.1 System. . . . . . . . . . . . . . . . . .. . . . . . . . . . .. . . . . ... . . . . ... . . . . .. . . . . . . . . . . . .. . . . .. . . . .9

2.4.2 Network. . . . . . . . . . . . ... . . . . ... . . . . ... . . . . . . . . . .. . . . . . . . . . . . . . . . . . . . . . .. . . . .. . . . .10

2.4.2.1 General Setup. . . . . . .. . . . . ... . . . . . . . . . . . .. . . . . . . . . . . . . . . . . . . . . . .. . . . .. . . . .10

2.4.2.2 Advanced Settings. . . . . . . . . . . . . . . . . ... . . . . .. . . . . . . . . . . . . . . . . . . . . . .. . . . .. . . . .11

2.4.2.3 Physical Settings. . . . . ... . . . . ... . . . . ... . . . . .... . . . ... . . . . ... . . . . ... . . . . ... . . . ..12

2.4.2.4 Firewall Settingsb. . . ... . . . . ... . . . . ... . . . . ... . . . . ... . . . . ... . . . . ... . . . . ... . . . . ..12

2.4.3 Zwave. . . . . ... . . . . ... . . . . ... . . . . ... . .... . . . . ... . . . . ... . . . . ... . . . . ... . . . . ... . . . . ..13

2.4.4 Logout. . . . . . . . . .. . . . . . . . . .. . . . . . . . . .. . . . . . . . . .. . . . . . . . . .. . . . . . . . .. . . . . . . . . 13

2.5Initial setup procedure for ZA1002US-5 web

configuration . . . . . . . . . . .. . . . . . . . . . . . . . .. . . .. . . . .14

Chapter 3 Full web configurations . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . . . . .. . . . . . . .15

3.1 Enter web configure page . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

3.2 SetZwave– Z-Wave device settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

3.2.1 The Z-Wave device configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

3.2.1.1 Add a Z-Wave device . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. 17

3.2.1.2 Remove a Z-Wave device . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

3.2.2 Z-Wave Control and Log . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . . . . . . . . .21

3.2.3 Topology . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . .. . . . . . . . . . . . . . . . . . . .. . . . . . . . 22

3.2.4 Door Lock Security . . . . . . . .. . . . . . . . . . . . . . . . . . .. . . . . . . . . . . . . . . . . . . . . . . . . .23

3.2.5 Version Information . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

3.3 Room Setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

3.3.1 Create Room . . . . . .. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

3.3.2 All Rooms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

3.4Device Setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Chapter 1 Introduction

ZA1002US-5is a central controller that integrated and control of all wireless Z-wave devices

used for home automation. It also providesGateway to connect to Internet. ThroughInternet

you can see all kinds of devices status of your home atanytimeand any place via your

smartphone or PC.You can control thehomedevices such aslighting, air conditioning, door

lock and unlock, you can also receivethealarmmessageof your home. Energy usage

monitorsof your homeat any timeis real-timerecordingto the cloudhost, homealarm

messagesareimmediatelydeliveredto the cloudmessagemonitoring

centerforthenecessarytreatment.

The ZA1002US-5 controls switches, dimmers, motion sensors, temperature sensors and so

on many Z-Wave devices. ZA1002US-5integrates complicated control, automation and

internet protocols into one simple plug-and-play device. It provides an interface that allows

you to manage your home easily, whether you are at home or not.

1.1Key Features

Provide one LAN port Router function

Provide one USB 2.0 Host port, you can connect ZigbeeUSB Dongle or USB Hard Disk

ProvideWiFiIEEE 802.11b/g/n

ProvidecompatibleZ-Wave Pluscommunication protocolthat connects allkinds of

Z-Wavedevices that includeswindow sensors, electric locks, lighting dimmer controls,

energy usage monitor, air qualitydetector, temperature and humidity sensors,

firesafetysensors.

Provide a service platform to connect to the cloudservice.

ProvideIP-Camviewinginterface

ProvidefreedownloadAPP.

1.2Technical Specifications

Technical Specifications

HardwareSpecifications

USB Port USB Host 2.0 x1

Ethernet port RJ-45 10/100Mb , support 1 LAN

Physical and Environmental Characteristics

Dimensions 137(W) x 101(H) x 30(D) mm

Weight 300g

Operating Temp.  Temp: 0°C~45°C (32°F~113°F)

& Humidity  Humidity: 10%~90% relative humidity, non-condensing

Power Adaptor  INPUT: AC100V~240V, 50/60Hz

 OUTPUT: DC 5V, 2.0A

outer casing Plastic

Country of origin Made in Taiwan

SoftwareSpecifications

Protocol Z-Wave

WiFi IEEE 802.11b/g/n

HA Functions Sense Control

Lighting Control

Door Lock Control

Sensor Trigger Even

Schedule setting

Support mobile phone Push Notification

Support Devices Place Location

User account Management (admin and normal user)

Support Remote update software

Z-Wave Capacity Support 30 Z-Wave notes

1.3 Hardware Overview

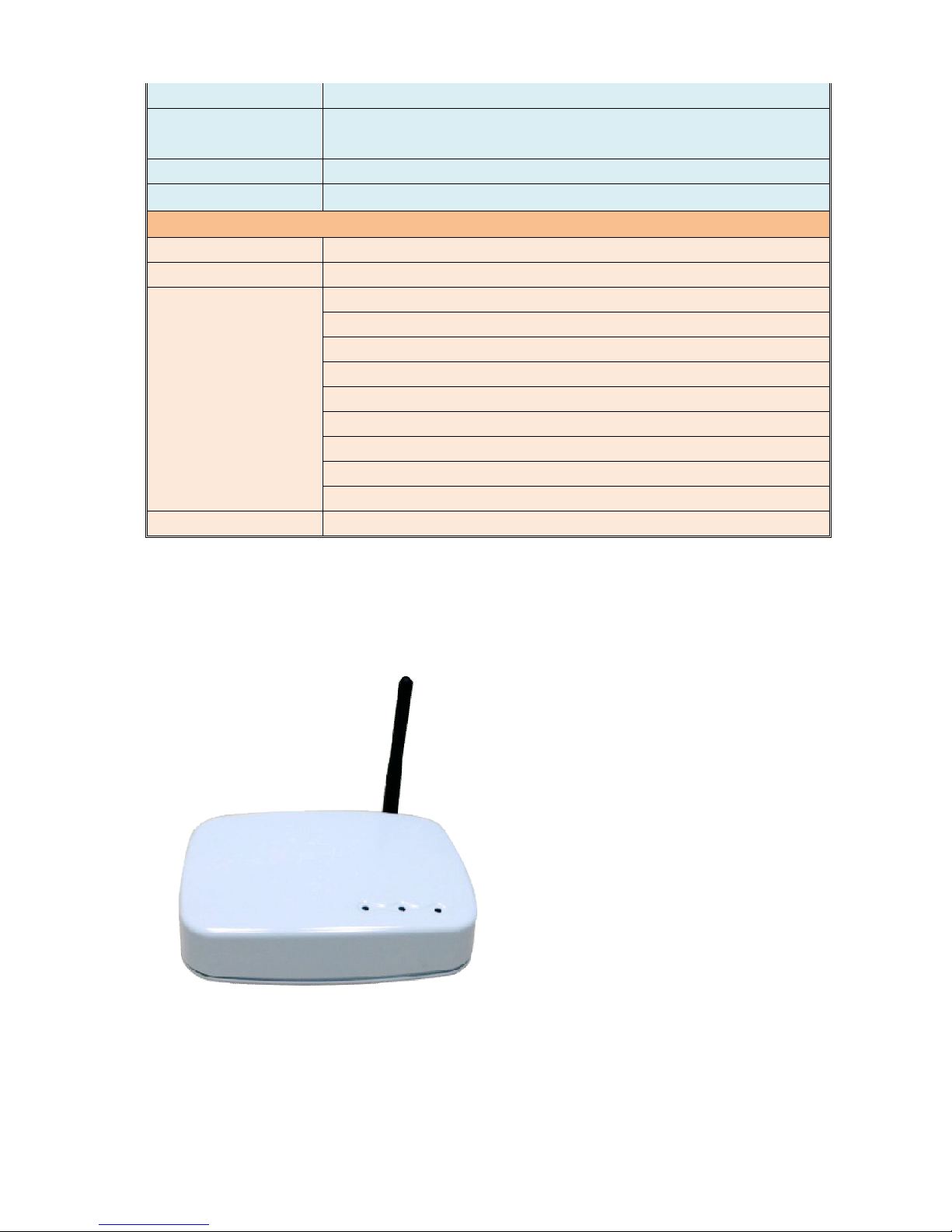

1.3.1 Front Panel

1.3.2 Back Panel

DC 5V/2A:Connecting to AC adapter.Input AC 100V~240V, 50/60Hz;

Output DC 5V 2.0A

LAN: RJ-45 socket, complied with Ethernet 10/100base-T.

USB:USB 2.0 ports, USB Type A

Connect to power supply

For Z-Wave

USB port

LAN port

Chapter 2 Quick Install

After you’ve created your Z-Wave network, you’ll need to install your ZA1002US-5. Follow

these steps:

2.1 Unpacking

Open the carton and unpack the items. Your package should include:

 ZA1002US-5main unit x 1 pcs

If items are missing or damaged, notify your Avadesignrepresentative. Keep the carton

and packing material.

2.2 The Procedure of Connection

Step 1: Plug in DC power adapter to ZA1002US-5.

Step 2: Connect the Ethernet cable to your ZA1002US-5LAN port.

Step 3: Plug in AC power cord to power source.

Step 4:ZA1002US-5 begins the boot process automatically.

ZA1002US-5 provides three kinds of operational platforms, Web page, Android and iOS, for

users. Therefore user can configure the ZA1002US-5 by his/her PC or smart phone or tablet.

The web configuration guide is available in this manual. The installation guide for

smartphone/tablet with Android system or iOS system, please refer to other document.

Ethernet cable

LAN port

2.3Find the IP address of your ZA1002US-5

Please download the Java program file named avaControlFinderJava from the website of

Avadesign Co., Ltd. http://www.avadesign.com.tw/support/support.htmlto your PC.

Decompress the file and click it twice by left button of your mouse. Then you will see the

IP address listing of all of your ZA1002US-5 as below.

avaControl Finder

2.4 Setup Wi-Fi for your ZA1002US-5(optional)

If you want to use Wi-Fi, please following the setup procedure described as below.

Step 1: At first, connect Ethernet cable to LAN port of ZA1002US-5.

Step 2: Type the IP address which getting from avaControl Finder as Sec. 2.3. For example:

type 192.168.1.8 of the ZA1002US-5in the address bar and press Enter. The screen is

shown as follows.

The username is root.Please input password: 1234 then click “Login” button on the

screen. After login ZA1002US-5, you will see the login page as shown below.

Step 2-1: Please key in 192.168.1.8 of your AVA-88.

Step 2-2: Please input password. The default

password is 1234.

Step 2-3: Click on “Login” button.

Step 3: Click on Network function in the top menu to setup your Wi-Fi network. The detailed

is described at Sec. 2.4.2.

Step 4: When Wi-Fi network configure has finished, please take off the Ethernet cable from

LAN port of ZA1002US-5.

After Login user will see the screen as above, and there are four maincategories in the top

menu, user can click on each category to extend detail items.

System

Network

Zwave

Logout

The various configuration menus are explained below. You can select various function listed

in the first line of web page display.

2.4.1 System

You can backup or flash firmware in this function. This function also providesreboot the

system for you.

Backup / Restore

You can click on "Generate archive" button on the screen to download a tar archive of the

current configuration files.

To restore configuration files, you also can upload a previously generated backup archive

here.

Flash new firmware image

You can upload a sysupgrade-compatible image here to replace the running firmware.
