Vision grills CADET Series Manuel

ENGLISH

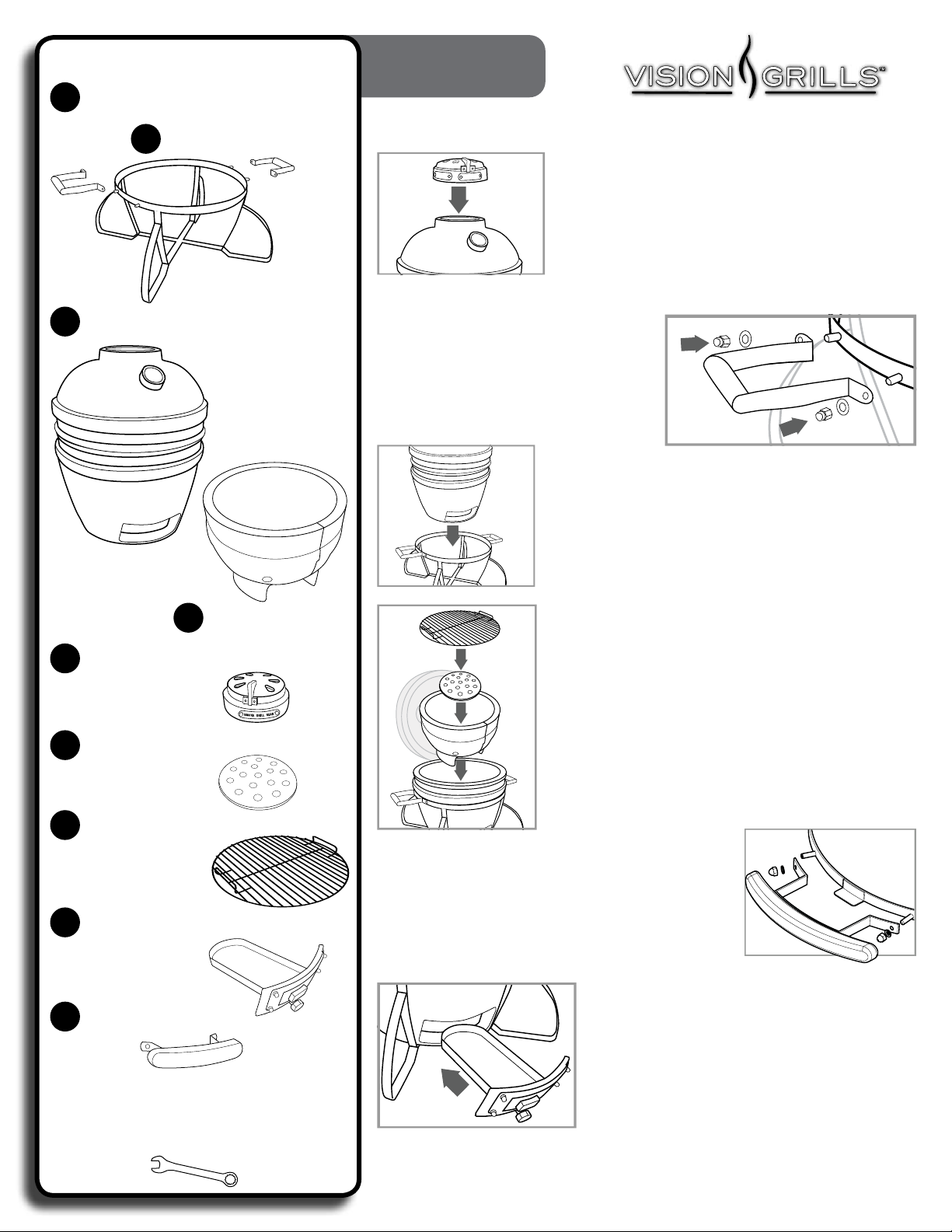

Step 1: Assemble Top Lid

Vent

Parts for Assembly:

Tools Included:

Wrench:

For handle assembly

CADET

SERIES

1 pc. - Top Vent

1 pc. - Charcoal Grate

1 pc. - Cooking Grate

1 pc. - Ash Drawer

1 pc. - Fire Bowl

1 pc. - Kamado Grill

1 pc. - Stand

I1 pc. - Wood Handle

Close lid and press Top Vent onto top of Kamado.

Be sure spring clips are fully engaged with

calibrations facing the front of the grill.

Step 3: Insert Grill into Stand

Take all parts out of the grill before lifting. With

the help of a second person, lower the grill into

the Stand by holding the back hinge and bottom of

grill. As grill is lowered into stand, carefully switch

out hands from bottom of grill to the ash drawer

opening before reaching the outer ring of stand.

Completely lower grill to bottom of stand.

Step 4: Add Components to

Grill

Lower re bowl into the grill with the ash drawer

opening facing the front of the grill. Place cast iron

Charcoal Grate inside re bowl. Place stainless

steel cooking grate on top of the re bowl.

Step 5: Grill Handle Assembly

Attach the Handle by placing handle bracket over

studs, opposite the hinge. On each stud use at

washers, then screw on acorn nuts and tighten

with provided wrench.

Step 6: Ash Drawer Usage

Slide Ash Drawer into ash drawer opening.

When grill is cool, it is safe to remove ash

from Ash Drawer. To remove Ash Drawer, use

bottom knob on Ash Drawer, lift slightly and

pull drawer out.

SET UP

WARNING: ALWAYS WAIT FOR ASHES TO COOL

BEFORE REMOVING ASH DRAWER. NEVER PULL

OUT ASH DRAWER WHILE GRILL IS HOT. 092816

B2 pc. - Stand Handle

Step 2: Stand Handle Assembly

Attach Stand Handles to the left and

right of the Stand by placing handle

brackets over stand studs.

On each stud use at washers, then

screw on acorn nuts and tighten with

provided wrench.

11.1

22.1

11.1

ENGLISH

Vision Grills, LLC • 1531 Fairview, Suite B, St. Louis, MO 63132 • 877.917.4273 • www.visiongrills.com

Visit

www.visiongrills.com/register

to register your grill.

CADET

SERIES

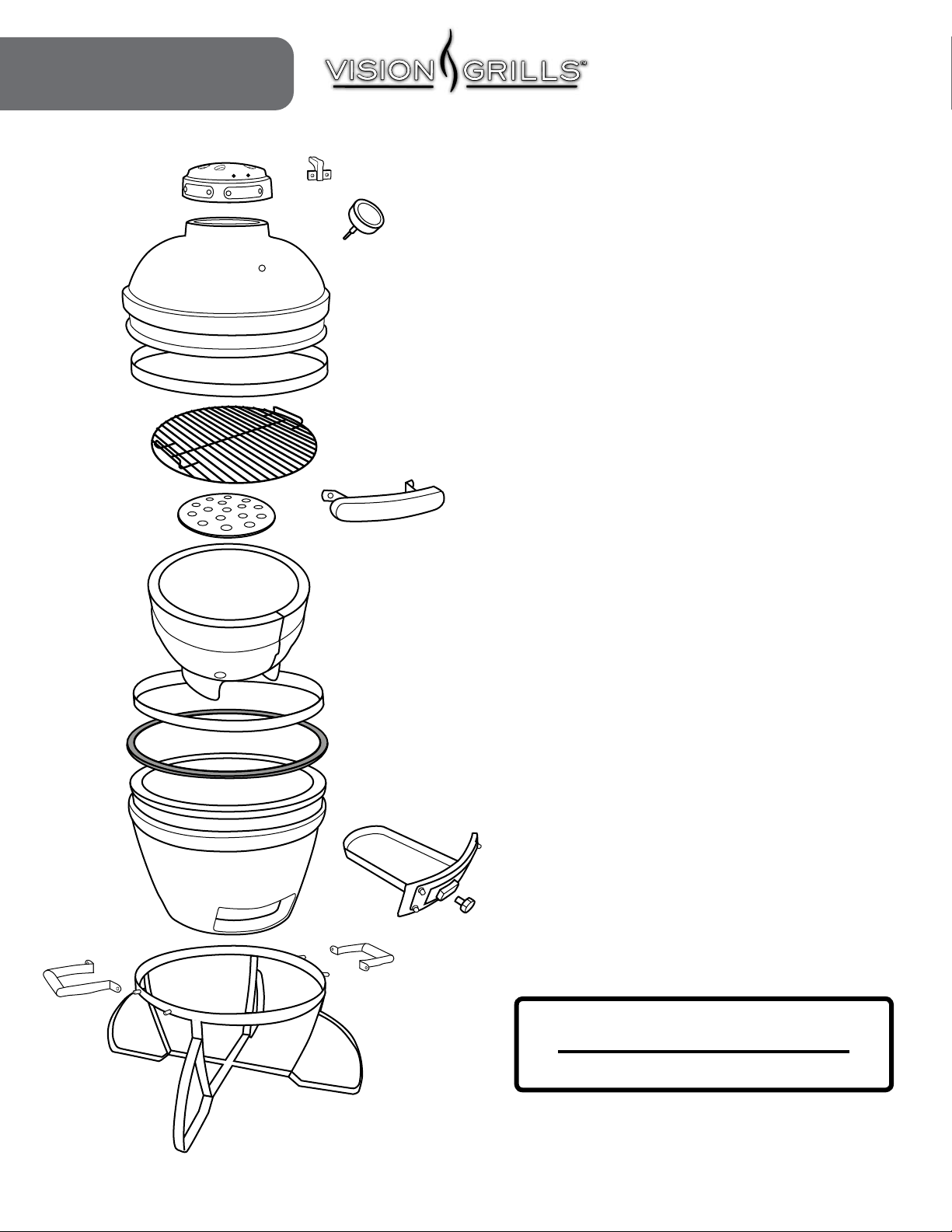

PARTS

PART NAMES PART NUMBERS

1 Cast Iron Top Vent

1.1 Bakelite Tab

2 Ceramic Dome Lid

2.1 Thermometer

3 Top Ring Assembly

Stainless Steel Cooking Grate

5 Charcoal Grate

6 Handle

(with nuts & washers)

7 Fire Bowl

8 Bottom Ring Assembly

9 Felt Gasket

10 Ceramic Dome Bottom

11 Ash Drawer Body

11.1

Ash Drawer Knob

12 Stainless Steel Stand

12.1 Stand Handle (x 2)

12.1

VGC TV-VC

VGC TV-VC-K

VGC CDL-VC

VGC TMT-VC

VGC RA1-VC

VGC CGD-VC

VGC CG-VC

VGC HDL-VC

VGC FB-VC

VGC RA2-VC

VGC FLT-VC

VGC CDB-VC

VGC ADB-VC

VGC ADB-VC-K

VGC SSS-VC

VGC SSS-H-VC

092816

12.1
