TR-100 Treadmill
EN Virtufit TR-100 Treadmill
2
SAFETY INSTRUCTIONSSAFETY INSTRUCTIONS
CHECKLISTCHECKLIST
ASSEMBLY INSTRUCTIONSASSEMBLY INSTRUCTIONS
FOLDING INSTRUCTIONSFOLDING INSTRUCTIONS
GROUNDING METHODGROUNDING METHOD
ADJUSTMENT GUIDEADJUSTMENT GUIDE
MAINTENANCEMAINTENANCE
TROUBLE SHOOTINGTROUBLE SHOOTING
CONTROL PANELCONTROL PANEL
EXPLODED DRAWINGEXPLODED DRAWING
PARTS LISTPARTS LIST
TRAINING INSTRUCTIONSTRAINING INSTRUCTIONS
3 - 4
5
6 - 10
11
12
12
13 - 15
16 - 18
19 - 23
24
25 - 26
27
INDEX
EN
Virtufit TR-100 Treadmill 3
SAFETY INSTRUCTIONS
– It is important to read this entire manual before assembling and using the device. Safe and
effective use can only be achieved if the device is assembled, maintained and used properly.
It is your responsibility to ensure that all users of the device are informed of all warnings and
precautions.
– Before starting any exercise program, you should consult your doctor to determine if you have
any medical or physical conditions that could put your health and safety at risk, or prevent you
from using the device properly. Your doctor’s advice is essential if you are taking medication
that affects your heart rate, blood pressure or cholesterol level.
– Be aware of your body’s signals. Incorrect or excessive exercise can damage your health. Stop
exercising if you experience any of the following symptoms: pain, tightness in your chest, irregular
heartbeat, extreme shortness of breath, lightheadedness, dizziness or feelings of nausea. If you do
experience any of these conditions you should consult your doctor before continuing with your
exercise program.
– Keep children and pets away from the device. The device is designed for adult use only.
– Use the device on a solid, flat level surface with a protective cover for your floor or carpet. To
ensure safety, the device should have at least 0.5 metres of free space all around it.
– Before using the device, check that the nuts and bolts are securely tightened.
– The safety of the device can only be maintained if it is regularly examined for damage and/or
wear and tear.
ATTENTION
WARNING:
Before beginning any exercise program consult your physician. This is especially
important for people who are over 35 years old or who have pre-existing health
problems. Read all instructions before using any fitness equipment. Do not operate this
device without properly fitted guards, as the moving parts can present a risk of serious
injury if exposed.
EN Virtufit TR-100 Treadmill
4
SAFETY INSTRUCTIONS
– Always use the device as indicated. If you find any defective components while assembling or
checking the device, or if you hear any unusual noises coming from the device during use,
stop immediately. Do not use the device until the problem has been rectified.
– Wear suitable clothing while using the device. Avoid wearing loose clothing that may get caught
in the device or that may restrict or prevent movement.
– The max user weight is 136 KGS. Braking ability is independent of speed.
– The device is not suitable for therapeutic use.
– Care must be taken when lifting or moving the device so as not to injure your back. Always use
proper lifting techniques and/or seek assistance if necessary.
– Please keep the space at least 1 to 2 meter at the end of base frame to escape any accidents!
– Place the device on a clean and flat surface. Do not place the device on a thick carpet.
– The device is for indoor use and not for outdoor use to prevent damage. Keep the storage location
dry, clean and flat. It is forbidden to use the device for purposes other than training.
– Only use the machine in an environment with an ambient temperature between 10 °C and 35 °C.
Only store the device at an ambient temperature between 5 °C and 45 °C.
Warranty claim is excluded if the cause of the defect is the result of:
– Maintenance assembly and repair work not carried out by an official dealer.
– In the event of improper use, neglect and / or poor maintenance.
– Failure to maintain the device in accordance with the manufacturer’s instructions (see the enclosed
manual).
EN
Virtufit TR-100 Treadmill 5
TOOLKIT
CHECKLIST
When you open the carton, and you will find the below parts in the carton:
#DESCRIPTION QTY
1Main frame 1
12 Allen key 5mm 1
51 Bold 4
64 Lock washer 6
71 Security key 1
72 Oil bottle 1
70 Bolt 2
85 MP3 cable 1
NOTE: Do not connect the appliance to the mains before it has been completely set up.
EN Virtufit TR-100 Treadmill
6
Missing parts: If you think you are missing certain parts in your package, carefully check the styrofoa and
the device. Some parts (bolts, screws, etc.) are already attached to/in the device.
Error message: Ensure that all cables are carefully attached. The aluminum legs are very sensitive and
must remain straight. Do you receive an error message after mounting your device? Then you have to
straighten these aluminum legs again, this may cause the error message to disappear.
Socket screws: The device contains socket screws, make sure that the allen key is firmly in the
bolt before you apply force to the key. In this way you prevent the head of the socket head screw from
being rotated.
STEP 1
• Open the carton, get out the above spare parts, put the Main Frame on the level ground.
ASSEMBLY INSTRUCTIONS
EN
Virtufit TR-100 Treadmill 7
STEP 2
• Hold the console frame, use the 5# Allen Wrench, lock the console frame onto left and right upright
tube with bolt M8*16(51)& lock washer (64) as the picture above.
NOTE: When folding, please don’t press the computer connecting wires.
ASSEMBLY INSTRUCTIONS
EN Virtufit TR-100 Treadmill
8
STEP 3

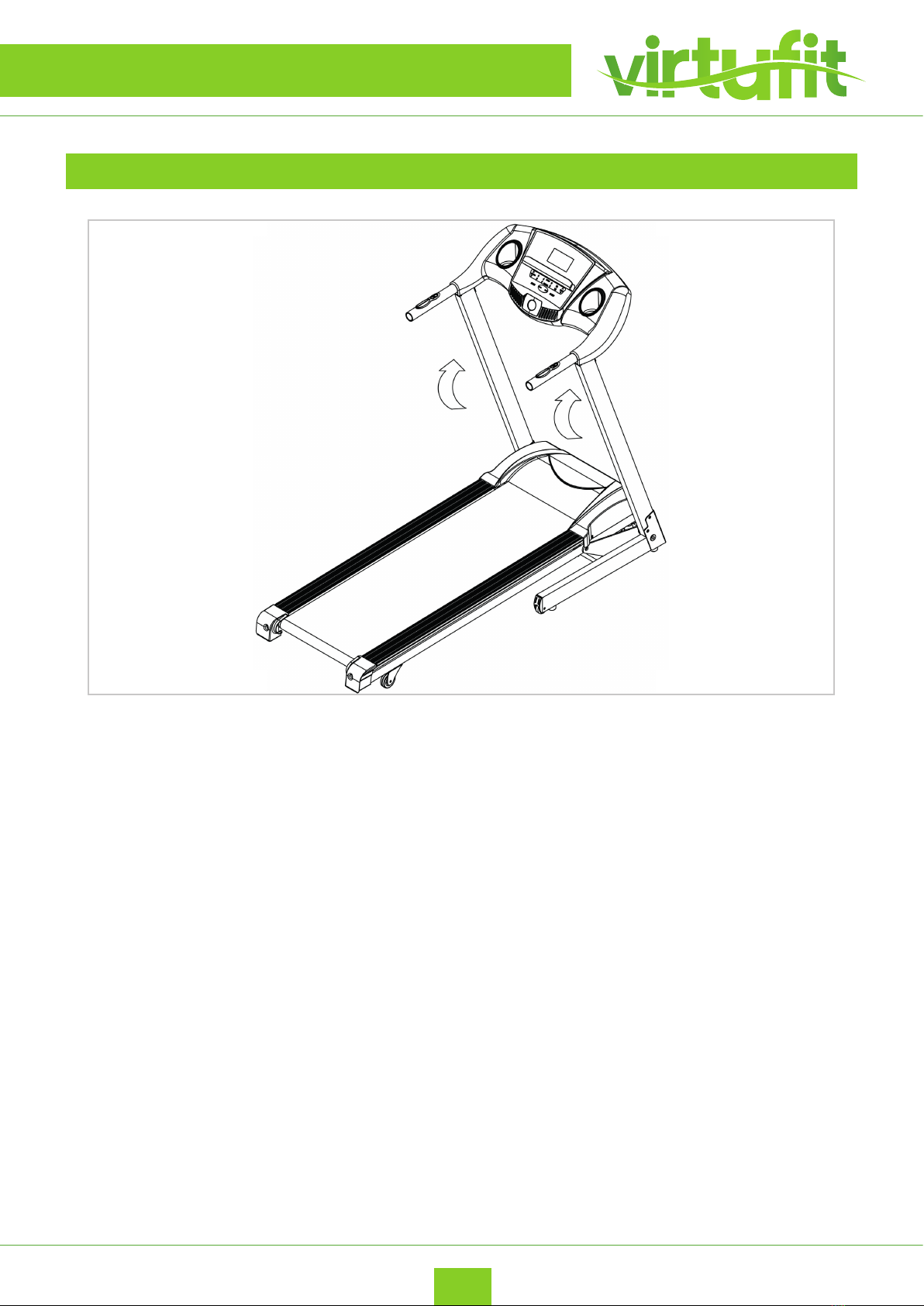

• Hold up the Upright.
NOTE: Please hold the L& R upright, avoid to have any hurt.
ASSEMBLY INSTRUCTIONS
EN
Virtufit TR-100 Treadmill 9
STEP 4
• Use the 5# Allen wrench, drill through the Bolt M8*45 (70) to Lock Washer (64), then lock the right
upright onto base frame.
• Use 5# Allen wrench, drill through M8*16 Bolt (51) to Lock Washer (64) then lock the right upright
tubes into the main frame. Reference the picture above.
NOTE: Hold the upright tube at when locking the upright tube to main frame.
ASSEMBLY INSTRUCTIONS
EN Virtufit TR-100 Treadmill
10
STEP 5
• Put on the safety key (71) on the computer.
ASSEMBLY INSTRUCTIONS
