Viper MAMBA Series Manuel utilisateur

MAMBASERIESVACUUM

OWNER SMANUAL

IMPORTANT READOWNERSMANUALCAREFULLY

Pleasefill out& returnyourwarrantycard!

MODEL #MB53CV

SERIAL#

VIPERNORTHAMERICA

P.O.BOX 104 VIPER…exceptional

HAMILTON.MI49419 value

[866]418-4737 REV.00[08-06]

[866]41-VIPER

PDFcreated withpdfFactoryProtrialversion www.pdffactory.com

All manuals and user guides at all-guides.com

all-guides.com

CONGRATULATIONSonyour purchaseofaViperproduct,

and welcometotheV.I.P. family. Weappreciateyour

businessand will do everythinginourpowertokeepyou

happywithyour purchaseformanyyearstocome.

Aspart oftheV.I.P. family,youareentitledtothebest

protectionbyoneofthemostcomprehensivewarrantiesinthe

industry.

Thank-youforpurchasingViper products!

TomVanderBie,CEO

TABLE OFCONTENTS

SafetyPrecautions3

MachineOperation4

MachineMaintenance &Storage4

PartsLists5-8

WiringDiagram9

All manuals and user guides at all-guides.com

SAFETYPRECAUTIONS

!!!Thismachinemustbe grounded!

Groundingprovidesapathofleast

resistanceforelectricalcurrent.To

reducetheriskofelectricalshock

should themachinemalfunction,the

machinehasaspecialgroundingplug.

Donotremovethegroundpin underany

circumstances!

Thismachineisintendedfor

Commercialuse.Itis constructedforusein an

indoorenvironmentandisnotintendedforany

otheruse. Useonlyrecommendedaccessories.

All operatorsshall read,understandand

exercisethefollowingsafetyprecautions:

1]Donotoperatemachine:

-Unless trainedandauthorized.

-Unless youhavereadandunderstand

operatorsmanual.

-Inflammableorexplosiveareas.

-Withadamagedcordorplug.

-Ifnotin properoperatingcondition.

-Inoutdoorareas.

-Instandingwater.

-Withoutbag/filtersin place

-Withtheuseofextensioncords.

2]Beforeoperatingmachine:

-Makesureall safetydevicesare

in placeandoperateproperly.

3]Whenusingmachine:

-Donotrunmachineovercord.

-Donotpull machinebycord

orplug.

-Donotpull cordaroundsharp

edgesorcorners.

-Donotunplug bypullingonthe

cord.

-Donotstretch cord.

-Donothandleplug withwet

hands.

-Keepcordawayfrom heated

surfaces.

-Donotpickupburningorsmoking

debrissuch ascigarettes,

matchesorhotashes.

-Report machinedamageoffaulty

operationimmediately.

4]Beforeleavingorservicingmachine:

-Turnoffmachine.

-Unplug cordfrom outlet.

5]Whenservicingmachine:

-Unplug cordfrom outlet.

-Usemanufacturersuppliedor

approvedreplacementsparts.

Toavoidelectricalshock,please

replacethepowercordimmediately

if anydamageisbeingdetected,

Thereplacementmustbeperformed

onlybyanauthorizedpersonorby

ourcustomerservicecentor.

All manuals and user guides at all-guides.com

OperationoftheCanisterVacuum

*Read operatorsmanualthoroughly

priortooperatingorservicingthis

machine. DRYPICKUP

1] RemoveThe vachead ofmachine and

confirmthatthereiseitheraclothof

paperfilterinplace.

2] Replace&thelatchvachead.

*Besurethemachineisnotplugged

intoanoutlet.

3]Connectvacuumhosetoinletonthe

machine body.

4]Chooseappropriatetool,andattachit

tothefree end ofthe hose.

5] Plugpowercordintogrounded

outlet.

*Donot useanextensioncordin

conjunction withthe standardpower

cord.

6] Tostart themachine pushonthered

rockerswitchturnon .

7]Check the filterbagperiodicallytosee

ifitisfull.Foroptimalperformance,

replacethe bagwhen it is3/4full.

8]Thismachine isdesignedtobepulled

aroundbythevacuumhose,sopull the

hose, and the vacuumwillfollow.

10] Tostopthe machine atanytime,

simplyturnoffthe rockerswitch.

MAINTENANCE

Tokeepthe machine performingwellfor

manyyears,pleasefollowthe following

maintenanceprocedures.

*Always confirmthatthemachineis

unpluggedpriortoperforming any

maintenance orrepairs.

1]Unplugmachine assoonasyou are

done usingit.

2]Check powercordforanydamage.If

anydamageisdetected,replacethe

cordimmediately.

3] Lubricatecasterswithawaterresistant

lubricant everymonth.

4]Check machine forlooseormissing

nutsandbolts,andreplaceas

necessary.

5]Checkthefilter,and cleanitaftereach

use.

6] Removethe vacuumhoseandcheck it

foranyholesandclogs.

7]Clean the outsideofthe machine with

amildcleaner.

STORAGE

1] Unplugmachine frompowersource.

2] Storeinupright position inadryarea.

All manuals and user guides at all-guides.com

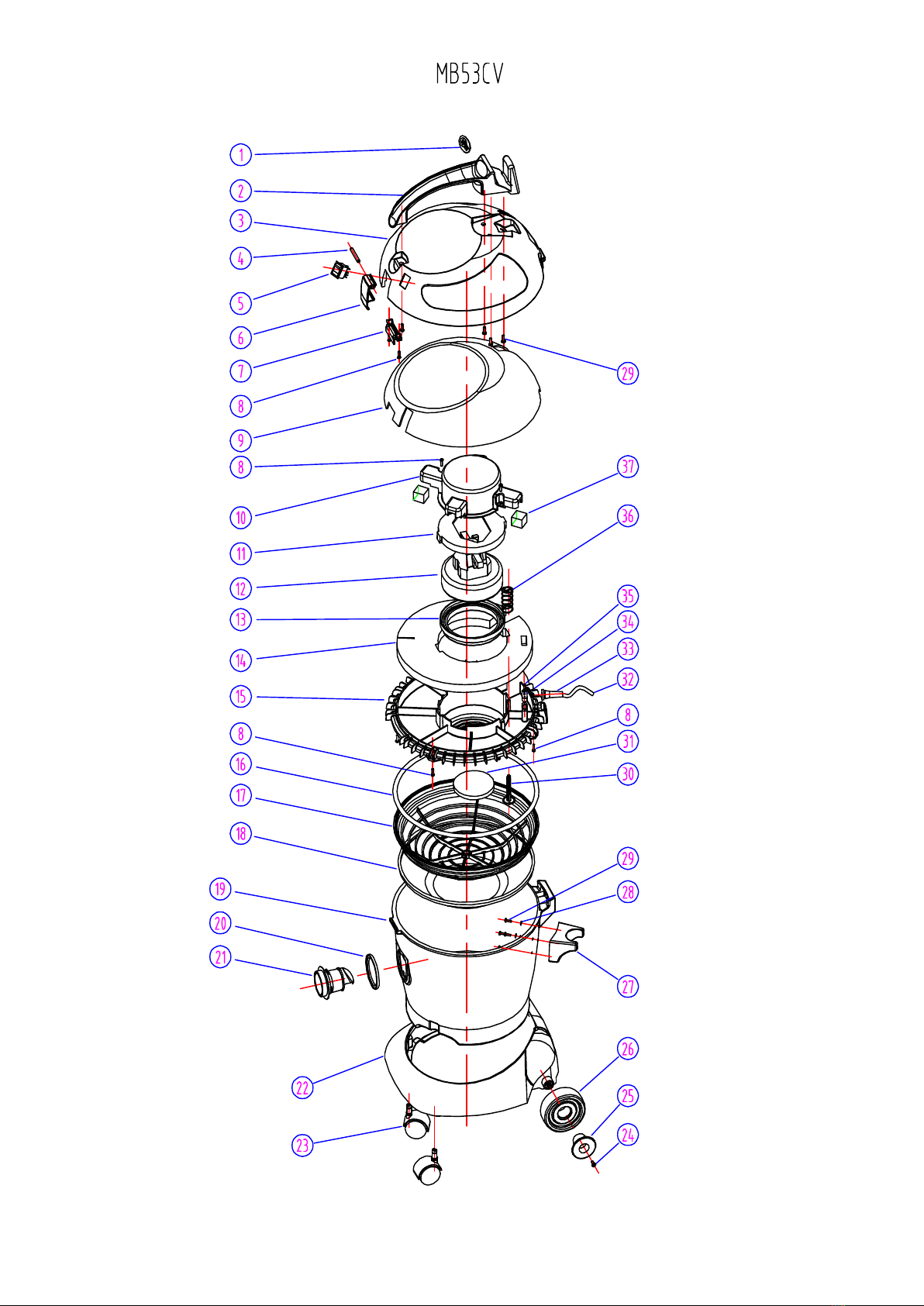

DIA

NO PART

NUMBER NO

REQ'D

1VA60115Logo1

2VA60103Handle1

3VA60102Housing,VacHead1

4VA60107Pin1

5VA60118Switch1

6VA60105Catch1

7VA60106Basement,Catch1

8VF14116Screw,ST4X168

9VA60114Screen,Housing,VacHead1

10VA61104MountingCover,Motor1

11VA61105TopGasket,Motor1

12VA41038VacMotor,110V1

13VA61103BottomGasket,Mortor1

14VA61108Screen,MountingBase1

15VA61101MountingBase,Motor1

16VA61106Sealer1

17VA61201FilterFrame1

18VA61202Filter1

19VA61301Tank1

20VA61302Gasket,Intake1

21VA61303Intake1

22VA61304MountingBase,Tank1

23VA60303Caster, 502

24GT13001Screw, ST5 X122

25GT13010Axle2

26GT13011Whell2

27VA60302Holder,CombinationTool1

28VA13482Washer,Plain, 5X 11X14

29VF14117Screw, ST5 X168

30VA60108Valve,By-Pass1

31VA61107Filter,Motor1

32VA65002PowerCord1

33VA41019Grommet1

34VA21518ClampBlock1

35GT13047Screw,ST3X162

36VA60109Spring1

37VA61109Sreen,MountingCover4

DESCRIPTION

PARTSLIST

All manuals and user guides at all-guides.com

all-guides.com

ACCESSORIES

All manuals and user guides at all-guides.com

DIA

NO PART

NUMBER NO

REQ'D

1VA41130HOSEASSY1

2VA61309PAPERBAG1

3VA20205TUBE,SST 322

4VA61308VACUUMBAG,CLOTH1

5VA60400COMBINATIONTOOL1

6VA20804DUSTING TOOL1

7VA20805CREVICETOOL1

8VA20802-1UPHOLSTERYTOOL1

DESCRIPTION

PARTS LIST

All manuals and user guides at all-guides.com

SINGLE

120V

60HZ

PHASE

SUPPLY

SJTW16/3C

Power

Supply

Cord

Power

Supply

Cord

Motor

SWITCH

G/Y

BLACK

WHITE

G/Y

BLACK

Wiring Diagram

MB53CV
