Product Diagram
Inserting / Removing the memory card
LED Indicators
Buttons and Icons
Front Camera Installation
Interior Camera Installation
Cable Connection
Power On / O
Loop Recording
Emergency Recording
Playback Videos
Motion Detection
PC Mode
View on a TV
PIP Mode
Firmware Upgrade
2
9
14
19
23
25
27
24
Product Overview

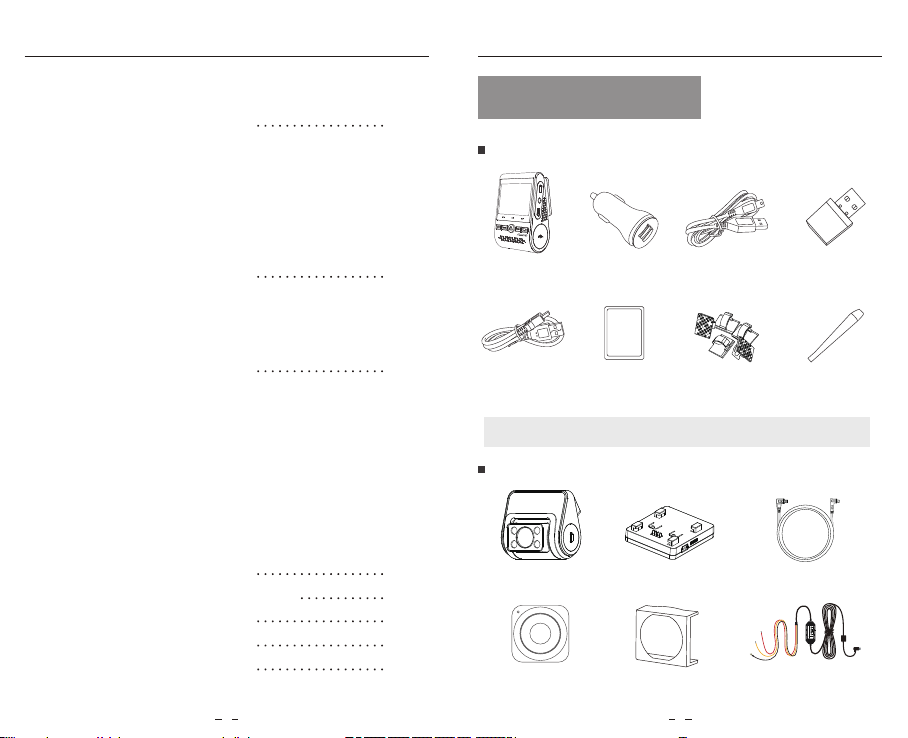

Standard Items
Optional Accessory
Front Camera
USB Data Cable
Bluetooth Control CPL HK3 Hardwire Kit
GPS Module
Clips Trim Removal Tool
Car Charger
Adapter
4M Car Charger
USB Cable
Card Reader
Adapter
T
M
T
M
1 2
Spare mount
sticky pads
Note: The USB data cable is only for connecting the camera with computer to transfer
video files or upgrade firmware, not for charging the camera.
*
VIOFOHardwireKitforCar Dash Camera
INPUT:
RED
—POWER
BLACK
—GND
YELLOW
—ACC
Input:12/24V; Output: 5V2A Max
VIOF O
USB
AV
Rear
REC
Wi-Fi
MIC
Interior Camera CableInterior Camera
VI OFO
Product Overview Product Overview

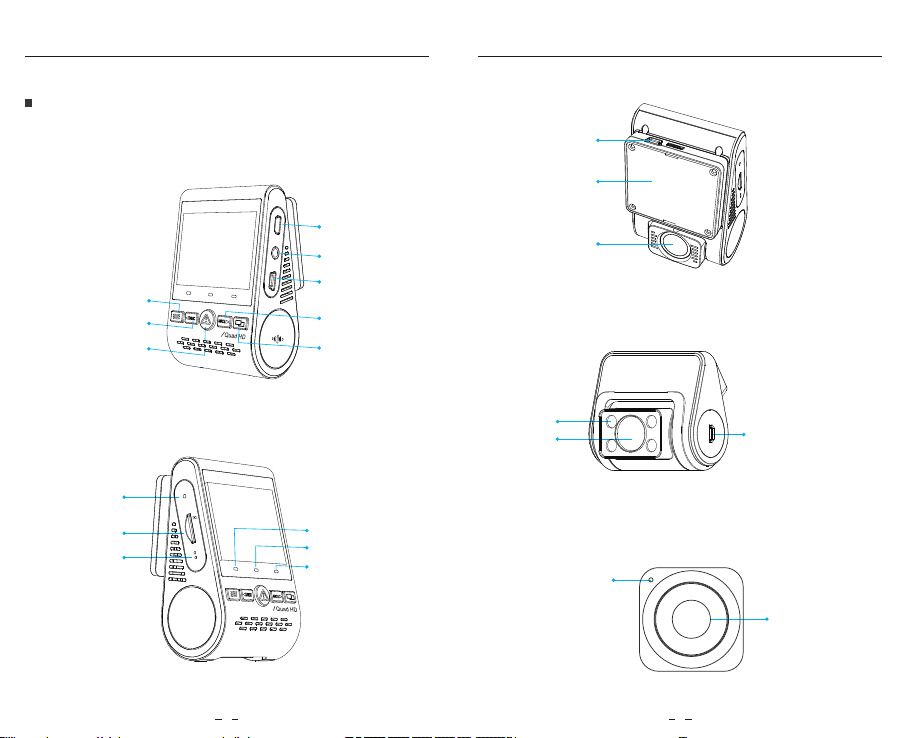

Product Diagram
Bluetooth Remote Control (Optional)
1) Front Camera
3)
Transmit Indicator
Video Lock Button
USB Power Port
Mount
3 4
Recording Status Indicator
Microphone Status Indicator
Wi-Fi Status Indicator
Reset Button
Microphone
Memory Card Slot
Lens
Menu / Power On | O
Recording On | O / Menu Up
Video Protect / Playback
/ Menu Conrm
VI OFO
R
MIC
MicroSD
REC
Wi-Fi
MIC
VI OFO
USB
AV
Rear
REC
Wi-Fi
MIC
Microphone On | O
/ Menu Down
Power In /
microSD Card Reader Mode
(computer)
AV Out
Interior Camera USB Port
Live Video Source
/ Wi-Fi On | O
Interior Camera (Optional)2)
Lens Power In + Video Out
LED
The micro SD card is sold separately. The microSD card must have a
UHS-I rating and the capacity up to 256GB.
64GB, 128GB, 256GB micro SD cards must be formatted with the
FAT32 file system, either on a computer or in the camera.
We recommend you buy the VIOFO brand memory card which are
manufactured with top-tier MLC NAND ash, making them durable
and reliable.
Product Overview Product Overview

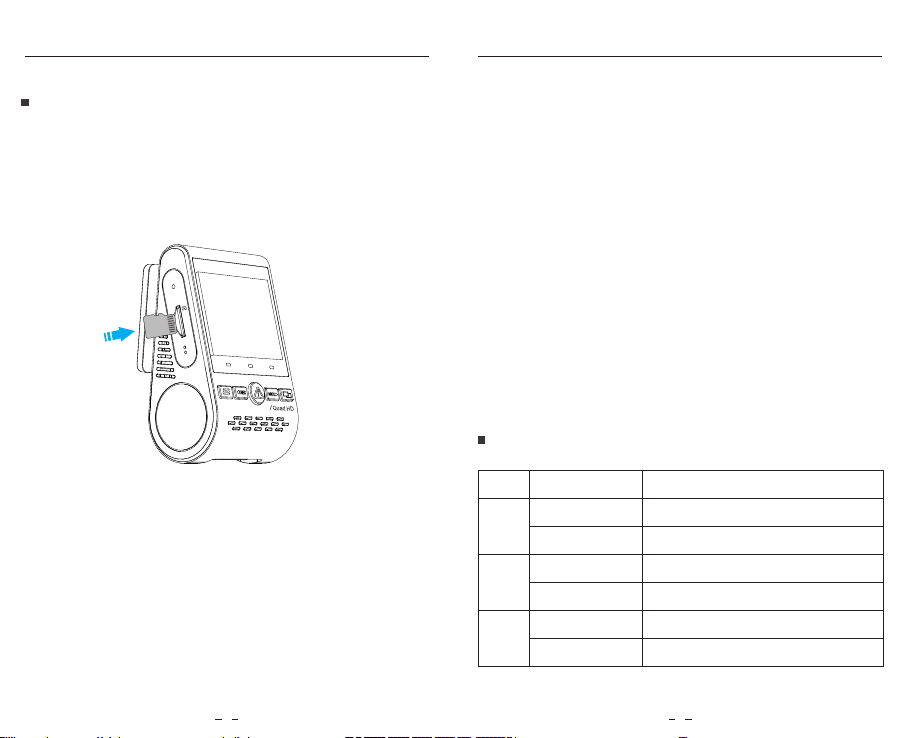

Inserting / Removing the memory card
Inserting the memory card
Removing the memory card
Formatting the card
Note:
5 6
Push the memory card into the card slot until you hear a click,
with the card label facing the forward (away from the screen).
Ensure that the camera is turned o / not recording, and then
push the edge of the memory card with your fingernail.
The card will spring out far enough to be removed.
Format the card (‘Format’ option in Dash Camera ‘System settings’) to
prepare for first use in the dash camera.
Formatting will permanently erase any data on the micro SD card. For
best performance, format periodically (after backing up any important
files).
LED Indicators
LED LED Status
Solid Red
Flashing Red
Solid Red
O
Solid Red
O
Behavior
Recording
Not recording; Updating Firmware
Wi-Fi Enabled
Wi-Fi Disabled
Microphone enabled
Microphone disabled
MIC
Wi-Fi
REC
VI OFO
R
MIC
MicroSD
SD
Product Overview Product Overview
ButtonsMode
Standby
Mode
(Not Recording)
Behavior
Click once to enter the menu
Click once to start recording
Long press to enable the Wi-Fi

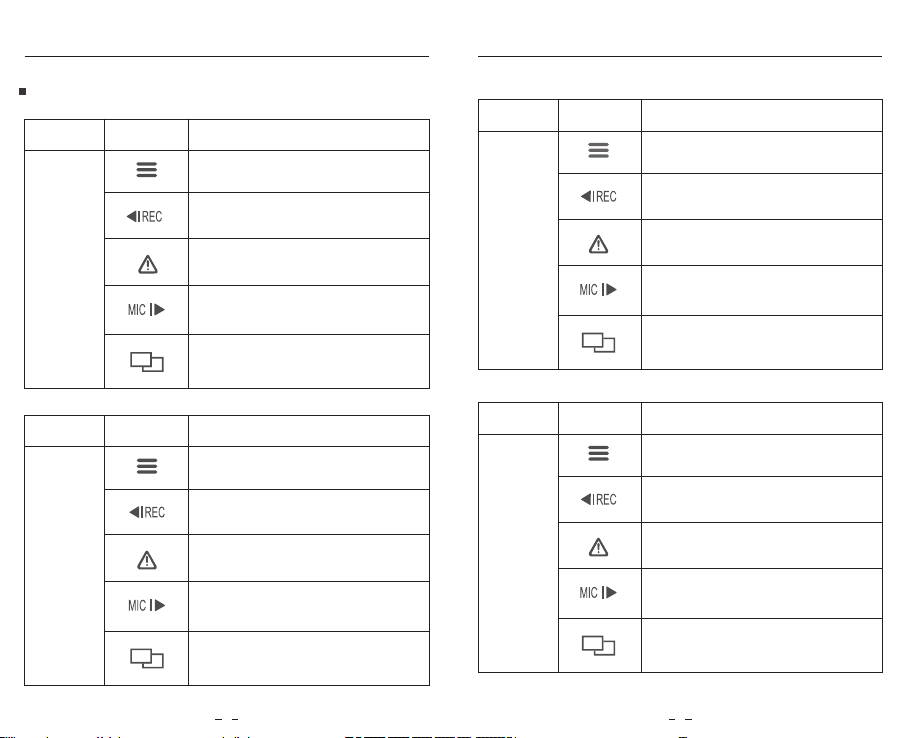

Buttons and Icons
To enter playlist
Click once to enable / disable audio
recording
ButtonsMode
Recording
Mode
Behavior
Click once to stop recording
Click once to lock the file being
recorded
Click once to enable / disable
audio recording
Click once to toggle screen view
ButtonsMode
Setting
Menu
Mode
Behavior
Return to previous menu / Exit
setting menu
Menu up
Enter / Confirm
Menu down
N / A
Buttons
Mode
Playlist
Mode
Behavior
Back to previous menu / Stop playback
Menu up / Change playback speed /
Delete the video
Menu down / Change playback speed
/ Lock current / Unlock current
N / A
Select the current / Play / Pause
7 8
Click once to take a video snapshot
*Note: To enter the menu settings, please stop recording first.
Installation Installation
Installation
2) Select a location on the windshield rear of the rear-view mirror.
Front camera installation
1) Insert the clips, then slide the mount horizontally into the slot on
the back of camera.
3) Wipe clean the installation surface of the windscreen with a dry
cloth, it must be grease free for the sticky pad to stick firmly.
4) Peel the protection film o the sticky pad and camera lens.
9 10
Connect to car
cigarette lighter socket
Best mounting location
Interior camera installation
5) Fix the front camera on the selected location.
6) Adjust the lens angle
- Look at the live view on the LCD.
- Adjust the angle of the lens up / down if necessary.
1) Select an installation location
2) Wipe clean the installation surface of the windscreen with a dry cloth.
Select a location on the windscreen, without defrost grid wires,
and where the camera can record the entire rear view.
Cable Connection
3) Peel the protection film o the sticky pad and camera lens.
4) Fix the interior camera on the selected location.
Installation
1） Connecting to Power
2） Connecting with Interior Camera
Power o the product and connect the interior camera cable to the
front camera (main unit).
Cable routing should be as shown in the following two diagrams. Use
the cable clips to help fix the two cables conveniently and safely.
Plug the USB power adapter into your vehicle’s 12V / 24V female
power socket. Insert the 4M USB cable’s male port into the camera's
mount USB port.
Note:
Both GPS mount and non-GPS mount can be used for power.
Installation
11 12
21
Interior Camera Front Camera
Connect to car
cigarette lighter socket
Best mounting location
VIO FO
USB
AV
Rear
REC
Wi-Fi
MIC
Rear
Installation
Note:
Do not install / mount the camera or cables near an airbag
panel or within the airbag’s working range. The manufacturer is not
liable for any injury or death caused by deployment of the airbag.
Note: If the camera you bought with built-in eMMC storage, the
camera can start recording without microSD card. Please notice the
eMMC storage is designed for temporarily recording only while the
micro SD card failed. If there is no micro SD card inserted, the camera
will keep beeping.
1. Do not install / mount the camera in a location that interferes with
the driver’s visibility and safety.
2. Install / mount the camera close to the rearview mirror so that
both sides of the scene being recorded are equally covered by the
camera’s FOV (field of view).
3. To ensure a clear view on rainy days, the lens should be positioned
within the windshield wiper’s sweeping range.
4. Do not install / mount the camera on or near airbag panels.
5. Installation / mounting location should not be aected by sun
control film (window tint). There should not be any other electronic
equipment close to the camera for optimal performance.
Tips
Operation
Loop Recording
micro SD Card: Insert a micro SD card into the camera's card slot and
automatic loop recording will begin once the camera detects power.
1.
2.
3.
Time frame for each video file is 1 / 2 / 3 / 5 / 10 minutes.
When there is insufficient space on the micro SD card, loop recording
will automatically overwrite the oldest files (one by one).
Loop recording files are saved to SD card: \ DCIM \ MOVIE folder.
1.
2.
3.
Operation
Power On / O
When you start the engine, the camera will turn on and begin
recording automatically.
When you turn o the engine or unplug the charging cable from
the power adapter, the camera will stop recording and turn o.
Long press [ ] button to power on or o the camera.
1413
Display Overview
Recording Status
Emergency Lock
SD Card
Recording Mode
1080P 6 0
00:00:00
Recording Time
Video Resolution
Microphone
Wi-Fi
00:00:20
2020/12/28 08 16 12: :
1440P30
Emergency Recording
Automatic emergency recording
When the G-sensor is activated by a collision, the current footage
will be locked automatically to avoid being overwritten by loop
recording.
Manual emergency recording
Pressing the [ ] button during a recording will lock the current
file being recorded. Once locked, the file will not be overwritten by
the loop recording feature.
Note:
Collision sensing feature can be adjusted in settings under the
“G-sensor” option. Locked files are saved to SD card: DCIM \ Movie \
RO
Operation Operation
1.
2.
Playback Videos
Under standby mode (not recording), press [ ] button to enter
the playlist.
Use the arrow buttons [ ] to select the desired video
and press the button [ ] to play.
Press the [ ] button to exit.
1.
2.
3.
Motion Detection
If turned ON, the camera will start recording on detecting any
movement within its FOV (field of view). Once the camera does not
detect any movement for 60 seconds, it will stop recording and
return to ‘Motion-Detection’ mode. Recording will resume if any new
movement is detected.
Note:
Do not turn on ‘Motion Detection’ unless your vehicle is parked. If
‘Motion Detection’ is enabled while driving, the camera may not
record continuously.
Note:
1. Separate files are created for the recordings of front and interior
camera.
2. The file name of front camera is Year_Date_Time_***F, and
Year_Date_Time_***Ifor interior camera.
3. The default video resolution of front and interior camera are
1440P @30fps and 1080P@30fps
4. After unplugging the interior camera, the resolution of front
camera will switch to 1440P @30fps automatically.
PC Mode
1. Connect the camera to a computer by using the included short
Mini USB cable.
2. The camera will automatically turn on and "microSD Card
Reader Mode" will be displayed on its LCD screen .
3. The computer will detect “removable disk” .
4. There will be two folders under DCIM folder:
Movie (loop recording video files)
Contains subfolder: RO (Protected / Locked video files)
Photo (Video snapshot files)
5. Copy the files needed to your computer drive.
15 16
Operation Operation
PIP Mode
There are four modes for live preview on the A129 LCD screen and
via Wi-Fi while the interior camera is attached.
Note:
Picture in picture (PIP) mode is available only while the interior
camera is attached.
Mute
During a private conversation, pressing the [ ] button will mute
the audio (Disable the microphone).
Note:
• Before using a micro SD card to upgrade the firmware, formatting
the card in camera is necessary to ensure stable read and write
operation.
• Do not unplug or power o the camera during a firmware upgrade,
it may cause the camera to subsequently fail to boot.
17 18
Mode
Front Only
Interior Only
Description
Show preview video for front and interior
camera on the LCD screen, the interior
camera preview is on the top left side.
Show preview video for front and interior
camera on the LCD screen, the front
camera preview is on the top left side.
Show preview video for front camera only
on the LCD screen.
Show preview video for interior camera
only on the LCD screen.
Follow the instructions on this website to upgrade the firmware:
https://support.viofo.com/support/solutions/19000101567
Firmware Upgrade
View on a TV
The camera has an AV out port for connecting an external display
such as a monitor or TV. Please not that the product doesn't come
supplied a 3.5mm male to 3 RCA AUX cable.
Front + Interior
( interior overlaid )
Interior+ Front
( Front overlaid )
Table des matières
Autres manuels Viofo Caméra embarquée
Viofo
Viofo A129 Pro Duo Manuel utilisateur
Viofo
Viofo T130 Manuel utilisateur
Viofo
Viofo MT1 Manuel utilisateur
Viofo
Viofo A118C Manuel utilisateur
Viofo
Viofo A129 Manuel utilisateur
Viofo
Viofo A119 mini Manuel utilisateur
Viofo
Viofo A119 mini Manuel utilisateur
Viofo
Viofo A229 Pro Manuel utilisateur
Viofo
Viofo WM1 Manuel utilisateur
Viofo
Viofo A129 Duo IR Manuel utilisateur
