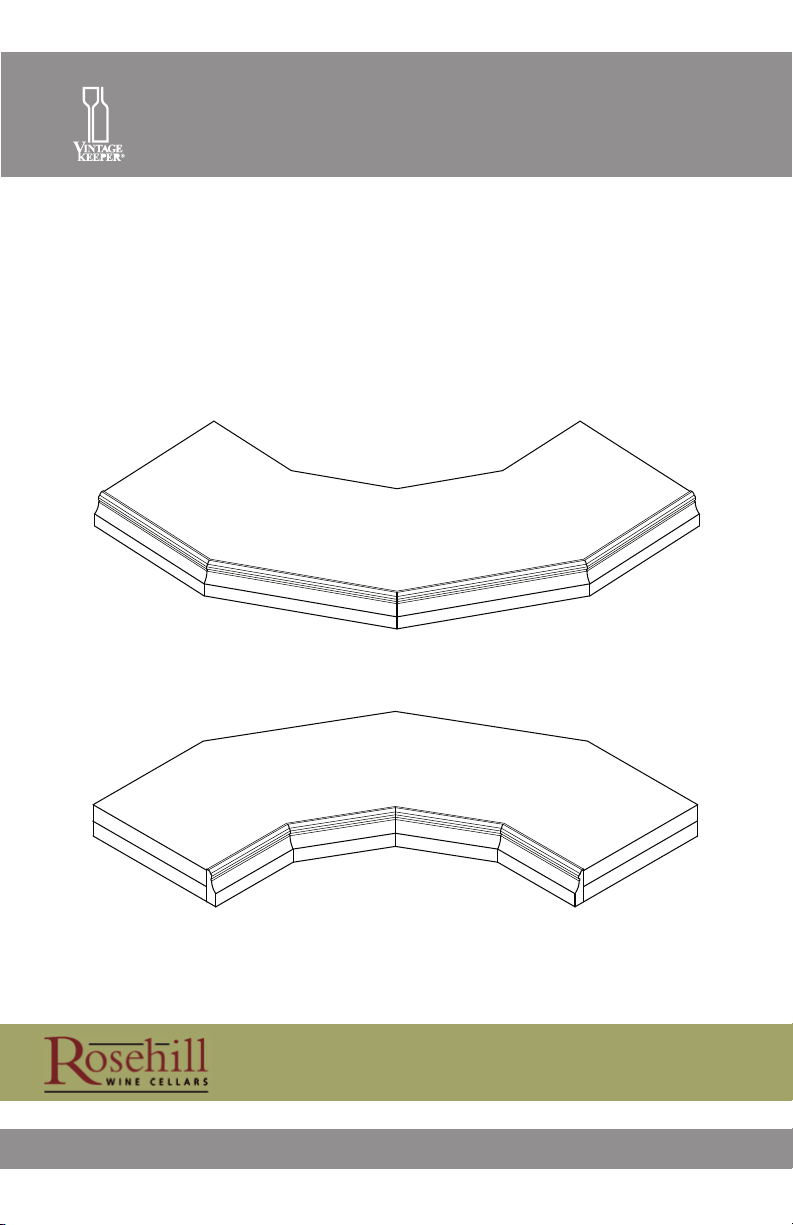

Vintage Keeper CORNER BASE Manuel utilisateur
TOOLS AND COMPONENTS
TRIM 4 pcs.Nails x 8
BASE
ATTACHING RACK TO BASE
To avoid cracking of wood, pre-drill 1/16” holes for screws.
Screw through bottom horizontal bars into BASE* with 7/8” screws or
nails ( gure A ). Shime base to level rack.
A
7/8” Screws x 8
Philips ScrewdriverHammer
Usable as Crown molding
ASSEMBLE RACK TO BASE
ASSEMBLE
NAIL IN TRIM
NOTE: The following instructions are for a corner base that will be
wrapped around a wall corner. The method of assembly is the same for
a corner base going into a corner, trim goes onto the opposite edge.
Nail through TRIM into BASE at groove to hide nails ( gure A ).
ADD TRIM TO BASE
A
RACK
WALL
1/2”
1/2”
1 3/16”
6 1/8”
9”
TRIM
MELAMINE
BASE
LIMITED WARRANTY
Drobot Inc warrants this product to be free from defects due to workmanship or
material, under normal use and service, for a period of one (1) year after the date of
purchase. Please call our customer service department at 1-888-274-8813 or e-mail
us at info@vintagekeeper.com
This warranty does not cover normal cosmetic wear, cosmetic defects, damage
resulting from improper assembly or maintenance, shipping damage, accident, or any
misuse, abuse or use contrary to the written instructions. This product is not war-
ranted for commercial use.
The warranties expressed above constitute the entire warranty of Drobot Inc with
regard to its products and are in lieu of and exclusive of all other warranties, express
or implied, including any of merchantability or tness for a particular purpose. In no
event shall Drobot Inc be liable or responsible for incidental or consequential damages,
including spoilage or breakage of wine. It is your own responsibility to insure your wine,
and to take all reasonable and necessary precautions to safeguard its condition.
© Drobot Inc, 2007
TEST BEFORE USE
Use of WINERACK is strictly at your own risk. Drobot Inc. will not accept
any responsibility or liability for damages resulting from units not
assembled precisely as directed, or not securely fastened to a wall or
support with suitable fasteners.
Before placing any bottles in your WINERACK, test it thoroughly to make
sure all fasteners are secure.
