Vinotemp WINE-MATE WM-2520CTED Instructions d'utilisation

Wine Cooling System

WM-1520CD WM-1520CTED

WM-2520CD WM-2520CTED

Installation, Use & Care Manual

Read and save these instructions

- 1 -

Important Safety Information

•DO NOT PLUG IN UNTIL 24 HOURS AFTER DELIVERY.

•DO NOT USE A GROUND FAULT INTERRUPTER (GFI).

•A DEDICATED 10 AMP CIRCUIT IS REQUIRED.

- 2 -

Table of Contents

Features & Specifications…………….………….…………..3

Installation Instructions……………………………………..5

Temperature and Humidity …………………………..….…10

Care Guide…………………………………………………..14

Troubleshooting……………………………………………..15

Wiring Diagram……………………………………….………18

Customer Support……………………………………………20

Warranty……………………………………………………….21

- 3 -

Features and Specifications

•WM-1520CD, CTED and WM-2520CD, CTED cooling units are designed and

used to provide a subtle temperature between 50~65 °F for a properly

insulated wine cabinet.

•The refrigerated space will maintain humidity range within 50~70% RH.

•These temperature and humidity ranges are optimized for long term storage

of wine.

•Temperature is controlled and humidity is adjusted using patented technology.

•Bottom cold-air supply is optimized for use in the wine cabinets.

•Multiple options for top and rear hot air exhaust are convenient for

installations.

•The unit is self-contained ready for easy installation and use.

Fig. 1.1 FEATURE DESCRIPTIONS

- 4 -

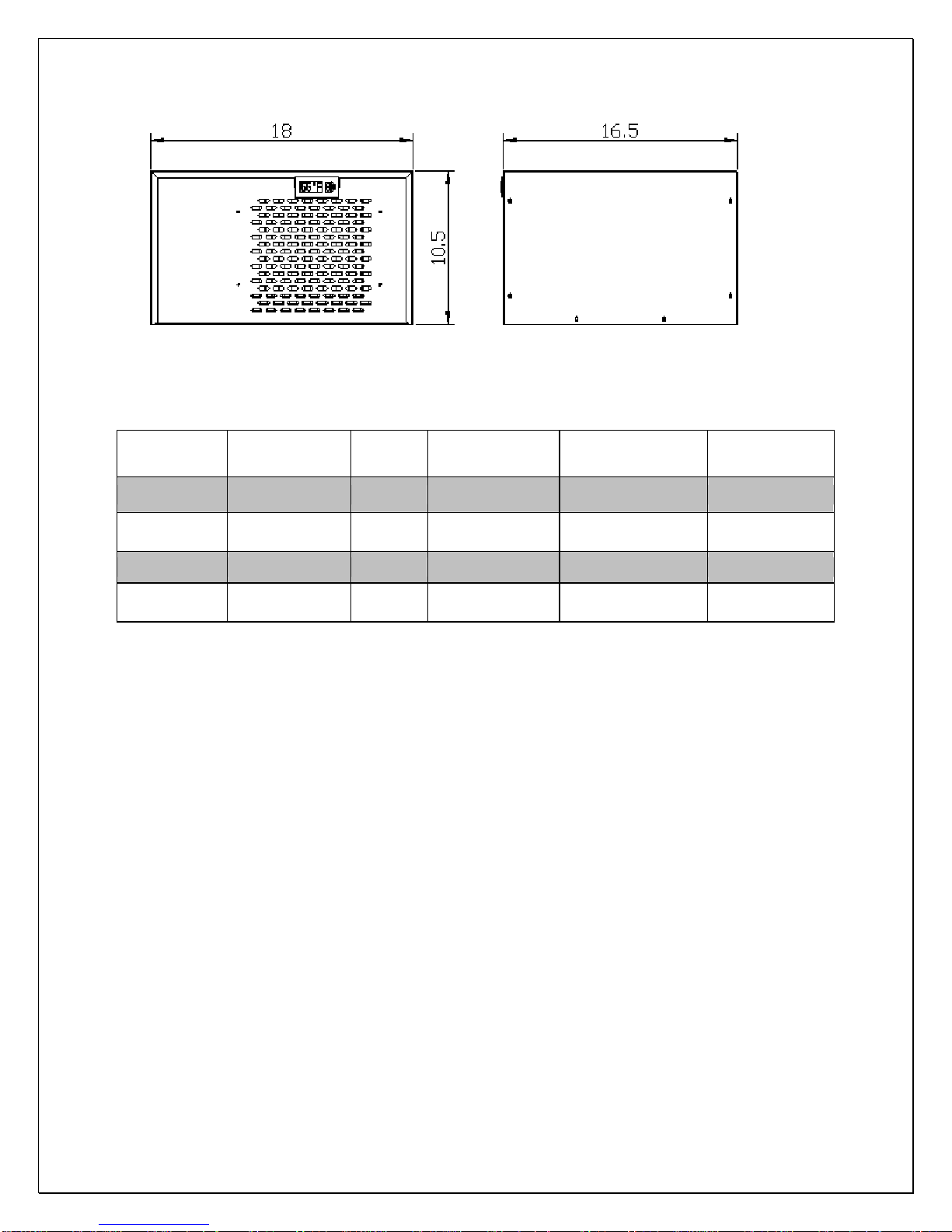

Fig. 1.2 DIMENSIONS (in)

The specifications and dimensions are listed as follows:

Model Exhaust CFM

Cabinet Size

(cu ft) Electrical Weight(lb)

WM-1520cd Rear Exhaust 100 80 220V/50Hz/2A 50

WM-

1520cted Top Exhaust 100 80 220V/50Hz/2A 50

WM-2520cd Rear Exhaust 150 180 220V/50Hz/3A 55

WM-

2520cted Top Exhaust 150 180 220V/50Hz/3A 55

NOTES:

•Also see the voltage, frequency and current specified on the label at the

cooling unit.

•The rated capacity is determined under the cabinet and ambient

temperatures of 55°F and 75°F with R13 interior and R19 exterior

insulations. Any lower cabinet temperature, higher ambient temperature

and less insulation will cause reducing capacity and may not maintain

55°F.

•The ambient temperatures for WM-1520CD shall not be higher than 78°F

or lower than 50°F in order to operate properly.

•The ambient temperatures for WM-2520CD shall not be higher than 95°F

or lower than 50°F in order to operate properly.

- 5 -

Installation Instructions

NOTES:

•Mounting brackets, screws, gaskets and other seal materials are not included.

•Do not install any ducts onto the supply, return, intake and exhaust.

•There is a grommet on the power cord. Press and fit the grommet into the

hole at the bottom of the cooling unit to prevent the exhaust air from going to

the cabinet.

•We strongly recommend against the use of an extension cord. However, if

you still select to use an extension cord, it is absolutely necessary that it is a

UL LISTED 3-wire grounding type appliance extension cord. The marked

rating of the extension cord shall be 220 V, 10 A. or equivalent and not

greater than 15ft in length.

1. Cabinet Location

•Place the wine cabinet in a properly ventilated location. Otherwise, heat

exhausted by the cooling unit will build up and it will not operate properly.

•The exhaust area must not be a closed space and must be ventilated.

•The ambient temperatures shall not be higher than 78°F for a WM-1520CD

unit and 95°F for a WM-2520CD unit or lower than 50 °F.

1) Rear Exhaust Location

•Leave min 6 “clearance from the rear to the wall.

•Leave min 12” clearance from the top to the ceiling.

•Leave min 6” clearance from the left and right sides.

2) Front Exhaust Location

•Leave min 6” clearance from the front if left and right sides unobstructed.

•Or, leave min 36” clearance from the front if left and right sides obstructed

3) Top Exhaust Location

•Leave min 12” from the top to the ceiling.

•Leave min 2 “clearance from the rear to the wall.

•Leave min 2” clearance from the left and right sides.

4) Side Exhaust Location

•Leave min 6 “clearance from the left or right side to the wall.

•Leave min 12” clearance from the top to the ceiling.

2. Cooling Unit Installation

- 6 -

Fig. 2.1 CUTOUT AND HOLE DIMENSIONS

•The cooling unit produces cooling supplied into the cabinet, meanwhile it also

generates heat that must be exhausted outside the cabinet. So the cold-air

supply with return-air intake and hot-air exhaust with ambient-air side must be

separated and sealed. Foam tape gasket may be used to seal them. The

cooling unit must intake adequate fresh ambient-air to work properly. The

ambient-air intake and hot-air exhaust must not be short-circulated. A piece of

wood may be used to separate them.

•Cut a rectangular inside opening at the rear of the cabinet with the 1/4”

clearance inwards to the width and height of the cooling unit. By not going

through, leave 1/2” lip inside at the wall to place the gaskets (see Fig. 2.1 &

2.2).

•If top exhaust installation, cut another rectangular opening at the top of the

cabinet to the length and width of the top exhaust (see Fig.2.1 & 2.3).

•Install 2 pieces of 1/4” ID wood thread inserts at the ceiling (see Fig.2.1 & 2.4).

•Place the gaskets (1/2” foam tape) on the gasket lips (see Fig 2.5).

•If top exhaust, place another gaskets along the top exhaust at the top of the

cooling unit (see Fig.2.6).

- 7 -

•Move the cooling unit towards the mounting sides and push to press the

gaskets.

•Use 2 mounting brackets and 1/4” screws with 7/16” wrench to secure the

cooling unit (see Fig 2.7).

•Attach the exhaust wall grille with screws from the rear side of the cabinet.

•If top exhaust installation, install another top exhaust grille at the top of the

cabinet.

•Plug the cooling unit in the cabinet receptacle.

•Plug the wine cabinet.

Fig. 2.2 REAR EXHAUST CUTOUT & GASKET LIP

Fig. 2.3 TOP EXHAUST CUTOUT

- 8 -

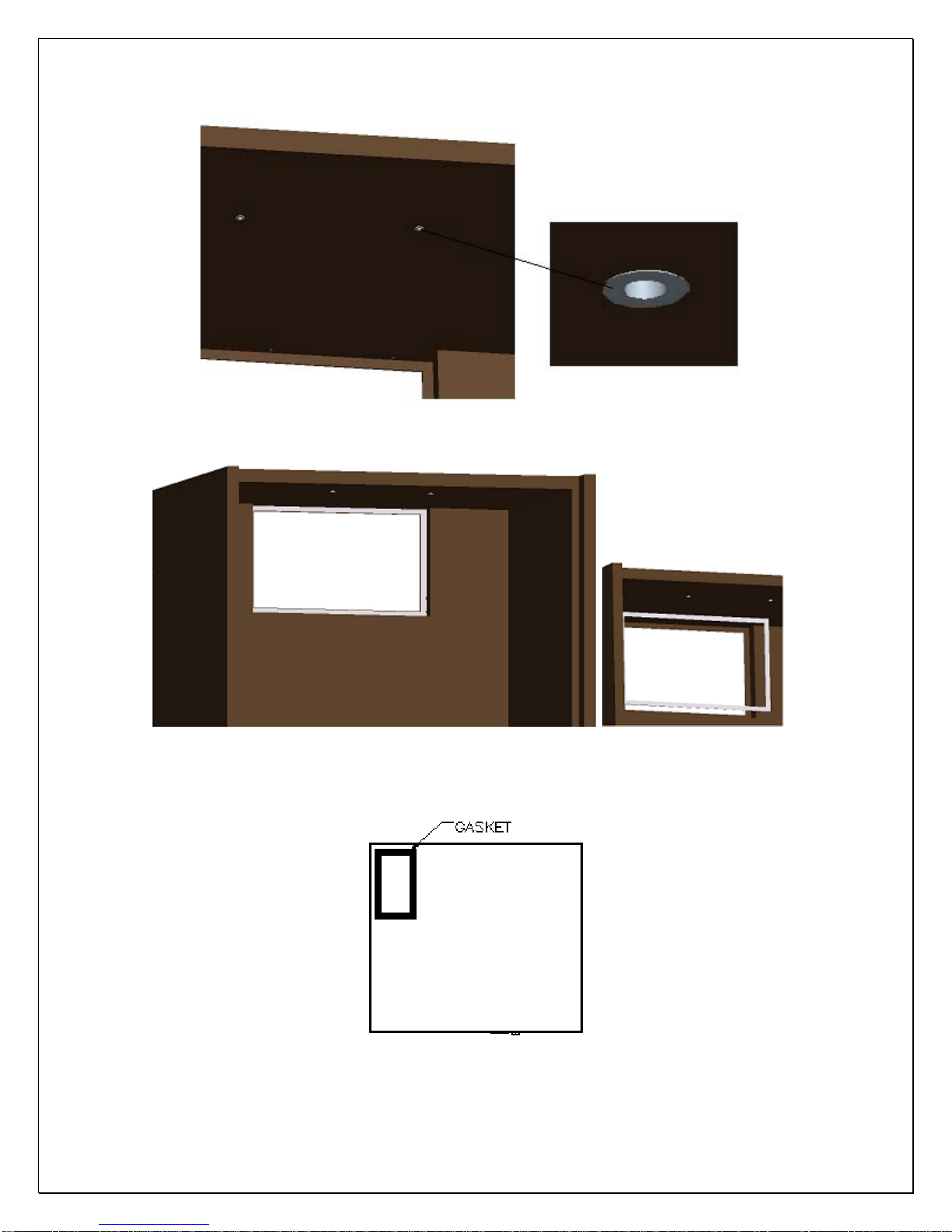

Fig. 2.4 MOUNTING SCREW INSERT

Fig. 2.5 REAR GASKET

Fig. 2.6 TOP EXHAUST GASKET

- 9 -

Fig. 2.7 COOLING UNIT MOUNTED
