Vingtor Stentofon TCIV-2 Mode d’emploi

Mounting Manual

TCIV Turbine IP Video

1 Turbine IP Video Stations

This document speciﬁes the dimensions, mounting procedure, and camera ﬁeld of view of the Turbine IP

Video Stations. The Turbine Video series comprises the following stations & accessories:

ITEM NUMBER TYPE ITEM NAME

1008115020 TCIV-2 Turbine Compact IP Video - stainless steel front plate

1008115030 TCIV-3 Turbine Compact IP Video - thermoplastic front plate

1008115060 TCIV-6 Turbine Compact IP Video - thermoplastic front plate with PMOLED display

1008140010 TA-1 Turbine On-Wall Back Box

1008140020 TA-2 Turbine Flush Mount 2-Gang Double-Depth Backbox

1008140050 TA-5 Turbine Bracket for Flush Mount Backbox

1.1 TCIV Station Dimensions

96 mm

156 mm

52 mm 20.5 mm

3.78”

6.14”

0.81”

2.05”

180 mm

120 mm

4.72”

7.09”

TCIV-2 TCIV-3 TCIV-6

2 On-Wall Surface Mounting

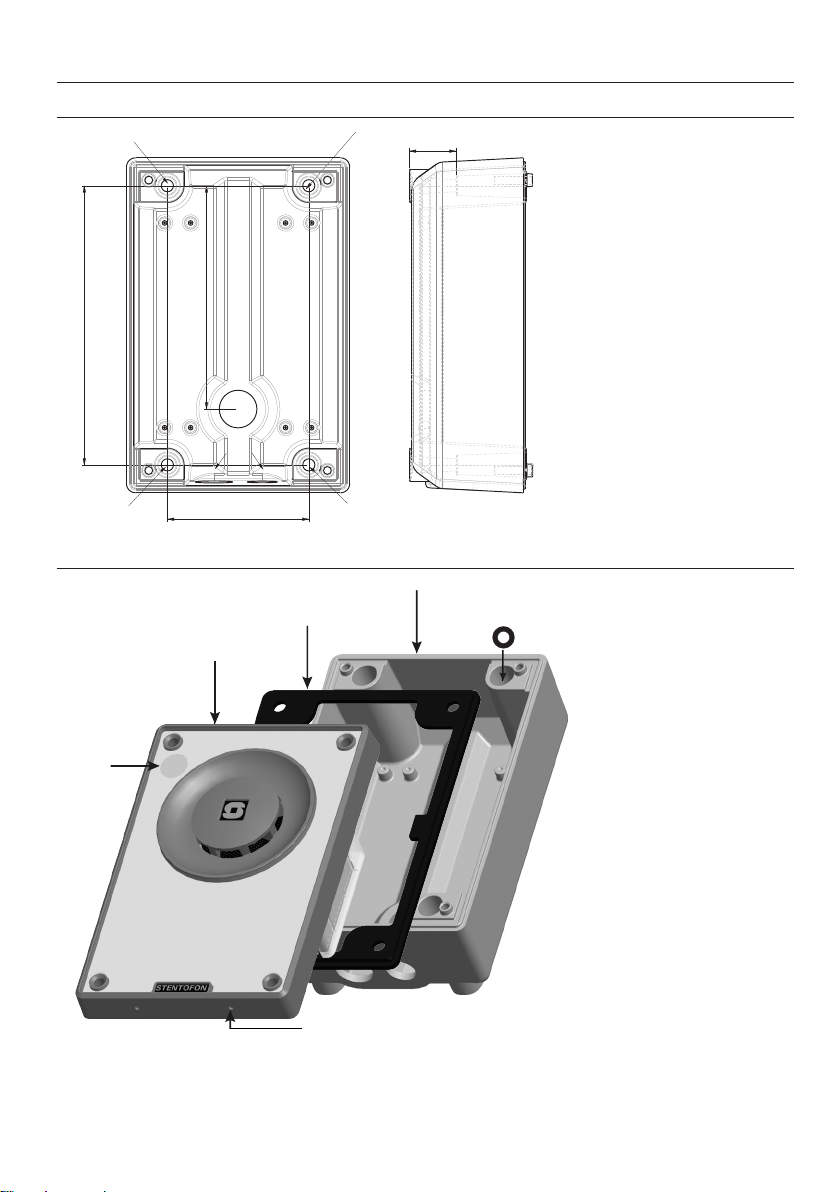

2.1 On-Wall Surface Mount Backbox - TA-1

2.2 On-Wall Surface Mounting Procedure

1. Mount the backbox onto the wall

2. Fit the gasket onto the backbox with the ridged side facing down

–Plug the Ethernet cable into the RJ-45 port on the station

3. Mount the Turbine station onto the backbox with the M5 fasteners provided

76 mm

150 mm

D6.5 mm

25 mm

120 mm

Mounting holes are to be drilled

as shown.

Max. recommended screw

diameter: ISO M6 or ANSI 1/4".

Screw length must be greater

than 25 mm or 1".

A4 stainless steel socket head

screws/bolts are recommended.

Max. recommended screw

head diameter: 9.5 mm or 3/8".

3”

5.90”

4.72”

1”

0.25”

Mounting Hole

Mounting Hole Mounting Hole

Mounting Hole

Optional plastic washers for extra

protection against corrosive effects

between surfaces are provided.

They should be placed at the bottom

of the 4 mounting holes.

Grommets and an M20 cable gland

are provided.

cable holes

M20 M16

Surface Mount Back Box

Gasket

Turbine Station

Microphone

Camera

Lens

Plastic Washer

LThe Gasket MUST be

mounted to seal the

station!

LUse the grommets and M20 cable gland

provided for the cable holes on the backbox

LEnsure the station is

mounted vertically with the

microphone aperture facing

down.

LEnsure there is enough

clearance under the station

so that the microphone

aperture is not smothered.

LPlace the plastic washers at the

bottom of the 4 mounting holes on

the back box.

3 Flush Mounting

3.1 Flush Mount 2-Gang Double-Depth Backbox - TA-2

LIt is recommended to utilize backboxes with weep holes at the bottom.

3.2 Flush Mount Bracket - TA-5

LThe TA-5 Bracket is mandatory for ﬂush mounting.

96 mm / 3.78?

48 mm

25 mm

23 mm

89 mm / 3.50?

96 mm / 3.78?

46 mm

SIDE

22 mm

1.81? 0.98?

0.90?

0.87?

1.89?

83 mm

87 mm

46 mm

50 mm

4 mm

74 mm

91 mm

Fits US 2-GANG electrical boxes.

Recommended screw diameter: up to M4 (5/32")

Use screw recommended by back box manufacurer.

CUTOUT

0.16”

1.81”

0.16”

3.58”

1.97”

3.42”

3.27”

2.91”

DOC NO.

Zenitel and its subsidiaries assume no responsibility for any errors that may appear in this publication, or for damages arising from the information therein. STENTOFON-VINGTOR products are developed and

marketed by Zenitel. The company’s Quality Assurance System is certiﬁed to meet the requirements in NS-EN ISO 9001. Zenitel reserves the right to modify designs and alter speciﬁcations without notice.

ZENITEL PROPRIETARY. This document and its supplementing elements, contain Zenitel or third party information which is proprietary and conﬁdential. Any disclosure, copying, distribution or use is

3.3 Flush Mounting Procedure

4 Camera Field of View

Bracket

Gasket

Turbine Station

2-Gang Backbox

Microphone

Camera

Lens

24.8.2017

A100K11625 customer[email protected]

LThe Gasket MUST be

mounted to seal the

station!

1. Mount the 2-gang backbox into the

wall

2. Mount the bracket onto the backbox

3. Fit the gasket onto the bracket with

the ridged side facing down

–Plug the Ethernet cable into the RJ-45

port on the station

4. Mount the Turbine station onto

the bracket with the M5 fasteners

provided

90°

75 cm

192 cm

88 cm

140 cm

70°

Vertical Angle Horizontal Angle

75 cm

150 cm

LEnsure the station is mounted

vertically with the microphone

aperture facing down.

LEnsure there is enough clearance

under the station so that the

microphone aperture is not

smothered.
