Vingtor Stentofon Exigo Ex EAPFX-1 Manuel utilisateur

Installation, & Maintenance Procedures

Ex schedule document.

All changes must be

approved by a Notied Body.

Ex Turbine Intercoms & Exigo Access Panels

Page 2Doc. no. A100K11499

Document Contents

1 Basic information

1.1 Revision history

Doc.no.

Rev.

Date

Prepared by

Revision text

App. by Ex responsible

A100K11499

05.01.2015

Svend E.Nilsen

New document

05.01.2015

Erik Bjørkander

A100K11499

1.1

05.02.2015

Svend E.Nilsen

Minor

correction,

labeled headset

as ATEX only

05.02.2015

Erik Bjørkander

A100K11499

1.2

03.03.2015

Thomas Hægh

Corrected IS

parameters

(chapter 3.3.2)

03.03.2015

Erik Bjørkander

1.2 Scope

This document describes the installation and maintenance procedures for

the VINGTOR - STENTOFON Exigo Ex Access Panels and Turbine Ex Intercom Stations,

henceforth commonly referred to as “Ex Products”, and their intended audio accessories.

The following models are covered by this manual.

Item number

Search name

Item Name

Exigo Ex PA access panels

1023221511

EAPFX-1

Exigo Industrial Ex Access Panel, 1 button, Flowire

1023221516

EAPFX-6

Exigo industrial Ex Access Panel, 6 buttons, Flowire

Turbine Ex intercom units

1008123010

TFIX-1

Turbine Full-Size Ex Intercom Station 1

1008123020

TFIX-2

Turbine Full-Size Ex Intercom Station 2

1008123030

TFIX-3

Turbine Full-Size Ex Intercom Station 3

1008123040

TFIX-4

Turbine Full-Size EX Intercom Station 4

Ex audio accessories

2330040026

AK5850HS

Ex-Approved Headset with plug **

1008150025

TAX-2B

Ex-Approved Cable for Headset with PTT Button

1008150030

TAX-3

Ex-Approved Handset with PTT, unterminated

1023533511

EMMAX-1H

Exigo Handheld Industrial Ex Microphone, 1 Button, IP66

** Headset AK5850HS is only certified for use in ATEX areas (Not IECEx)

Ex Turbine Intercoms & Exigo Access Panels

Doc. no. A100K11499 Page 3

1.3 Related Documentation

For further information, refer to the following documentation

Doc.no.

Documentation

A100K11460

Exigo Installation & Configuration Manual

A100K11422

Flowire Installation & Configuration Manual

A100K11471

Exigo User Manual

A100K11194

Turbine Stations Configuration Manual

A100K11523

Mounting Manual for EAPFX-1, EAPFX-6, TFIX-1, TFIX-2 , TFIX-3, TFIX-4

A100K11525

Connection Manual TAX-2b Ex-Approved plugbox and cable for Ex Headset

AK5850HS

A100K11526

Connection Manual TAX-3 EX-approved Handset w/PTT, unterminated

A100K11528

Connection Manual EMMAX-1H Exigo Handheld Industrial Ex Microphone

1.4 Certificates

ATEX Certificate number

Presafe 14ATEX5209 X

IECEx Certificate number

IECEx PRE 14.0029 X

Certificates can be downloaded from www.vingtor-stentofon.com

If the sign “X” is placed after the certificate number, it indicates that the equipment is subject to

special condition for safe use.

Special condition for safe use:

The cable glands shipped with this product has an impact resistance of max 4J.

Due to low impact resistance of the cable glands, the units shall only be installed in areas where

there is a low risk of impact.

If cable glands supporting high impact (7J) are used, the X condition does not apply.

2 About the Ex Products

2.1 The Industrial Ex product series

Before using this product, carefully read this manual and other manuals for compatible hardware.

Retain instructions for future reference.

The Ex Products are approved according to IECEx and ATEX regulations, and bear the marking:

II 2(2)G Ex e ib mb (ib) IIC T4 Gb (See chapter 3.5.4 marking for detailed information).

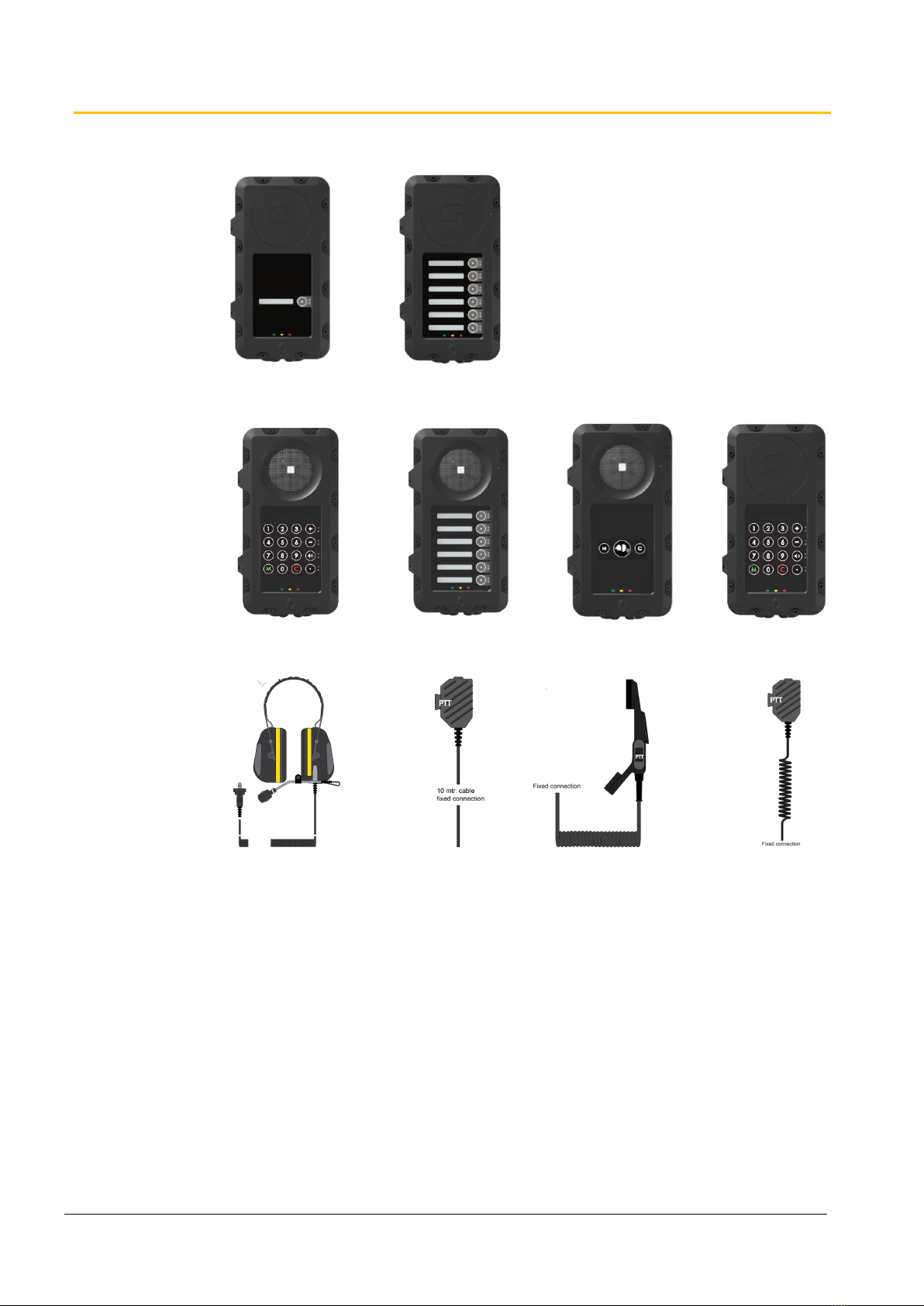

The following models and audio accessories are approved for use in hazardous areas

Ex Turbine Intercoms & Exigo Access Panels

Page 4Doc. no. A100K11499

EAPFX-1 EAPFX-6

TFIX-1 TFIX-2 TFIX-3 TFIX-4

AK5058HS** TAX-2B TAX-3 EMMAX-1H

Access

Panels

Intercoms

Audio

Accessories

** Headset AK5850HS is only certified for use in ATEX areas (Not IECEx)

Ex Turbine Intercoms & Exigo Access Panels

Doc. no. A100K11499 Page 5

2.2 Ex Product Interface

The interface of the Ex Products consist of the elements in the following chapters.

2.2.1 Status LEDs

Present on all Ex Products.

Green Power LED

The Power LED is lit to indicate that the access panel is powered up.

The Power LED flashes to indicate that the device has no connection to the central equipment.

Yellow Fault LED

The Fault LED is lit to indicate that there are faults in the system.

The Fault LED flashes to indicate that the device is connected to (link OK), but not registered with

the central equipment.

Red Call LED

The Call LED is lit when an intercom is in a conversation, or the microphone on an access panel is

active.

2.2.2 Function Buttons

Present on all Ex Products.

These are fully programmable buttons which appear in different forms on different units.

Right-aligned Function Buttons have two programmable LEDs (green and red) to indicate status

information related to the function.

For right-aligned Function Buttons, button protection covers can be attached to avoid a button

being inadvertently pressed.

2.2.3 Numeric Keypad

Present on TFIX-1, TFIX-3 and TFIX-4.

These have a predetermined function.

Dialing buttons 0 - 9, present on TFIX-1 and TFIX-4, are used for calling specific numbers or

triggering functions.

M-button, present on TFIX-1, TFIX-3 and TFIX-4, is used for answering calls, Push-To-Talk and

changing from external to internal audio devices.

C-button, present on TFIX-1, TFIX-3 and TFIX-4, is used to cancel a current action or state.

Ex Turbine Intercoms & Exigo Access Panels

Page 6Doc. no. A100K11499

2.2.4 Model specific interfaces

EAPFX-1

One right-aligned Function

Button

Available area for labelling the

button

EAPFX-6

Six right-aligned Function

Buttons

Available areas for labelling

the button

Ex Turbine Intercoms & Exigo Access Panels

Doc. no. A100K11499 Page 7

TFIX-1

Dialing buttons 0-9

M-button

C-button

Four function buttons, three of which

are pre-programmed:

+ for volume up

- for volume down

Audio button for changing

between loud speaking and

low speaking mode

TFIX-2

Six right-aligned Function

buttons

Available areas for labelling

the button

Ex Turbine Intercoms & Exigo Access Panels

Page 8Doc. no. A100K11499

TFIX-3

Call button

M-button

C-button

TFIX-4

Dialing buttons 0-9

M-button

C-button

Four function buttons,

three of which are pre-

programmed:

+ for volume up

- for volume do

Audio button for

changing between loud

speaking and low

speaking mode

Ex Turbine Intercoms & Exigo Access Panels

Doc. no. A100K11499 Page 9

2.3 Accessories

The following accessories are designed for use with any of the Ex Products.

AK5850HS

Headset with boom microphone, curled cord and plug

Plugs into TAX-2B

Headset AK5850HS is only certified for use in ATEX

areas (Not IECEx)

TAX-2B

10 m cable with Push-To-Talk button (PTT) and

contact

For headset AK5850HS

Terminated on main board inside Ex Product

Ex Turbine Intercoms & Exigo Access Panels

Page 10 Doc. no. A100K11499

TAX-3

Handset with Push-To-Talk button (PTT)

Terminated on main board inside Ex Product

EMMAX-1H

Microphone with Push-To-Talk button

Terminated on main board inside Ex Product
