Viking VRDO1240DSS Manuel utilisateur

PLANNING AND DESIGN GUIDE

VIKINGRANGE.COM • 1- -VIKING1

All models include

• Agency certified for outdoor use

• Electronic controls with digital

temperature readout

oInside temperature can be adjusted

from 33 – 39ºF

oFactory set at 34ºF

oSabbath mode

oTemperature can be displayed in

either Fahrenheit or Celsius

• Capacity—5.3 cu. ft. (150.0 L)

• 200 lb. capacity full-extension drawer

glides

• LED display lighting

• Forced air cooling system with

powerful 700 BTU compressor

• Tru-Flush™design allows unit to fit

flush in 24” deep cutout

• Energy Star qualified

• Undercounter or freestanding

installation

• Self-closing door with keyed lock

• Super quiet 32-39 db sound rating

• Stainless steel kickplate

• Adjustable leveling legs

VRDO1240D

Pr fessi nal

FINISH DETAILS FOR VRDO MODEL

• Solid door—Stainless Steel (SS)

• Finish code designates drawer fronts.

Stainless steel handle with chrome-

plated brackets, stainless steel exterior

cabinet, and stainless steel interior.

Standard Features & Accessories

Model Options

OUTDOOR—REFRIGERATION

Undercounter/Freestanding

24"W. Refrigerated Drawer

R E L E A S E D 1 1 / 1 / 1 1

OUTDOOR—REFRIGERATION

Undercounter/Freestanding

24"W. Refrigerated Drawer

PLANNING AND DESIGN GUIDE

VIKINGRANGE.COM • 1- -VIKING1

✪

Please see

Installati n N tes &

Access ries

for important

information,

including pan sets

and dividers.

Dimensions & Specifications

VRDO1240D

Overall width 23-7/8" (60.6 cm)

Overall height 34-1/4” (87.0 cm) min. to 3 ” (89.0 cm) max.

Overall depth (from rear)

To front edge of handle 26-9/16” (67.5 cm

With drawer fully extended 40” (102.0 cm)

Approx. ship wt. 21 lbs. (98.0 kg)

VRDO1240D

Pr fessi nal

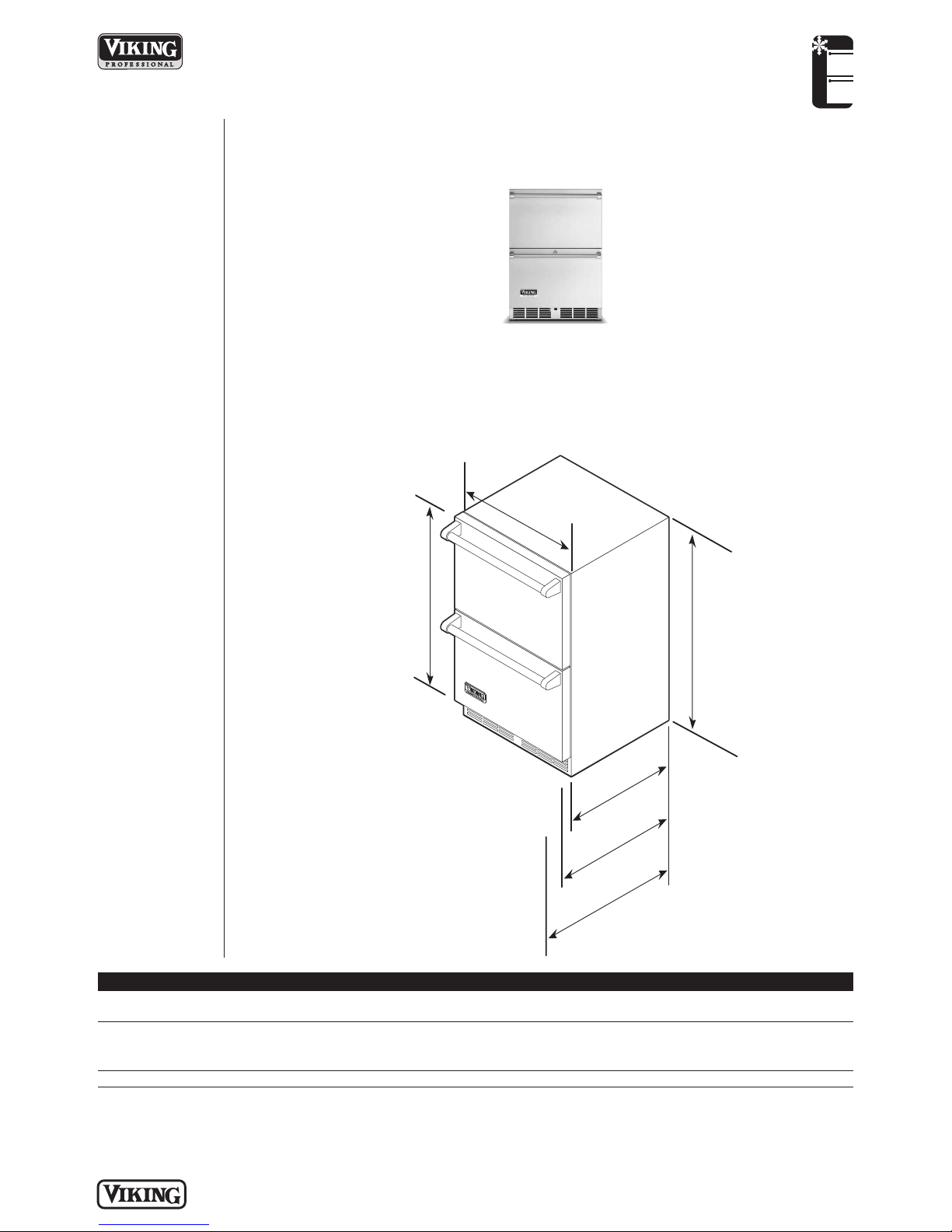

PRODUCT DIMENSIONS

R E L E A S E D 1 1 / 1 / 1 1

30-1/8”

(76.5cm)

22-1/6”

(56.0cm)

24-1/16”

(61.1cm)

26-9/16”

(67.5cm)

23-7/8”

(60.6cm)

(60.6 cm)

23-7/8”

(60.6cm)

34-1/4”

(87.0cm)

min.

35”

(89.0cm)

max.

PROFESSIONAL

OUTDOOR—REFRIGERATION

Undercounter/Freestanding

24"W. Refrigerated Drawer

PLANNING AND DESIGN GUIDE

VIKINGRANGE.COM • 1- -VIKING1

Dimensions & Specifications

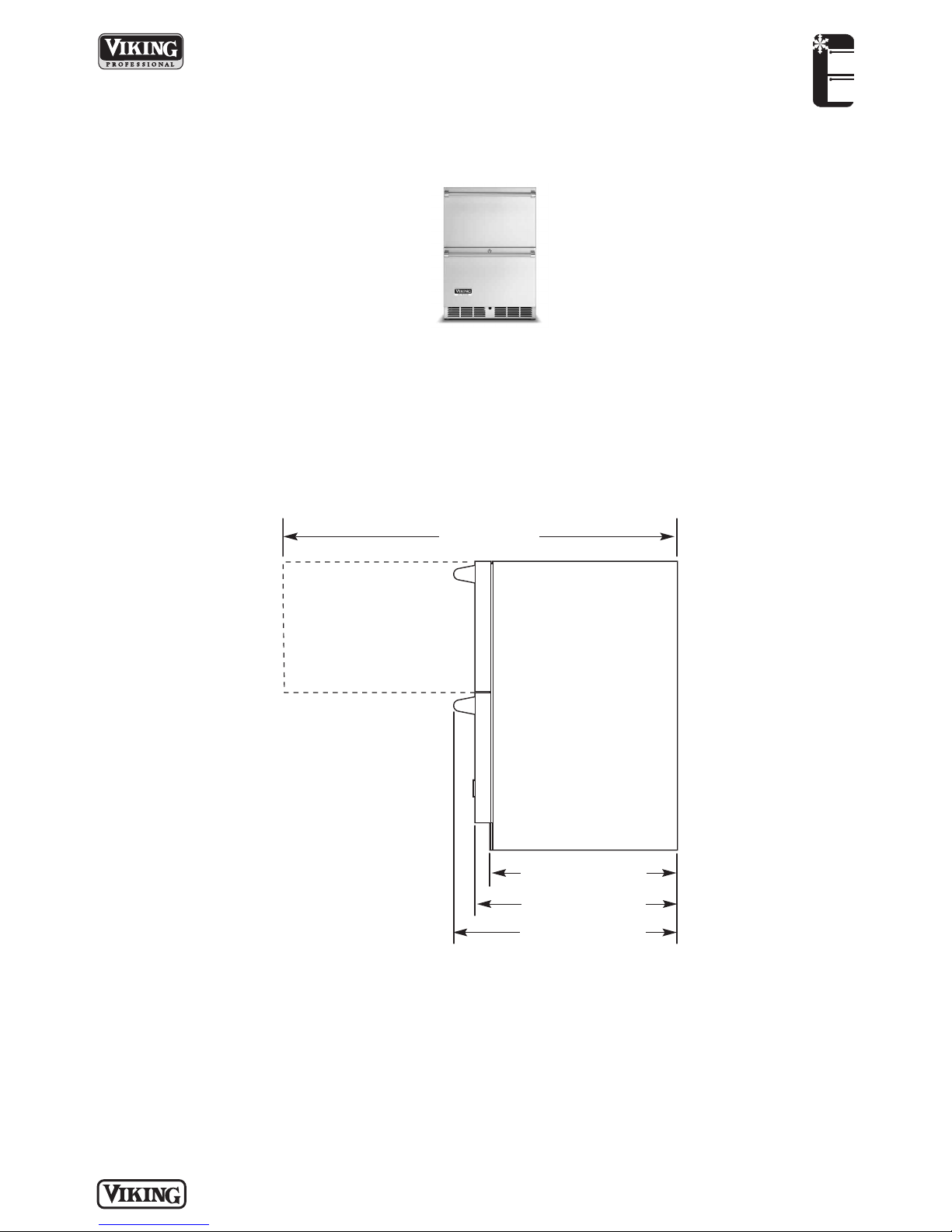

DRAWER EXTENSION

VRDO1240D

Pr fessi nal

R E L E A S E D 1 1 / 1 / 1 1

40” (102.0 cm)

22-1/16” (56.0 cm)

24-1/16” (61.1 cm)

26-9/16” (67.5 cm)

PROFESSIONAL

GAS

Not applicable

ELECTRICAL

• Three-wire cord

with grounded

three-prong plug

attached to

product

• 115V/60 Hz; 15

amp dedicated

circuit

• Maximum amp

usage—3.0

PLUMBING

Not applicable

OUTDOOR—REFRIGERATION

Undercounter/Freestanding

24"W. Refrigerated Drawer

PLANNING AND DESIGN GUIDE

VIKINGRANGE.COM • 1- -VIKING1

UTILITY

REQUIREMENTS

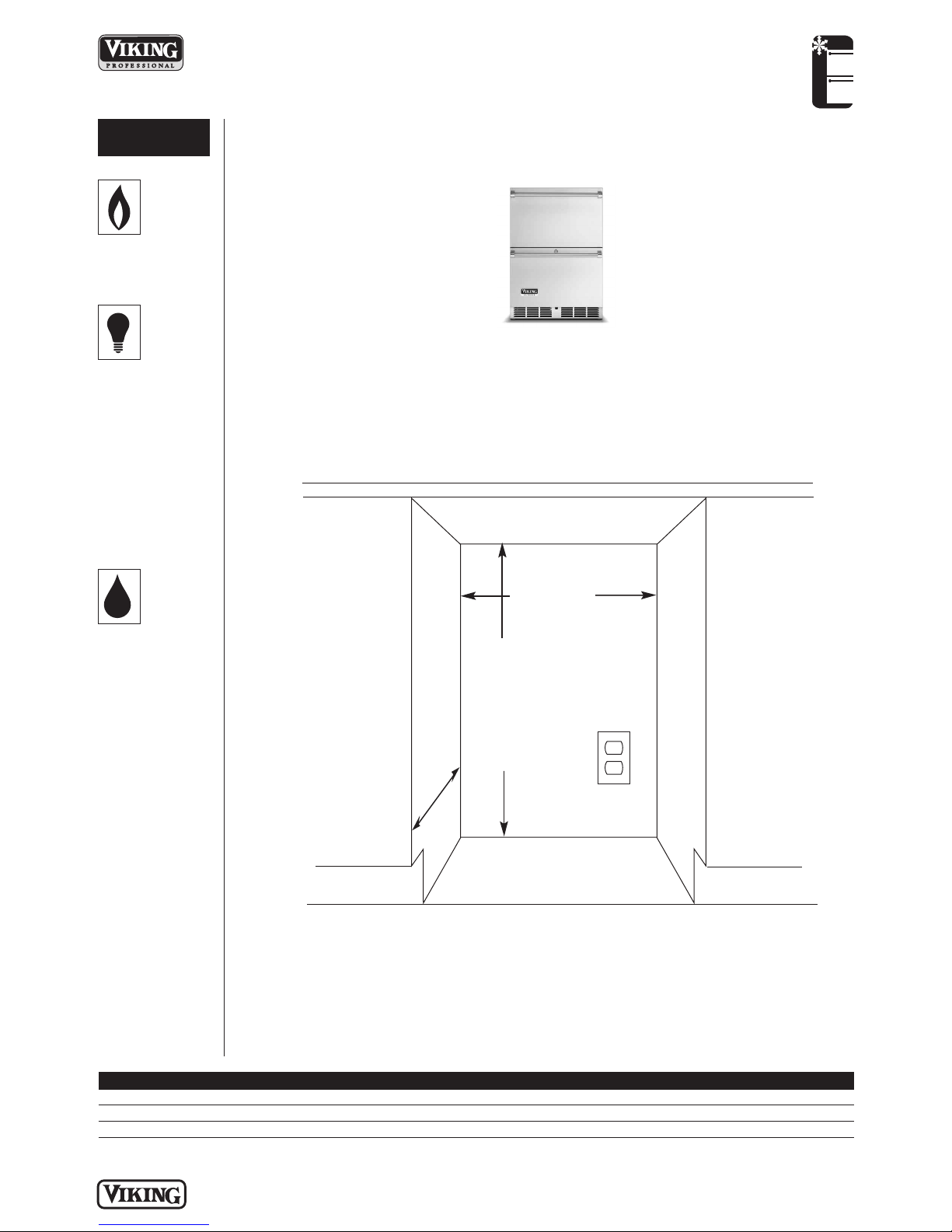

Installation Requirements

24” (61.0 cm)

34-1/2” (87.6 cm) min.

35-1/2” (90.2 cm) max.

24”

(61.0cm)

ACCESS REQUIREMENTS

All models

Cutout width 24” (61.0 cm)

Cutout height 34-1/2” (87.6 cm) min. to 3 -1/2” (90.2 cm) max.

Cutout depth 24” (61.0 cm)

VRDO1240D

Pr fessi nal

R E L E A S E D 1 1 / 1 / 1 1

OUTDOOR—REFRIGERATION

Undercounter/Freestanding

24"W. Refrigerated Drawer

PLANNING AND DESIGN GUIDE

VIKINGRANGE.COM • 1- -VIKING1

R E L E A S E D 1 1 / 1 / 1 1

Compliance Information

WARRANTY SUMMARY*

• One-year full warranty—complete unit

• Five-year limited warranty—sealed refrigeration system (includes compressor, condenser, dryer/strainer, evaporator

and connecting tubing)

• Ninety-day limited—cosmetic parts such as glass, painted, and decorative items

*For complete warranty, see Use & Care Guide. Warranty valid on Viking products shipped within the United States and Canada.

Stainless Steel Cabinetry-Bases

• Stainless Steel (SS)

• For use with 24”W. Viking outdoor refrigeration products

•See individual product pages (storage section) for more information and additional specifications

Stainless Steel Cabinetry-Oven Towers

• Stainless Steel (SS)

• For installation of 24” refrigerated drawer with oven

• See individual product pages (storage section) for more information and additional specifications

✪Installation Notes & Accessories

Model Description Approx. ship wt. lbs. (kg)

VURO3200 Base for 24”W outdoor refrigerated drawer 125 (56.7

Model Description Approx. ship wt. lbs. (kg)

VERO3200 32”W. tower (for 24”W. refrigerated drawer + smoker oven 271 (122.9

VGRO3200 32”W. tower (for 24”W. refrigerated drawer + gas oven 271 (122.9
