Viking FBCI1150GR Manuel utilisateur

REFRIGERATION

Undercounter/Freestanding

15”W. Beverage Center

PLANNING AND DESIGN GUIDE

VIKINGRANGE.COM • 1- -VIKING1

All models include

• Electronic controls with digital temper-

ature readout

oInside temperature can be adjusted

from 36 – 4 ºF

oFactory set at 42ºF

oSabbath mode

oTemperature can be displayed in

either Fahrenheit or Celsius

• Capacity—3.0 cu. ft. ( 4.9 L)

• One full-extension wire shelf

o75 lbs. capacity

oRemovable and adjustable

• Two full-extension wine shelves

oAccommodate bottles of wine

oShelves can be removed and

adjusted to store large bottles

• Dual pane and argon-filled Low-E

energy efficient glass doors

• LED display lighting

• Forced air cooling system with

powerful 700 BTU compressor

• Tru-Flush™design allows unit to fit

flush in 24” deep cutout

• Undercounter or freestanding

installation

• Self-closing door

• Super quiet 32-39 db sound rating

• Black kickplate

• Adjustable leveling legs

• Must be ordered right or left hinge

(As you face unit, RIGHT has hinge on

right side and handle on left side;

LEFT has hinge on left side and han-

dle on right side.)

VBCI1150G

Professiona

FINISH DETAILS FOR FBCI MODELS

•Clear glass doors

• Stainless steel interior

• Handle not included—opt for cus-

tom handle, or purchase a Viking

Professional Series handle kit (see

Insta ation Notes & Accessories).

•Accept 3/4”-thick custom wood

frame

• See Custom Pane s section for

more information and additional

specifications.

FINISH DETAILS FOR VBCI MODELS

• Clear glass doors

oStainless Steel (SS)—stainless steel

frame around large window door,

stainless steel handle with chrome-

plated brackets, and stainless steel

exterior cabinet

oStainless steel interior

FBCI1150G

Custom Pane

Standard Features & Accessories

Model Options

ORDERING INSTRUCTIONS

First specify model number, then specify hinge preference (“R” for right or “L” for left), and then color code (VBCI1150GRSS).

R E L E A S E D 1 1 / 1 / 1 1

REFRIGERATION

Undercounter/Freestanding

15”W. Beverage Center

PLANNING AND DESIGN GUIDE

VIKINGRANGE.COM • 1- -VIKING1

✪

Please see

Insta ation Notes &

Accessories

for important

information,

including handle

and trim kits.

Dimensions & Speci ications

22-1/16”

(56.0cm)

24-1/16”

(61.1cm)

26-9/16”

(67.5cm)

34-1/4”

(87.0cm)

min.

35”

(89.0cm)

max.

14-7/8”

(37.8cm)

14-7/8”

(37.8 cm)

14-7/8”

(37.8cm)

30-1/8”

(76.5cm)

VBCI1150G FBCI1150G

Overall width 14-7/8” (37.8 cm)

Overall height 34-1/4” (87.0 cm) min. to 35” (89.0 cm) max.

Overall depth (from rear)

To front of handle 26-9/16” (67.5 cm) Varie

Approx. hip weight 175 lbs. (79 kg)

VBCI1150G

Professiona

FBCI1150G

Custom Pane

PRODUCT DIMENSIONS

See Custom Pane s section for

more information and additional

specifications.

R E L E A S E D 1 1 / 1 / 1 1

PROFESSIONAL

PLANNING AND DESIGN GUIDE

VIKINGRANGE.COM • 1- -VIKING1

5-1/16”

(12.9 cm)

94.0 Swing

required for

pull-out shelf

clearance

2-3/16”

(5.6 cm) min.

clearance

from a corner

to achieve 94°

door swing

15-25/32”

(40.1 cm)

min. clearance

for door swing

Power cord 6-5/8”

(16.8 cm) off floor.*

50” (127.0 cm) area in which

electrical outlet must be located

PROFESSIONAL

REFRIGERATION

Undercounter/Freestanding

15”W. Beverage Center

Dimensions & Speci ications

DOOR SWING

R E L E A S E D 1 1 / 1 / 1 1

VBCI1150G

Professiona

FBCI1150G

Custom Pane

See Custom Pane s section for

more information and additional

specifications.

REFRIGERATION

Undercounter/Freestanding

15”W. Beverage Center

PLANNING AND DESIGN GUIDE

VIKINGRANGE.COM • 1- -VIKING1

UTILITY

REQUIREMENTS

GAS

Not applicable

ELECTRICAL

• Three-wire cord

with grounded

three-prong plug

attached to

product

• 115V/60 Hz; 15

amp dedicated

circuit

• Maximum amp

usage—3.0

PLUMBING

• Not applicable

Installation Requirements

15” (38.1 cm)

34-1/2” (87.6 cm) min.

35-1/2” (90.2 cm) max.

24”

(61.0cm)

ACCESS REQUIREMENTS

All models

Cutout width 15” (38.1 cm)

Cutout height 34-1/2” (87.6 cm) min. to 35-1/2” (90.2 cm) max.

Cutout depth 24” (61.0 cm)

R E L E A S E D 1 1 / 1 / 1 1

VBCI1150G

Professiona

FBCI1150G

Custom Pane

See Custom Pane s section for

more information and additional

specifications.

Handle Kits

•

For use with custom panel 15”W. beverage center

• For use on locally supplied custom panels

•Handles allow custom panel products to coordinate with other Professional products

• Kit includes one handle and installation hardware

REFRIGERATION

Undercounter/Freestanding

15”W. Beverage Center

PLANNING AND DESIGN GUIDE

VIKINGRANGE.COM • 1- -VIKING1

Model Description Approx. ship wt. lb. (kg)

PHK30-SS Profe ional handle (Stainle Steel) 6 (2.7)

✪Installation Notes & Accessories

Compliance In ormation

WARRANTY SUMMARY*

• Three-year full warranty—complete unit

• Six-year full warranty—sealed refrigeration system (includes compressor, condenser,

dryer/strainer, evaporator, and connecting tubing)

• Twelve-year limited warranty—sealed refrigeration system

• Ninety-day limited warranty—cosmetic parts such as glass, painted items, and decorative items

*For complete warranty see Use & Care Guide. Warranty valid on Viking products shipped within the United States and Canada.

R E L E A S E D 1 1 / 1 / 1 1

Ce manuel convient aux modèles suivants

Autres manuels Viking Réfrigérateur

Viking

Viking VCFF236 Manuel utilisateur

Viking

Viking DFUR154 Manuel technique

Viking

Viking VCSF136D Series Manuel utilisateur

Viking

Viking Professional DFFB530 Manuel utilisateur

Viking

Viking VUBD140TRSS Manuel utilisateur

Viking

Viking FDBB5361 Series Manuel utilisateur

Viking

Viking VCBF136 Series Manuel utilisateur

Viking

Viking F20603A Manuel utilisateur

Viking

Viking Designer DUAR140R Manuel utilisateur

Viking

Viking Designer DFSB423 Guide de l'utilisateur

Viking

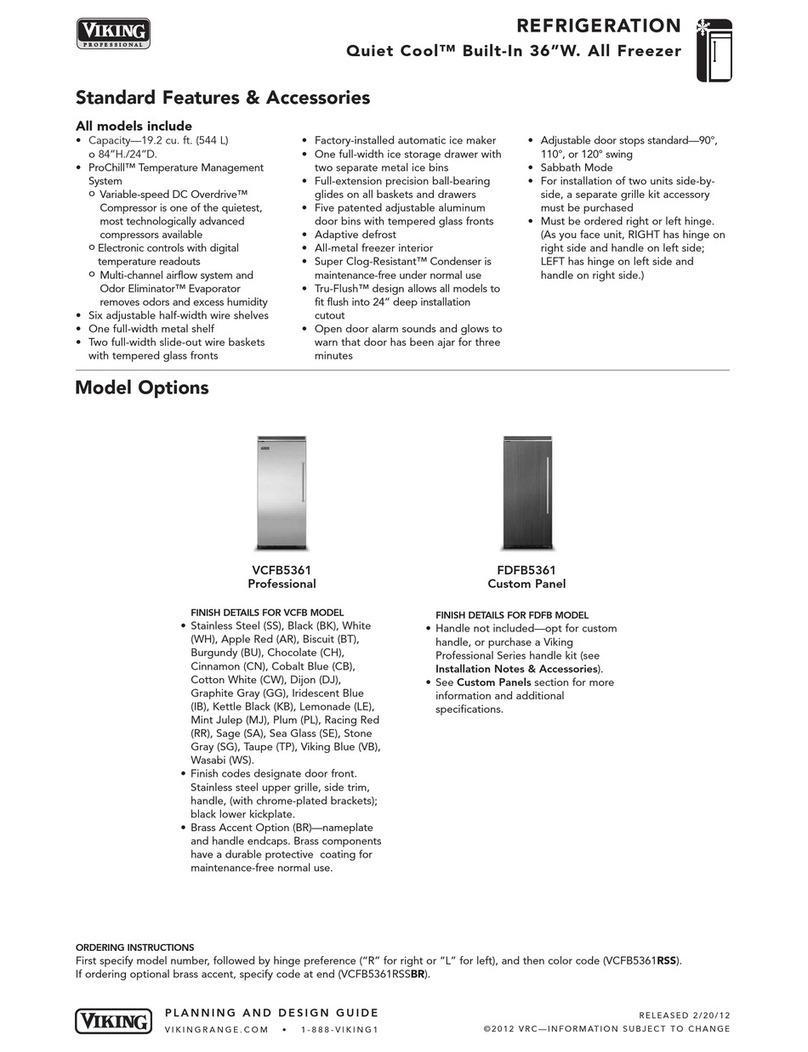

Viking FDFB5361R Manuel utilisateur
