Viking DVGBQ300T Manuel utilisateur
®
Professional Performance for the Home TM
Viking outdoor gas grills
Professional-type cooking power
■ 6,5 kW stainless steel grill burners
■ Extra-deep sealed burner box keeps heat contained in
burner area, allowing easier temperature maintenance
■ Rotisseries are standard on all models; the rotisserie system
consists of a 4 kW Gourmet-Glo™ infrared rear burner, a
heavy-duty rotisserie motor, stainless steel 1,3 cm rotisserie
rods, and two rotisserie forks
■ Removable smoker tray accommodates wood chips or
large wood chunks
■The smoker tray can be replaced with grilling grate for
use of entire grill surface
■ Push-button electronic ignition powered by a 9-volt
battery provides a positive, consistent, and continuous
spark for easy grill lighting
■ Stainless steel flavour-generator plates catch drippings,
generate smoke, minimise flare-ups, and allow for better
heat control
DVGBQ 76 cm, 104 cm, AND 135 cm WIDTHS
Outdoor gas grills
New and improved smoker tray features
its own adjustable burner underneath.
■ Stainless steel warming rack can easily be adjusted to three
different positions, allowing use of additional accessory racks
■ Thermometer located on canopy indicates the best zones
for warming, smoking, and grilling
Solid Viking construction
■ Double wall construction insulates hood to help keep
heat inside
■ All models can be built into any type of enclosure without
the need of an insulated jacket – a Viking exclusive
Easy maintenance and cleanup
■ New and improved grease management system consists
of full-width removable stainless steel drip tray with
individual removable trays within the main tray
■ Burners are equipped with stainless steel drip guards to
combat burner clog and to aid grease management
Grease management system channels liquids
to the removable pan(s) in the pullout drip tray.
The DVGBQ also includes the following feature
on select models
■ Side burners – a double configuration 4 kW side burner is
available on 104 cm and 135 cm wide models
Optional accessories
The following accessories are available separately and
do not come standard with DVGBQ gas grills
■ Stainless steel carts
•Available for all models (EBQC300T1SS, EBQC410T1SS,
EBQC530T1SS); all sizes roll easily on inboard locking
casters and 25 cm rubber wheels, allowing unit to fit flush
against wall
■ Stainless steel access doors – available in double and
single versions (AD2820TSS, AD1620TSS)
■ Portable griddle (PGD) – cast-aluminum with non-stick
finish; designed to fit over side burners
Custom-made grill covers are available
for all grills – both built-in and cart models.
■ Wok grate (WGT-BK) – use in place of “V” grate on side
burners for wok cooking
■ Rotisserie basket – cook food on rotisserie without spearing,
wiring, or tying; available in 15 cm and 20 cm widths
■ Rotisserie forks (RFK) – two additional rotisserie forks
available (two forks are supplied standard with all grills)
■ Warming rack (WR2TSS, WR3TSS, WR4TSS) – additional
warming rack available in all sizes
■ Covers – heavy-duty, custom-made for Viking grills
■ Professional five-piece barbecue tool set (F80041)
Optional rotisserie basket may be used
to cook food with no spearing or wiring.

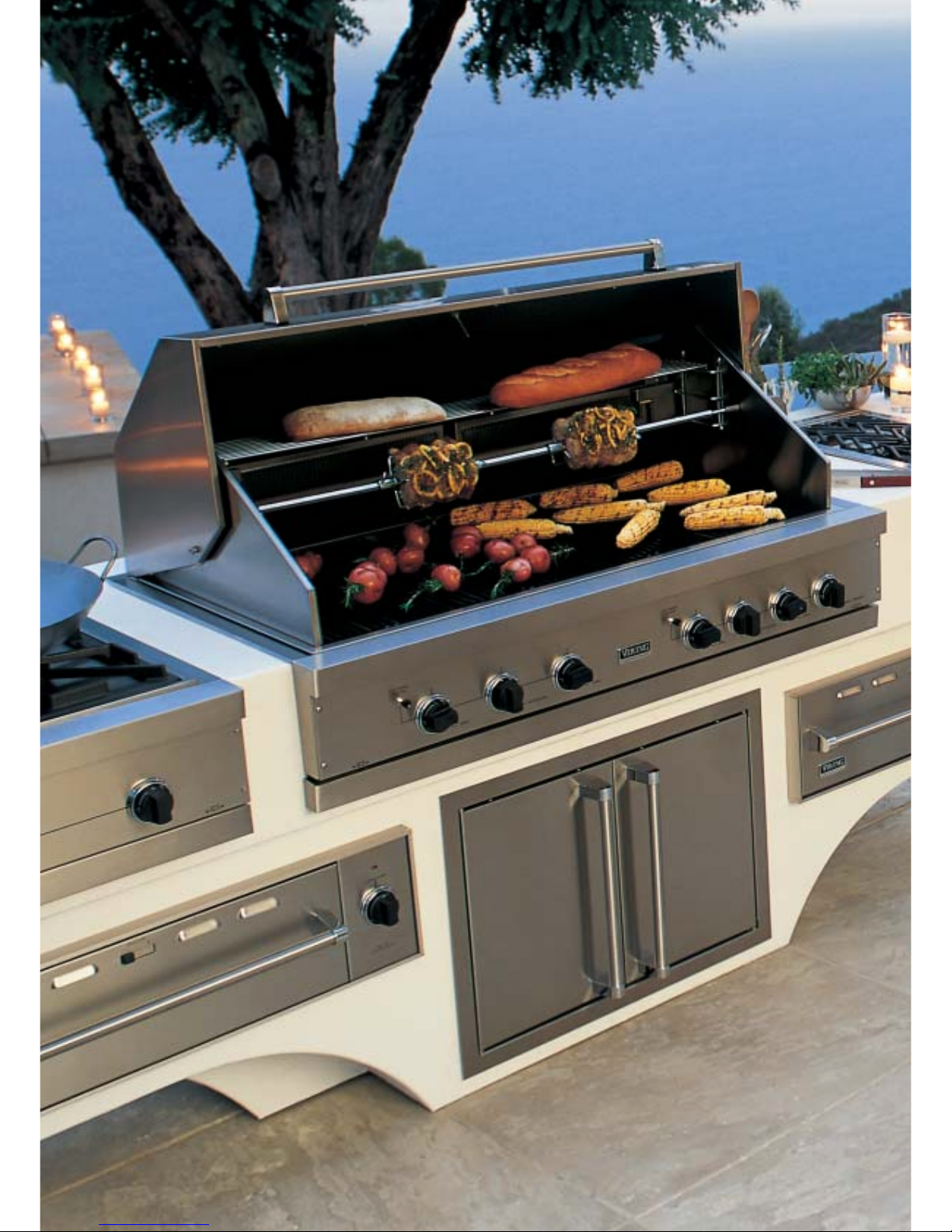

Access doors provide attractive storage
space underneath built-in units.
Surface configurations
DVGBQ300-2RTL
76 cm wide with two grill areas
3.632 cm2
104 cm wide with three grill areas
5.394 cm2
DVGBQ410-3RTL
104 cm wide with double side burners
and two grill areas – 3.632 cm2
DVGBQ412-2RTL
135 cm wide with four grill areas
7.246 cm2
DVGBQ530-4RTL
135 cm wide with double side burners and
three grill areas – 5.394 cm2
DVGBQ532-3RTL
OUTDOOR GAS GRILLS
104,6 cm
74,9 cm
Overall Width
Overall Depth
Cutout Width
Cutout Depth
Smoker Burner Rating
Infrared Burner Ratings
Description
Cutout Height
Gas Requirements
Electrical Requirements
Grill Burner Rating
Approximate Shipping
Weight
72,7 cm 102,2 cm
26,0 cm
83,2 cm
71,1 cm
Propane G31/Butane G30: Installer to equip with high-capacity hose/regulator assembly for connec-
tion to standard 5-6 kg gas cylinder. Shipped LP (propane); field convert to butane with kit LKQ15.
146 kg DVGBQ410T
171 kg
DVGBQ412T
158 kg
9-volt DC battery for electronic ignition
240V/50 Hz; 61,0 cm grounded plug attached to rotisserie motor
DVGBQ300T
4,0 kW LP
DVGBQ410T
4,0 kW LP
DVGBQ412T
4,0 kW LP
3,1 kW LP
Side Burner Rating
(if applicable)
4,0 kW LP
6,5 kW LP
135,1 cm
DVGBQ300T
76 cm wide
DVGBQ410T/DVGBQ412T
104 cm wide
DVGBQ530T/DVGBQ532T
135 cm wide
132,7 cm
DVGBQ530T
221 kg
DVGBQ532T
207 kg
DVGBQ530T
4,0 kW LP
DVGBQ532T
4,0 kW LP
Basic specifications – outdoor gas grills
F60069 0203-UK
®
Viking Europe SAS
3 Avenue des Vosges
F-67000 Strasbourg
France
For product information,
call: + 33 (0) 3 90 221 080,
© 2003, Viking Range Corporation
Specifications subject to change without notice.
Not all models available for sale in all markets.
Bradshaw Appliances, Ltd.
Kenn Road
Clevedon, Bristol B521 6LH
England, United Kingdom
Tel: 012 75 343 000
Fax: 012 75 343 454
e-mail: info@bradshaw.co.uk
www.bradshaw.co.uk
