Viking RDECU2065BSB Manuel utilisateur

Service

Manual

D3 Series

Electric Cooktop

Preferred Service

RDECU2065BSB

RDECU2665BSB

SMC-0025

MAY 2012

This manual is to be used by qualied appliance technicians only. Viking

does not assume any responsibility for property damage or personal

injury for improper service procedures done by an unqualied person.

This Base Manual covers general and

specic information including, but not

limited to the following models:

Table of Contents

Important Information ..................................................... 3

Safety Information.................................................... 3

Warnings .................................................................. 4

Electrical Requirements ........................................... 4

Tip Over Hazard....................................................... 4

General Information........................................................ 5

RDECU2065BSB 30" Cooktop ................................ 6

RDECU2665BSB 36" Cooktop ................................ 6

Disassembly ................................................................... 7

Smooth Top Removal............................................... 7

Innite Switch Removal............................................ 8

Element Removal..................................................... 8

Terminal board Removal .......................................... 9

Troubleshooting............................................................ 10

Single Innite Switch Connections......................... 10

Single Innite Switch Voltage Measurements .........11

Dual Innite Switch Connections ........................... 12

Dual Innite Switch Voltage Measurements........... 13

Triple Innite Switch Connections .......................... 14

Triple Innite Switch Voltage Measurements ......... 15

Schematic..................................................................... 16

Wiring Diagram............................................................. 17

Important Information

DANGER!

WARNING!

CAUTION!

WARNING!

CAUTION!

To avoid risk of serious injury or death, repairs should

not be attempted by unauthorized personnel.

VIKING will not be responsible for any injury or

property damage from improper service procedures.

If performing service on your own product, you must

assume responsibility for any personal injury or

property damage which may result.

Technical support for authorized servicers:

1-800-914-4799

Address your written correspondence to:

Viking Preferred Service

1803 HWY 82 West

Greenwood, MS 38930

Important Information

We have provided many important safety

messages in this manual and on the appliance.

Always read and obey all safety messages.

This is the safety alert symbol.

This symbol alerts you to hazards that can kill

or hurt you and others. All safety messages will

be preceded by the safety alert symbol and the

word “DANGER”, “WARNING”, or “CAUTION”.

These words mean:

IMMEDIATE HAZARDS WHICH WILL RESULT IN

SEVERE PERSONAL INJURY OR DEATH.

Hazards or unsafe practices which COULD result in

severe personal injury or death.

Hazards or unsafe practices which COULD result in

minor personal injury or product or property damage.

All safety messages will identify the hazard, tell

you how to reduce the chance of injury, and tell

you what can happen if the instructions are not

followed.

SAVE THESE INSTRUCTIONS

REVIEW ALL SERVICE INFORMATION IN THE APPROPRIATE SERVICE MANUAL AND

TECHNICAL SHEETS BEFORE BEGINNING REPAIRS.

Pride and workmanship go into every product to provide our customers with quality products. It

is possible, however, that during its lifetime, a product may require service. Products should be

serviced only by a qualied service technician that is familiar with the safety procedures required

in the repair and who is equipped with the proper tools, parts, testing instruments, and the

appropriate service manual.

Safety Information

Warnings

Read and follow all instructions before using

this appliance to prevent the potential risk of

re, electric shock, personal injury, or damage

to the appliance as a result of improper usage

of the appliance. Use appliance only for its

intended purpose as described in this manual.

To ensure proper and safe operation: appliance

must be properly installed and grounded by a

qualied technician. DO NOT attempt to adjust,

repair, service, or replace any part of your

appliance unless it is specically recommended

in this manual. All other servicing should be

referred to a qualied servicer.

Make sure that incoming voltage is the same

as unit rating. An electric rating plate specifying

voltage, frequency, wattage, amperage, and

phase is attached to the product.

Electrical Requirements

Assure that the electrical installation is

adequate and in conformance with the National

Electrical Code, ANSI/NFPA 70-latest edition

or Canadian Electrical Code C22.1-1998 and

C22.2 No. 0-M91 (or latest edition), and all

local codes and ordinances. The cooktop is

provided with a 240 Volt, 3 wire conduit that

must be hardwired in accordance with local

codes.

ELECTRICAL SHOCK HAZARD

Disconnect power prior to any disassembly. Failure

to do so can result in death or electrical shock.

BURN HAZARD

DO NOT touch cooking surface after use. Doing so

can result in burns.

WARNING!

Important Information

General Information

VOLTAGE Hz WATTS AMPS

240 VAC 60 Hz 9.6 KW MAX 40

208 VAC 60 Hz 7.2 KW MAX 34.7

MODEL:

RDECU2065BSB

SERIAL:

051012C00036178

VIKING RANGE CORP.

GREENWOOD, MISSISSIPPI 38930

Ce style ext certie sous

UL 856 et les electrique domestiques,

CAN/USA C22.2 No.1 M-89

C US

PEO20061

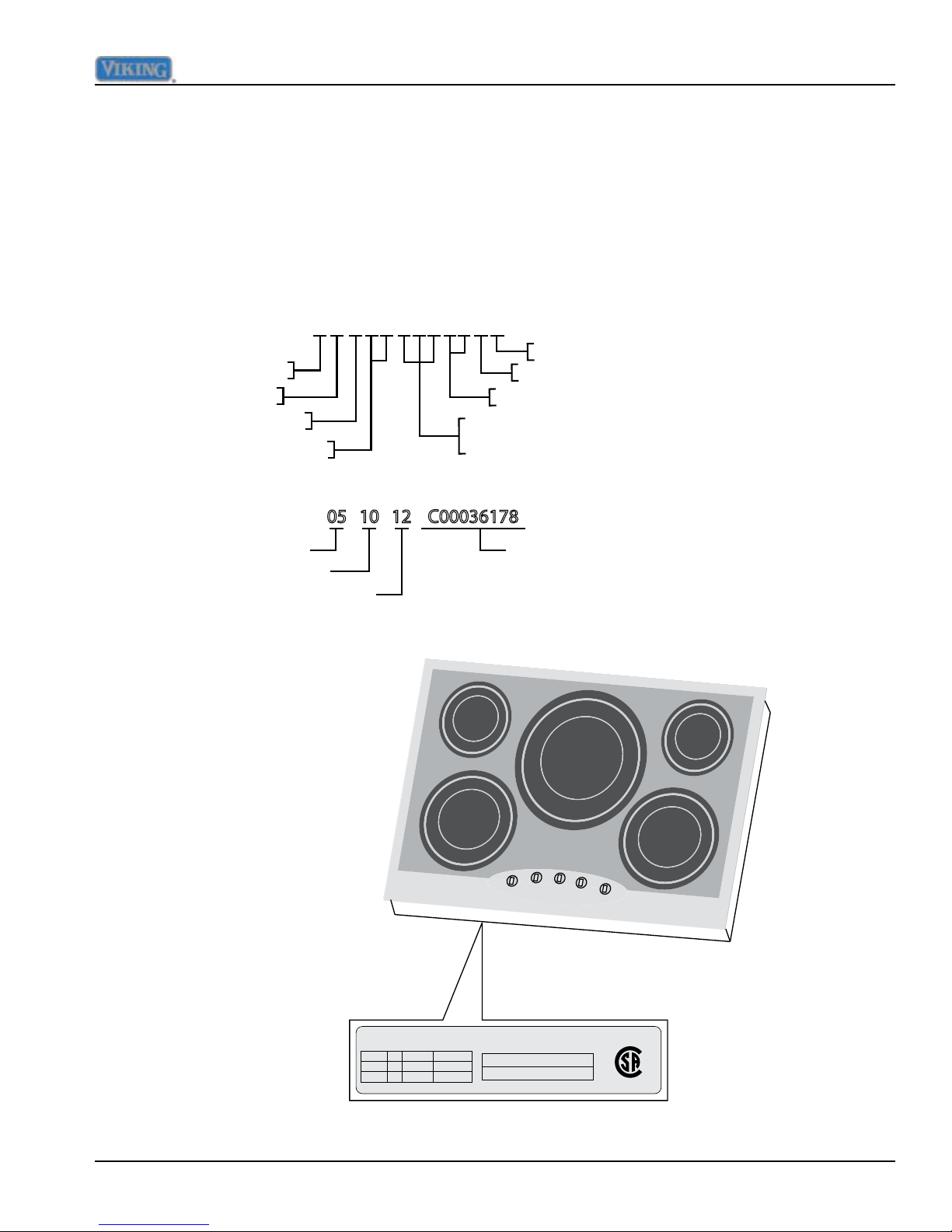

General Information

Model–Serial Number Matrix

The serial number and model number for your

appliance are located on the identication plate

mounted on the underside of the cooktop.

Model Numbers

Serial Numbers

Serial Number

Month

Day

Year of Manufacture

Viking Designer Series

Ceramic Top

Five Burner

206 = 30”Wide

266 = 36”Wide

05 10 12 C00036178

Electric

RDECU2065BSB

D3 Stainless Frame

Black Glass

Serial Number

Month

Day

Year of Manufacture

Viking Designer Series

Ceramic Top

Five Burner

206 = 30”Wide

266 = 36”Wide

05 10 12 C00036178

Electric

RDECU2065BSB

D3 Stainless Frame

Black Glass

General Information

4 5 6 7 8

1 2 3

4 5 6 7 8

1 2 3

1. 6-1/2" 1200 watt element

2. 11-7/8" 1100/1000/1100 watt element

3. 8-1/2" 2000/1000 watt element

4. Left front element control knob

5. Left rear element control knob

6. Center element control knob

7. Right rear element control knob

8. Right front element control knob

RDECU2065BSB 30" Cooktop

RDECU2665BSB 36" Cooktop

Disassembly

To avoid risk of electrical shock, personal injury, or death, disconnect electrical power source to unit. Ensure all

ground wires are connected before certifying unit as repaired and/or operational.

WARNING!

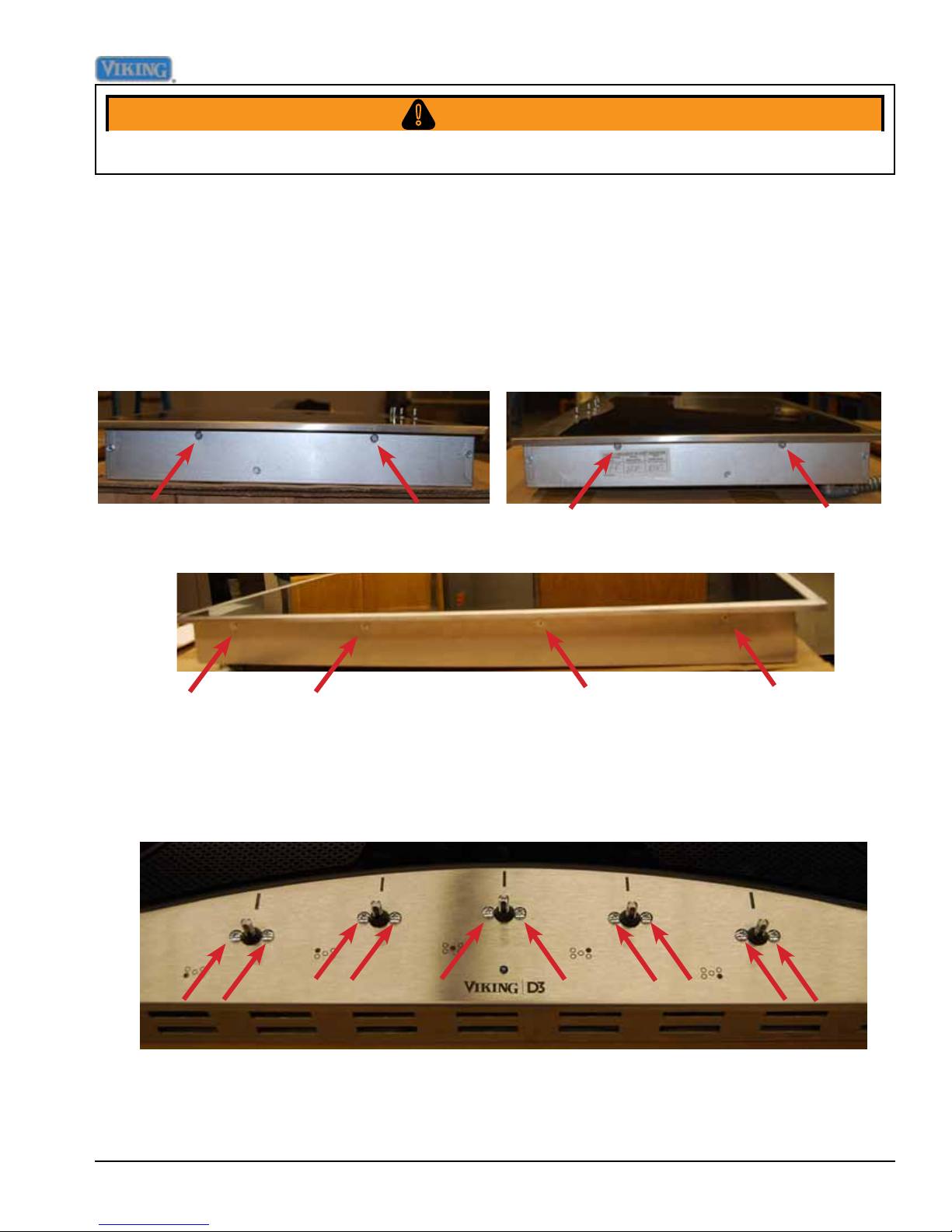

Disassembly

Smooth Top Removal

1. Disconnect power to cooktop by turning circuit breaker off to unit.

2. Remove cooktop from countertop, making sure that countertop surface is protected from

damage by using blankets or pads.

3. Remove 2 screws from left, 2 screws from right and 4 screws from rear see illustratiuons

below.

Left Side Right Side

Back View

4. Remove knobs from cooktop

5. Remove screws, 2 per switch, from all burner switches they are under knobs, see photo

below.

6. Lift front of glass top up and slide power lamp off of lens cover, push all switches down and

out of glass top, lift glass top assembly off of unit and place in a secure place to prevent

damage to top and customer's property.

To avoid risk of electrical shock, personal injury, or death, disconnect electrical power source to unit. Ensure all

ground wires are connected before certifying unit as repaired and/or operational.

WARNING!

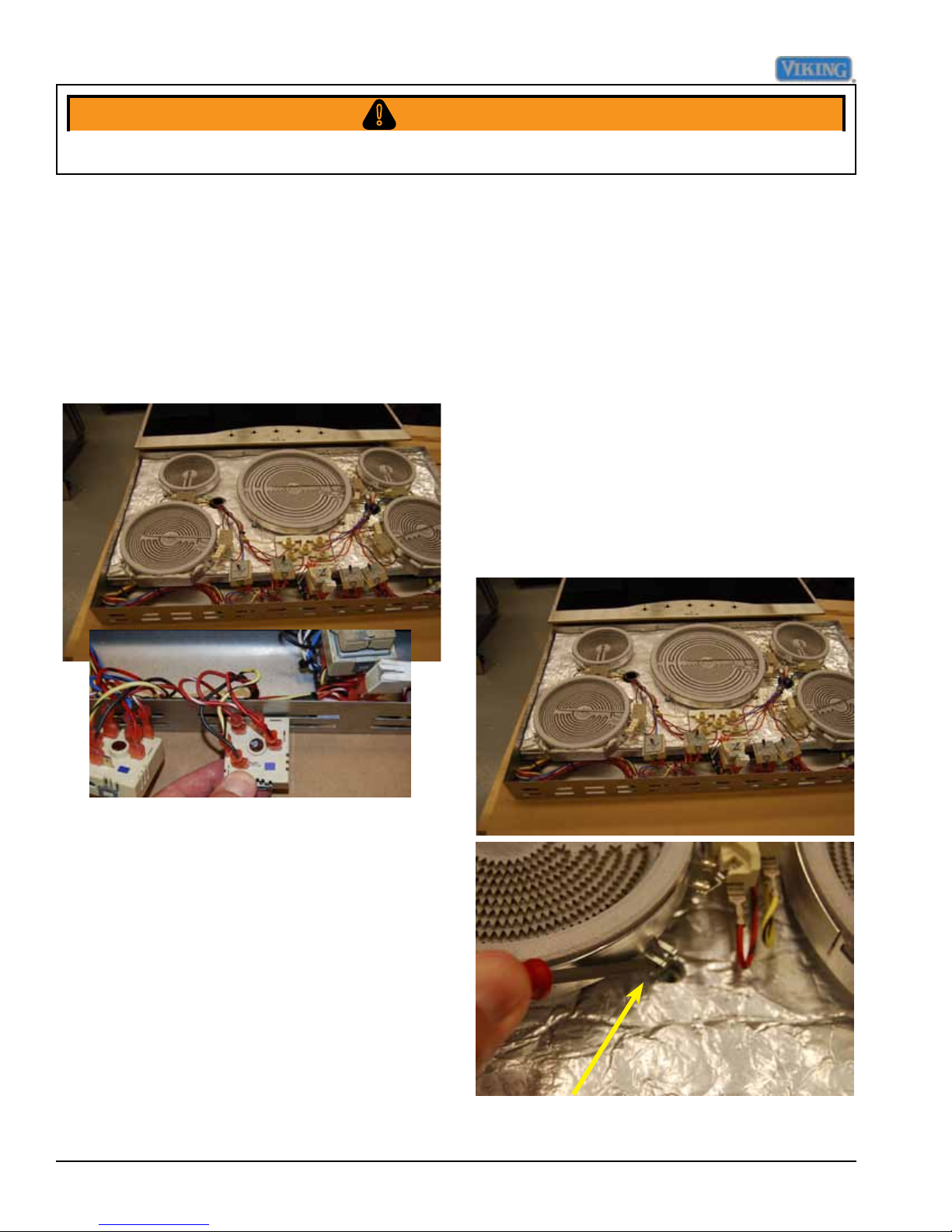

Disassembly

Innite Switch Removal

1. Remove smooth top assembly, see Page

2. Remove faulty innite switch wiring

one connection at a time. Install each

connection on new switch as it is removed

from faulty switch.

Element Removal

1. Remove smooth top assembly, see Page

2. Remove faulty element by releasing tabs

on bottom of element.

3. Remove one wire at a time, transferring

the wires to the new element as they are

removed from the faulty element.

4. Verify new element mounting tabs match

old element and reattach in the same

location in the burner box. Failure to

position new element in same alignment

as old element could result in poor

performance.

To avoid risk of electrical shock, personal injury, or death, disconnect electrical power source to unit. Ensure all

ground wires are connected before certifying unit as repaired and/or operational.

WARNING!

Disassembly

Terminal board Removal

1. Remove smooth top assembly, see Page

2. Remove faulty terminal board by removing

the two outside screws shown with arrows

below.

3. Remove wires one at a time and transfer

to new terminal block as they are removed

from the faulty terminal block.

4. Be sure to reattach the ground terminal

between the terminal block and the metal

burner box. Do not put the terminal on top

of the plastic terminal block.

Troubleshooting

To avoid risk of electrical shock, personal injury, or death, disconnect electrical power source to unit, unless test

procedures require power to be connected. Discharge capacitor through a resistor before attempting to service.

Ensure all ground wires are connected before certifying unit as repaired and/or operational.

WARNING!

Troubleshooting

EGO P1

TOP

PILOT

(2b)S

PILOT

OFF

Low 6%

Detented

High 100%

Detented

270°

L1L2

Power Hot

Indicator

2(2a)

4(1a)

(1b)H

Single Innite Switch Connections
