PLANNING AND DESIGN GUIDE

VIKINGRANGE.COM • 1-888-VIKING1

RELEASED 12/1/07

All models include

• Dimensioned to fit the majority of

similarly sized cooktop cutouts

• QuickCook™ surface elements utilize

ribbon element technology to reach

full power in about 3 seconds

• Strong, wear-resistant glass ceramic

top offers excellent cleanability

• Heavy-duty stainless steel control

knobs with childproof, push-to-turn

safety feature

4B model includes

• Four elements

o Left front— 7” 1,800 watts

o Left rear—7” 1,800 watts

o Bridge—800 watts

o Right rear (dual element)—9” 2,500

watts – 6” 1,000 watts

o Right front—6-1/2” 1,500 watts

5B model includes

• Five elements

o Left front— 7” 1,800 watts

o Left rear—7” 1,800 watts

o Bridge—800 watts

o Center (dual element)—9” 2,500

watts – 6” 1,000 watts

o Right rear (dual element)—8-1/4”

2,200 watts – 4-3/4” 750 watts

o Right front—6-1/2” 1,500 watts

6B model includes

• Six elements

o Left front—7” 1,800 watts

o Left rear—7” 1,800 watts

o Bridge—800 watts

o Left center (dual element)—9” 2,500

watts – 6” 1,000 watts

o Right center—6” 1,200 watts

o Right rear (dual element)—8-1/4”

2,200 watts – 4-3/4” 750 watts

o Right front—6-1/2” 1,500 watts

Standard Features & Accessories

Model Options

COOKING

Designer Built-In Electric Radiant

30”/36”/45”W. Glass Ceramic Cooktop

ORDERING INSTRUCTIONS

First specify model number, and then color code (DECU105-4BSS). If ordering optional brass trim, specify code at end (DECU105-4BSSBR).

DECU105-4B

30”W. Four-Element

Cooktop

FINISH DETAILS FOR BOTH MODELS

• Stainless Steel/Black (SB)

o Stainless steel trim, control panel, and

knobs

o Black glass and knob grips

• Stainless Steel/White (SW)

o Stainless steel trim, control panel, and

knobs

o White glass with gray knob grips

• Brass Trim Option (BR) Brass finish—

knobs. Brass components have a

durable protective coating for

maintenance-free normal use.

DECU165-5B

36”W. Five-Element

Cooktop

DECU155-6B

45”W. Six-Element

Cooktop

DECU105-4B

30”W. Four-Element

Cooktop

DECU165-5B

36”W. Five-Element

Cooktop

DECU155-6B

45”W. Six-Element

Cooktop

21”

(53.3 cm)

30-3/4”

(78.1 cm)

30-3/4”

(78.1 cm)

4-1/2”

( 11.4 cm)

3-1/2”

(8.9 cm)

3-1/16”

(7.8 cm)

21”

(53.3 cm)

36-3/4”

(93.3 cm)

36-3/4”

(93.3 cm)

4-1/2”

( 11.4 cm)

3-1/2”

(8.9 cm)

3-1/16”

(7.8 cm)

21”

(53.3 cm)

45”

(114.3 cm)

45”

(114.3 cm)

4-1/2”

( 11.4 cm)

3-1/2”

(8.9 cm)

3-1/16”

(7.8 cm)

COOKING

Designer Built-In Electric Radiant

30”/36”/45”W. Glass Ceramic Cooktop

PLANNING AND DESIGN GUIDE

VIKINGRANGE.COM • 1-888-VIKING1

RELEASED 12/1/07

DECU105-4B DECU165-5B DECU155-6B

Overall width 30-3/4” (78.1 cm) 36-3/4” (93.3 cm) 45” (114.3 cm)

Overall height (from bottom)

To top of knobs 4-1/2” (11.4 cm)

To top of cooking surface 3-1/2” (8.9 cm)

To bottom edge of frame 3-1/16” (7.8 cm)

Overall depth (from rear) 21” (53.3 cm)

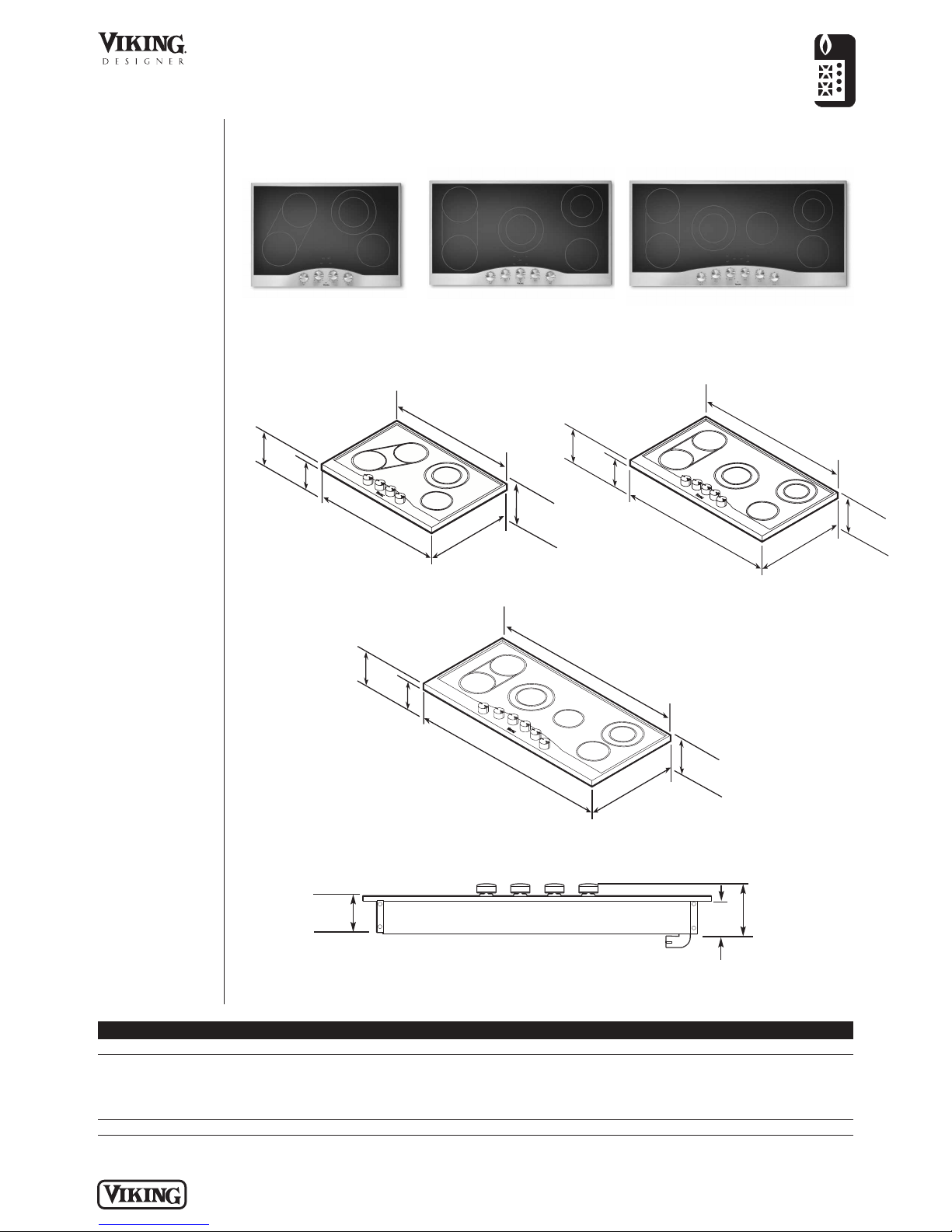

Dimensions & Specifications

PRODUCT DIMENSIONS–OVERALL

30”W. Models

45”W. Models

36”W. Models

3-1/2”

(8.9 cm)

3-1/16”

(7.8 cm)

4-1/2”

(11.4 cm)

FRONT VIEW

PLANNING AND DESIGN GUIDE

VIKINGRANGE.COM • 1-888-VIKING1

RELEASED 12/1/07

COOKING

Designer Built-In Electric Radiant

30”/36”/45”W. Glass Ceramic Cooktop

18”min.

(45.7 cm)

6”min.

(15.2 cm)

3 1/8”

(7.9 cm)

0”min.

(0 cm)

36”min.

(91.4 cm)

36”min.

(91.4 cm)

13”max.

(33.0 cm)

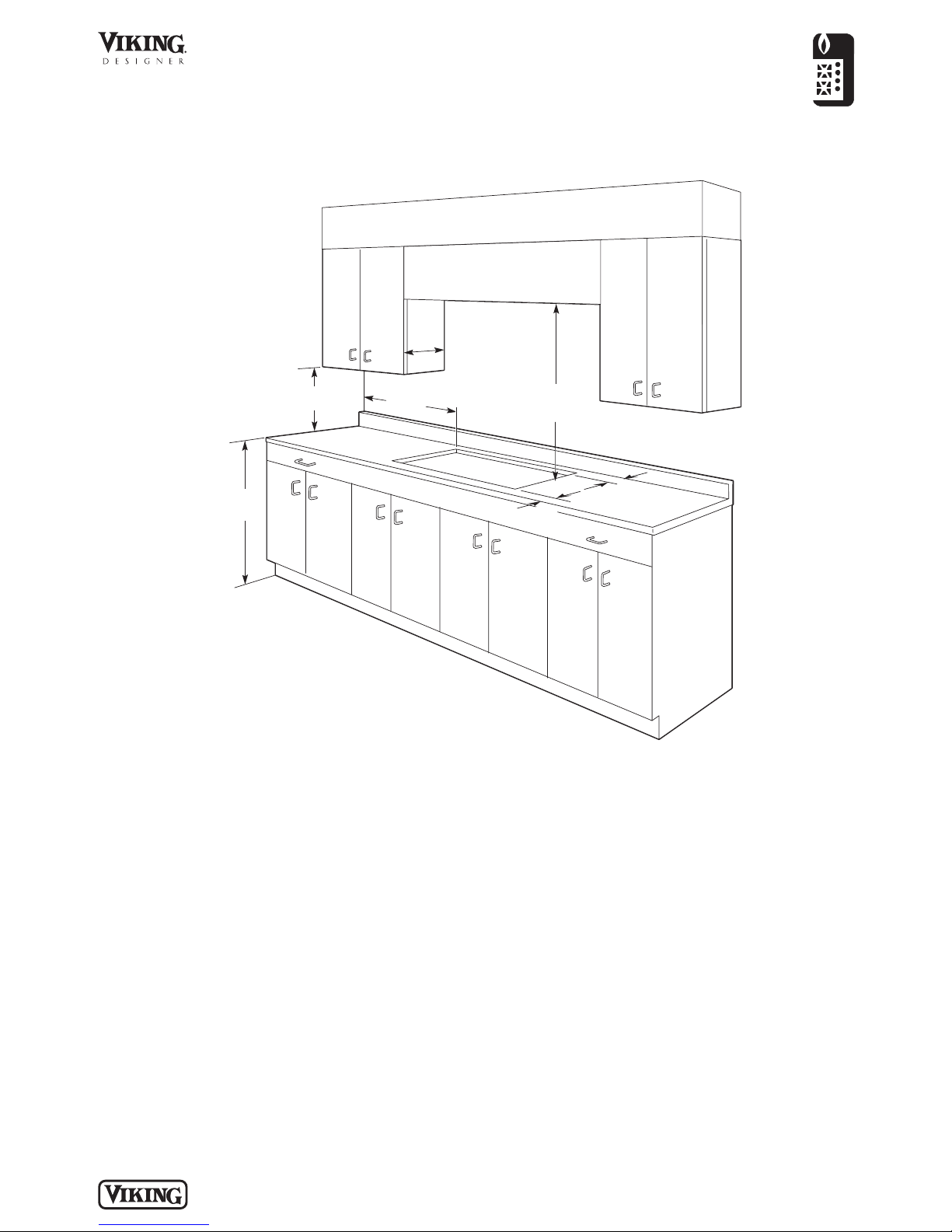

Minimum clearances from adjacent

combustible construction

• Above countertop (36” [91.4 cm])

• Sides—6” (15.2 cm)

• Rear—0” (0 cm)

• Within 6” side clearance; wall cabinets

no deeper than 13” (33.0 cm)

• Must be minimum 18” (45.7 cm) above

countertop

• Wall cabinets directly above cooktop

must be minimum 36” (91.4cm) above

the countertop.

1.The cooktop may be installed directly

to existing base cabinets.

2.The cooktop cannot be installed

directly adjacent to sidewalls, tall

cabinets, tall appliances, or other side

vertical surfaces above 36” (91.4 cm)

high. There must be a minimum of 6”

(15.2 cm) side clearance from the

cooktop to such combustible surfaces

above the 36”(91.4 cm) counter

height.

3.Within the 6” (15.2 cm) side clearance

to combustible vertical surfaces above

36” (91.4 cm), the maximum wall

cabinet depth must be 13” (33.0 cm)

and wall cabinets within this 6”

(15.2 cm) side clearance must be 18”

(45.7 cm) above the 36” (91.4 cm) high

countertop.

4.Wall cabinets above the cooktop must

be a minimum of 36” (91.4 cm) above

the countertop for a full width of the

cooktop. This minimum height

requirement does not apply if a hood

is installed over the cooking surface.

The bottom of the hood should be 30”

(76.2 cm) min. to 36” (91.4 cm) above

the countertop. This would typically

result in the bottom of the hood being

66” (167.6 cm) to 72” (182.9 cm) above

the floor. Refer to the hood installation

instructions for further information.

Warning

The use of cabinets for storage above

the appliance may result in a potential

burn hazard. If a cabinet storage is to be

provided the risk can be reduced by

installing a hood that projects

horizontally a minimum of 5” (12.7 cm)

beyond the bottom of the cabinets.

Dimensions & Specifications

CLEARANCE DIMENSIONS

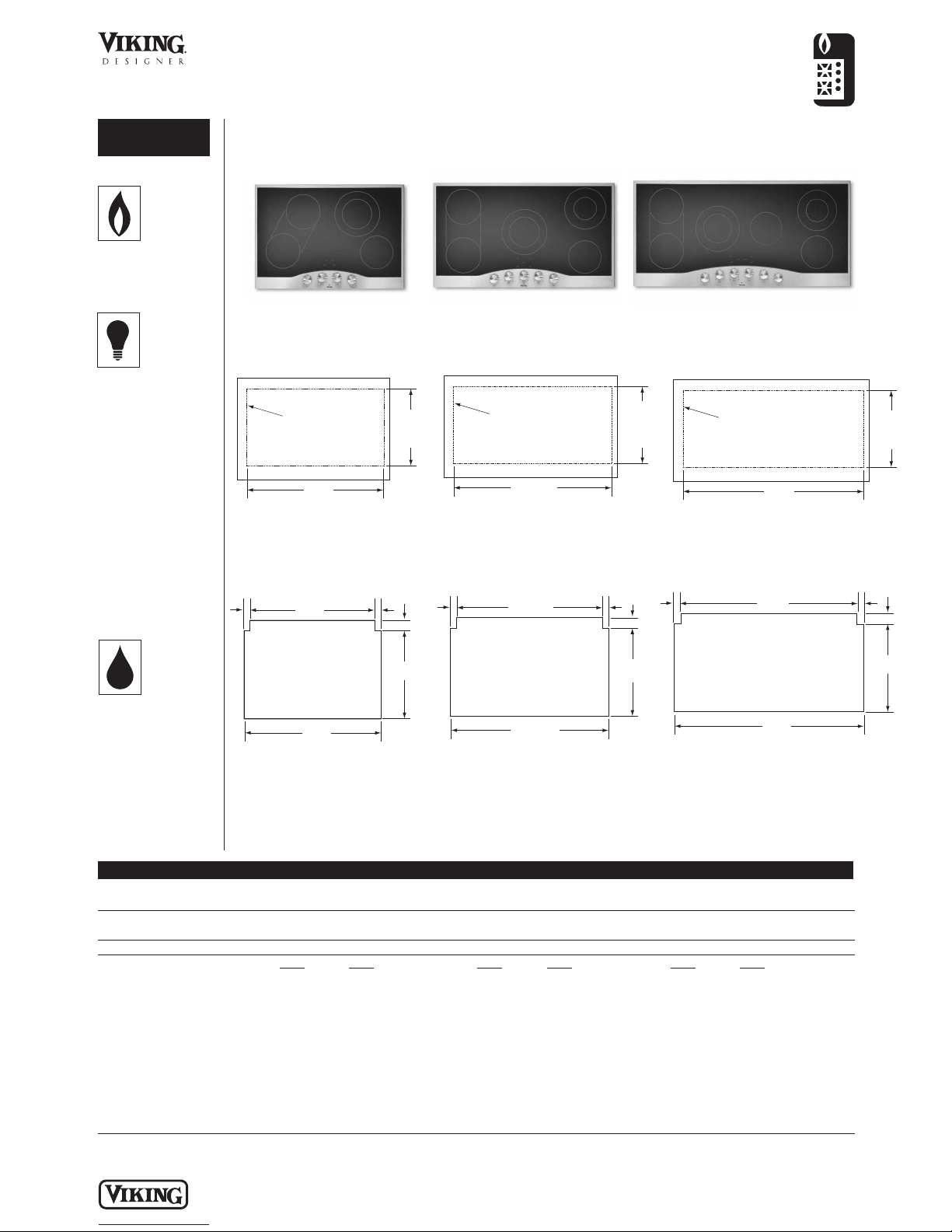

Cutout opening

28-5/8”

(72.7 cm) min.

29-7/8”

(75.9 cm) max.

27”

(68.6 cm)

1-1/16”

(2.7 cm)

1-1/16”

(2.7 cm) 2-1/4”

(5.7 cm)

19-3/4”

(50.2 cm) min.

20-1/8”

(51.1 cm) max.

20-5/8”

(52.4 cm)

29-1/8”

(73.9 cm)

Cutout opening

34-3/4”

(88.3 cm) min.

35-7/8”

(91.1 cm) max.

33”

(83.8 cm)

15/16”

(2.4 cm)

15/16”

(2.4 cm) 2-1/4”

(5.7 cm)

20-5/8”

(52.4 cm)

19-3/4”

(50.2 cm) min.

20-1/8”

(51.1 cm) max.

34-7/8”

(88.6 cm)

Cutout opening

42-7/8”

(108.9 cm) min.

44-1/8”

(112.1 cm) max.

42”

(106.7 cm)

7/16”

(1.1 cm) 7/16”

(1.1 cm) 2-1/4”

(5.7 cm)

20-5/8”

(52.4 cm)

19-3/4”

(50.2 cm) min.

20-1/8”

(51.1 cm) max.

42-7/8”

(108.9 cm)

30”W. Cutout 36”W. Cutout

30”W. Cutout

w/Downdraft

45”W. Cutout

36”W. Cutout

w/Downdraft

45”W. Cutout

w/Downdraft

DECU105-4B DECU165-5B DECU155-6B

Cutout width 28-5/8” (72.7 cm) min. 34-3/4” (88.3 cm) min. 42-7/8” (108.9 cm) min.

29-7/8” (75.9 cm) max. 35-7/8” (91.9 cm) max. 44-1/8” (112.1 cm) max.

Cutout height 3-1/8” (7.9 cm) min.

With conduit 4-1/8” (10.5 cm)

Cutout depth 19-3/4” (50.2 cm) min. to 20-1/8” (51.1 cm) max.

Surface burner rating 240V 208V 240V 208V 240V 208V

Right front 1,500 watts 1,125 watts 1,500 watts 1,125 watts 1,500 watts 1,125 watts

Right rear (dual element) 2,500/1,000 watts/1,875/750 watts 2,200/ 1,650/ 2,200/ 1,650 watts

1,000 watts 562 watts 950 watts

Center right N/A N/A 1,200 watts 900 watts

Center (dual element) N/A 2,500/ 1,875/ N/A

1,000 watts 750 watts

Center left (dual element) N/A N/A 2,500/ 1,875/

1,000 watts 750 watts

Left front 1,800 watts 1,350 watts 1,800 watts 1,350 watts 1,800 watts 1,350 watts

Bridge 800 watts 600 watts 800 watts 600 watts 800 watts 600 watts

Left rear 1,800 watts 1,350 watts 1,800 watts 1,350 watts 1,800 watts 1,350 watts

DECU105-4B

30”W. Four-Element

Cooktop

DECU165-5B

36”W. Five-Element

Cooktop

DECU155-6B

45”W. Six-Element

Cooktop

COOKING

Designer Built-In Electric Radiant

30”/36”/45”W. Glass Ceramic Cooktop

PLANNING AND DESIGN GUIDE

VIKINGRANGE.COM • 1-888-VIKING1

RELEASED 12/1/07

UTILITY

REQUIREMENTS

GAS

• Not applicable

ELECTRICAL

• 4-foot (121.9 cm)

flexible conduit

included*

• 3-wire conduit with a

No. 10 ground wire

• 240 – 208/120 V/60 Hz

• Maximum amp

usage—(240V/208V)

o 4B—35.0/30.0

o 5B—44.0/34.0

o 6B—49.0/42.0

• Do not use an

extension cord with

this appliance.

PLUMBING

Not applicable

Installation Requirements

ACCESS REQUIREMENTS

Note: Before cutting countertop cutout, check the inside clearance available from the inside back wall to the proposed

placement of the cooktop. A minimum of 1-3/4” (4.4 cm) is required from the back wall of the cooktop to the inside wall of

the back cabinet. This may require a distance greater than the 0” minimum approved distance.

Compliance Information

WARRANTY INFORMATION*

• One-year full warranty—complete product

• Five-year limited warranty—surface burners and electric elements

• Ninety-day limited warranty—cosmetic parts such as glass, painted, and decorative items

* For complete warranty see

Use & Care Guide

. Warranty valid on Viking products shipped within the United States and Canada.

COOKING

Designer Built-In Electric Radiant

30”/36”/45”W. Glass Ceramic Cooktop

PLANNING AND DESIGN GUIDE

VIKINGRANGE.COM • 1-888-VIKING1

RELEASED 12/1/07
