PLANNING AND DESIGN GUIDE
VIKINGRANGE.COM • 1-888-VIKING1
RELEASED 12/1/07
©2007 VRC—INFORMATION SUBJECT TO CHANGE
Both models include
• Dimensioned to fit the majority of
similarly sized cooktop cutouts
• Sealed burners with brass flame ports
and porcelain/cast iron caps
• One-piece tooled top with large spill
collection area around burners
• Heavy-duty stainless steel control
knobs with childproof, push-to-turn
safety feature
4B model includes
• Four burners
o Left front—14,000 BTU high/2,000
BTU low
o Left rear—12,000 BTU high/1,700
BTU low
o Right rear—8,000 BTU high/1,200
BTU low
o Right front—6,000 BTU high/950
BTU low
5B model includes
• Six burners
o Left front—12,000 BTU high/1,700
BTU low
o Left rear—10,000 BTU high/1,500
BTU low
o Center—14,000 BTU high/2,000
BTU low
o Right rear—8,000 BTU high/1,200
BTU low
o Right front—6,000 BTU high/950
BTU low
FINISH DETAILS FOR BOTH MODELS
• Stainless Steel (SS), Black (BK), White
(WH), Graphite Gray (GG), Stone Gray
(SG), and Biscuit (BT).
o Finish designates top. Black porcelain
grates, porcelain burner caps, and
knob grips.
• White (WH)
o Finish designates top. Gray porcelain
grates, porcelain burner caps, and
knob grips.
• Brass Trim Option (BR)—knobs. Brass
components have a durable protective
coating for maintenance-free normal
use.
Standard Features & Accessories
Model Options
COOKING
Designer Built-In Gas 30”/36”W. Cooktop
DGSU100-4B
30”W. Four-Burner Cooktop
DGSU160-5B
36”W. Five-Burner Cooktop
ORDERING INSTRUCTIONS
First specify model number, and then color code (DGSU100-4BSS). If ordering optional brass trim, specify code at end (DGSU100-4BSSBR).
If ordering optional LP conversion, specify code at end (
DGSU100-4B
SSBRLP).
21”
(53.3 cm)
30-3/4 ”
(78.1cm)
30-3/4 ”
(78.1cm)
4-3/8”
(11.1 cm)
4-3/8”
(11.1 cm)
21”
(53.3)
36-3/4 ”
(93.3 cm)
36-3/4 ”
(93.3 cm)
4-3/8”
( 11.1 cm)
4-3/8”
( 11.1 cm)
COOKING
Designer Built-In Gas 30”/36”W. Cooktop
PLANNING AND DESIGN GUIDE
VIKINGRANGE.COM • 1-888-VIKING1
RELEASED 12/1/07
©2007 VRC—INFORMATION SUBJECT TO CHANGE
✪
Please see Notes
&
Accessories
for important
installation
information,
including conversion
kits.
DGSU100-4B DGSU160-5B
Overall width 30-3/4” (78.1 cm) 36-3/4” (93.3 cm)
Overall height (top of grate to bottom) 4-3/8" (11.1 cm)
Overall depth (from rear) 21” (53.3 cm)

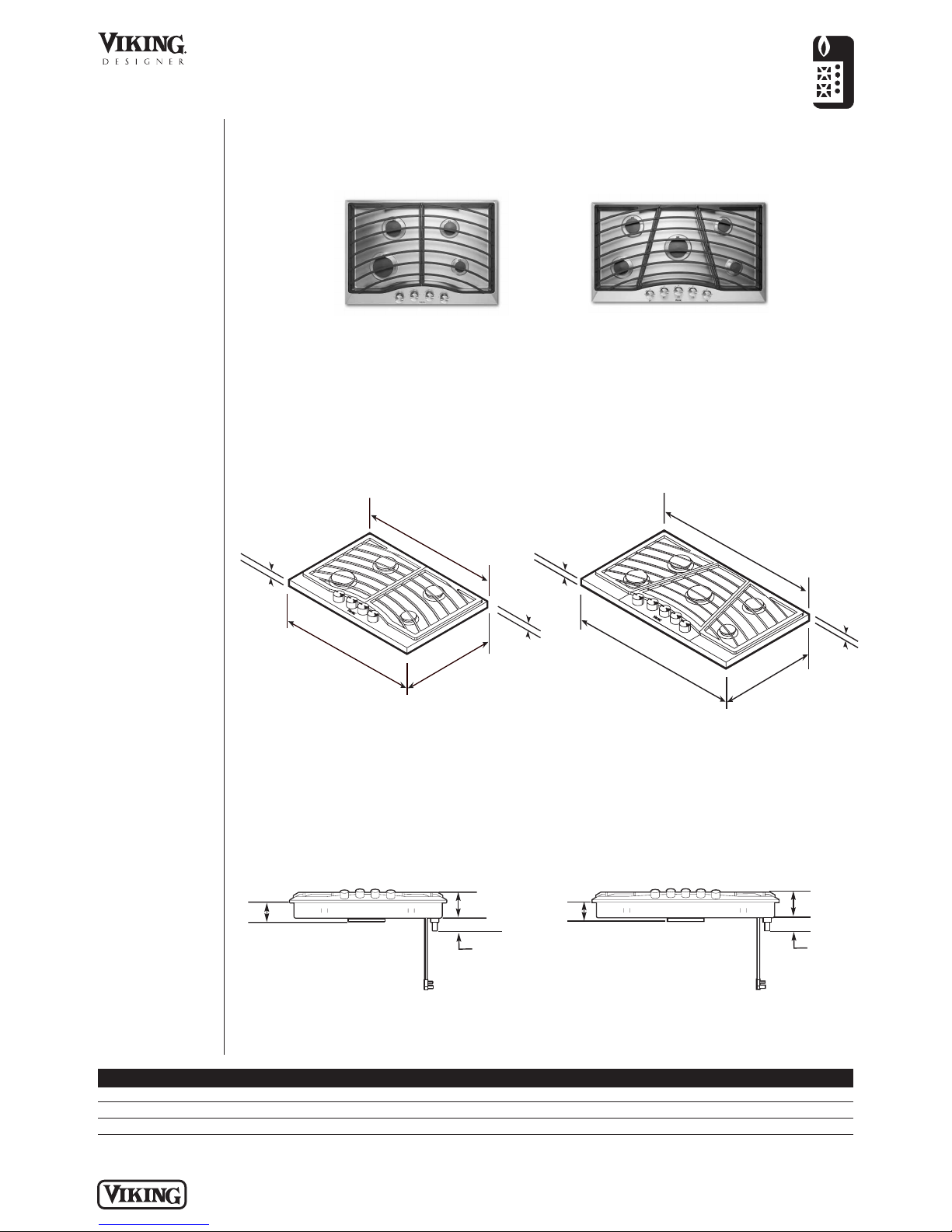

Dimensions & Specifications
OVERALL PRODUCT DIMENSIONS
DGSU100-4B
30”W. Four-Burner
Cooktop
DGSU160-5B
36"W. Five-Burner
Cooktop
30”W. Models 36”W. Models
3-1/8”
(7.9 cm)
3-1/8”
(7.9 cm)
4-3/8”
(11.1 cm)
1-3/4”
(4.5 cm)
4-3/8”
(11.1 cm)
1-3/4”
(4.5 cm)
FRONT VIEW FRONT VIEW
PLANNING AND DESIGN GUIDE
VIKINGRANGE.COM • 1-888-VIKING1
RELEASED 12/1/07
©2007 VRC—INFORMATION SUBJECT TO CHANGE
COOKING
Designer Built-In Gas 30”/36”W. Cooktop
2-1/2”
(6.4 cm)
36”min.
(91.4 cm)
3-1/8”
(7.9 cm)
36”min.
(91.4 cm)
18”min.
(45.7 cm)
13”max.
(33.0 cm)
8”min.
(20.3 cm)

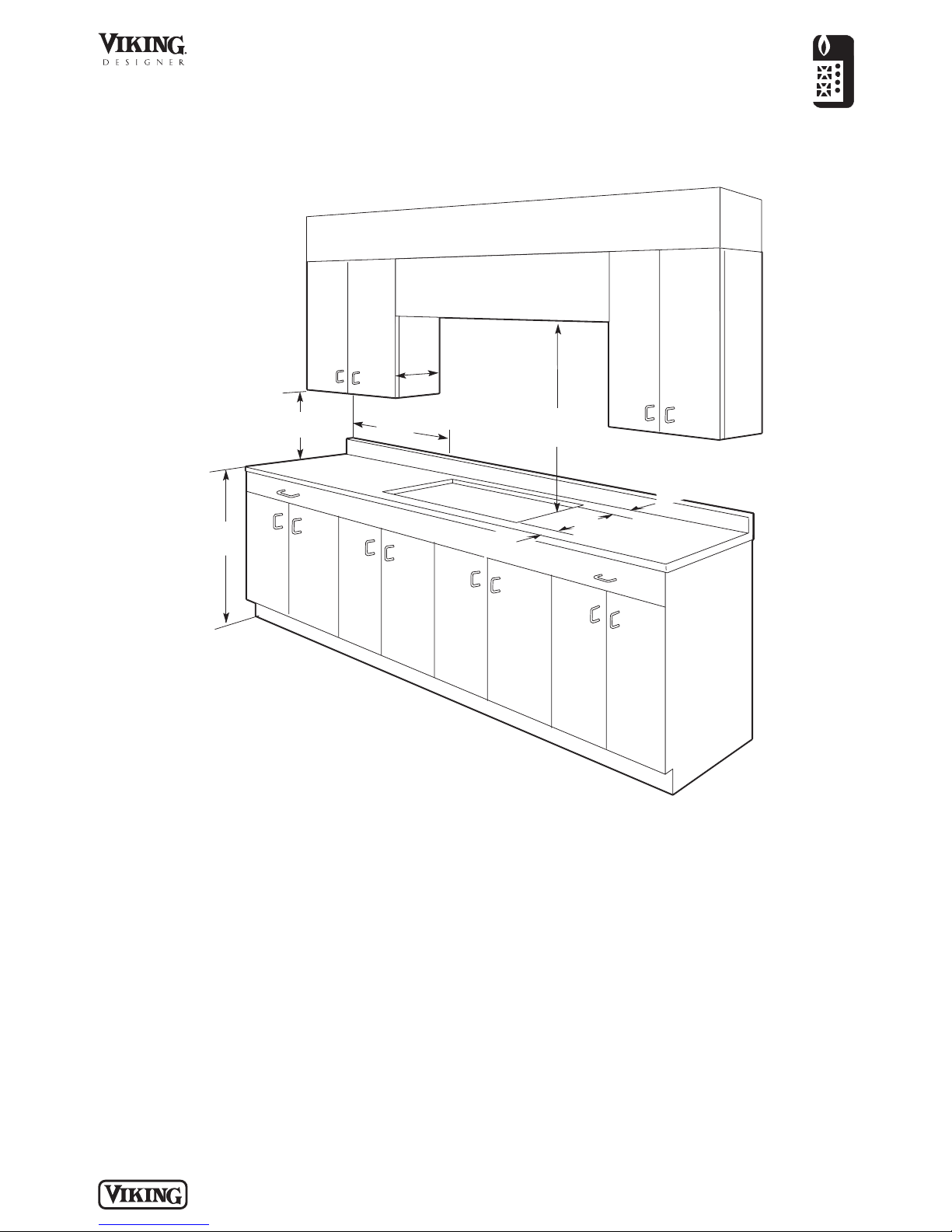

Minimum clearances from adjacent
combustible construction
• Sides—8” (20.3 cm)
• Rear—2-1/2” (6.4 cm) min.
• Within 8” (20.3 cm) side clearance; wall
cabinets no deeper than 13” (33.0 cm)
• Must be minimum 18” (45.7 cm) above
countertop
• Wall cabinets directly above cooktop
must be minimum 36” (91.4cm) above
the countertop.
1.The cooktop may be installed directly
to existing base cabinets.
2.The cooktop cannot be installed
directly adjacent to sidewalls, tall
cabinets, tall appliances, or other side
vertical surfaces above 36” (91.4 cm)
high. There must be a minimum of 8”
(20.3 cm) side clearance from the
cooktop to such combustible surfaces
above the 36” (91.4 cm) counter height.
3.Within the 8” (20.3 cm) side clearance
to combustible vertical surfaces above
36” (91.4 cm), the maximum wall
cabinet depth must be 13” (33.0 cm)
and wall cabinets within this 8” (20.3
cm) side clearance must be 18” (45.7
cm) above the 36” (91.4 cm) high
countertop.
4.Wall cabinet above the cooktop must
be a minimum of 36” (91.4 cm) above
the countertop for a full width of the
cooktop. This minimum height
requirement does not apply if a
rangehood is installed over the
cooking surface.
5.A 120-volt wall receptacle should be
located approximately 6” (15.2 cm)
below the countertop cutout and 12”
(30.5 cm) from the right side of the
cutout.
The bottom of the hood should be 30”
(76.2 cm) min. to 36” (91.4 cm) above
the countertop. This would typically
result in the bottom of the hood being
66”(167.6 cm) to 72” (182.9 cm) above
the floor. Refer to the rangehood
installation instructions for further
information.
Warning
The use of cabinets for storage above
the appliance may result in a potential
burn hazard. If a cabinet storage is to be
provided the risk can be reduced by
installing a rangehood that projects
horizontally a minimum of 5" (12.7 cm)
beyond the bottom of the cabinets.
Dimensions & Specifications

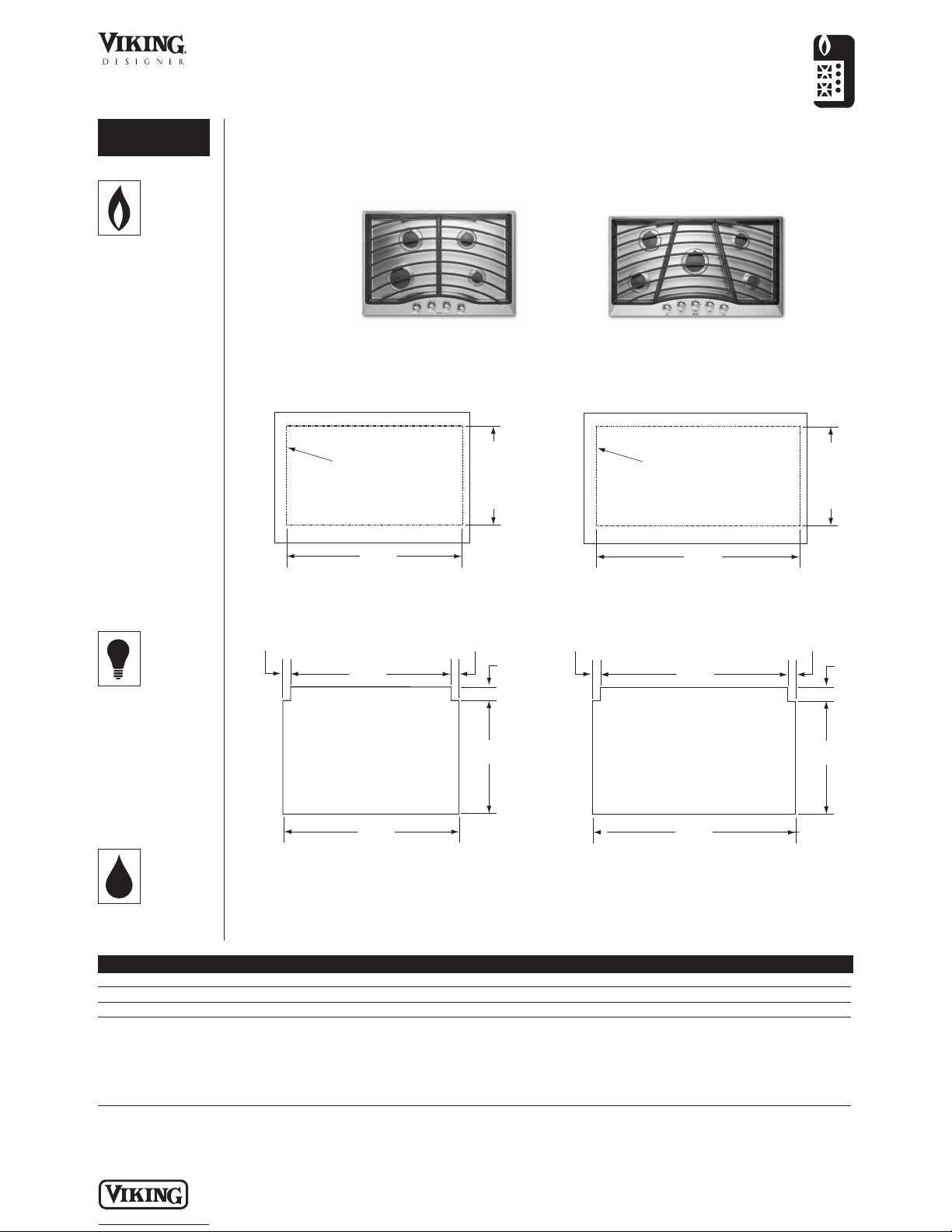

CLEARANCE DIMENSIONS
Cutout opening
29-1/8”
(73.9 cm) min.
to
29-7/8”
(75.9 cm) max.
29-1/8”
(73.9 cm)
27”
(68.6 cm)
1-1/16”
(2.7 cm)
1-1/16”
(2.7 cm)
2-1/4”
(5.7 cm)
20-1/8”
(51.1 cm)
max.
19-3/4”
(50.2 cm)
min.
20-5/8”
(52.4 cm)
Cutout opening
20-1/8”
(51.1 cm)
max.
19-3/4”
(50.2 cm)
min.
34-7/8”
(88.6 cm) min.
to
35-7/8”
(91.1 cm) max.
34-7/8”
(88.6 cm)
33”
(83.8 cm))
15/16”
(2.4 cm)
15/16”
(2.4 cm)
2-1/4”
(5.7 cm)
20-5/8”
(52.4 cm)
DGSU100-4B DGSU160-5B
Cutout width 29-1/8” (74.0 cm) min. to 29-7/8” (75.9 cm) max. 34-7/8” (88.6 cm) min. to 35-7/8” (91.1 cm) max.
Cutout height 3-1/8” (7.9 cm) min.*
Cutout depth 19-3/4” (50.2 cm) min. to 20-1/8” (51.1cm) max.
Surface burner rating
Left front 14,000 BTU Nat. (4.1 kW)/13,500 BTU LP (4.0 kW) 12,000 BTU Nat. (3.5 kW)/11,500 BTU LP (2.8 kW)
Left rear 12,000 BTU Nat. (3.5 kW)/11,500 BTU LP (2.8 kW) 10,000 BTU Nat./LP (2.9 kW)
Right rear 8,000 BTU Nat./LP (2.1 kW)
Right front 6,000 BTU Nat./LP (1.8 kW)
Center 14,000 BTU Nat. (4.1 kW)/13,500 BTU LP (4.0 kW)
*Top of grate support should be 3/8” (1.0 cm) above countertop.
**There must be a 1” (2.5 cm) clearance under counter on all 4 sides of the cooktop.
COOKING
Designer Built-In Gas 30”/36”W. Cooktop
PLANNING AND DESIGN GUIDE
VIKINGRANGE.COM • 1-888-VIKING1
RELEASED 12/1/07
©2007 VRC—INFORMATION SUBJECT TO CHANGE
UTILITY
REQUIREMENTS
GAS
• Shipped natural gas
standard; to field
convert from natural
or LP/Propane, the
orifice spuds and
regulator must be
physically changed.
o Order conversion
kit DLPK to convert
LP/propane. Highly
recommend
ordering Nat. or LP
models.
• Accepts standard
residential 1/2”
(1.3 cm) ID gas
service line
• Gas manifold
pressure
o Natural gas 5.0”
W.C.P.
o LP/propane 10.0”
W.C.P.
ELECTRICAL
• 4-foot (121.9 cm)
cord included with
cooktop
• 3-wire with
ground/3-prong plug
• 120 V/60 Hz
• Maximum amp
usage—2.0
PLUMBING
Not applicable
Installation Requirements
ACCESS REQUIREMENTS
DGSU100-4B
30”W. Four-Burner
Cooktop
DGSU160-5B
36"W. Five-Burner
Cooktop
30”W. Cutout 36”W. Cutout
30”W. Cutout w/Downdraft 36”W. Cutout w/Downdraft
Conversion Kits
• For field conversion between gas fuel types
• Kit includes all hardware necessary to convert a 30”W. or 36”W. DGSU cooktop
Compliance Information
WARRANTY INFORMATION*
• One-year full warranty—complete product
• Five-year limited warranty—surface burners
• Ninety-day limited warranty—cosmetic parts such as glass, painted, and decorative items
* For complete warranty see
Use & Care Guide
. Warranty valid on Viking products shipped within the United States and Canada.
COOKING
Designer Built-In Gas 30”/36”W. Cooktop
PLANNING AND DESIGN GUIDE
VIKINGRANGE.COM • 1-888-VIKING1
RELEASED 12/1/07
©2007 VRC—INFORMATION SUBJECT TO CHANGE
✪ Installation Notes & Accessories
Model Description Approx. ship wt. lbs. (kg)
DLPK Natural to LP/Propane conversion kit 2 (0.9)
