ViewZ VZ-240PM-PL Manuel utilisateur

24.0”HD-SDI / 3G Broadcast Monitor

VZ-240PM-PL

USER GUIDE(v1.2)

Driving Visual Innovation

Please read this manual carefully to ensure proper use, including connection and operation.

Also, keep this manual for future use.

Class B Equipment (Broadcasting and Telecommunications Equipment for Home Use)

This equipment is for home use (Class B) and granted a Certificate of Conformity for electromagnetic

radiation. It is designed for home use and can be used in all regions.

(These images are for illustrative purposes only. They may vary depending on circumstances.)

Please read the Safety Instructions carefully to ensure proper use of the product.

Warning/Caution Label Description

This label indicates potential safety hazards during use.

Failure to do so may result in personal injury or property damage.

Warning/Caution Label Description

This label indicates prohibited actions.

This label indicates instructions that must be followed.

▶If you do not use the monitor for a long time, please set it to DPMS (Display Power Management Signaling) mode.

▶If you turn on a screen saver, set it to Moving Picture mode.

▶Do not use damaged power cords, plugs, or loose outlets. Failure to do so may cause an electric shock or fire.

Power Supply Instructions

Never remove the plug or power cord from the outlet with wet hands.

- Failure to do so may cause an accident due to an electric shock.

Make sure that the power cord is firmly plugged into the outlet and not loose.

- Unstable connection may cause a monitor blackout or fire.

- To disconnect, grip the plug and pull from the outlet. Pulling the cord may cause

Fire.

accident due to disconnection or a short circuit.

Do not insert several plugs into an outlet.

- It may cause a fire or accident due to overloading.

Never use a damaged plug or outlet. Such use may result in an accident such as

an electric shock or fire.

- Failure to do so may cause a fire or accident due to a short circuit.

Excessive bending of the power plug may cause disconnection or a short circuit.

- Please note that disconnection may cause a fire or accident due to a short circuit.

Do not remove the power cord while using the monitor.

- An electric shock occurring during disconnection may damage the monitor.

If the monitor is to be installed and used in a special place rather than under normal conditions, the

surroundings may cause serious quality problems. Before installing the product, please check with our

Service Engineer.

Installation Instructions

Do not install or use the product in humid or dusty locations.

- Failure to do so may cause a fire or accident due to a short circuit or electric shock.

Make sure that the monitor stand does not stick out of a desk, shelf, or case when

installing the product.

- If the product falls to the ground, it may be broken or damaged.

Maintain a distance of over 10cm from the wall when installing the monitor.

- An increase in the temperature inside the monitor may affect the service life and

performance of its components.

Set down the monitor gently to avoid impacts.

- An impact may cause monitor failure or personal injury.

Make sure to keep the power cord away from any heat source.

- Melting of the cord coating may cause an electric shock or fire. Please adhere to the

warning.

- Do not place cigarettes, candles, or mosquito repellent incense on top of the product.

Failure to keep them away may cause a fire.

To mount a wall-mount monitor on the wall, please consult an expert.

- Installation by an unqualified person may cause personal injury. Make sure to use

the designated mounting device.

Do not spray a cleaning solution directly on the monitor.

- Directly spraying on the monitor may significantly increase the risk of discoloration,

cracks, or peeling of the LCD panel surface.

Do not use or keep flammable sprays or substances near the product.

- Careless handling of flammable substances may cause an explosion or fire.

Make sure to disconnect the power cord before cleaning.

- Failure to do so may cause an electric shock or fire.

Cleaning and Use Instructions

Pull out the power cord and wipe it with soft, dry cloth when cleaning the product.

- Do not use chemicals, including wax, benzene, alcohol, thinner, mosquito repellent,

air freshener, lubricant, or cleaning solution.

Do not put items that can easily catch fire, such as metal chopsticks, wire, awls, paper, or

matches, into the air vent, headphone port, or AV port.

- Failure to do so may cause an electric shock or fire.

- If water or any foreign object gets into the product, turn off the product, unplug it from the

outlet, and contact our Service Center.

If one image is displayed for a long time, it may cause burn-in or image persistence.

- If the monitor is not used for a long time, set it to Power Saving mode or Moving Picture

mode such as animated screensavers.

If the monitor makes unusual noises or smoke, unplug the product and contact our Service

Center.

- Failure to do so may cause an electric shock or fire.

- Sit up straight.

- Position the monitor at a distance of 40-50cm below eye level, and make sure to look straight at the monitor.

- Tilt the monitor back 1 to 20 degrees and adjust the height slightly below eye level.

- Keep the arms perpendicular to the body and parallel to the back of the hand.

- Make sure the elbows are positioned at a 90-degree angle.

- Maintain a knee angle of over 90 degrees and adjust the monitor height to keep the heels on the floor and the

arms above the heart.

Do not cover the air vent.

- Improper ventilation may cause monitor failure or a fire.

If the product is not used for a long time, disconnect the power cord.

- Dust buildup may result in an electric shock or short circuit or fire due to heat output,

ignition or deteriorating insulation.

Do not place the monitor on unstable or vibrating locations, such as shaking shelves or

inclined surfaces.

- The fall of the product may result in failure or personal injury. Using the monitor on

a vibrating location may shorten its service life or cause a fire.

When moving the monitor, make sure to turn it off and unplug from the outset. Also, make

sure that other cords such as the antenna and other connecting cables have been

disconnected.

- Moving the monitor without disconnecting the cod will damage the cord, which may cause

a fire or electric shock.

Make sure that no child hangs on to or climb on the product.

- If the product collapses, it may cause injury or death.

Set the product resolution and frequency correctly. Otherwise, it may lead to eye problems.

- The resolution varies depending on the monitor size. Find and set the correct resolution

before use.

Use the monitor in the correct posture.

Checking Control Buttons / Names & Functions of I/O Port ……………………...…

Checking Control Buttons

Names & Functions of I/O Port

Main Features………………………………….…..………………………………………

Menu Tree & Control…………………………… ………………………………..………

Menu Tree

Menu Control

To Get Started……………………...………………………………………………………

Menu Controls and Functions ………….……………..………………..……………..…

Picture Settings.

Color Settings

Audio Settings

Marker Settings

Remote Settings

SDI Analyze

System Settings

Specification …………..…………………………………………..………………………

- 1 -

This Monitor was

Manufactured by ISO 9001

Certified Factory

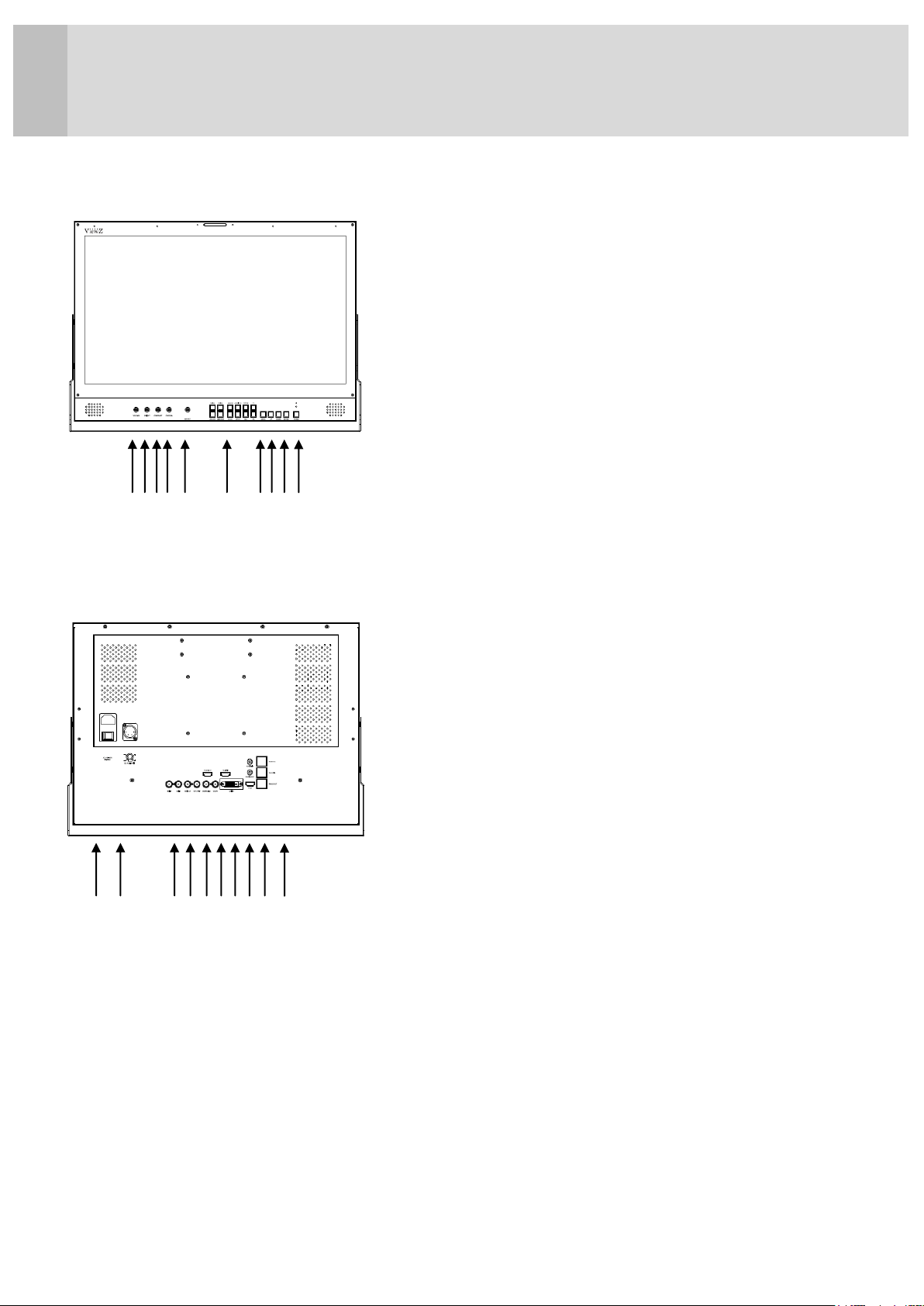

Checking Control Buttons / Names & Functions of I/O

Ports

1. Checking Control Buttons

2. Names and Functions of I/O Ports

1. AC 110~240V

6. DVI In

2. DC 12~24V In

3. SDI A/ SDI B/ SDI Out

4. CV123/ YPbPr/ SYSC

5. HDMI In/ Out

7. Audio In/ Out

8. PGM

9. Remote

10. RS422 In/Out

1. Volume

6. Short Keys &

Programmable Keys

2. Bright

3. Contrast

4. Chroma

5. Main Select Jog

7. Menu

8. Up / Down

9. Enter

10. Power

- 2 -

Main Features

Internal SDI to HDMI Converter

Closed Caption : CEA-608/708/Line21(SDI)

Color Calibration (Gamma, Color Temperature 3200K, 6500K, 9300K)

Waveform(YCbCr/RGB)/ Vectorscope Parade Support(SD/HD SDI)

Selectable Y/R/G/B Histogram(SD/HD SDI)

3G SDI LEVELA/B (YCbCr, RGB 4:4:4) Support.

SDI Embedded 16CH Audio Level Meter.

SDI Embedded 2CH Select Audio Waveform.

Focus Assist(SD/HDSDI)

False Color(SD/HD SDI)

Y Clip Guide Min/Max Select (SD/HD SDI)

12bit to 8bit / 12bit to 10bit Dithering.

Dynamic UMD Support.

DSLR Scaling (HDMI)

Blue Only, Mono

Maker

Time Code Display

Monitor External Control : Remote , RS422(Daisy Chain)

Selectable 2 User Key

DPMS Select

Color Bar / 100% White Internal Patten

Easy Menu Control by Jog

- 3 -

Menu Tree & Control

1. Menu Tree

Main menu includes

1) Picture Settings

2) Color Settings

3) Audio Settings

4) Market Settings

5) Remote Settings

6) SDI Analyze

7) System Settings

The picture above showsAudio Settings menus in ViewZ monitor.

2. Menu Control

Menu control can be handled in two ways by

1) Main Select Jog

2) Front Keys

Press Menu button or Main Jog to enter menu

Use Up / Down keys on front or turn the main jog to choose desired menu

To enter desired menu press Enter key or Main Jog

To exit to the previous step press Exit key or press Main Jog for 2 seconds

Menu turns to blue when selected

Grey menus are not yet activated

- 4 -

To Get Started

To get ViewZ monitor started, connect required power and choice of your input signal. Turn on

the power button on the back and the front. When not in use power button on the front will shut

off the monitor.

To choose the right input signal after cable connection, please use buttons on front including

1) SDI A

- picture below will be shown on the right bottom corner of your screen with your

resolution

2) SDI B

3) DVI / HDMI

- Use either up and down keys or Main jog to move to your input. Then press either enter

or Main Jog to select

- Blue arrow shows your choice and when selected the menu turns to blue

4) Analog

- 5 -
