ViewSonic VS17679 Manuel utilisateur

X1000-4K

Smart LED Soundbar Projector

User Guide

Model No. VS17679

P/N: X1000-4K

IMPORTANT: Please read this User Guide to obtain important information on installing and using your product in

a safe manner, as well as registering your product for future service. Warranty information contained in this User

Guide will describe your limited coverage from ViewSonic®Corporation, which is also found on our web site at

http://www.viewsonic.com in English, or in specific languages using the Regional selection box in the upper right

corner of our website.

Thank you for choosing ViewSonic®

As a world-leading provider of visual solutions, ViewSonic® is dedicated to exceeding

the world’s expectations for technological evolution, innovation, and simplicity.

At ViewSonic®, we believe that our products have the potential to make a positive

impact in the world, and we are confident that the ViewSonic® product you have

chosen will serve you well.

Once again, thank you for choosing ViewSonic®!

Safety Precautions

Please read the following Safety Precauons before you start using the projector.

• Keep this user guide in a safe place for later reference.

• Read all warnings and follow all instrucons.

• Allow at least 20“ (50 cm) clearance around the projector to ensure proper

venlaon.

• Place the projector in a well-venlated area. Do not place anything on the

projector that prevents heat dissipaon.

• Do not place the projector on an uneven or unstable surface. The projector may

fall over, causing personal injury or projector malfuncon.

• Do not use if the projector is lted at an angle of more than 10° degrees le or

right, nor at an angle of more than 15° degrees forwards or backwards.

• Do not look straight at the projector lens during operaon. The intense light

beam may damage your eyes.

• Always open the lens shuer or remove the lens cap when the projector lamp is

on.

• Do not block the projecon lens with any objects when the projector is under

operaon as this could cause objects to become heated and deformed or even

cause a re.

• The lamp becomes extremely hot during operaon. Allow the projector to

cool for approximately 45 minutes prior to removing the lamp assembly for

replacement.

• Do not use lamps beyond the rated lamp life. Excessive use of lamps beyond the

rated life could cause them to break on rare occasions.

• Never replace the lamp assembly or any electronic component unless the

projector is unplugged.

• Do not aempt to disassemble the projector. There are dangerous high voltages

inside which may cause death if you should come into contact with live parts.

• When moving the projector, be careful not to drop or bump the projector on

anything.

• Do not place any heavy objects on the projector or connecon cables.

• Do not stand the projector on end vercally. Doing so may cause the projector to

fall over, causing personal injury or projector malfuncon.

• Avoid exposing the projector to direct sunlight or other sources of sustained

heat. Do not install near any heat sources such as radiators, heat registers,

stoves, or other devices (including ampliers) that may increase the temperature

of the projector to dangerous levels.

• Do not place liquids near or on the projector. Liquids spilled into the projector

may cause it to fail. If the projector does become wet, disconnect it from the

power supply and call your local service center to have the projector serviced.

• When the projector is under operaon, you may sense some heated air and odor

from its venlaon grill. It is a normal operaon and not a defect.

• Do not aempt to circumvent the safety provisions of the polarized or

grounding-type plug. A polarized plug has two blades with one wider than the

other. A grounding-type plug has two blades and a third grounding prong. The

wide and third blade are provided for your safety. If the plug does not t into

your outlet, obtain an adapter and do not aempt to force the plug into the

outlet.

• When connecng to a power outlet, DO NOT remove the grounding prong.

Please ensure grounding prongs are NEVER REMOVED.

• Protect the power cord from being treaded upon or pinched, parcularly at the

plug, and at the point where it emerges from the projector.

• In some countries, the voltage is NOT stable. This projector is designed to

operate safely within a voltage between 100 to 240 volts AC, but could fail if

power cuts or surges of ±10 volts occur. In areas where voltage may uctuate

or cut out, it is recommended that you connect your projector through a power

stabilizer, surge protector, or uninterruptable power supply (UPS).

• If smoke, an abnormal noise, or a strange odor is present, immediately switch

the projector o and call your dealer or ViewSonic®. It is dangerous to connue

using the projector.

• Use only aachments/accessories specied by the manufacturer.

• Disconnect the power cord from the AC outlet if the projector is not being used

for a long period of me.

• Refer all servicing to qualied service personnel.

CAUTION: Possibly hazardous opcal radiaon is emied from this product. As

with any bright light source, do not stare into the beam, RG2 IEC 62471-

5:2015

Safety Precautions - Ceiling Mounting

Please read the following Safety Precautions before you start using the projector.

If you intend to mount the projector on the ceiling, it is strongly recommended

that you use a proper fitting projector ceiling mount kit and that you ensure it is

securely and safely installed.

If you use an inappropriate projector ceiling mount kit, there is a safety risk that the

projector may fall from the ceiling due to an improper attachment through the use

of the wrong gauge or length screws.

You can purchase a projector ceiling mount kit from the place you purchased your

projector.

Contents

Safety Precautions....................................................... 3

Introduction ................................................................ 9

Features..................................................................................................................9

Package Contents .................................................................................................10

Product Overview.................................................................................................11

Projector................................................................................................................ 11

Connection Ports................................................................................................... 12

Remote Control..................................................................................................... 14

Initial Setup............................................................... 16

Choosing a Location - Projection Orientation.......................................................16

Projection Dimensions..........................................................................................17

Mounting the Projector........................................................................................18

Making Connections.................................................. 19

Connecting to Power ............................................................................................19

Connecting to External Devices............................................................................20

HDMI Connection.................................................................................................. 20

Audio Connection.................................................................................................. 21

USB and Network Connection............................................................................... 22

Wireless Screen Mirroring..................................................................................... 23

Connecting to Networks.......................................................................................24

Wi-Fi Connection................................................................................................... 24

Custom SSID .......................................................................................................... 26

Wired LAN Connection.......................................................................................... 28

Bluetooth Connection ..........................................................................................29

Bluetooth Speaker................................................................................................. 29

Bluetooth Out........................................................................................................ 31

Using the Projector.................................................... 32

Starting Up the Projector......................................................................................32

First Time Activation.............................................................................................32

Image Focus .......................................................................................................... 32

Preferred Language............................................................................................... 33

Projection Orientation .......................................................................................... 33

Network Settings................................................................................................... 34

Source Input .......................................................................................................... 34

Selecting an Input Source .....................................................................................35

Adjusting the Projected Image .............................................................................36

Adjusting the Projector's Height and Projection Angle......................................... 36

Setting Up the Desired Image Size ........................................................................ 36

Fine-Tuning the Image Clarity ............................................................................... 37

Shutting Down the Projector................................................................................38

Input Source Selected - On-Screen Display (OSD) Tree......................................... 39

Operating the Projector............................................. 52

Home Screen ........................................................................................................52

Home Screen - On-Screen Display (OSD) Menu Tree ...........................................53

Menu Operations .................................................................................................58

File Management .................................................................................................. 58

Apps Center........................................................................................................... 63

Bluetooth .............................................................................................................. 65

Setting ................................................................................................................... 66

Screen Mirroring ................................................................................................... 81

Appendix................................................................... 84

Specifications........................................................................................................84

Timing Chart .........................................................................................................86

HDMI/USB C PC Timing ......................................................................................... 87

3D Support Timing................................................................................................. 89

IR Control Table ....................................................................................................90

Glossary ................................................................................................................91

Troubleshooting ...................................................................................................94

Maintenance.........................................................................................................95

General Precautions.............................................................................................. 95

Cleaning the Lens .................................................................................................. 95

Cleaning the Case.................................................................................................. 95

Storing the Projector............................................................................................. 95

LED Indicators........................................................................................................ 96

Regulatory and Service Information .......................... 97

Compliance Information.......................................................................................97

FCC Compliance Statement................................................................................... 97

Industry Canada Statement................................................................................... 97

CE Conformity for European Countries ................................................................. 97

Declaration of RoHS2 Compliance......................................................................... 99

Indian Restriction of Hazardous Substances ....................................................... 100

Product Disposal at End of Product Life.............................................................. 100

Customer Service ................................................................................................ 102

Limited Warranty ................................................................................................ 103

Mexico Limited Warranty.................................................................................... 106

Introduction

Combining stunning 4K resoluon with smart streaming funconality, the

ViewSonic® X1000-4K is a dark room projector. With an ultra short throw lens it is

easy to install in the home. Addionally, it features mulple HDMI ports and rich

connecvity allowing users to stream content from their favorite providers.

Features

• Ultra short throw lens is excellent for home projecon. Project a 100” screen

from 0.379 meters (Back I/O side to wall).

• 16 GB internal storage (Max. 12 GB available for user storage).

• Various Color modes for dierent projecon purposes.

• Mul-language On-Screen Display (OSD) menus.

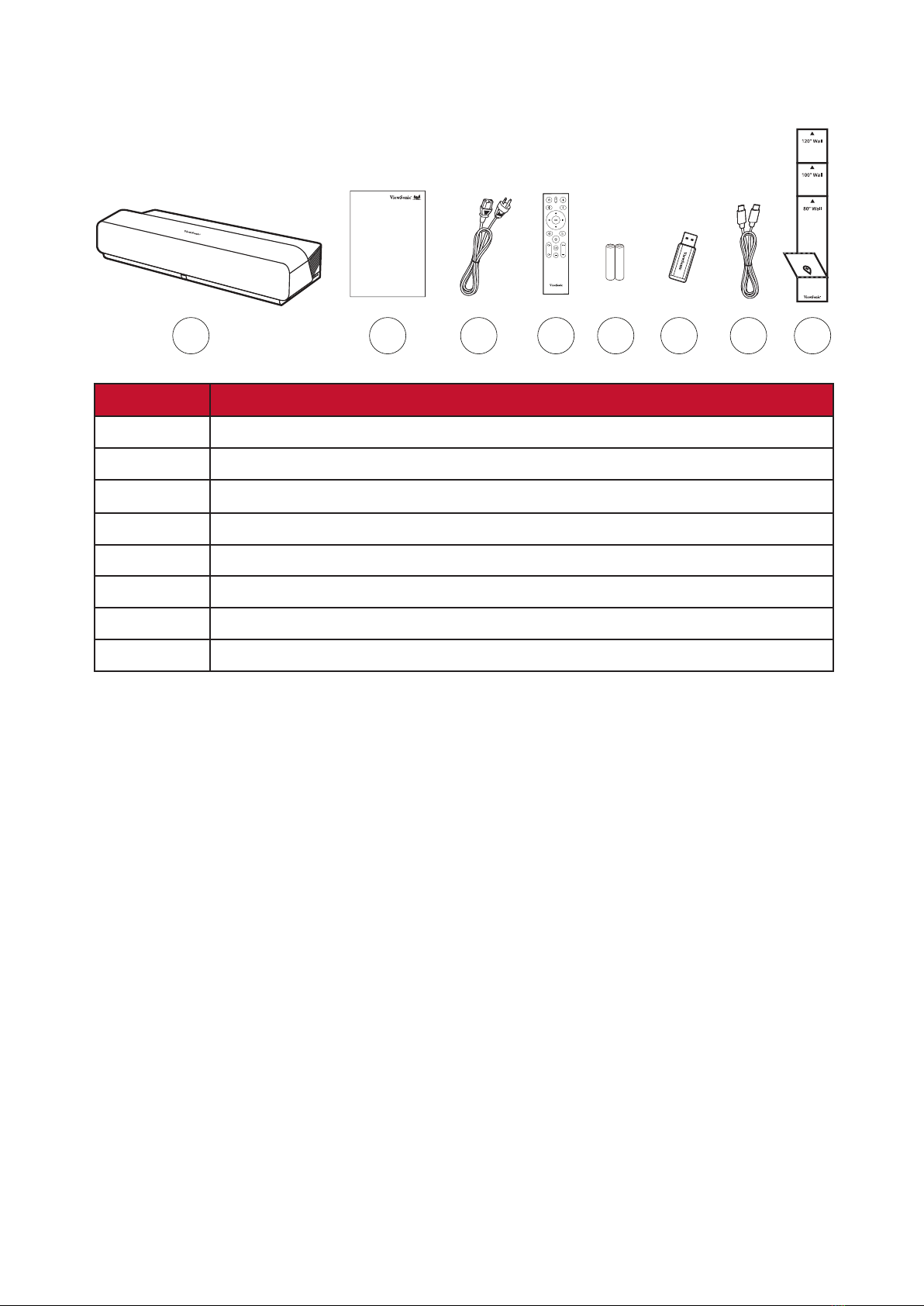

Package Contents

12345678

X series

Smart LED Soundbar Projector

Quick Start Guide

⺩廝⩇垃媲㓌

⺩廝‣搾㇅∕

ڀխݡ࢓ɹࢄғ

クイックスタートガイド

Guide de démarrage rapide

Schnellstarthandbuch

Guía de inicio rápido

Guida introduttiva

Guia de Início Rápido

Príručka so stručným návodom

Vodnik za hitri začetek

Przewodnik Szybki start

короткий посібник користувача

Hızlı Başlangıç Kılavuzu

Snabbstartsguide

Vodič za brzo pokretanje

краткое руководство

по началу работы

Ghid de pornire rapidă

Első lépések

Οδηγόσ γρήγορησ εκκίνησησ

Pika-aloitusopas

Úvodní příručka

Vodič za brzi početak

Ръководство за бърз старт

Aan de slag

Panduan Mulai Cepat

Hướng dẫn Khởi động Nhanh

คู่มือเริ่มต้นฉบับย่อ

ﻊرﺳﻟا ءدﺑﻟا لﻟد

Item Descripon

[1] X1000-4K Projector

[2] Quick Start Guide

[3] Power Cord

[4] Remote Control

[5] Batteries

[6] Wi-Fi Dongle

[7] USB-C Cable

[8] Distance Card

NOTE: The power cord and remote control included in your package may vary

depending on your country. Please contact your local reseller for more

informaon.

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels ViewSonic Projecteur

ViewSonic

ViewSonic PJD5226 Manuel utilisateur

ViewSonic

ViewSonic PJD5233 Manuel utilisateur

ViewSonic

ViewSonic PJD5134 Manuel utilisateur

ViewSonic

ViewSonic PJD6252L Manuel utilisateur

ViewSonic

ViewSonic Office Theater PJ1060 Manuel utilisateur

ViewSonic

ViewSonic PJ358W Guide de démarrage rapide

ViewSonic

ViewSonic Pro8520HD Manuel utilisateur

ViewSonic

ViewSonic PJ1075 Manuel utilisateur

ViewSonic

ViewSonic PJ588D - DLP Hi-Brightness Portable... Manuel utilisateur

ViewSonic

ViewSonic PJ1158-1 Manuel utilisateur

ViewSonic

ViewSonic PJL3211 VS12417 Guide de démarrage rapide

ViewSonic

ViewSonic CINE5000 - 1000 Lumens Widescreen DLP Home Theater... Manuel utilisateur

ViewSonic

ViewSonic PJD6210 Manuel utilisateur

ViewSonic

ViewSonic PJ510 - SVGA LCD Projector Manuel utilisateur

ViewSonic

ViewSonic PJ755D - 2600 Lumens DLP Projector Manuel utilisateur

ViewSonic

ViewSonic PJ862 Manuel utilisateur

ViewSonic

ViewSonic PJL6243 Manuel utilisateur

ViewSonic

ViewSonic PJD6211P Manuel utilisateur

ViewSonic

ViewSonic PJ755D - 2600 Lumens DLP Projector Manuel utilisateur

ViewSonic

ViewSonic PX726HD Manuel utilisateur

ViewSonic

ViewSonic PJL7211 Manuel utilisateur

ViewSonic

ViewSonic M2 Manuel utilisateur

ViewSonic

ViewSonic X11-4K Manuel utilisateur

ViewSonic

ViewSonic ViewDock PJ258D Manuel utilisateur

Manuels Projecteur populaires d'autres marques

iEmmet

iEmmet MP-312 Manuel utilisateur

Epson

Epson VS400 Manuel utilisateur

Sony

Sony VPL-HS10 Marketing Specifications & Features Manuel utilisateur

Sony

Sony VPL-HW65ES Manuel de service

Toshiba

Toshiba TLP-791U Manuel utilisateur

Philips

Philips LC1341 Guide de référence

Panasonic

Panasonic PTL735NTU - LCD PROJECTOR-NETWORK IB Manuel utilisateur

NEC

NEC NP600S EDU Manuel utilisateur

BenQ

BenQ SH753P Manuel utilisateur

Eiki

Eiki EK-623U series Manuel utilisateur

Epson

Epson PowerLite Pro Cinema 6020UB Manuel utilisateur

Epson

Epson PowerLite Home Cinema 705HD Manuel utilisateur

Christie

Christie LHD700 Manuel utilisateur

Navitar

Navitar FX Manuel utilisateur

InFocus

InFocus LitePro 560 Manuel utilisateur

Sony

Sony SRX-R815P Manuel utilisateur

Vivitar

Vivitar DP1500 X Manuel utilisateur

Acer

Acer C20 Series Manuel utilisateur
