Model No.

20" Color TFT LCD Display

Service Manual

ViewSonic VP2000s

ViewSonic381 Brea Canyon Road, Walnut, California 91789 USA - (800) 888-8583

(VP2000s_SM_892 Rev. 1bMar. 2005)

VLCDS26064-4W

reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language or

computer language, in any form or by any means, electronic, mechanical, magnetic, optical, chemical,

manual or otherwise, without the prior written permission of ViewSonic Corporation.

Disclaimer

ViewSonic makes no representations or warranties, either expressed or implied, with respect to the

contents hereof and specifically disclaims any warranty of merchantability or fitness for any particular

purpose. Further, ViewSonic reserves the right to revise this publication and to make changes from time

to time in the contents hereof without obligation of ViewSonic to notify any person of such revision or

changes.

Revision History

Trademarks

ViewSonic is a registered trademark of ViewSonic Corporation.

All other trademarks used within this document are the property of their respective owners.

Optiquest is a registered trademark of ViewSonic Corporation.

DCN Number ECR Number

Documents Number Description of Changes EditorRevision SM Editing Date

1a 05/07/04 Initial Release

A. Lu

1b 03/10/05 A. Lu

4530

Scalar Change to GM1601

5238 4923

ViewSonic CorporationConfidential

Do Not Copy VP2000s

TABLE OF CONTENTS

2. Specification

3. Front Panel Function Control Description

4. Circuit Description

6. Troubleshooting Flow Chart

9. Block Diagram

10. Schematic Diagrams

7. Recommended Spare Parts List

1. Precautions and Safety Notices

5. Adjustment Procedure

8. Exploded Diagram and Spare Parts List

11. PCB Layout Diagrams

ViewSonic CorporationConfidential

Do Not Copy VP2000s

1. Appropriate Operation

(1) Turn off the product before cleaning.

(2) Use only a dry soft cloth when cleaning the LCD panel surface.

(3) Use a soft cloth soaked with mild detergent to clean the display housing.

(4)Use only a high quality, safety approved AC/DC power cord.

(5)Disconnect the power plug from the AC outlet if the product will not be used for a long period of time.

(6) If smoke, abnormal noise, or strange odor is present, immediately switch the LCD display off.

(7) Do not touch the LCD panel surface with sharp or hard objects.

(8) Do not place heavy objects on the LCD display, video cable, or power cord.

(9) Do not use abrasive cleaners, waxes or solvents for your cleaning.

(10) Do not operate the product under the following conditions:

- Extremely hot, cold or humid environment.

-Areas containing excessive dust and dirt.

- Near any appliance generating a strong magnetic field.

- In direct sunlight.

2. Caution

No modification of any circuit should be attempted. Service work should only be performed after you are thoroughly familiar

with all of the following safety checks and servicing guidelines.

3. Safety Check

Care should be taken while servicing this LCD display. Because of the high voltage used in the inverter circuit, the voltage is

exposed in such areas as the associated transformer circuits.

4. LCDModule Handling Precautions

4.1 Handling Precautions

(1) Since front polarizer is easily damaged, pay attention not to scratch it.

(2)Be sure to turn off power supply when connecting or disconnecting input connector.

(3)Wipe off water drops immediately. Long contact with water may cause discoloration or spots.

(4) When the panel surface is soiled, wipe it with absorbent cotton or other soft cloth.

(5) Since the panel is made of glass, it may break or crack if dropped or bumped on hard surface.

(6)Since CMOSLSI isusedinthis module, take care of static electricity and ensure human earth when handling.

(7)Do not open or modify the Module Assembly.

(8)Do not press the reflector sheet at the back of the module in any direction.

(9)In the event that a Module must be put back into the packing container slot after it was taken out of the

container, do not press the center of the CCFL Reflector edge. Instead, press at the far ends of the

CFL Reflector edge softly. Otherwise the TFT Module may be damaged.

(10) At the insertion or removal of the Signal Interface Connector, be sure not to rotate or tilt the Interface

Connector of the TFT Module.

1. Precautions and Safety Notices

ViewSonic CorporationConfidential

Do Not Copy VP2000s

(11) After installation of theTFT Module intoan enclosure(LCDmonitor housing, for example), do not twist or

bend the TFT Module even momentarily. When designing the enclosure, it should be taken into consideration

that no bending/twisting forces may be applied to the TFT Module from outside. Otherwise theTFT Module

may be damaged.

(12) The cold cathode fluorescent lamp in the LCD contains a small amount of mercury. Please follow local

ordinances or regulations fordisposal.

(13) The LCD module contains a small amount of materials having no flammability grade. The LCD module

should be supplied with power that complies with the requirements of Limited Power Source

(IEC60950 or UL1950), or an exemption should be applied for.

(14) The LCD module is designed so that the CCFL in it is supplied by a Limited Current Circuit (IEC60950

or UL1950). Do not connect theCCFL to a HazardousVoltage Circuit.

ViewSonic CorporationConfidential

Do Not Copy VP2000s

A. General specification:

LCD panel suppliers: LG: LM201U04-A3. AUO: M201UN02 V.3

a. Panel size: 20.1-inch (viewable).

b. Driver element: a - Si TFT active matrix.

c. Effective display area: 408.0 (H) X 306.0 (V) mm.

d. Pixel pitch: 0.255 (H) X 0.255 (V) mm.

e. Max. resolution: UXGA (1600X1280 pixel).

f. Display color: 16.7M colors (R, G, B 8-bit data).

g. Response time: LG: 16 ms. (Typical)

AUO: 16 ms (Typical)

h. Color filter arrangement: R/G/B vertical stripe.

i. Black light: Edge – light type with 6CCFLs.

j. Contrast ratio: LG: 400:1

AUO: 700:1

k. Luminance: 250cd/m2(Typical).

l. Luminance variation: 1.54 (MAX.). (Note.1)

LCD panel specification:

m. Viewing angle (CR >10): Horizontal: 170o, Vertical: 170o.

Input signals: a. Analog R / G / B (0.7Vp-p/75 ohm) Positive.

b. Digital R /G / B DVI rev. 1.0 (TMDS single link)

c. H & V separate Sync: TTL level; Polarity: Positive or Negative.

d. H & V composite Sync: TTL level; Polarity: Positive or Negative.

e. SOG (Sync level 0.3Vp-p).

Input connector: a. Analog D-sub 15pin x 1.

b. Digital DVI-I 29 pin x 1. (Analog + Digital)

c. USB up stream x1.(VP201s/b only)

Output connector: a. USB down stream x 4.(VP201s/b only)

Display data channel: DDC2B.

Signal frequency range: a. Horizontal:

a-1. Analog: 30KHz ~ 92KHz.

a-2. Digital: 30KHz ~ 92KHz.

b. Vertical: 50Hz ~ 85*1Hz.

*Note: When the resolution is set to 1600x1200, the maximum vertical

Analog input: 60 Hz.

Digital input: 60 Hz.

c. Pixel clock:

c-1. Analog: 165MHz.

c-2. Digital: 165MHz.

d. Non-interlaced.

Resolution: 1600x1200. (UXGA)

Power supply: AC Input Range: AC 90 to 264V, 50/60Hz ± 3Hz, 1.5A.

Less then 50Ap. For 115VAC.Inrush current

Less then 100Ap. For 230VAC.

Less then 73W. On mode.

Less then 4W. Active off mode.

Power Consumption:

Less then 2W. DC power off.

2. Specification

ViewSonic CorporationConfidential

Do Not Copy VP2000s

refresh rate is:

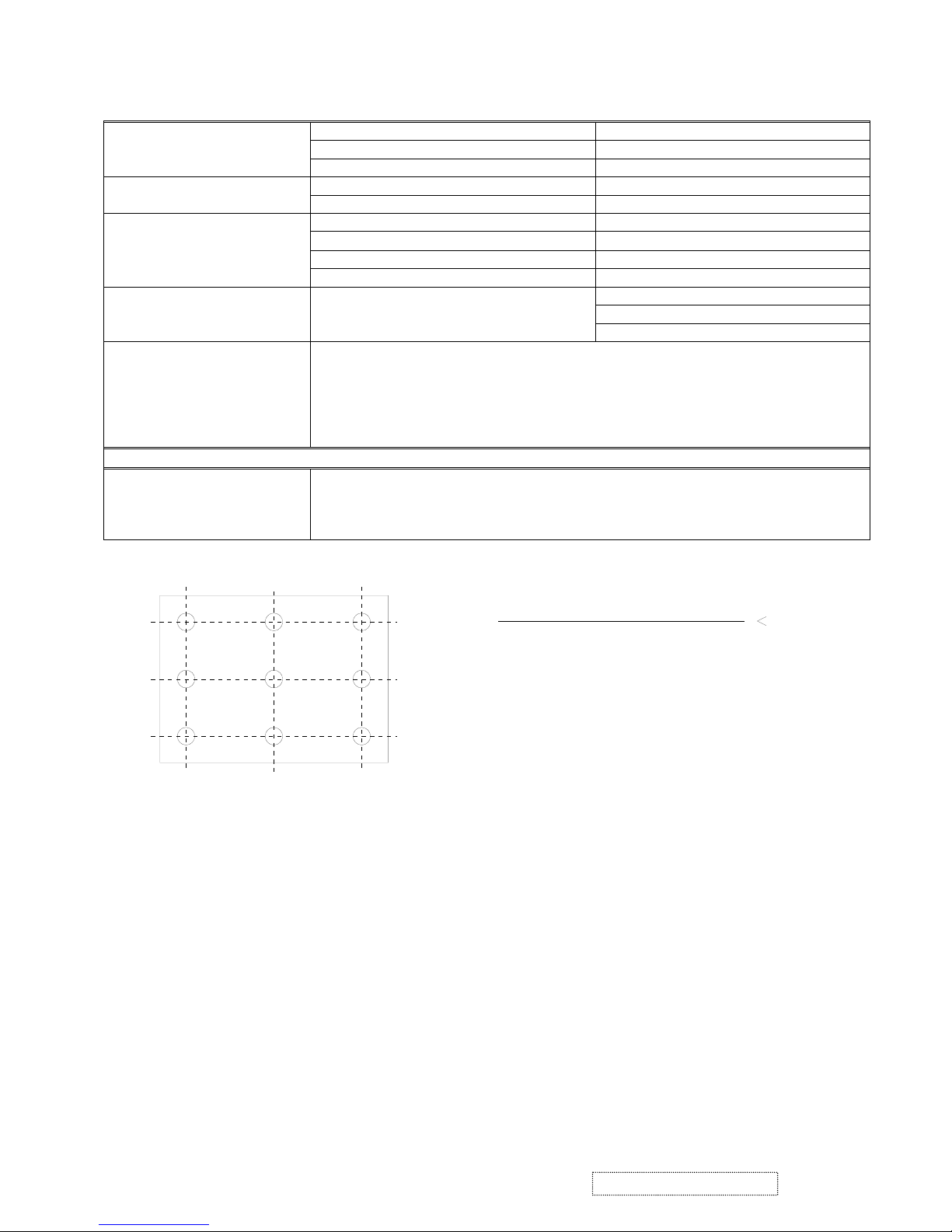

B. Physical specification:

a. Height: 480.55mm.

b. Width: 448.00mm.

Overall dimension:

c. Depth: 266.65mm.

a. Net weight: 8.5kg.Weight:

b. Gross weight: 11.2kg.

a. Tilt: +25o~ -5o.

b. Swivel: ±45o.

c. Height adjust: 110mm.

Mechanical adjustment:

d. Pivot: 90o.

a. Height: 494mm.

b. Width: 345mm.

Packaging: a. Carton dimension:

c. Depth: 560mm.

Accessories: Power cable 1.8m.

User guide (English).

CD ROM.

Warranty card.

HD15 - HD15 cable.

DVI (D) – DVI (D) cable.

3. Regulatory & Standard certification.

Regulatory standards UL, cUL, FCC-B, CB, CE, ENERGY, NOM, TUV/GS, TUV ERGO (covers

ISO13406-2 & MPRII), TCO’03(for VP201s/VP2000s), TCO99 (for VP201

NEMKO, SEMKO, DEMKO, FIMKO, GOST-R + 20 ORIGINAL COPIES

HYGIENIC, (SASO), PCBC, VCCI, BSMI, CCC, (PSB), (C-TICK), TUV-S

Note.1: Luminance variation:

FIG.1 Luminance test points

L = 408mm / W = 306mm

10%

50%

90%

10%

50%90%

BU = MAX. Luminance in 9 point (1 ~ 9)

MIN. Luminance in 9 point (1 ~ 9) 1.54

ViewSonic CorporationConfidential

Do Not Copy VP2000s

C. OSD Menu Functions

1. Interface board function test.

1.1 Function keys:Power, 1, ▲, ▼,2.

1.2 Basic function check.

1.2.1 Input 1600x1200 / 60Hz, cross-hatch reverse pattern.

1.2.2 Push “1” & “2” key,select Auto image adjust, Contrast, Brightness, Input select,

Color, Manual image adjust, Setup menu, Memory recall function.

1.2.3 Push “▲” or “▼” key check Contrast, Brightness, Input select, Color, H/V position, H

size, Fine tune, Sharpness, Scaling Language Select, OSD Position OSD Timeout, OSD

Background functions.

1.2.4 Push “2” to cycle among Analog / DVI-A / DVI-D signals.

1.2.5 When the OSD is not active, the “▲” and “▼” of buttons increase/decrease

Contrast or Brightness.

2. Interface power test.

2.1 The test point:

2.1.1 TP251 = NA.

2.1.2 TP252 = 5V ± 5%.

2.1.3 TP253 = 18V ± 5%.

3. OSD function.

Auto Image Adjust2

Contrast/Brightness:

Contrast, Brightness.

Input Select:

D-Sub, DVI-A, DVI-D.

Color Adjust:

SRBG, 9300K, 6500K (default), 5400K, 5000K, User Color (R, G, B).

Information:

Resolution, Horizontal Frequency, Vertical Frequency, Model Number, Serial Number, Web Site.

Manual Image Adjust:

H./V. Position2(H. Position, V. Position), H. Size2, Fine Tune2,

Scaling3(Fill Screen, Fill Aspect Ratio4, 1:1).

Setup Menu:

Language:

English, French, German, Spanish, Italian, Finnish, Japanese, Traditional Chinese, Simplified

Chinese.

Resolution Notice:

Enable, Disable.

Input Priority:

D-Sub, DVI-A, DVI-D, Auto Search.

OSD Position:

H. Position, V. Position.

OSD Timeout:

5SEC, 15SEC, 30SEC, 60SEC

OSD Background:

On, Off.

Memory Recall

Notes:

2These functions are not available in Digital mode; the item is faded out and can't be selected

When auto tuning, the image should not go blank.

3These functions are not available in 1600x1200 mode; the item is faded out and can't be selected.

4When the input signal's aspect ratio is 4:3, the "Fill Aspect ratio" function yields the same result

ViewSonic CorporationConfidential

Do Not Copy VP2000s

as "Fill Screen".

1.1 Set contrast to 70% and brightness to 100%.

1.2 Input a 640x480 / 60Hz, 5-block (5-MOSAIC) pattern (input level 100IRE 0.7Vp-p), then

activate the White Balance function.

Set SRBG/9300K / 6500K / 5400K / 5000K, R G B Gain as shown below:

sRGB 9300K 6500K 5400K 5000K

Analog DVI Analog DVI Analog DVI Analog DVI Analog DVI

R Gain 255 255 255 255 255 255 255 255 255 255

G Gain 255 255 255 255 255 255 255 255 255 255

B Gain 255 255 255 255 255 255 255 255 255 255

2. 9300K alignment:

2.1 Input 1600x1200 / 60Hz & full white pattern at 100IRE.

2.2 Adjust R, G, and B Gain to meet following chromaticity spec:

9300K →x = 0.283 ± 0.005, y = 0.298 ± 0.005, Y > 150cd/m2(Both analog & DVI).

3. 6500K alignment:

3.1 Input 1600x1200 / 60Hz & full white pattern at 100IRE.

3.2 Adjust R, G and B Gain to meet following chromaticity spec:

6500°K →x = 0.313 ±0.005, y = 0.329 ± 0.005, Y > 200cd/m2(Both analog & DVI).

4. 5400K alignment:

4.1 Input 1600x1200 / 60Hz & full white pattern at 100IRE.

4.2 Adjust R, G, and B Gain to meet following chromaticity spec:

5400K →x = 0.335 ± 0.005, y = 0.350 ± 0.005, Y > 180cd/m2(Both analog & DVI).

5. 5000K alignment:

5.1 Input 1600x1200 / 60Hz & full white pattern at 100IRE.

5.2 Adjust R, G and B Gain to meet following chromaticity spec:

5000°K →x = 0.346 ±0.005, y = 0.359 ± 0.005, Y > 180cd/m2(Both analog & DVI).

6. sRGB alignment:

6.1 Input 1600x1200 / 60Hz & full white pattern at 100IRE.

6.2 Adjust R, G and B Gain to meet following chromaticity spec:

sRGB →x = 0.313 ±0.005, y = 0.329 ± 0.005, Y > 200cd/m2(Both analog & DVI).

7. 64 grays and 16 grays pattern check:

7.1 Input a 1600x1200 / 60Hz, 64 gray-level pattern at 100IRE, with brightness set to 100% and

contrast set to 70%

7.2 Verify that under the 9300K / 6500K / 5400K / 5000K settings, no more than 2 of the 64

7.3 Input a 1600x1200 / 60Hz, 16 gray-level pattern at 100IRE, with brightness set to 100% and

contrast set to 100%.

7.4 Verify that under the 9300K / 6500K / 5400K / 5000K settings, no more than 4 of the 16 grays are

D. Image Calibration

1 Initial Settings

ViewSonic CorporationConfidential

Do Not Copy VP2000s

grays are saturated.

saturated.

E. Image test

1. Picture size & position.

1.1 Picture size.

Input analog timing modes 1 ~ 26 and DVI timing modes 1 ~ 25:

H-size: 408mm ±1mm.

V-size: 306mm ±1mm.

(Extra 640x350)

1.2 Screen center.

a. 1600x1200: H ± 1mm, V ± 1mm.

b. Others modes: H ± 1.5mm, V ± 1mm.

1.3 Picture position (refer to FIG.2).

H-position:︱g3-g4︱≦1.5mm.

V-position:︱g1-g2︱≦1.5mm.

2. Luminance test.

2.1 Input a 1600x1200 / 60Hz full white pattern at 100IRE with brightness set to 100% and

Y (Luminance)

Color temperature x y Analog DVI

sRGB 0.313 ± 0.01 0.329 ± 0.01 >200 nit >200 nit

9300K 0.283 ± 0.01 0.298 ± 0.01 >150 nit >150 nit

6500K 0.313 ± 0.01 0.329 ± 0.01 >200 nit >200 nit

5400K 0.335 ± 0.01 0.350 ± 0.01 >180 nit >180 nit

5000K 0.346 ± 0.01 0.359 ± 0.01 >180 nit >180 nit

2.2 Input a1600x1200 / 60Hz full white pattern at 100IRE with brightness set to 100% and

Y (Luminance)

Color temperature Analog DVI

9300K >220 nit >220 nit

6500K >220 nit >220 nit

5400K >220 nit >220 nit

5000K >220 nit >220 nit

3. Picture performance test.

3.1 Picture quality:

Test pattern signal The following image faults shall not be conspicuous:

1 100IRE white raster pattern Seam, Noise, Beat, Flicker

2Cross hatch pattern Ringing, Overshoot, Smear, V-jitter, H-jitter

3 Color bar Color distortion, Noise, Beat, Color tangent

4 Gray scale (16 steps) Noise, Beat, Gamma distortion

51 dot ON / 1 dot OFF pattern Noise, Flicker

6 40IRE gray raster Noise, Beat, Gamma distortion

3.2 DVI performance test.

3.2.1 3.2.2 Test conditions:

a. VG828 digital pattern generator.

b. “TTL” DVI-D single link cable.

3.2.2 Test condition:

a. a. Resolution: 1600x1200; refresh rate: 75KHz vertical / 60Hz horizontal.

b. b. 16, 32, 64, and 256-level horizontal gray scales.

c. c. 16, 32, 64, and 256-level vertical gray scales.

4. Shortcut keys and factory presets

4.1 Shortcut keys: Press the following keys to adjust settings directly, when the OSD is not active.

[1]. Main Menu.

[2]. Select next input. (Sequence: D-SUB →DVI-A → DVI-D)

[UP] or[DOWN]arrow. Directly activate the Contrast menu. Switch to Brightness menu

408mm

306mm

FIG. 2

ViewSonic CorporationConfidential

Do Not Copy VP2000s

contrast set to 70%.

contrast set to 100%.

Autres manuels pour VLCDS26064-4W

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels ViewSonic Moniteur

ViewSonic

ViewSonic Optiquest V73 Manuel utilisateur

ViewSonic

ViewSonic VX2265wm - FuHzion - 22" LCD Monitor Manuel utilisateur

ViewSonic

ViewSonic VA2252Sm-S Manuel utilisateur

ViewSonic

ViewSonic ViewPanel VG171 Manuel utilisateur

ViewSonic

ViewSonic E50 - 15" CRT Display Manuel utilisateur

ViewSonic

ViewSonic VX510 Manuel utilisateur

ViewSonic

ViewSonic VG181 Manuel utilisateur

ViewSonic

ViewSonic VG2021WM Manuel utilisateur

ViewSonic

ViewSonic VS11135 Guide de démarrage rapide

ViewSonic

ViewSonic VG2753 Manuel utilisateur

ViewSonic

ViewSonic VX3208-sw Manuel utilisateur

ViewSonic

ViewSonic CDE30 Series Manuel utilisateur

ViewSonic

ViewSonic A91f - 19" CRT Monitor Manuel utilisateur

ViewSonic

ViewSonic VX2481-MH Manuel utilisateur

ViewSonic

ViewSonic VX2413wm-2 Manuel utilisateur

ViewSonic

ViewSonic VS17350 Manuel utilisateur

ViewSonic

ViewSonic VX2450w-LED Manuel utilisateur

ViewSonic

ViewSonic LCD Display VS11349 Manuel utilisateur

ViewSonic

ViewSonic N1500TV - 15" LCD TV Manuel utilisateur

ViewSonic

ViewSonic Optiquest VS12087 Manuel utilisateur

ViewSonic

ViewSonic VX510 Manuel utilisateur

ViewSonic

ViewSonic VX1935wm-3 Manuel utilisateur

ViewSonic

ViewSonic LDS135-151 Manuel utilisateur

ViewSonic

ViewSonic VA2261H-8A Manuel utilisateur

Manuels Moniteur populaires d'autres marques

Linear Acoustic

Linear Acoustic LQ-1000 Manuel utilisateur

AOC

AOC I2579V Manuel utilisateur

Gateway

Gateway FPD1520 Manuel utilisateur

Furuno

Furuno Mu 120c Manuel utilisateur

Asus

Asus VB171D - 17" LCD Monitor Manuel utilisateur

Dell

Dell S2230MX Instructions d'utilisation

Philips

Philips 107C64 Manuel utilisateur

Dell

Dell S2409WFP Manuel utilisateur

EverFocus

EverFocus EN-7517E Manuel utilisateur

Panasonic

Panasonic TH152UX1 - 152" PLASMA TV Manuel utilisateur

Dell

Dell Precision 7680 Mode d’emploi

LG 50PM1M - - 50" Plasma Panel Manuel utilisateur

Bosch

Bosch DDU 9 Manuel utilisateur

Acer

Acer A231HL Manuel utilisateur

Philips

Philips 86BDL4152T Manuel utilisateur

NEC

NEC AccuSync LCD5V Manuel utilisateur

Emay

Emay SleepO2 Manuel utilisateur

IBM

IBM 6360 Instructions d'installation
