ViewSonic VCDTS21468-1 Manuel utilisateur

ENGLISH

ViewSonic G655

IBM XT, AT, 386, 486, and PS/2 are registered trademarks and/or trademarks of International Business

Machines Corporation.

Pentium is a registered trademark of Intel Corporation.

Macintosh and Power Macintosh are registered trademarks of Apple Computer, Inc.

Microsoft, Windows, Windows NT, and the Windows Logo are registered trademarks of Microsoft

Corporation in the United States and other countries.

ViewSonic, the three birds logo, OnView, ViewMatch, and ViewMeter are registered trademarks

ofViewSonic Corporation.

ENERGY STAR is a registered trademark of the U.S. Environmental Protection Agency (EPA).

VESA is a registered trademark of the Video Electronics Standards Association. DPMS and DDC are

trademarks of VESA.

Disclaimer: ViewSonic®Corporation shall not be liable for technical or editorial errors or omissions

contained herein; nor for incidental or consequential damages resulting from furnishing this material, or

the performance or use this product .

ViewSonic Corporation reserves the right to change product specification without notice. Information in

this document may change without notice.

No part of this document may be copied, reproduced, or transmitted by any means, for any purpose

without prior written permission from ViewSonic Corporation.

As anENERGY STAR®partner, ViewSonic Corp. has determinded that this product meets the ENERGY STAR®

guidelines for energy efficiency.

ForYour Records

The serial number of this product is on the back of the monitor. You should note

the serial number of this unit in the space provided and retain this booklet as a

permanent record of your purchase to aid in identification in the event of theft

or loss.

Product Name: ViewSonic G655

Model Number: VCDTS21468-1

Serial Number: __________________

Purchase Date: ___________________

Power Cord Safety Guidelines

Caution : Use a power cable that is properly grounded. Always use the AC cords listed

below for each area :

USA ...........................UL

Canada ......................CSA

Germany ....................VDE

Switzerland ................SEV

Britain .........................BASEC/BS

Japan .........................Electric Appliance Control Act

In other areas, use AC cord which meets local safety standards.

ElectronicWarranty Registration

ENGLISH

ViewSonic G655

IMPORTANT NOTICE CONCERNING POWER CORD SELECTION

The power cord set for this unit has been enclosed and has been selected according to

the country of destination and must be used to prevent electric shock. Use the following

guidelines if it is necessary to replace the original cord set, or if the cord set is not

enclosed.

The female receptacle of the cord set must meet CEE-22 requirements and will look like

Figure 1 below:

For the United States and Canada

In the United States and Canada the male plug is a NEMA5-15 style (Figure 2), UL

Listed, and CSA Labelled. For units which are mounted on a desk or table, type SVT or

SJT cord sets may be used. For units which sit on the floor, only SJT type cord sets may

be used. The cord set must be selected according to the current rating for your unit.

Please consult Table A below for the selection criteria for power cords used in the United

States and Canada.

For European Countries

In Europe you must use a cord set which is appropriate for the receptacles in your

country. The cord set is HAR-Certified, and a special mark that will appear on the outer

sheath, or on the insulation of one of the inner conductors.

If you have any questions concerning which proper power cord to use, please consult with

the dealer from whom you have purchased your monitor.

Power Cord Safety Guidelines (continued)

AC PLUG CORD PRECAUTIONS FOR THE UNITED KINGDOM

FOR YOUR SAFETY PLEASE READ THE FOLLOWING TEXT CAREFULLY.

IF THE FITTED MOULDED PLUG IS UNSUITABLE FOR THE SOCKET OUTLET THEN THE

PLUG SHOULD BE CUT OFF AND DISPOSED OF SAFELY.

THERE IS A DANGER OF SEVERE ELECTRICAL SHOCK IF THE CUT OFF PLUG IS

INSERTED INTO AN APPROPRIATE SOCKET.

If a new plug is to be fitted, please observe the wiring code as shown below.

If in any doubt, please consult a qualified electrician.

WARNING: THIS APPLIANCE MUST BE EARTHED.

IMPORTANT: The wires in this mains lead are coloured in accordance with the following code:

Green-and-Yellow: Earth

Blue: Neutral

Brown: Live

If the coloured wires of the mains lead of this appliance do not correspond with the coloured

markings identifying the terminals in your plug, proceed as follows:

The wire which is coloured GREEN-AND-YELLOW must be connected to the terminal in the

plug which is marked by the letter E or by the Earth symbol or coloured GREEN or GREEN-

AND-YELLOW.

The wire which is coloured BLUE must be connected to the terminal in the plug which is marked

with the letter N or coloured BLACK. The wire which is coloured BROWN must be connected to

the terminal in the plug which is marked with the letter L or coloured RED.

Figure 1

Figure 2

Table A

Cord Type Size of Conductors In Cord Maximum Current Rating of Unit

SJT 18AWG 10Amps

16AWG 12Amps

14AWG 12Amps

SVT 18AWG 10Amps

17AWG 12Amps

ENGLISH

ViewSonic G655

FCC Information

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of

the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential

installation. This equipment generates, uses, and can radiate radio frequency energy, and if not installed and used in

accordance with the instructions, may cause harmful interference to radio communications. However, there is no

guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to

radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to

try to correct the interference by one or more of the following measures:our, aone leTw[nna.rt 15 of

ENGLISH

ViewSonic G655

CONTENTS

For Your Records . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

Power Cord Safety Guidelines . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

FCC Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

CE Conformity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Getting Started

Package Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Quick Installation* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Operation

Front Control Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Using the [2] button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

OnView®Main Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Other Information

Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Cleaning the Monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Customer Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . back cover

*To meet your future needs, and to receive any additional product information as it becomes available,

please register your monitor's warranty on the Internet at: http://www.viewsonic.com.

ENGLISH

ViewSonic G655

Congratulations on your purchase of a Graphics Series ViewSonic G655

monitor!

Save the original box and all packing material for future shipping needs.

NOTE: This product was designed for operation in the magnetic fields of the

hemisphere where it was purchased. Also, the word "Windows®" in this user

guide refers to the following Microsoft®operating systems: Windows '95,

Windows '98, Windows NT®(5.0).

Package Contents

Your ViewSonic G655 package includes the following:

•ViewSonic G655 monitor

• Attached video cable with 15 pin high density mini D-sub connector

• Power cord

• User’s Guide

• INF and ICM installation files on CD-ROM or diskette

Getting Started

• For best viewing conditions sit at

least 18" from the monitor.

• AVOID TOUCHING THE SCREEN

WITH YOUR FINGERS. Oils from

the skin are difficult to remove.

•NEVER REMOVE THE REAR

COVER. The monitor contains high-

voltage parts. You may suffer serious

injury if you touch these parts.

• Avoid exposing the monitor to direct

sunlight or another heat source. The

monitor should be facing away from

direct sunlight to reduce glare.

• Always handle your monitor with

care when moving it.

Precautions

•Choose a well ventilated area to

position your monitor. Do not place

anything on the monitor that prevents

adequate dissipation of heat.

•Ensure the area around the monitor is

clean and free of moisture.

•Keep the monitor away from magnets,

motors, transformers, speakers, and

televisions.

•Do not place heavy objects on the

monitor, video cable, or power cord.

•If smoke, abnormal noise, or strange

odor is present, immediately switch the

monitor off and call your dealer or

ViewSonic. It is dangerous to continue

using the monitor.

Getting Started

IMPORTANT: The supplied INF file assures compatibility with Windows operating

systems, and the ICM file (Image Color Matching) ensures accurate on-screen colors.

ViewSonic

recommends that you install both files.

•For CD-ROM: Insert the CD-ROM into your system, wait for it to auto-install, select

“Monitor Drivers,”and follow the on-screen instructions.

•For diskette: Insert the diskette into your system, run install.exe, and follow the on-

screen instructions.

ENGLISH

ViewSonic G655

Operation

Adjust your ViewSonic G655 monitor using the buttons on the front control

panel as shown below. The buttons scroll down the OnView®Main Menu

(page 8) and adjust each control (pages 8 through 10).

Front Control Panel

To adjust the monitor, follow the numbered steps in sequence as shown below.

Power light:

Green = on

Orange = power saving

mode

[▼] and [▲]

decreases or

increases value

of the selected

control

[▼] and [▲] scrolls

up and down the

Main Menu; highlight

the control you want

to adjust (see below)

Button [1] exits

control screen

or menu and

saves all

adjustments

Button [2]

activates the

control screen

for the

highlighted

control

➌

➎

➋

➍

➊

Button [1]

displays the

Main Menu

Power

On/Off*

Operation

* The monitor automatically

degausses

each time you turn it on, removing the buildup of magnetic

fields that can affect color purity and convergence. To prevent possible damage, if you turn the

monitor off, then immediately on again, wait 20 minutes before doing this again. Do not turn the

monitor on and off repeatedly. To manually degauss the monitor, see the instructions on page 9.

Using the [2] button

One of the uses of the [2] button is to switch between controls shown in pairs

on the Main Menu (see page 8).

Example: Press the [2] button to

switch between the CONTRAST

and BRIGHTNESS controls.

NOTE: In the CONTAST example

"MAX" indicates the maximum

value for CONTRAST.

ViewSonic G655

CONTRAST/BRIGHTNESS Press button [2] to select one of the

following controls.

Shortcut: Before displaying the Main Menu, press [▼] or [▲] to

display the Contrast/Brightness control screen.

CONTRAST adjusts foreground white level of screen

image. Press [▼] or [▲] to adjust.

BRIGHTNESS adjusts background black level of screen

image. Press [▼] or [▲] to adjust.

H/V POSITION Press button [2] to select Horizontal or Vertical

Position.

H. POSITION (Horizontal Position) moves screen image

left or right. [▼] moves screen image left, [▲] moves screen

image right.

V. POSITION (Vertical Position) moves screen image up

and down. [▼] moves screen down, [▲] moves screen up.

H/V SIZE Press button [2] to select Horizontal or Vertical Size.

H. SIZE (Horizontal Size) adjusts width of screen image.

[▼] decreases width, [▲] increases width.

V. SIZE (Vertical Size) adjusts height of screen image.

[▼] decreases height, [▲] increases height.

Operation

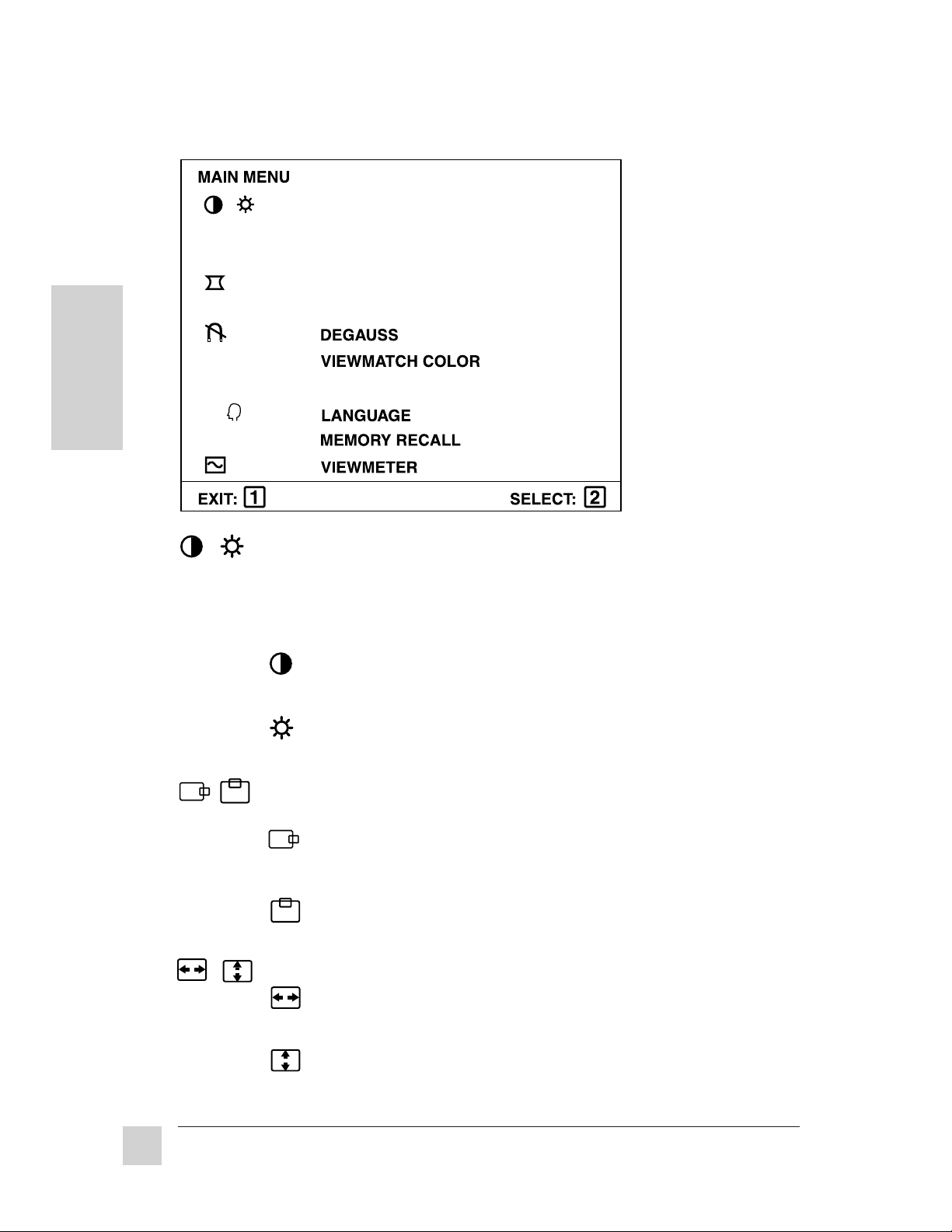

OnView® Main Menu

ViewSonic G655

Operation

To exit the OnView®menu & save changes, press button [1].

PINCUSHION/TRAPEZOID Press button [2] to select

Pincushion or Trapezoid.

PINCUSHION straightens vertical sides of screen image.

[▼] curves vertical edges inward, [▲] curves vertical edges

outward.

TRAPEZOID makes vertical edges of screen image

parallel. [▼] narrows top and widens bottom, [▲] widens top

and narrows bottom.

TILT rotates entire screen image. [▼] rotates screen image counter-

clockwise. [▲] rotates screen image clockwise.

DEGAUSS There are two ways to degauss the monitor;

automatically by turning the monitor on, or manually by selecting

the Degauss control from the OnView Main Menu.

Important: Do not degauss repeatedly. Doing so can be harmful

to the monitor. Wait at least 20 minutes (before selecting this

control again.

VIEWMATCH®COLOR provides four color adjustment options:

four preset color temperatures and USER COLOR which allows

you to adjust red and blue (green is fixed).

Press [▼] or [▲] to select one of the three color temperatures

shown below, then press [2] to activate it. Selecting and activating

USER COLOR displays the screen shown below.

NOTE: The factory setting for the monitor is 9300K, the color

temperature most frequently used in rooms with fluorescent lights.

From this screen,

press button [2]

to select Red or

or Blue, then

press [▼] or [▲]

to adjust.

USER COLOR

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels ViewSonic Moniteur

ViewSonic

ViewSonic VX2770Smh-LED Manuel utilisateur

ViewSonic

ViewSonic VE510s Manuel utilisateur

ViewSonic

ViewSonic IFP30 Series Manuel utilisateur

ViewSonic

ViewSonic VA1903WMB - 19" LCD Monitor Manuel utilisateur

ViewSonic

ViewSonic ViewBoard IFP4320 Series Manuel utilisateur

ViewSonic

ViewSonic EP4220 Manuel utilisateur

ViewSonic

ViewSonic VX2776-h Manuel utilisateur

ViewSonic

ViewSonic VX2245wm - 22" Widescreen LCD Monitor Manuel utilisateur

ViewSonic

ViewSonic VX922 - 19" LCD Monitor Manuel utilisateur

ViewSonic

ViewSonic ViewPanel VP180m Manuel utilisateur

ViewSonic

ViewSonic VX1933W Manuel utilisateur

ViewSonic

ViewSonic VP930 Manuel utilisateur

ViewSonic

ViewSonic VX1962wm - 19" LCD Monitor Manuel utilisateur

ViewSonic

ViewSonic ViewPanel VG170m Manuel utilisateur

ViewSonic

ViewSonic ViewPanel VG150 Manuel utilisateur

ViewSonic

ViewSonic XG270Q Manuel utilisateur

ViewSonic

ViewSonic V903b Manuel utilisateur

ViewSonic

ViewSonic VE150-2 Manuel utilisateur

ViewSonic

ViewSonic Optiquest Q95 Manuel utilisateur

ViewSonic

ViewSonic VS18786 Manuel utilisateur

ViewSonic

ViewSonic VPW425 - 42" Plasma TV Manuel utilisateur

ViewSonic

ViewSonic VX2039-SA-VN1 Manuel utilisateur

ViewSonic

ViewSonic VG3419C Manuel utilisateur

ViewSonic

ViewSonic Q171B - Optiquest - 17" LCD Monitor Manuel utilisateur

Manuels Moniteur populaires d'autres marques

Linear Acoustic

Linear Acoustic LQ-1000 Manuel utilisateur

AOC

AOC I2579V Manuel utilisateur

Gateway

Gateway FPD1520 Manuel utilisateur

Furuno

Furuno Mu 120c Manuel utilisateur

Asus

Asus VB171D - 17" LCD Monitor Manuel utilisateur

Dell

Dell S2230MX Instructions d'utilisation

Philips

Philips 107C64 Manuel utilisateur

Dell

Dell S2409WFP Manuel utilisateur

EverFocus

EverFocus EN-7517E Manuel utilisateur

Panasonic

Panasonic TH152UX1 - 152" PLASMA TV Manuel utilisateur

Dell

Dell Precision 7680 Mode d’emploi

LG 50PM1M - - 50" Plasma Panel Manuel utilisateur

Bosch

Bosch DDU 9 Manuel utilisateur

Acer

Acer A231HL Manuel utilisateur

Philips

Philips 86BDL4152T Manuel utilisateur

NEC

NEC AccuSync LCD5V Manuel utilisateur

Emay

Emay SleepO2 Manuel utilisateur

IBM

IBM 6360 Instructions d'installation
