ViewSonic SD-A160/SD-P20 Manuel utilisateur

SD-A160/SD-P20

Smart Display

User Guide

使用手册

使用手冊

Model No. VS16472

Thank you for choosing ViewSonic

As a world leading provider of visual solutions, ViewSonic is dedicated to

exceeding the world’s expectations for technological evolution, innovation,

and simplicity. At ViewSonic, we believe that our products have the potential

to make a positive impact in the world, and we are condent that the

ViewSonic product you have chosen will serve you well.

Once again, thank you for choosing ViewSonic !

Compliance Information

Please read before proceeding

• Use only the batteries and power adapter provided by the manufacturer. The use of

unauthorized accessories may void your warranty.

• Do not store your device in temperatures higher than 50°C (122°F).

• The operating temperature for this device is from 0°C (32°F) to 35°C (95°F).

iiiii

Declaration of RoHS2 Compliance

This product has been designed and manufactured in compliance with Directive 2011/65/

EU of the European Parliament and the Council on restriction of the use of certain

hazardous substances in electrical and electronic equipment (RoHS2 Directive) and

is deemed to comply with the maximum concentration values issued by the European

Technical Adaptation Committee (TAC) as shown below:

Substance Proposed Maximum

Concentration Actual Concentration

Lead (Pb) 0.1% < 0.1%

Mercury (Hg) 0.1% < 0.1%

Cadmium (Cd) 0.01% < 0.01%

Hexavalent Chromium (Cr6+) 0.1% < 0.1%

Polybrominated biphenyls (PBB) 0.1% < 0.1%

Polybrominated diphenyl ethers

(PBDE) 0.1% < 0.1%

Certain components of products as stated above are exempted under the Annex III of the

RoHS2 Directives as noted below:

Examples of exempted components are:

1. Mercury in cold cathode uorescent lamps and external electrode uorescent lamps

(CCFL and EEFL) for special purposes not exceeding (per lamp):

(1) Short length (≦500 mm): maximum 3.5 mg per lamp.

(2) Medium length (＞500 mm and ≦1,500 mm): maximum 5 mg per lamp.

(3) Long length (＞1,500 mm): maximum 13 mg per lamp.

2. Lead in glass of cathode ray tubes.

3. Lead in glass of uorescent tubes not exceeding 0.2% by weight.

4. Lead as an alloying element in aluminium containing up to 0.4% lead by weight.

5. Copper alloy containing up to 4% lead by weight.

6. Lead in high melting temperature type solders (i.e. lead-based alloys containing 85% by

weight or more lead).

7. Electrical and electronic components containing lead in a glass or ceramic other than

dielectric ceramic in capacitors, e.g. piezoelectric devices, or in a glass or ceramic

matrix compound.

iiiii

Important Safety Instructions

1. DO NOT place objects on top of the device, as objects may scratch the screen.

2. DO NOT expose the device to dirty or dusty environments.

3. DO NOT place the device on an uneven or unstable surface.

4. DO NOT insert any foreign objects into the device.

5. DO NOT expose the device to strong magnetic or electrical eld.

6. DO NOT expose the device to direct sunlight as it can damage the LCD Screen. Keep

it away from heat sources.

7. DO NOT use the device in the rain.

8. Please check with your Local Authority or retailer for proper disposal of electronic

products.

9. The device and the adapter may produce some heat during normal operation or

charging. To prevent discomfort or injury from heat exposure, DO NOT leave the

device on your lap.

10. POWER INPUT RATING: Refer to the rating label on the device and be sure that

the power adapter complies with the rating. Only use accessories specied by the

manufacturer.

11. DO NOT use a pen or any sharp object to tap the screen.

12. Clean the screen with a soft cloth. If needed, dampen the cloth slightly before

cleaning. Never use abrasives or cleaning solutions.

13. Always power off the device to install or remove external devices that do not support

hot-plug.

14. Disconnect the device from an electrical outlet and power off before cleaning the

device.

15. DO NOT disassemble the device. Only a certied service technician should perform

repair.

16. The device has apertures to disperse heat. DO NOT block the device ventilation, the

device may become hot and malfunction as a result.

17. Users have to use the connection to USB interfaces with USB 2.0 version or higher.

18. PLUGGABLE EQUIPMENT: the socket-outlet shall be installed near the equipment

and shall be easily accessible.

viv

Android, Google, Google Play, the Google Play logo and other marks are trademarks of

Google Inc.

This product has an AndroidTM platform based on Linux, which can be expanded by a

variety of JME-based application SW.

All products used in this device and trademarks mentioned herein are trademarks or

registered trademarks of their respective owners.

Wi-Fi and the Wi-Fi CERTIFIED logo are registered trademarks of the Wireless Fidelity

Alliance.

microSD™ is a trademark of SD Card Association.

Java, JME and all other Java-based marks are trademarks or registered trademarks of

Sun Microsystems, Inc. in the United States and other countries.

The actual included applications (apps) may differ from the illustrated screen shots.

VESA® is a registered trademark of the Video Electronics Standards Association. DPMS

and DDC are trademarks of VESA®.

ENERGY STAR® is a registered trademark of the U.S. Environmental Protection Agency

(EPA).

As an ENERGY STAR® partner, ViewSonic Corporation has determined that this product

meets the ENERGY STAR® guidelines for energy efciency.

Disclaimer: ViewSonic Corporation shall not be liable for technical or editorial errors

or omissions contained herein; nor for incidental or consequential damages resulting

from furnishing this material, or the performance or use of this product.In the interest of

continuing product improvement, ViewSonic Corporation reserves the right to change

product specications without notice. Information in this document may change without

notice.

No part of this document may be copied, reproduced, or transmitted by any means, for

any purpose without prior written permission from ViewSonic Corporation.

Intellectual Property Right Information

Right to all technologies and products that comprise this device are the property of their

respective owners:

This product has an Android platform based on Linux, which can be expanded by a variety

of Java-Script-based application SW.

Java, JME and all other Java-based marks are trademarks or registered trademarks of

Sun Microsystems, Inc. in the United States and other countries.microSD is a trademark

of SD Card Association.

viv

Product Registration

To meet your future needs, and to receive any additional product information as it

becomes available, please register your product on the Internet at: www.viewsonic.com.

For Your Records

Product Name:

Model Number:

Document Number:

Serial Number:

Purchase Date:

SD-A160/SD-P20

ViewSonic Smart Display

VS16472

SD-A160/SD-P20_UG_ENG Rev. 1A 04-26-17

_______________________________

Product disposal at end of product life

ViewSonic respects the environment and is committed to working and living green. Thank

you for being part of Smarter, Greener Computing. Please visit ViewSonic website to learn

more.

USA & Canada: http://www.viewsonic.com/company/green/recycle-program/

Europe: http://www.viewsoniceurope.com/uk/support/recycling-information/

Taiwan: http://recycle.epa.gov.tw/recycle/index2.aspx

Table of Contents

1vi

1 SD-A160/SD-P20 Smart Display Features

2 Set Up Your SD-A160/SD-P20 Smart Display

2.1 Connection ......................................................................... 3

2.2 Get Your Smart Display Ready for Use .............................. 4

2.3 Power on Your Device ........................................................ 5

2.4 Power Off Your Device ....................................................... 6

3 About Your SD-A160/SD-P20 Smart Display

3.1 Touch Screen ..................................................................... 7

3.2 Connecting to HDMI-compliant Devices via HDMI Out ...... 8

3.3 USB On-The-Go to PC....................................................... 9

3.4 Support to connect with SD-160/SD-T160

(optional monitor models) ......................... 9

4 Troubleshooting

4.1 Touch Screen Problems ................................................... 10

4.2 Other Problems ................................................................ 10

5 Appendix

Specication ..............................................................................11

Table of Contents

1vi

SD-A160/SD-P20 is a Smart Display with 15.6-inch quad-core display running

on Android 5.1 (Lollipop) Comes with 1366x768p HD resolution, allow you to

work with HDMI-out, full-sized USB connectivity as well.

1 SD-A160/SD-P20 Smart Display Features

This section introduces you to the features of your Smart Display.

NOTE

• The features or applications described in this User’s manual may vary depended on the

device model purchased.

Front View

No. Components Descriptions

Touch screen

- Touch the screen to control the on-screen

congurations including menu items,applications,

buttons,keyboard and so on.

LED indicator

- LED in blue when power on.

- LED turns into amber when smart display be

locked.

Power button Press to power on / lock the smart display.

- When the display is on, press this button and

hold for about 3 seconds to shut down the smart

display (under Android mode).

Table of Contents

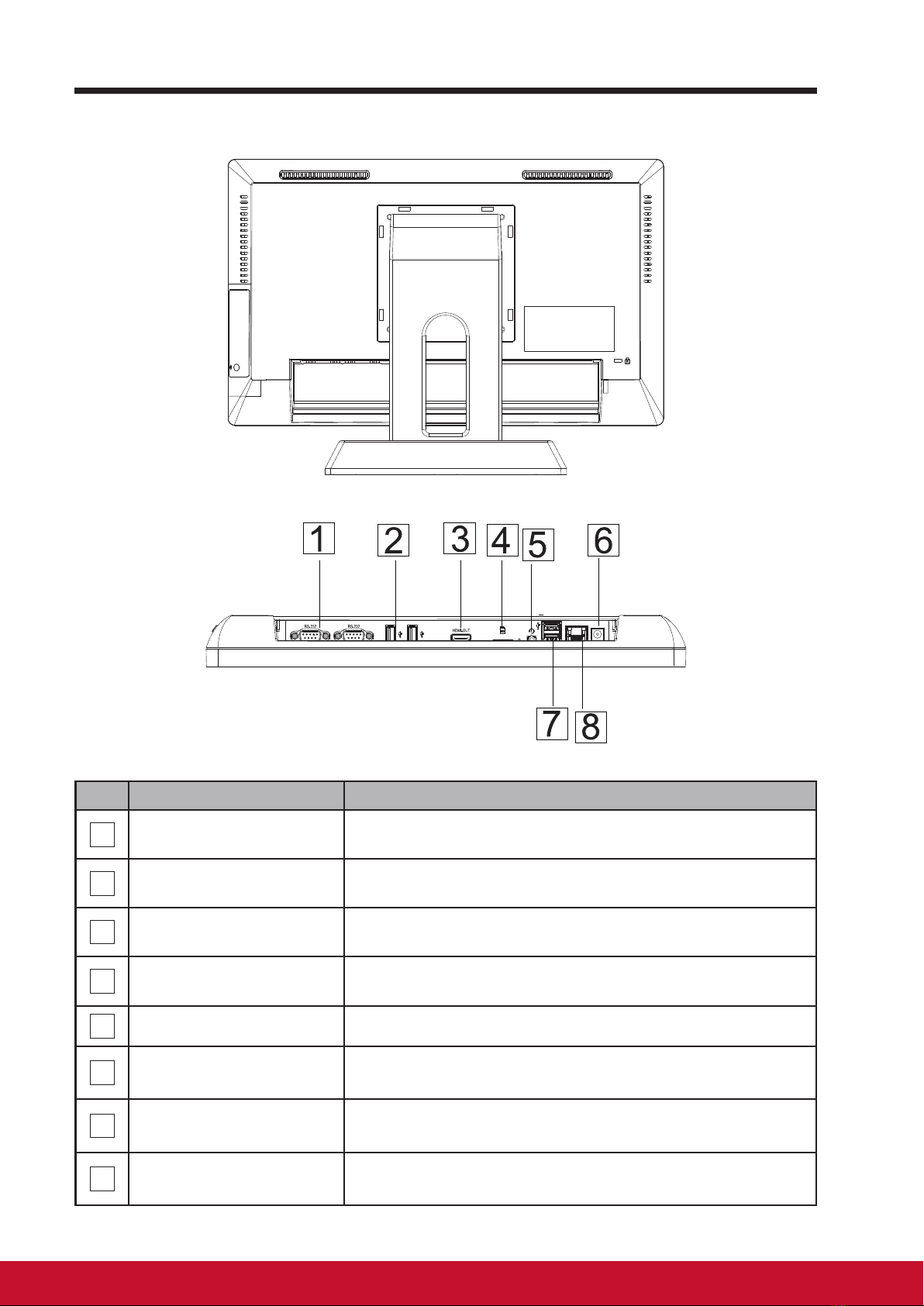

Back View

No. Components Descriptions

1RS-232 Jack x2 Connect to serial display device, printer or other

PC.

2USB type-A x2 (2.0) Used for keyboard, mouse, ash disk (supports

FAT32 format only) or printer connections.

3HDMI OUT Connect to digital high quality device for video and

audio congurations.

4SD Card Slot Input SD card to extend storage capacity.

(Up to 32 GB)

5Headset Jack Connect to earphone or headset.

6DC in Port Connect to power adaptor.

7USB type-A x2 (2.0) Used for keyboard, mouse, ash disk (supports

FAT32 format only) or printer connections.

8LAN port (RJ-45) Connect to a RJ45 cable for network connection.
