ViewSonic G220f/G220fB/G220fSB

Contents

TCO Information ............................................................................................. i

Important Safety Instructions .......................................................................... 1

Product Registration ........................................................................................ 2

Getting Started

Package Contents ........................................................................................... 3

Precautions ..................................................................................................... 3

Quick Installation ............................................................................................. 4

Using the Monitor

Setting the Timing Mode ................................................................................. 5

OSD Lock Settings .......................................................................................... 5

Adjusting the Screen Image ............................................................................ 6

Main Menu Controls ........................................................................................ 8

Other Information

Speciﬁcations .................................................................................................. 11

Troubleshooting .............................................................................................. 12

Customer Support ........................................................................................... 13

Cleaning the Monitor ....................................................................................... 14

Limited Warranty ............................................................................................. 15

ViewSonic G220f/G220fB/G220fSB

TCO Information

Congratulations!

The display you have just purchased carries the TCO’03 Displays

label. This means that your display is designed, manufactured and

tested according to some of the strictest quality and environmental

requirements in the world. This makes for a high performance product,

designed with the user in focus that also minimizes the impact on our

natural environment.

Some of the features of the TCO’03 Display requirements:

Ergonomics

• Good visual ergonomics and image quality in order to improve the working environment

for the user and to reduce sight and strain problems. Important parameters are luminance,

contrast, resolution, reﬂectance, color rendition and image stability.

Energy

• Energy-saving mode after a certain time – beneficial both for the user and the

environment

• Electrical safety

Emissions

• Electromagnetic ﬁelds

• Noise emissions

Ecology

• The product must be prepared for recycling and the manufacturer must have a certiﬁed

environmental management system such as EMAS or ISO 14 000

• Restrictions on

o chlorinated and brominates ﬂame retardants and polymers

o heavy metals such as cadmium, mercury and lead.

The requirements included in this label have been developed by TCO Development in

cooperation with scientists, experts, users as well as manufacturers all over the world. Since

the end of the 1980s TCO has been involved in inﬂuencing the development of IT equipment

in a more user-friendly direction. Our labeling system started with displays in 1992 and is now

requested by users and IT-manufacturers all over the world.

For more information, please visit

www.tcodevelopment.com

* This declaration is for TCO’03 compliance model.

ViewSonic G220f/G220fB/G220fSB 1

Important Safety Instructions

1. Read these instructions completely before using the equipment.

2. Keep these instructions in a safe place.

3. Heed all warnings.

4. Follow all instructions.

5. Do not use this equipment near water.

Warning: To reduce the risk of ﬁre or electric shock, do not expose this apparatus to rain

or moisture.

6. Clean with a soft, dry cloth. If further cleaning is required, see “Cleaning the Display” in

this guide for further instructions.

7. Do not block any ventilation openings. Install the equipment in accordance with the

manufacturer’s instructions.

8. Do not install near any heat sources such as radiators, heat registers, stoves, or other

devices (including ampliﬁers) that produce heat.

9. Do not attempt to circumvent the safety provisions of the polarized or grounding-type

plug. A polarized plug has two blades with one wider than the other. A grounding type

plug has two blades and a third grounding prong. The wide blade and the third prong are

provided for your safety. If the plug does not ﬁt into your outlet, consult an electrician for

replacement of the outlet.

10. Protect the power cord from being tread upon or pinched, particularly at the plug, and the

point where if emerges from the equipment. Be sure that the power outlet is located near

the equipment so that it is easily accessible.

11. Only use attachments/accessories speciﬁed by the manufacturer.

12. Use only with a cart, stand, tripod, bracket, or table specified by the

manufacturer, or sold with the apparatus. When a cart is used, use caution when

moving the cart/apparatus combination to avoid injury from tip-over.

13. Unplug this equipment when it will be unused for long periods of time.

14. Refer all servicing to qualiﬁed service personnel. Service is required when the unit has

been damaged in any way, such as: if the power-supply cord or plug is damaged, if liquid

is spilled onto or objects fall into the unit, if the unit is exposed to rain or moisture, or if

the unit does not operate normally or has been dropped.

ViewSonic G220f/G220fB/G220fSB 2

Macintosh and Power Macintosh are registered trademarks of Apple Computer, Inc.

Microsoft, Windows, Windows NT, and the Windows logo are registered trademarks of

Microsoft Corporation in the United States and other countries.

ViewSonic®, the three birds logo, OnView, ViewMatch, and ViewMeter are registered

trademarks of ViewSonic Corporation.

VESA is a registered trademark of the Video Electronics Standards Association. DPMS and

DDC are trademarks of VESA.

Disclaimer:ViewSonic Corporation shall not be liable for technical or editorial errors or

omissions contained herein; nor for incidental or consequential damages resulting from

furnishing this material, or the performance or use of this product.

In the interest of continuing product improvement, ViewSonic Corporation reserves the right

to change product specifications without notice. Information in this document may change

without notice.

No part of this document may be copied, reproduced, or transmitted by any means, for any

purpose without prior written permission from ViewSonic Corporation.

Product Registration

To meet your future needs, and to receive any additional product information as it becomes

available, please register your product on the Internet at: www.viewsonic.com. The

ViewSonic® Wizard CD-ROM also provides an opportunity for you to print the registration

form, which you may mail or fax to ViewSonic®.

For Your Records

Product Name:

Model Number:

Document Number:

Serial Number:

Purchase Date:

G220f/G220fB/G220fSB

ViewSonic 21” CRT Monitor

VS11235

G220f/G220fB/G220fSB-2_UG_ENG Rev. 1B 12-19-05

_____________________________________________

Product disposal at end of product life

ViewSonic is concerned about the preservation of our environment. Please dispose of this

product properly at the end of its useful life. For TCO’03 recycling information, please refer

to our website:

1. USA: www.viewsonic.com/pdf/recyclePlus.pdf

2. Europe: www.viewsoniceurope.com

3. Taiwan: recycle.epa.gov.tw.

ViewSonic G220f/G220fB/G220fSB 3

Getting Started

Congratulations on your purchase of a ViewSonic® color monitor.

Important! Save the original box and all packing material for future shipping needs.

Note: The word “Windows” in this user guide refers to the following Microsoft operating

systems: Windows 95, Windows NT, Windows 98, Windows 2000, Windows ME

(Millennium), and Windows XP.

Package Contents

Your package includes:

• Color monitor

• DB-15 video cable

• Power cord

• ViewSonic® CD-ROM Wizard

• Quick Start Guide

Note : The CD includes the User Guide PDF ﬁles and INF/ICM display optimization ﬁles.

The INF ﬁle ensures compatibility with Windows operating systems, and the ICM ﬁle (Image

Color Matching) ensures accurate on-screen colors. ViewSonic® recommends that you install

both ﬁles.

Precautions

• For best viewing conditions sit at least

20” from the monitor.

• Avoid touching the screen with your

fingers. Oils from the skin are difficult

to remove.

• Never remove the rear cover. The

monitor contains high voltage parts. You

may suffer serious injury if you touch

these parts.

• Avoid exposing the monitor to direct

sunlight or another heat source,

including an open flame. The monitor

should be facing away from direct

sunlight to reduce glare.

• Always handle your monitor with care

when moving it.

• Place your monitor in a well ventilated

area. Do not place anything on the

monitor that prevents adequate

dissipation of heat.

• Ensure the area around the monitor is

clean and free of moisture.

• Keep the monitor away from magnets,

motors, transformers, speakers, and

televisions.

• Do not place heavy objects on the

monitor, video cable, or power cord.

• If smoke, on abnormal noise, or a

strange odor is present, immediately

switch the monitor off and call your

dealer or ViewSonic®. It is dangerous to

continue using the monitor.

ViewSonic G220f/G220fB/G220fSB 4

Quick Installation

1. Connect power cord

Connect the power cord to a properly

grounded AC outlet.

2. Connect video cable

• Make sure both the monitor and

computer are turned OFF.

• Con nect t he v ideo c able t o t he

computer.

Macintosh® users: Models older than G3

require a Macintosh adapter. Attach the

adapter to the computer and plug the

video cable into the adapter.

To order a ViewSonic® Macintosh

adapter, contact ViewSonic.

See “Customer Support” on page 13.

3. Turn ON monitor and computer

Turn ON the monitor, then turn ON

the computer. This sequence (monitor

before computer) is very important.

Note: At this point Windows users may

receive a message asking them to install

the INF ﬁ le.

4. Install Display Optimization files

(INF and ICM ﬁ les)

Insert the ViewSonic® Wizard CD-

ROM into your computer’s CD-ROM

drive.

Note: If your computer does not have a

CD-ROM drive, see “Customer Support”

on page 13.

Wait for the CD-ROM to auto-start.

Note: If the CD-ROM does not auto-

start:

double-click on the CD-ROM icon in

Windows Explorer, then double-click

on viewsonic.exe.

Follow the on-screen instructions.

5. Windows users: Set the Timing

Mode (resolution and refresh rate)

Example: 1600 x 1200 @ 85Hz.

For instructions on changing the

resolution and refresh rate, see the

graphic card’s user guide.

Installation is complete. Enjoy your

new ViewSonic® color monitor.

To be best prepared for any future

customer service needs: print this user

guide and write the serial number in

“For Your Records” on page 2.(See

back of monitor.)

To register your product go online to

www.viewsonic.com.

The ViewSonic® Wizard CD-ROM also

provides an opportunity for you to print

the registration form which you may

mail or fax to ViewSonic®.

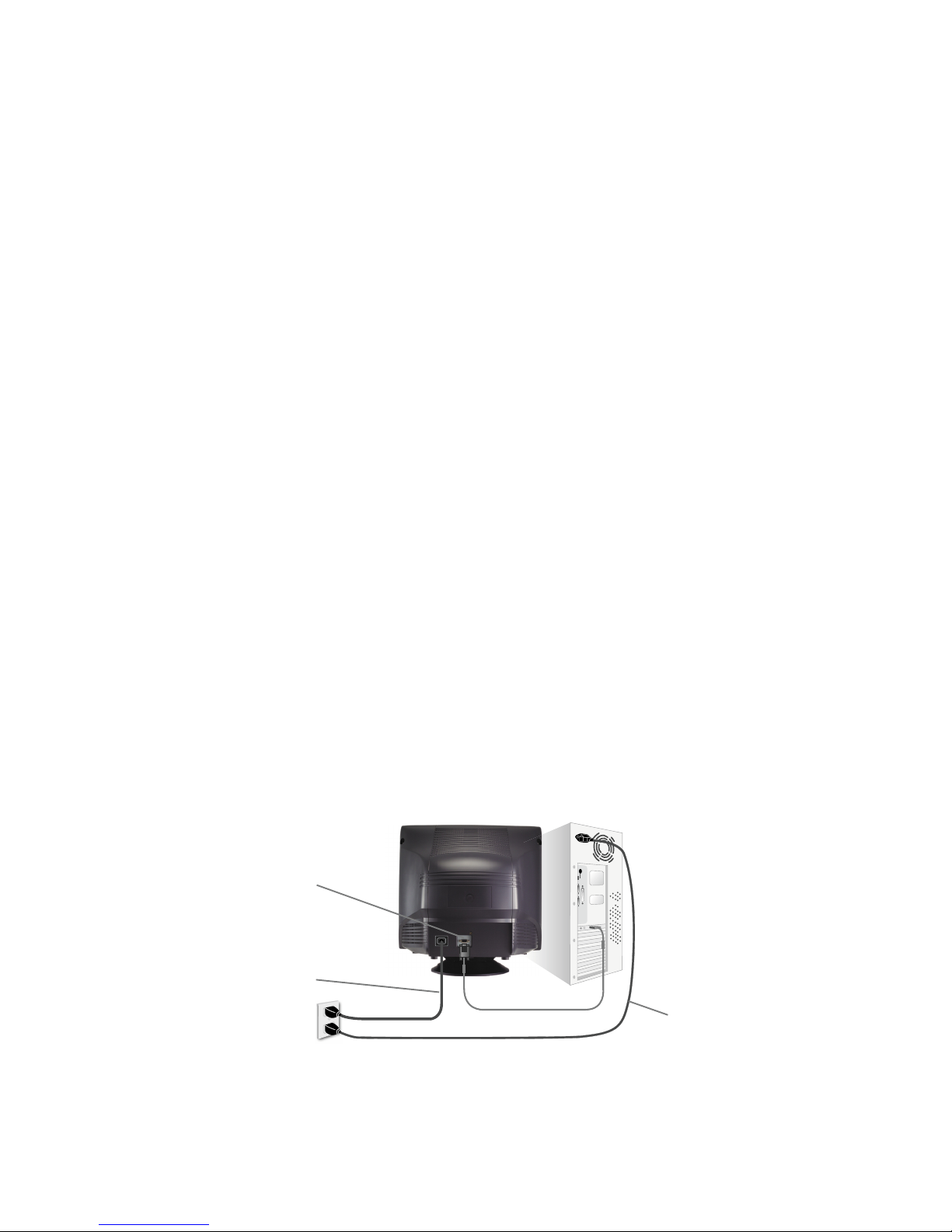

Power Cord

from computer to

AC outlet

Port for DB-15

video cable

Power Cord

from monitor to

AC outlet

ViewSonic G220f/G220fB/G220fSB 5

Using the Monitor

Setting the Timing Mode

Setting the timing mode is important for maximizing the quality of the screen image and

minimizing eye strain. The timing mode consists of the resolution (example 1024 x 768) and

refresh rate (or vertical frequency; example 85 Hz). After setting the timing mode, use the

OnView® controls to adjust the screen image.

For the best picture quality set your monitor timing mode to:

VESA 1600 x 1200 @ 85 Hz.

To set the Timing Mode:

1. Set the resolution: Right-click on the Windows desktop > Properties > Settings > set the

resolution.

2. Set the refresh rate: See your graphic card’s user guide for instructions.

Note: The refresh rate should already be set if you have done the CD installation (or refer to

your graphics card documentation).

OSD Lock Settings

You have the option of using the On Screen Display (OSD) locking feature, OSD LOCK, to

prevent unwanted changes to the current image settings.

• OSD Lock: Press and hold the [1] and [▼] buttons on the face of the monitor for 10

seconds. The message “OSD LOCK” will then display brieﬂy, indicating that the OSD

image settings are now locked.

• OSD Unlock: Press and hold the [1] and [▼] buttons again for 10 seconds. The message

“OSD UNLOCK” will then display brieﬂy, indicating that the OSD image settings are

now unlocked.

ViewSonic G220f/G220fB/G220fSB 6

Adjusting the Screen Image

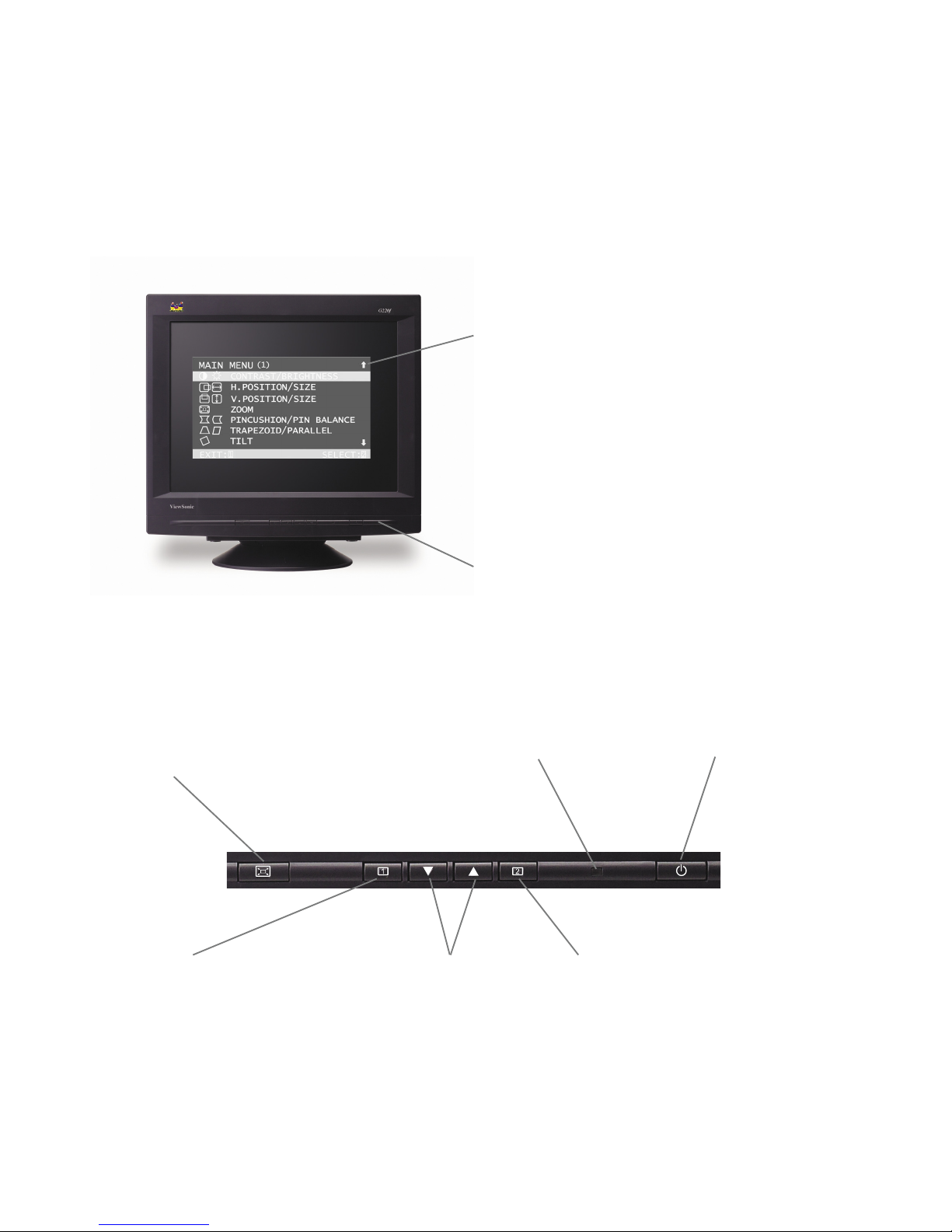

Beginning with the Main Menu shown below, use the buttons on the front control panel

to adjust the OnView® controls which display on the screen. The OnView controls are

explainedin the four steps at the top of the next page and are further explained on pages 8-10.

IMPORTANT: The monitor should be warmed up for 30 minutes perior to making any

adjustments.

Main Menu with OnView controls

Front Control Panel

Displays control screen for

highlighted control (or pair of

controls). Also, toggles between

pairs of controls on some control

screens.

Scrolls through menu

options and adjusts the

displayed control.

Power Light

Displays Main Menu;

also saves changes/exits

Main Menu.

Zoom expands and contracts the

entire screen image

Power On/Off

ViewSonic G220f/G220fB/G220fSB 7

Do the following to adjust the display settings:

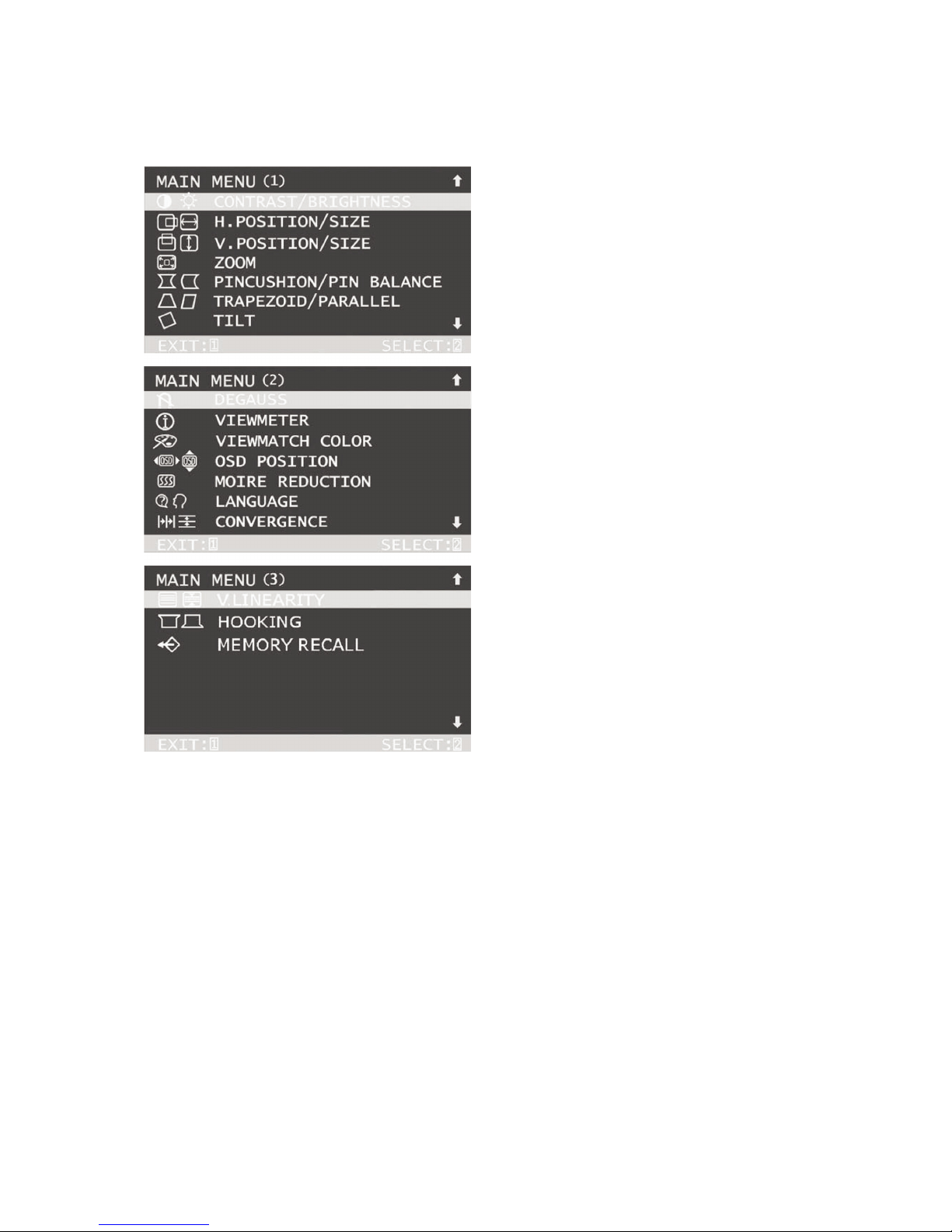

1. To display the Main Menu (parts 1-3 shown below), press button [1].

2. To select a control you want to adjust, press the arrow buttons on the front control panel

of your monitor (▲▼) and scroll through the choices.

When the control you want to adjust is highlighted, press button [2].

Note: Some controls on the Main Menu are listed in pairs, such as Contrast/Brightness.

Press button [2] to toggle between control pairs after displaying a control screen.

3. To adjust the selected control, press the arrow buttons (▲▼).

4. To save the control setting and Exit the menu, press button [1] twice.

Autres manuels pour G220F - 21" CRT Display

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels ViewSonic Moniteur

ViewSonic

ViewSonic VA521 Manuel utilisateur

ViewSonic

ViewSonic VTA900 Manuel utilisateur

ViewSonic

ViewSonic ID2456 Manuel utilisateur

ViewSonic

ViewSonic VS17631 Manuel utilisateur

ViewSonic

ViewSonic Optiquest Q55 Manuel utilisateur

ViewSonic

ViewSonic PD1010 Manuel utilisateur

ViewSonic

ViewSonic VA2016W - 20" LCD Monitor Manuel utilisateur

ViewSonic

ViewSonic CDE12 Manuel utilisateur

ViewSonic

ViewSonic LD135-151 Manuel utilisateur

ViewSonic

ViewSonic VG1930wm-3 Manuel utilisateur

ViewSonic

ViewSonic ID1655 Manuel utilisateur

ViewSonic

ViewSonic VP2130B - 21.3" LCD Monitor Manuel utilisateur

ViewSonic

ViewSonic ViewPanel VG191 Manuel utilisateur

ViewSonic

ViewSonic CD4620 - 46" LCD Flat Panel Display Manuel utilisateur

ViewSonic

ViewSonic ViewPanel VG171 Manuel utilisateur

ViewSonic

ViewSonic VP2365WB - 23" LCD Monitor Manuel utilisateur

ViewSonic

ViewSonic VS13533 Manuel utilisateur

ViewSonic

ViewSonic VX1962wm - 19" LCD Monitor Guide de démarrage rapide

ViewSonic

ViewSonic VPW425 - 42" Plasma TV Manuel utilisateur

ViewSonic

ViewSonic VA2746m-LED Manuel utilisateur

ViewSonic

ViewSonic VX2000-1 Manuel utilisateur

ViewSonic

ViewSonic VA905 Manuel utilisateur

ViewSonic

ViewSonic IFP6532 Manuel utilisateur

ViewSonic

ViewSonic VX2835WM - 28" LCD Monitor Manuel utilisateur

Manuels Moniteur populaires d'autres marques

Linear Acoustic

Linear Acoustic LQ-1000 Manuel utilisateur

AOC

AOC I2579V Manuel utilisateur

Gateway

Gateway FPD1520 Manuel utilisateur

Furuno

Furuno Mu 120c Manuel utilisateur

Asus

Asus VB171D - 17" LCD Monitor Manuel utilisateur

Dell

Dell S2230MX Instructions d'utilisation

Philips

Philips 107C64 Manuel utilisateur

Dell

Dell S2409WFP Manuel utilisateur

EverFocus

EverFocus EN-7517E Manuel utilisateur

Panasonic

Panasonic TH152UX1 - 152" PLASMA TV Manuel utilisateur

Dell

Dell Precision 7680 Mode d’emploi

LG 50PM1M - - 50" Plasma Panel Manuel utilisateur

Bosch

Bosch DDU 9 Manuel utilisateur

Acer

Acer A231HL Manuel utilisateur

Philips

Philips 86BDL4152T Manuel utilisateur

NEC

NEC AccuSync LCD5V Manuel utilisateur

Emay

Emay SleepO2 Manuel utilisateur

IBM

IBM 6360 Instructions d'installation
