Congratulations on your purchase of a ViewSonic A110 color monitor.

Important! Save the original box and all packing material for future shipping

needs.

NOTE: This product was designed for operation in the magnetic fields of the

hemisphere where it was purchased.

Package Contents

Your A110

4 ViewSonic A110

Quick Installation

1 Connect video cable

Make sure both the monitor and computer

are powered OFF.

Connect the video cable to the computer,

then to the monitor.

Macintosh users: Models older than G3

require a Macintosh adapter. Attach the

adapter to the computer and plug the video

cable into the adapter.

To order a ViewSonic®Macintosh adapter,

contact ViewSonic. See Customer Support

in this user guide.

2 Connect power cord

Connect the power cord from the monitor to

a properly grounded AC outlet.

3 Power-ON monitor and computer

Power-ON the monitor, then power-ON the

computer. This sequence (monitor before

computer) is very important.

NOTE: At this point Windows 98 users may

receive a message asking them to install the

A110 INF file.

4 Install INF and ICM files

For CD-ROM: Insert your auto-start CD-

ROM, select “Monitor Drivers,”and follow

the on-screen instructions.

For diskette: Insert your diskette and run

install.exe. Follow the on-screen

instructions.

5 Windows users: Set the Timing

Mode (resolution and refresh rate)

Example: 1024 X 768 @ 75Hz.

For instructions on changing the resolution

and refresh rate, see the user guide for your

computer's graphics card.

Installation is complete. Enjoy your new

A110 monitor!

To be best prepared for any future customer

service needs:

Write the serial number (see back of the

monitor) in “For your Records” on page 1 of

this guide.

Internet at:

www.viewsonic.com/registration/

AC Outlet Video Cable

Power Cord

ViewSonic A110 5

Using the Monitor

Setting the Timing Mode

Setting the timing mode is important for maximizing the quality of the

screen image and minimizing eye strain. The timing mode consists of the

resolution (example 1280 x 1024) and refresh rate (or vertical frequency;

example 75 Hz). After setting the timing mode, use the OnView®controls

to adjust the screen image.

The recommended timing modes for this monitor are:

VESA 1024 x 768 @ 75 Hz and VESA 1600 x 1200 @ 75 Hz.

To set the Timing Mode:

1Set the resolution: Right-click on the Windows®desktop > Properties >

Settings > Desktop or Screen Area > set the resolution.

2Set the refresh rate: See your graphic card's user guide for instructions.

NOTE: To minimize the adjustments required for an optimal screen image,

select a timing mode from the Preset Timing Modes table below.

WARNING: Do NOT set the graphics card in your computer to exceed the

maximum refresh rate for each resolution (see below). Doing so may result in

permanent damage to your monitor.

(NI = Non Interlaced)

Preset Timing Modes

VGA 640 x 400 @ 70 Hz

VGA 640 x 480 @ 60 Hz

VESA®640 x 480 @ 75 Hz

VESA 800 x 600 @ 75 Hz

VESA 800 x 600 @ 85 Hz

VESA 1024 x 768 @ 60 Hz

VESA 1024 x 768 @ 75 Hz

VESA 1024 x 768 @ 85 Hz

VESA 1280 x 1024 @ 75 Hz

VESA 1280 x 1024 @ 85 Hz

VESA 1600 x 1200 @ 75 Hz

Macintosh 832 x 624 @ 75 Hz

Macintosh 1152 870 @ 75 Hz

Timing Modes with Maximum Refresh Rates

1600 x 1200 NI @ 77 Hz

1280 x 1024 NI @ 90 Hz

1152 x 870 NI @ 105 Hz

1024 x 768 NI @ 118 Hz

800 600 NI @ 149 Hz

640 x 480 NI @ 180 Hz

6 ViewSonic A110

Adjusting the Screen Image

Beginning with the Main Menu shown below, use the buttons on the front

control panel to adjust the OnView®controls which display on the screen. The

OnView controls are explained in the four steps at the top of the next page and

are further explained on pages 8-11.

* The monitor automatically degausses each time you turn it on, removing the buildup of magnetic

fields that can affect color purity and convergence. To prevent possible damage, if you turn the

monitor off, then immediately on again, wait 20 minutes before doing this again. Do not turn the

monitor on and off repeatedly. To manually degauss the monitor, see the instructions on page 9.

Main Menu with OnView controls

Status line at the bottom of the menu

shows what to do next: Button [1] EXITs

this menu, or Button [2] SELECTs the

highlighted control (or pair of controls).

Front Control Panel

Power On/Off

Power Light

Displays Main Menu; also saves

changes/exits Main Menu.

Scroll Up/Down

menu options

Displays control screen for

highlighted control (or pair

of controls). Also, toggles

between pair of controls on

some control screens.

ViewSonic A110 7

To adjust the screen image:

1To display the Main Menu (parts 1 and 2 shown below), press button [1].

2To select a control you want to adjust, press the arrow buttons on the front

control panel of your monitor (

) and scroll through the choices.

When the control you want to adjust is highlighted, press button [2].

NOTE: Some controls on the Main Menu are listed in pairs, such as

Contrast/Brightness. Press button [2] to toggle between control pairs after

displaying a control screen.

3To adjust the selected control, press the arrow buttons (

4To save the control setting and Exit the menu, press button [1] twice.

8 ViewSonic A110

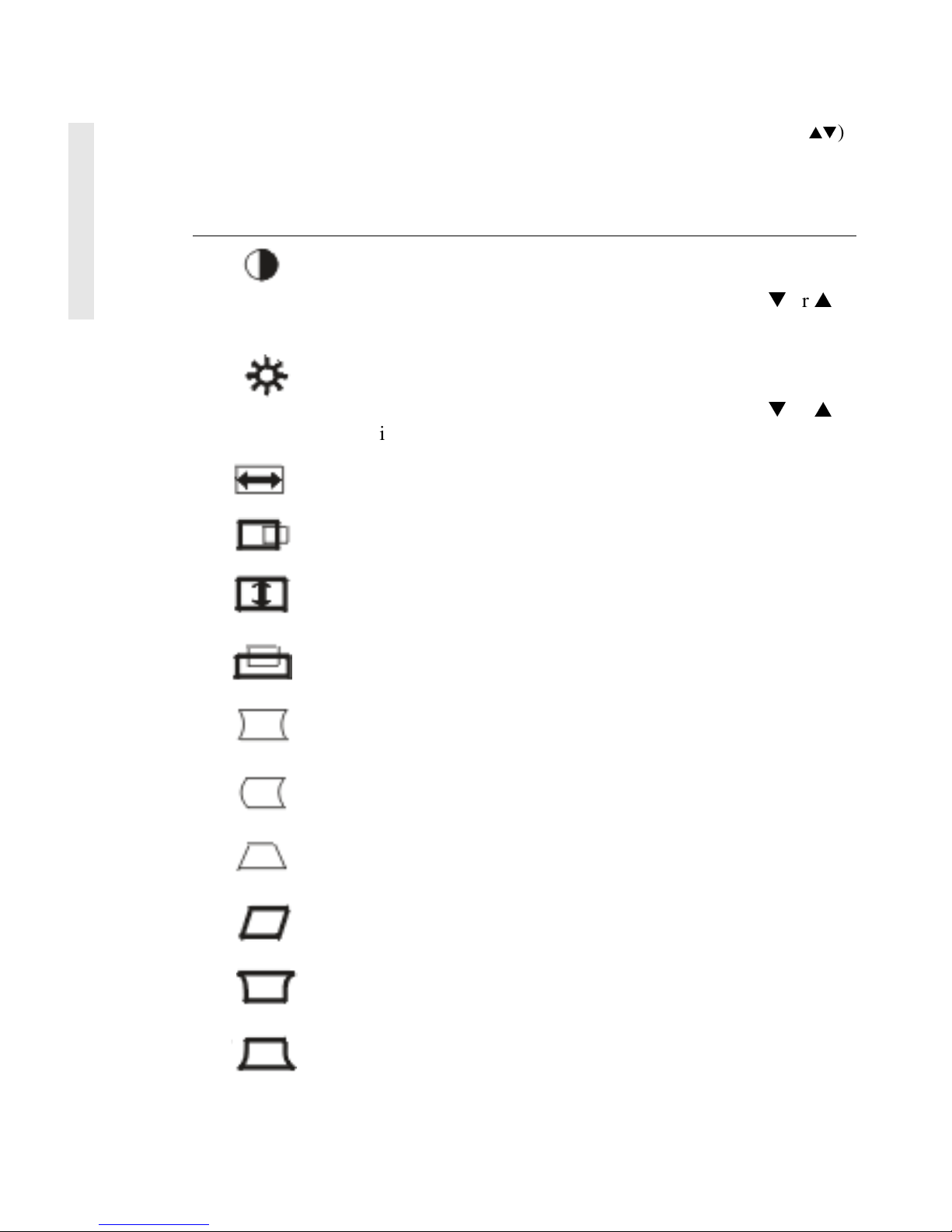

Main Menu Controls

The menu items shown below can be adjusted by using the arrow buttons (

)

on the front of your monitor.

Control Explanation

Contrast adjusts the difference between the image

background (black level) and the foreground (white level).

Shortcut: Before displaying the Main Menu, press

to display the Contrast/Brightness control screen.

Brightness adjusts the background black level of the screen

image.

Shortcut: Before displaying the Main Menu, press

to display the Contrast/Brightness control screen.

Horizontal Size adjusts the width of the screen image.

Horizontal Position moves the screen image left or right.

Vertical Size adjusts the height of the screen image.

Vertical Position moves the screen image up or down.

Pincushion straightens curves along the vertical edges of

the screen image that bow inward or outward.

Pin Balance straightens curves along the vertical edges of

the screen image that bow in the same direction.

Trapezoid makes the vertical edges of the screen image

parallel.

Parallel slants the vertical edges of the screen image.

Top Hooking straightens the top corners of the screen

image.

Bottom Hooking straightens the bottom corners of the

screen image.

ViewSonic A110 9

V. Linear (Vertical Linearity Center) adjusts the vertical

distortion at the center of the screen image.

NOTE: Vertical Linearity Center is an advanced control and

should be used for setup and calibration only.

V. Linear Sym (Vertical Linearity Symmetry) minimizes the

distortion (squeezing or stretching) images between the top

and bottom of the screen image.

NOTE: Vertical Linearity Symmetry is an advanced control

and should be used for setup and calibration only.

Hourglass straightens the slight curves along the top or

bottom of the vertical edges of the screen image.

NOTE: Use Hourglass and Cupid Bow only if Pincushion

and Pin-Balance do not completely straighten the vertical

edges of the screen image.

Cupid Bow straightens the slight curves along the vertical

edges of the screen image.

NOTE: Use Hourglass and Cupid Bow only if Pincushion

and Pin-Balance do not completely straighten the vertical

edges of the screen image.

H Focus (Horizontal Focus) adjusts the sharpness of the

screen image in the horizontal direction.

V Focus (Vertical Focus) adjusts the sharpness of the screen

image in the vertical direction.

Tilt rotates the entire screen image.

Degauss removes the build-up of magnetic fields that can

cause irregular colors to appear around the edges of screen

images. Your monitor will degauss automatically each time

you power it on.

To degauss your monitor manually, select Degauss on the

on-screen menu and press button [2].

Important: Do not degauss repeatedly. Doing so can be

harmful to the monitor. Wait at least 20 minutes before

using this control again.

Control Explanation (Continued)

Autres manuels pour A110

Table des matières

Autres manuels ViewSonic Moniteur

ViewSonic

ViewSonic VA926 - 19" LCD Monitor Manuel utilisateur

ViewSonic

ViewSonic ViewPanel VG191 Manuel utilisateur

ViewSonic

ViewSonic N4200W - NextVision - 42" LCD Flat Panel... Manuel utilisateur

ViewSonic

ViewSonic VS12400 Manuel utilisateur

ViewSonic

ViewSonic VS18811 Manuel utilisateur

ViewSonic

ViewSonic VX2240W - 22" LCD Monitor Manuel utilisateur

ViewSonic

ViewSonic VX2858Sml Manuel utilisateur

ViewSonic

ViewSonic VA1928wm Instructions d'installation et d'entretien

ViewSonic

ViewSonic VA2212m-LED Manuel utilisateur

ViewSonic

ViewSonic VG1932wm-LED Manuel utilisateur

ViewSonic

ViewSonic VA2223-H Manuel utilisateur

ViewSonic

ViewSonic VS18471 Manuel utilisateur

ViewSonic

ViewSonic VX2768-2KPC-mhd Manuel utilisateur

ViewSonic

ViewSonic VA1928wm Manuel utilisateur

ViewSonic

ViewSonic VS11234 Manuel utilisateur

ViewSonic

ViewSonic VA1903a Manuel utilisateur

ViewSonic

ViewSonic VS11661 Manuel utilisateur

ViewSonic

ViewSonic VX2453mh Manuel utilisateur

ViewSonic

ViewSonic ViewPanel VG170m Manuel utilisateur

ViewSonic

ViewSonic SD-A160/SD-P20 Manuel utilisateur

ViewSonic

ViewSonic VE510B - 15" LCD Monitor Manuel utilisateur

ViewSonic

ViewSonic Q91B - Optiquest - 19" LCD Monitor Manuel utilisateur

ViewSonic

ViewSonic P95f+ Manuel utilisateur

ViewSonic

ViewSonic VX2776-2K-PRO-2 Manuel utilisateur

Manuels Moniteur populaires d'autres marques

Linear Acoustic

Linear Acoustic LQ-1000 Manuel utilisateur

AOC

AOC I2579V Manuel utilisateur

Gateway

Gateway FPD1520 Manuel utilisateur

Furuno

Furuno Mu 120c Manuel utilisateur

Asus

Asus VB171D - 17" LCD Monitor Manuel utilisateur

Dell

Dell S2230MX Instructions d'utilisation

Philips

Philips 107C64 Manuel utilisateur

Dell

Dell S2409WFP Manuel utilisateur

EverFocus

EverFocus EN-7517E Manuel utilisateur

Panasonic

Panasonic TH152UX1 - 152" PLASMA TV Manuel utilisateur

Dell

Dell Precision 7680 Mode d’emploi

LG 50PM1M - - 50" Plasma Panel Manuel utilisateur

Bosch

Bosch DDU 9 Manuel utilisateur

Acer

Acer A231HL Manuel utilisateur

Philips

Philips 86BDL4152T Manuel utilisateur

NEC

NEC AccuSync LCD5V Manuel utilisateur

Emay

Emay SleepO2 Manuel utilisateur

IBM

IBM 6360 Instructions d'installation
