ViewSonic VFD873-50E Manuel utilisateur
- User Guide
- Guide de l’utilisateur
- Guía del usuario
- Käyttöopas
- Bedienungsanleitung
- Οδηγός χρηστών
- Guia do usuário
- Pyководство
пользователя
- Kullanιcι kιlavuzu
VFD873
Digital Photo Frame
ViewSonic®
Model No. : VS13787
IMPORTANT: Please read this User Guide to obtain important information on
installing and using your product in a safe manner, as well as registering your
product for future service. Warranty information contained in this User Guide will
describe your limited coverage from ViewSonic Corporation, which is also found
on our web site at http://www.viewsonic.com in English, or in specic languages
using the Regional selection box in the upper right corner of our website.
“Antes de operar su equipo lea cuidadosamente las instrucciones en
este manual”
ViewSonic VFD873i
Compliance Information
CE Conformity for European Countries
The device complies with the EMC Directive 2004/108/EC and Low Voltage
Directive 2006/95/EC.
Following information is only for EU-member states:
The mark is in compliance with the Waste Electrical and Electronic
Equipment Directive 2002/96/EC (WEEE).
The mark indicates the requirement NOT to dispose the equipment including
any spent or discarded batteries or accumulators as unsorted municipal
waste, but use the return and collection systems available.
If the batteries, accumulators and button cells included with this equipment,
display the chemical symbol Hg, Cd, or Pb, then it means that the battery has
a heavy metal content of more than 0.0005% Mercury or more than, 0.002%
Cadmium, or more than 0.004% Lead.
ViewSonic VFD873ii
Declaration of RoHS Compliance
This product has been designed and manufactured in compliance with Directive 2002/95/EC of the
European Parliament and the Council on restriction of the use of certain hazardous substances in
electrical and electronic equipment (RoHS Directive) and is deemed to comply with the maximum
concentration values issued by the European Technical Adaptation Committee (TAC) as shown
below:
Substance Proposed Maximum
Concentration Actual Concentration
Lead (Pb) 0.1% < 0.1%
Mercury (Hg) 0.1% < 0.1%
Cadmium (Cd) 0.01% < 0.01%
Hexavalent Chromium (Cr6+) 0.1% < 0.1%
Polybrominated biphenyls (PBB) 0.1% < 0.1%
Polybrominated diphenyl ethers (PBDE) 0.1% < 0.1%
Certain components of products as stated above are exempted under the Annex of the RoHS
Directives as noted below:
Examples of exempted components are:
1. Mercury in compact uorescent lamps not exceeding 5 mg per lamp and in other lamps not
specically mentioned in the Annex of RoHS Directive.
2. Lead in glass of cathode ray tubes, electronic components, uorescent tubes, and electronic
ceramic parts (e.g. piezoelectronic devices).
3. Lead in high temperature type solders (i.e. lead-based alloys containing 85% by weight or more
lead).
4. Lead as an allotting element in steel containing up to 0.35% lead by weight, aluminium containing
up to 0.4% lead by weight and as a cooper alloy containing up to 4% lead by weight.
ViewSonic VFD873iii
Copyright Information
Copyright © ViewSonic®Corporation, 2010. All rights reserved.
ViewSonic, the three birds logo, OnView, ViewMatch, and ViewMeter are registered trademarks
of ViewSonic Corporation.
Disclaimer:ViewSonic Corporation shall not be liable for technical or editorial errors or
omissions contained herein; nor for incidental or consequential damages resulting from
furnishing this material, or the performance or use of this product.
In the interest of continuing product improvement, ViewSonic Corporation reserves the right to
change product specications without notice. Information in this document may change without
notice.
No part of this document may be copied, reproduced, or transmitted by any means, for any
purpose without prior written permission from ViewSonic Corporation.
For Your Records
Product Name:
Model Number:
Document Number:
Serial Number:
Purchase Date:
VFD873
ViewSonic Digital Photo Frame
VS13787
VFD873_UG_ENG Rev. 1a 11-22-10
__________________________________
__________________________________
Product disposal at end of product life
ViewSonic respects the environment and is committed to working and living green. Thank you
for being part of Smarter, Greener Computing. Please visit ViewSonic website to learn more.
USA & Canada: http://www.viewsonic.com/company/green/recycle-program/
Europe: http://www.viewsoniceurope.com/uk/support/recycling-information/
Taiwan: http://recycle.epa.gov.tw/recycle/index2.aspx
ViewSonic VFD873iv
Important Safety Instructions
Always follow the basic safety precautions below when using your Digital Photo Frame. This will reduce
the risk of re, electric shock, and injury.
Warning: To reduce the risk of re or shock hazard, do not expose this product to rain or moisture.
Warning: To prevent the risk, do not remove the cover, there are no spare parts inside, refer all product
services to professional personnel.
• Digital Photo frame is for indoor use only.
• Unplug Digital Photo frame before performing care and maintenance.
• Do not block the ventilation holes on the back of Digital Photo Frame at any time.
• Keep your Multimedia Digital Photo Frame out of direct sunlight and heat source.
• Protect the power cord. Route power cords appropriately to avoid trip over by someone else or
pinched by items placed on or against them. Pay particular attention to the point where the cord
attaches to Digital Photo Frame.
• Only use the AC adapter included with the Digital Photo Frame. Using any other power adapter
will void your warranty.
• Unplug the power cord from the outlet when the unit is not in use.
Cleaning LCD Screen
Treat the screen gently. The screen is made of glass which can be scratched or damaged
To clean ngerprints or dust from the LCD screen, we recommend using a soft / nonabrasive cloth
such as a camera lens cloth to clean the LCD screen.
If you use a commercial LCD cleaning kit, do not apply the cleaning liquid directly to the LCD screen.
Clean the LCD screen with cleaning cloth moistened with the liquid.
Package Content
•
Digital Photo Frame
•
AC power adapter (5V, 1A)
•
User Guide
•
Quick Start Guide
•
Stand
1ViewSonic VFD873
Table of Contents
1.Precautions
2.Product Introduction
2.1 Features
2.2 Specications
2.3 Accessories
2.4 Button Illustration
2.5 Terminal Illustration
3.Getting Started
3.1 Stand
4.Operating Instruction
4.1 Turn on/off the Digital Photo Frame
4.2 OSD and Memory Medium
4.3 Photo Operating Instruction
4.4 Calendar Operating Instruction
4.5 Setup
5.Troubleshooting
...............................................................2
..................................................3
................................................................3
......................................................3
.........................................................3
................................................4
.............................................5
..........................................................6
...................................................................6
.................................................7
....................7
..................................7
................................8
...........................9
.................................................................10
.......................................................11
2ViewSonic VFD873
1.Precautions

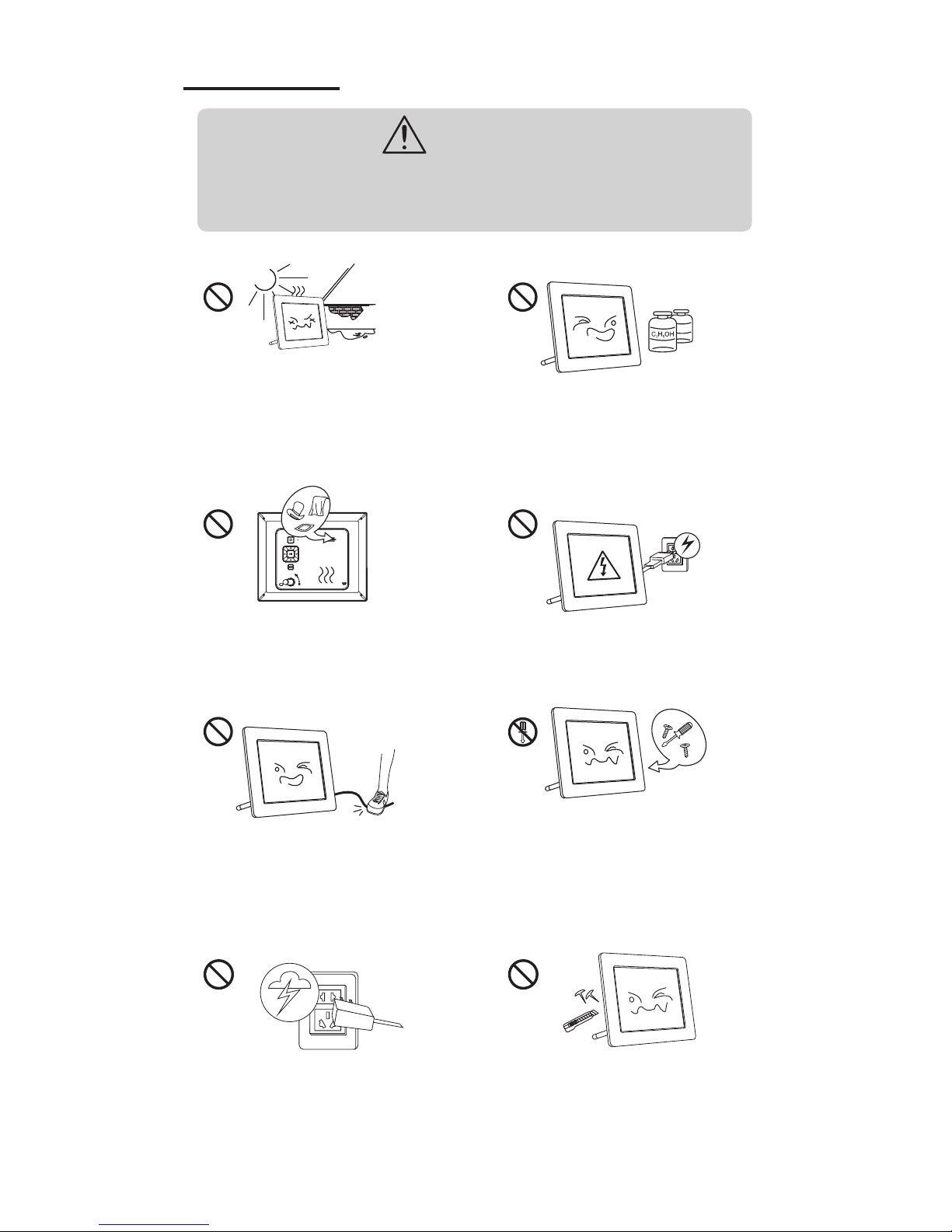

Warnings
Please read this manual carefully before operating and reserve it for
future reference. It will be helpful to you if you encounter any operating
problem.
Avoid exposing this device to water,
moisture or high temperature. Do not
place it near swimming pool, bathtub or
sink where it may come in contact with
water.
Clean only with a dry soft cloth; do not use
any chemical liquid for cleaning.
To ensure reliable operation of the
device and to protect it from overheating,
do not block any ventilation openings.
Only use attachments/ accessories
specied by the manufacturer.
Do not step on the power cable, plug or
adapter to avoid electronic shock.
Do not attempt to service this device
yourself. Opening or removing covers
may expose you to dangerous voltages
or other hazards. Refer all servicing and
repairs to qualied service personnel.
Please unplug this device in the
thunderstorm weather or not in use for a
long time.
Do not press hard on the LCD screen in
the process of transportation or usage.
Avoid sharp objects.
3ViewSonic VFD873
2.1 Features
2.2 Specications
■High quality 8 inch LCD: 800x600 high resolution.
■Slim and fashionable design, suitable for gifts and home decoration.
■High-speed picture decoding technology, pictures in JPG format supported.
■Picture slideshow with multiple transition effects, support picture rotating
and zooming.
■Calendar and Clock functions.
■User-friendly navigation buttons.
■Three-in-one (SD/SDHC/MMC) and USB ash drive supported.
LCD Screen
Panel size / Aspect
ratio 8inch 4:3
Effective viewing
area 162.0(W)x121.5(H) mm
Resolution 800(W)x600(H) pixels
Photo File
Image formats
supported JPG, JPEG(baseline coding)
Max. image
resolution 30 million pixels
Calendar Clock, Calendar
Memory Medium
Memory Card
supported MMC, SD, SDHC(max. 16GB)
USB USB ash drive
File system FAT, FAT32
Electrical
Specications
Power input 5VDC, 1.0A
Power
consumption ≤5W
Power adapter
Input AC 100-240V,
50/60Hz
Output DC5V, 1.0A
Dimensions
Dimensions 217x176x24 mm
Weight Approx. 415g
Operating mode By buttons on the panel
Environmental
Requirements
Operating
temperature 0°C~40°C
Storage
temperature -20°C~60°C
Regulations CE, BSMI, FCC, ICES003, LVD, Gost-R
2.Product Introduction
4ViewSonic VFD873

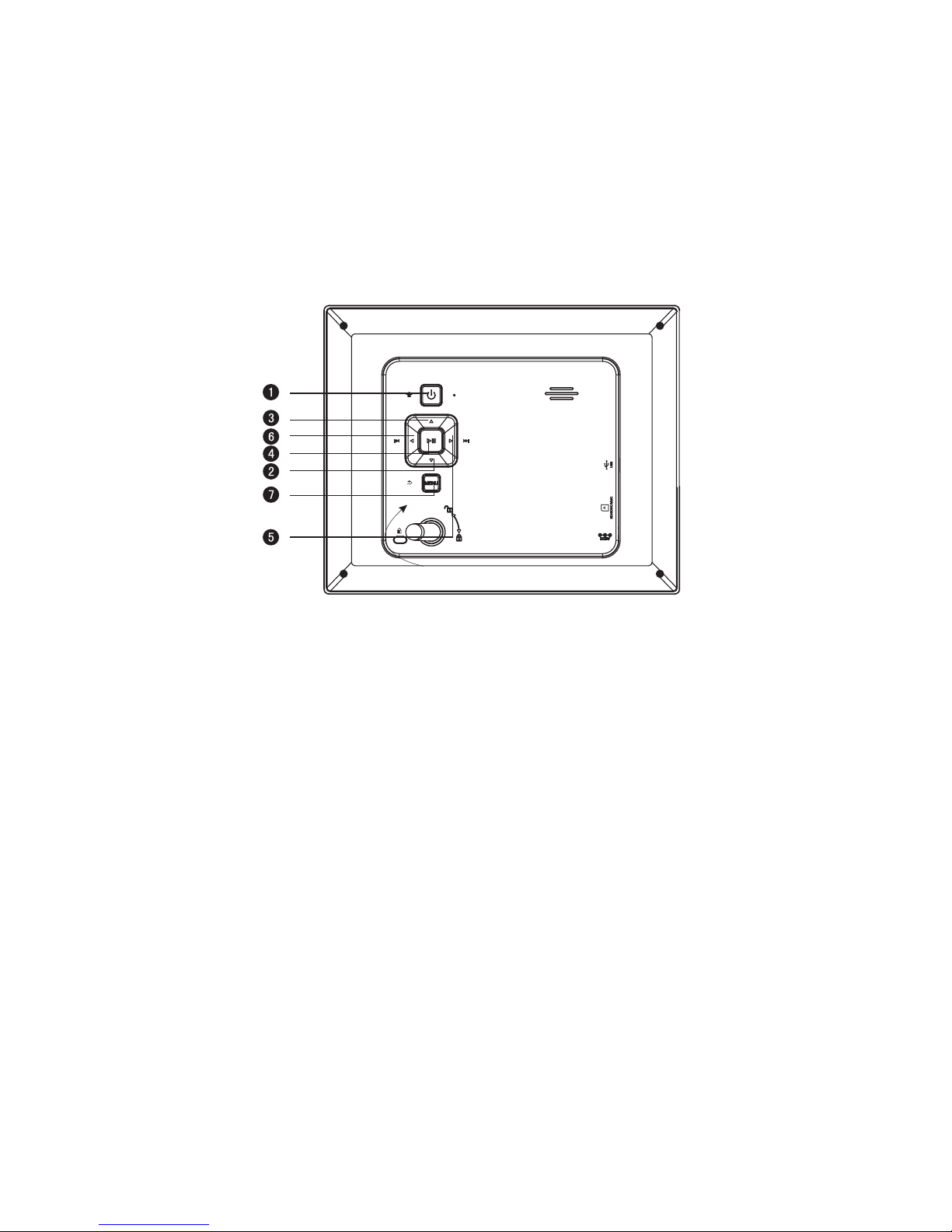

2.4 Button Illustration
Power: a. Press briey to turn on the device when is off;
b. Press & hold to turn off the device when is on;
c. Press briey to turn to the Main Menu when is on.
DOWN: Down.
UP: Up.
PLAY: a. Conrm/Enter; b. Press & hold for 3s to pop up the
shortcut menu; c. Play/ pause.
RIGHT: a. Right; b. Adjust+.
LEFT: a. Left; b. Adjust-.
RETURN: Exit.
Digital Photo Frame ---------------------- 1 piece
Power adapter ----------------------------- 1 piece
User’s manual ----------------------------- 1 piece
Quick start guide ------------------------- 1 piece
Stand ---------------------------------------- 1 piece
2.3 Accessories
➊
➋
➌
➍
➎
➏
➐
5ViewSonic VFD873

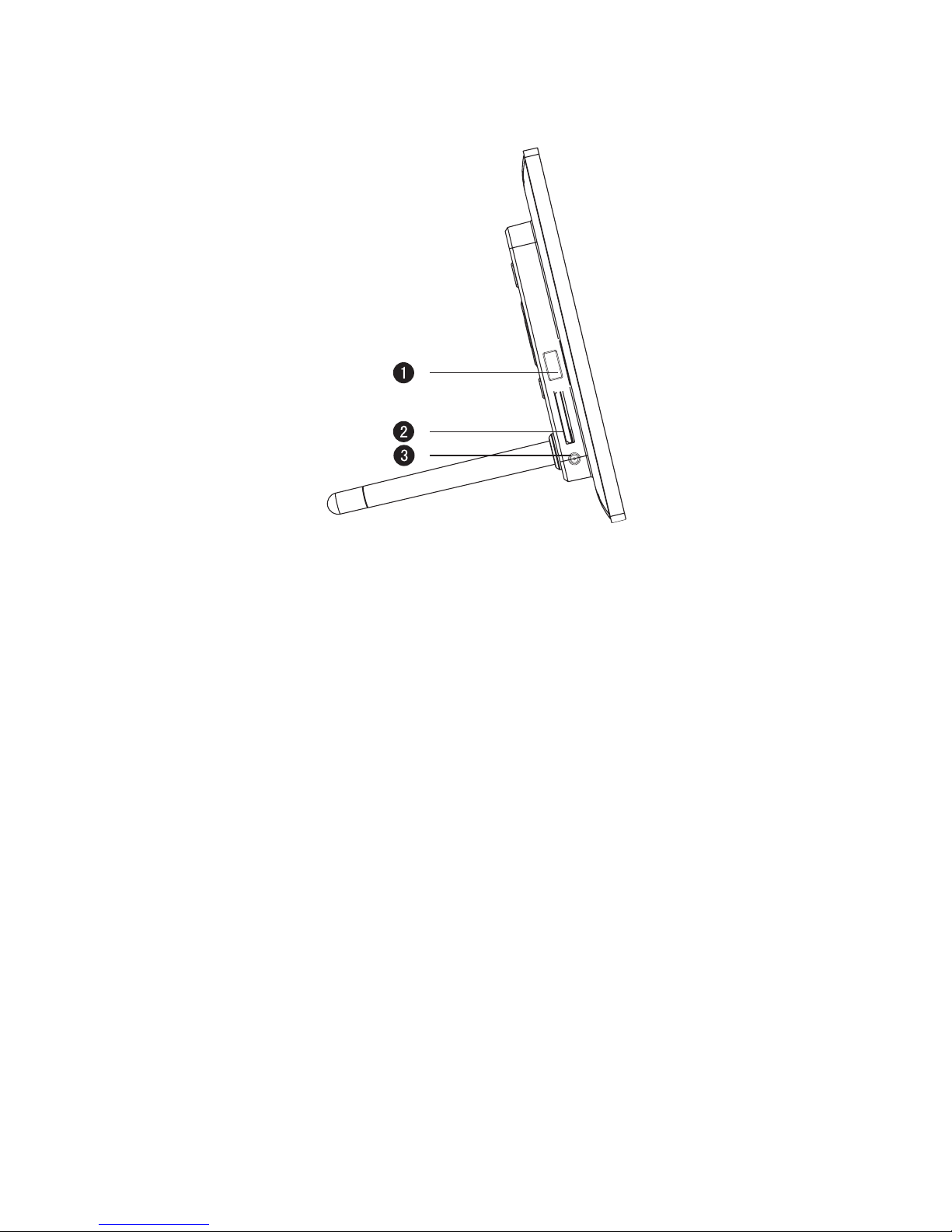

2.5 Terminal Illustration
USB : connect to USB ash drive.
SD/SDHC/MMC card slot.
DC-IN: power input 5V DC 1.0A
➊
➋
➌
Ce manuel convient aux modèles suivants
2
Table des matières
Autres manuels ViewSonic Cadre photo numérique
ViewSonic
ViewSonic VFM735w-51P VS12403 Manuel utilisateur
ViewSonic
ViewSonic DPG807BK-51P Manuel utilisateur
ViewSonic
ViewSonic DPG807 Manuel utilisateur
ViewSonic
ViewSonic DPG807BK - Digital Photo Frame Manuel utilisateur
ViewSonic
ViewSonic DPX1002 Manuel utilisateur
ViewSonic
ViewSonic VFA724w-10 Manuel utilisateur
ViewSonic
ViewSonic VFA710W-50 - Digital Photo Frame Manuel utilisateur
ViewSonic
ViewSonic DPX802 Manuel utilisateur
ViewSonic
ViewSonic VFM836-54 Manuel utilisateur
ViewSonic
ViewSonic VFD1024w-51 Manuel utilisateur
ViewSonic
ViewSonic VFM823-50 Manuel utilisateur
ViewSonic
ViewSonic VFM842-12 Manuel utilisateur
ViewSonic
ViewSonic VFM820-50 Manuel utilisateur
ViewSonic
ViewSonic VFM620w-70 Manuel utilisateur
ViewSonic
ViewSonic VFD621w-70 Manuel utilisateur
ViewSonic
ViewSonic VFD875 Manuel utilisateur
ViewSonic
ViewSonic VFD810-50 Manuel utilisateur
ViewSonic
ViewSonic NO FOUND VFD725W-50P Manuel utilisateur
ViewSonic
ViewSonic DPX1002WD Manuel utilisateur
ViewSonic
ViewSonic VFM1024W Manuel utilisateur
Manuels Cadre photo numérique populaires d'autres marques
Philips
Philips SPF1327 Manuel utilisateur
Philips
Philips SPF7010/10 Manuel utilisateur
Digital Spectrum
Digital Spectrum MemoryVue MV-1500 Manuel utilisateur
YURAKU
YURAKU YUR.PHOTO 7B4C Manuel utilisateur
Denver
Denver PFF-710WHITE MK2 Manuel utilisateur
Pandigital
Pandigital PAN8000DWPCF1 Manuel utilisateur
