English

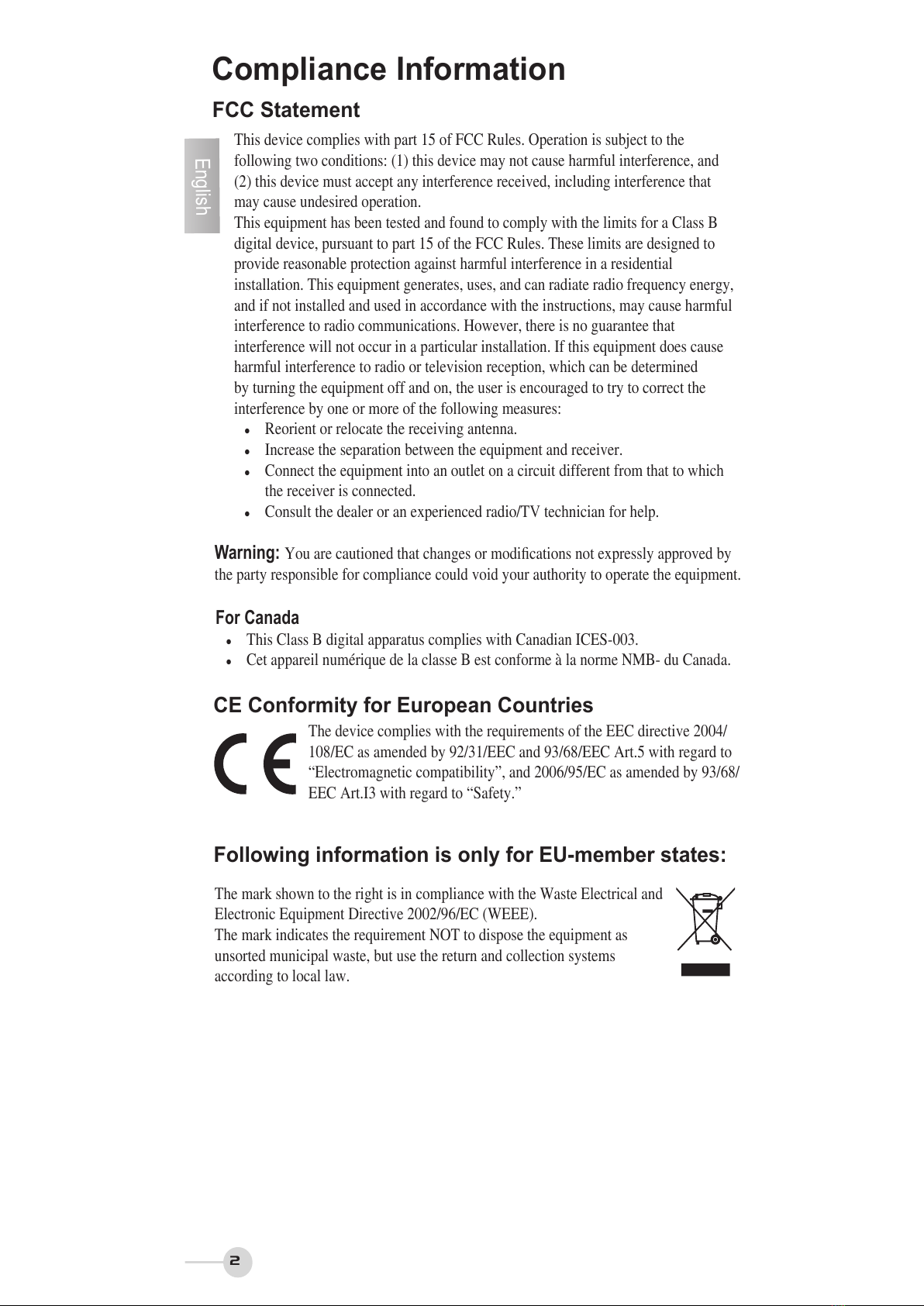

FCC Statement

Compliance Information

This device complies with part 15 of FCC Rules. Operation is subject to the

following two conditions: (1) this device may not cause harmful interference, and

(2) this device must accept any interference received, including interference that

may cause undesired operation.

This equipment has been tested and found to comply with the limits for a Class B

digital device, pursuant to part 15 of the FCC Rules. These limits are designed to

provide reasonable protection against harmful interference in a residential

installation. This equipment generates, uses, and can radiate radio frequency energy,

and if not installed and used in accordance with the instructions, may cause harmful

interference to radio communications. However, there is no guarantee that

interference will not occur in a particular installation. If this equipment does cause

harmful interference to radio or television reception, which can be determined

by turning the equipment off and on, the user is encouraged to try to correct the

interference by one or more of the following measures:

l Reorient or relocate the receiving antenna.

l Increase the separation between the equipment and receiver.

l Connect the equipment into an outlet on a circuit different from that to which

the receiver is connected.

l Consult the dealer or an experienced radio/TV technician for help.

Warning:

You are cautioned that changes or modications not expressly approved by

the party responsible for compliance could void your authority to operate the equipment.

For Canada

l This Class B digital apparatus complies with Canadian ICES-003.

l Cet appareil numérique de la classe B est conforme à la norme NMB- du Canada.

CE Conformity for European Countries

The device complies with the requirements of the EEC directive 2004/

108/EC as amended by 92/31/EEC and 93/68/EEC Art.5 with regard to

“Electromagnetic compatibility”, and 2006/95/EC as amended by 93/68/

EEC Art.I3 with regard to “Safety.”

Following information is only for EU-member states:

The mark shown to the right is in compliance with the Waste Electrical and

Electronic Equipment Directive 2002/96/EC (WEEE).

The mark indicates the requirement NOT to dispose the equipment as

unsorted municipal waste, but use the return and collection systems

according to local law.

All manuals and user guides at all-guides.com

English

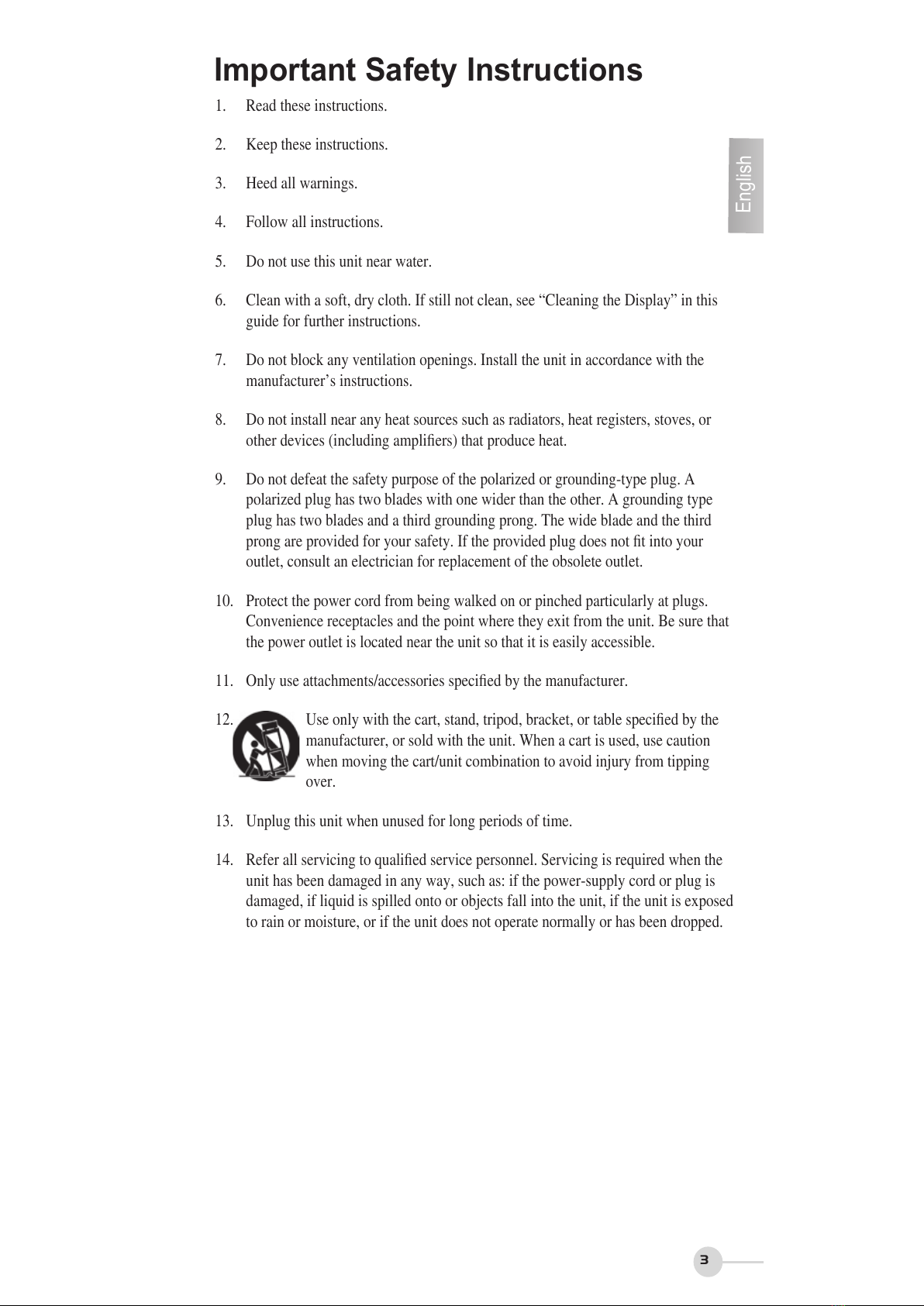

Important Safety Instructions

1. Read these instructions.

2. Keep these instructions.

3. Heed all warnings.

4. Follow all instructions.

5. Do not use this unit near water.

6. Clean with a soft, dry cloth. If still not clean, see “Cleaning the Display” in this

guide for further instructions.

7. Do not block any ventilation openings. Install the unit in accordance with the

manufacturer’s instructions.

8. Do not install near any heat sources such as radiators, heat registers, stoves, or

other devices (including ampliers) that produce heat.

9. Do not defeat the safety purpose of the polarized or grounding-type plug. A

polarized plug has two blades with one wider than the other. A grounding type

plug has two blades and a third grounding prong. The wide blade and the third

prong are provided for your safety. If the provided plug does not t into your

outlet, consult an electrician for replacement of the obsolete outlet.

10. Protect the power cord from being walked on or pinched particularly at plugs.

Convenience receptacles and the point where they exit from the unit. Be sure that

the power outlet is located near the unit so that it is easily accessible.

11. Only use attachments/accessories specied by the manufacturer.

12. Use only with the cart, stand, tripod, bracket, or table specied by the

manufacturer, or sold with the unit. When a cart is used, use caution

when moving the cart/unit combination to avoid injury from tipping

over.

13. Unplug this unit when unused for long periods of time.

14. Refer all servicing to qualied service personnel. Servicing is required when the

unit has been damaged in any way, such as: if the power-supply cord or plug is

damaged, if liquid is spilled onto or objects fall into the unit, if the unit is exposed

to rain or moisture, or if the unit does not operate normally or has been dropped.

All manuals and user guides at all-guides.com

English

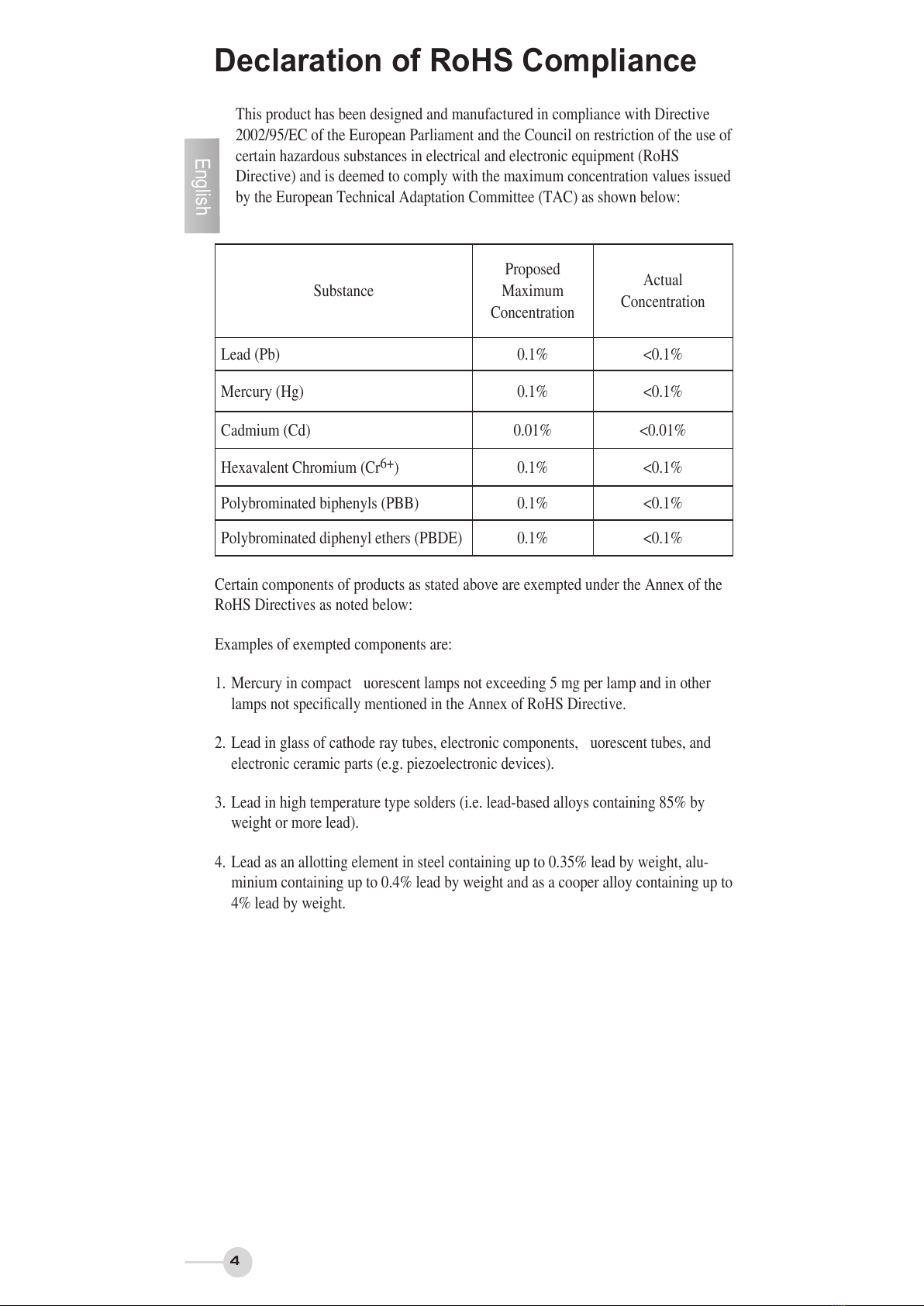

Declaration of RoHS Compliance

This product has been designed and manufactured in compliance with Directive

2002/95/EC of the European Parliament and the Council on restriction of the use of

certain hazardous substances in electrical and electronic equipment (RoHS

Directive) and is deemed to comply with the maximum concentration values issued

by the European Technical Adaptation Committee (TAC) as shown below:

Substance

Proposed

Maximum

Concentration

Actual

Concentration

Lead (Pb) 0.1% <0.1%

Mercury (Hg) 0.1% <0.1%

Cadmium (Cd) 0.01% <0.01%

Hexavalent Chromium (Cr6+) 0.1% <0.1%

Polybrominated biphenyls (PBB) 0.1% <0.1%

Polybrominated diphenyl ethers (PBDE) 0.1% <0.1%

Certain components of products as stated above are exempted under the Annex of the

RoHS Directives as noted below:

Examples of exempted components are:

1. Mercury in compact uorescent lamps not exceeding 5 mg per lamp and in other

lamps not specically mentioned in the Annex of RoHS Directive.

2. Lead in glass of cathode ray tubes, electronic components, uorescent tubes, and

electronic ceramic parts (e.g. piezoelectronic devices).

3. Lead in high temperature type solders (i.e. lead-based alloys containing 85% by

weight or more lead).

4. Lead as an allotting element in steel containing up to 0.35% lead by weight, alu-

minium containing up to 0.4% lead by weight and as a cooper alloy containing up to

4% lead by weight.

All manuals and user guides at all-guides.com

English

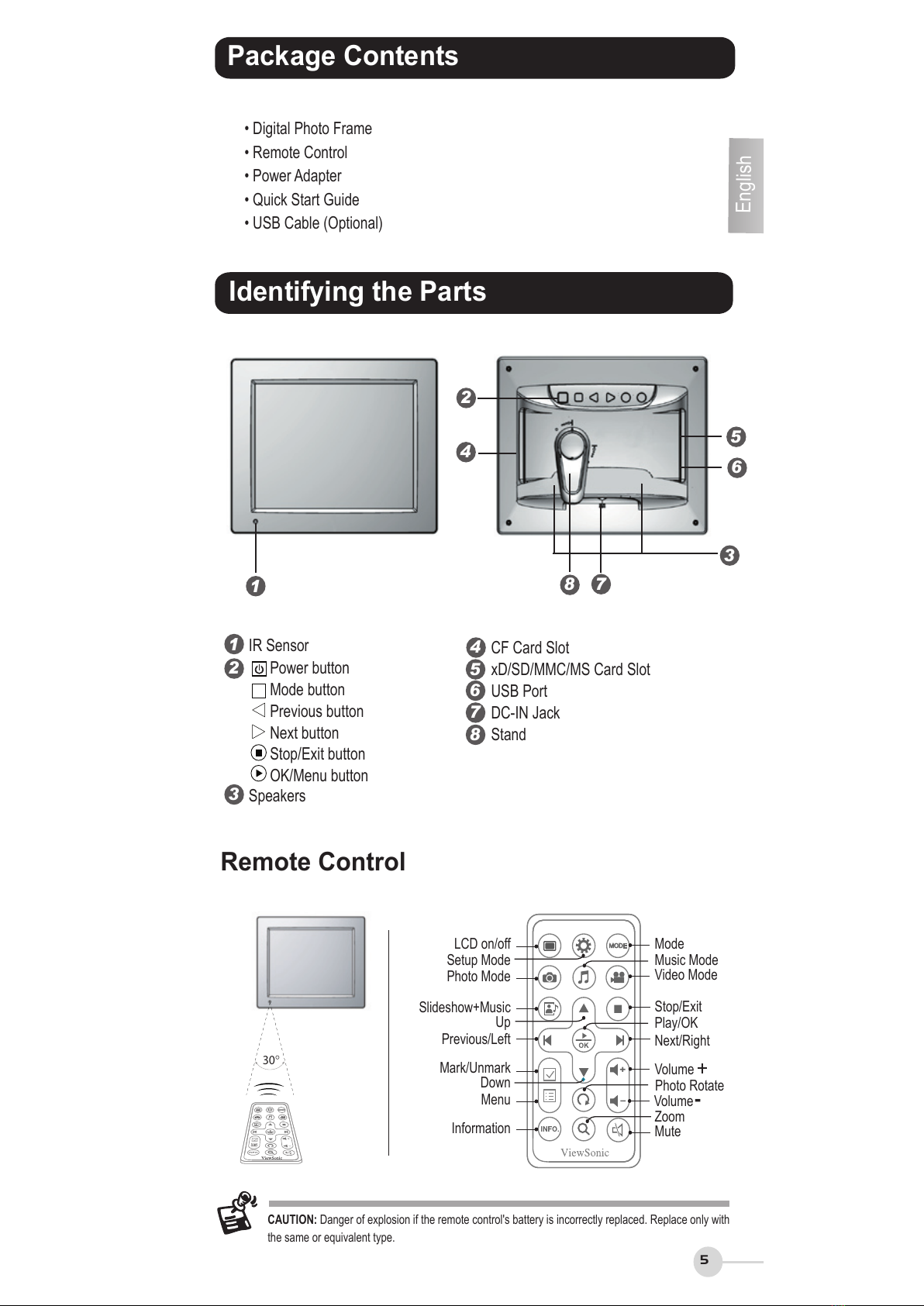

Identifying the Parts

Package Contents

• Digital Photo Frame

• Remote Control

• Power Adapter

• Quick Start Guide

• USB Cable (Optional)

CAUTION: Danger of explosion if the remote control's battery is incorrectly replaced. Replace only with

the same or equivalent type.

CF Card Slot

xD/SD/MMC/MS Card Slot

USB Port

DC-IN Jack

Stand

IR Sensor

Speakers

Power button

Mode button

Previous button

Next button

Stop/Exit button

OK/Menu button

Remote Control

�

LCD on/off

Setup Mode

Photo Mode

Volume

Slideshow+Music

Previous/Left

Mark/Unmark

Down

Mode

Music Mode

Video Mode

Stop/Exit

Play/OK

Next/Right

Information

Zoom

Mute

Volume-

Photo Rotate

Substance

Proposed

Maximum

Concentration

Actual

Concentration

Lead (Pb) 0.1% <0.1%

Mercury (Hg) 0.1% <0.1%

Cadmium (Cd) 0.01% <0.01%

Hexavalent Chromium (Cr6+) 0.1% <0.1%

Polybrominated biphenyls (PBB) 0.1% <0.1%

Polybrominated diphenyl ethers (PBDE) 0.1% <0.1%

All manuals and user guides at all-guides.com

English

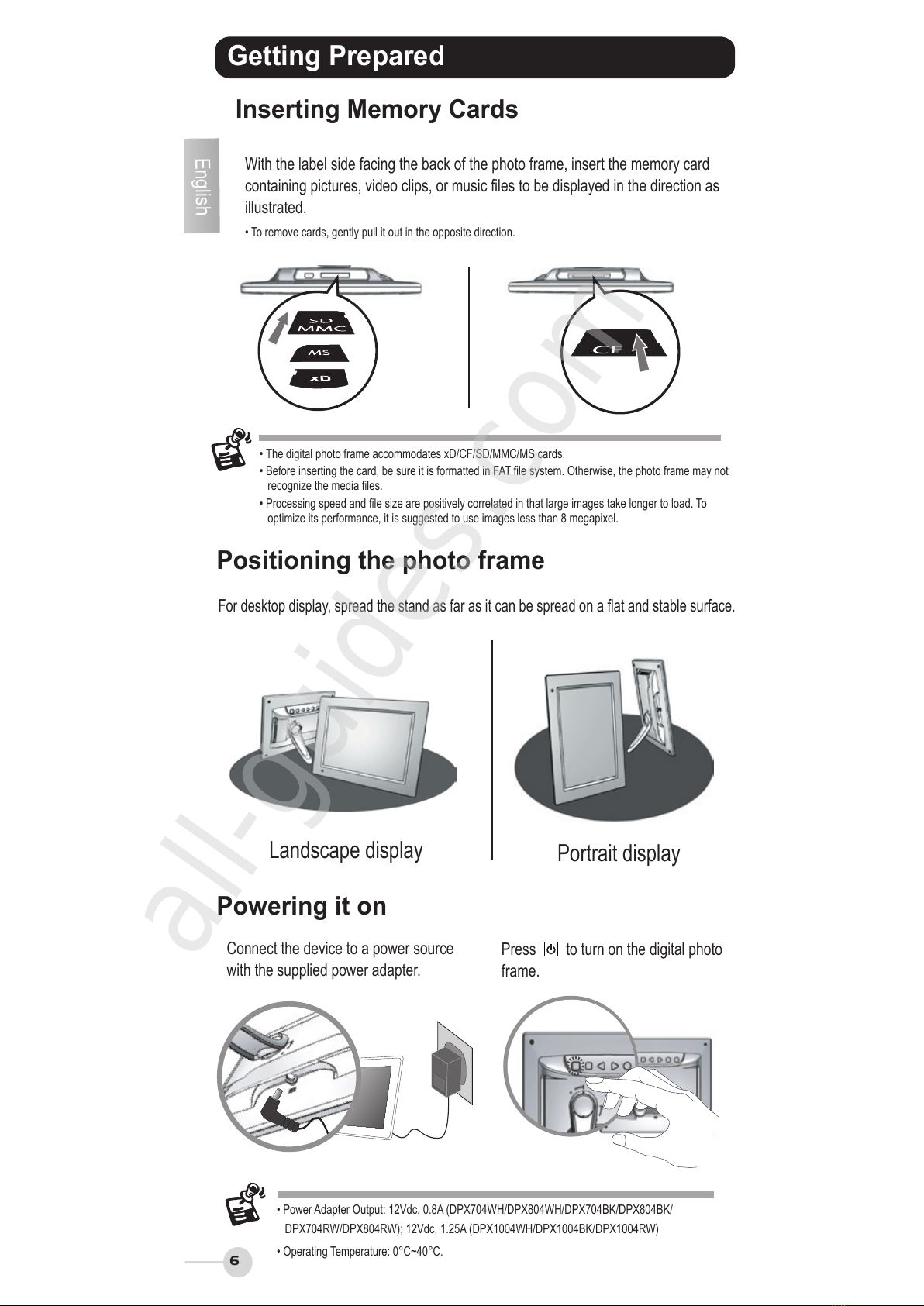

Getting Prepared

Inserting Memory Cards

With the label side facing the back of the photo frame, insert the memory card

containing pictures, video clips, or music les to be displayed in the direction as

illustrated.

• To remove cards, gently pull it out in the opposite direction.

Powering it on

Connect the device to a power source

with the supplied power adapter.

Positioning the photo frame

Landscape display

For desktop display, spread the stand as far as it can be spread on a at and stable surface.

Press to turn on the digital photo

frame.

• The digital photo frame accommodates xD/CF/SD/MMC/MS cards.

• Before inserting the card, be sure it is formatted in FAT le system. Otherwise, the photo frame may not

recognize the media les.

• Processing speed and le size are positively correlated in that large images take longer to load. To

optimize its performance, it is suggested to use images less than 8 megapixel.

• Power Adapter Output: 12Vdc, 0.8A (DPX704WH/DPX804WH/DPX704BK/DPX804BK/

DPX704RW/DPX804RW); 12Vdc, 1.25A (DPX1004WH/DPX1004BK/DPX1004RW)

• Operating Temperature: 0°C~40°C.

Portrait display

All manuals and user guides at all-guides.com

all-guides.com

English

Display the current time

• If the alarm is activated,the alarm time will be displayed.

Clock Mode

8 0 0 x 6 0 0

Display all photos as a slideshow

• To enlarge the photo, press .

• To rotate the photo clockwise, press .

To apply various settings for the selected photo, press . A toolbar appears.

Use to scroll through it; press to conrm.

Photo Mode

Rotate Rotate the photo clockwise (90º/180º/270º)

Zoom Enlarge the photo to show the details

Previous Go back to previous photo

Next Advance to next photo

Play/Pause Pause or resume the slideshow

Stop Stop the slideshow

Photo Info Display photo information

Thumbnails Display photos in thumbnail mode

Resolution Display photo resolution

800X600

Operation

Use MODE to bring up the function bar.

Use to move to the desired mode; press to conrm.

Saterday

Clock

Mode Calendar

Mode Photo

Mode Music

Mode Video

Mode Slideshow

+Music Browser

Mode Setup

Mode

Calendar Mode

Saterday

Display the monthly calendar

• Use to move to the desired month.

All manuals and user guides at all-guides.com

English

0 : 0 0 : 0 0

Normal

Title : Lovin’Each Day

Artist : Ronan Keating

Album : 10 Years Of Hits

Year : 2004

Sample Rate : 44.1KHZ

Channels : 2

Bitrate : 128Kbps

File Size : 3347KB

To apply various settings for the selected music, press . A toolbar appears.

Use to scroll through it; press to conrm.

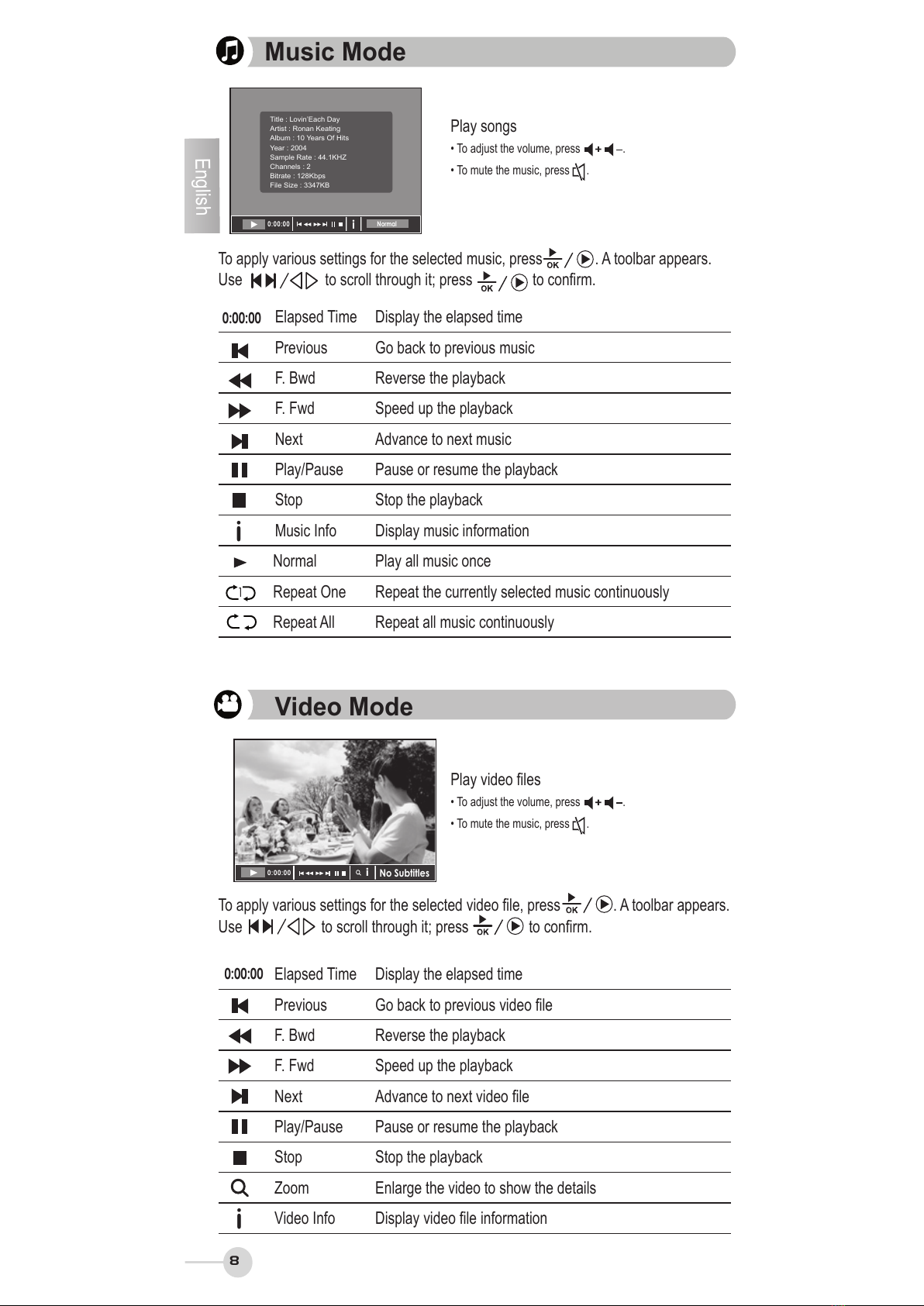

Music Mode

Elapsed Time Display the elapsed time

Previous Go back to previous music

F. Bwd Reverse the playback

F. Fwd Speed up the playback

Next Advance to next music

Play/Pause Pause or resume the playback

Stop Stop the playback

Music Info Display music information

Normal Play all music once

Repeat One Repeat the currently selected music continuously

Repeat All Repeat all music continuously

Play songs

• To adjust the volume, press .

• To mute the music, press .

0:00:00

0 : 0 0 : 0 0

No Subtitles

To apply various settings for the selected video le, press . A toolbar appears.

Use to scroll through it; press to conrm.

Video Mode

Elapsed Time Display the elapsed time

Previous Go back to previous video le

F. Bwd Reverse the playback

F. Fwd Speed up the playback

Next Advance to next video le

Play/Pause Pause or resume the playback

Stop Stop the playback

Zoom Enlarge the video to show the details

Video Info Display video le information

Play video les

• To adjust the volume, press .

• To mute the music, press .

0:00:00

All manuals and user guides at all-guides.com

English

Copy / Delete les

• Use to mark les; press to open menu, and select

COPY / DELETE function. (Copy the les to internal memory

directly.)

• For remote control operating only.

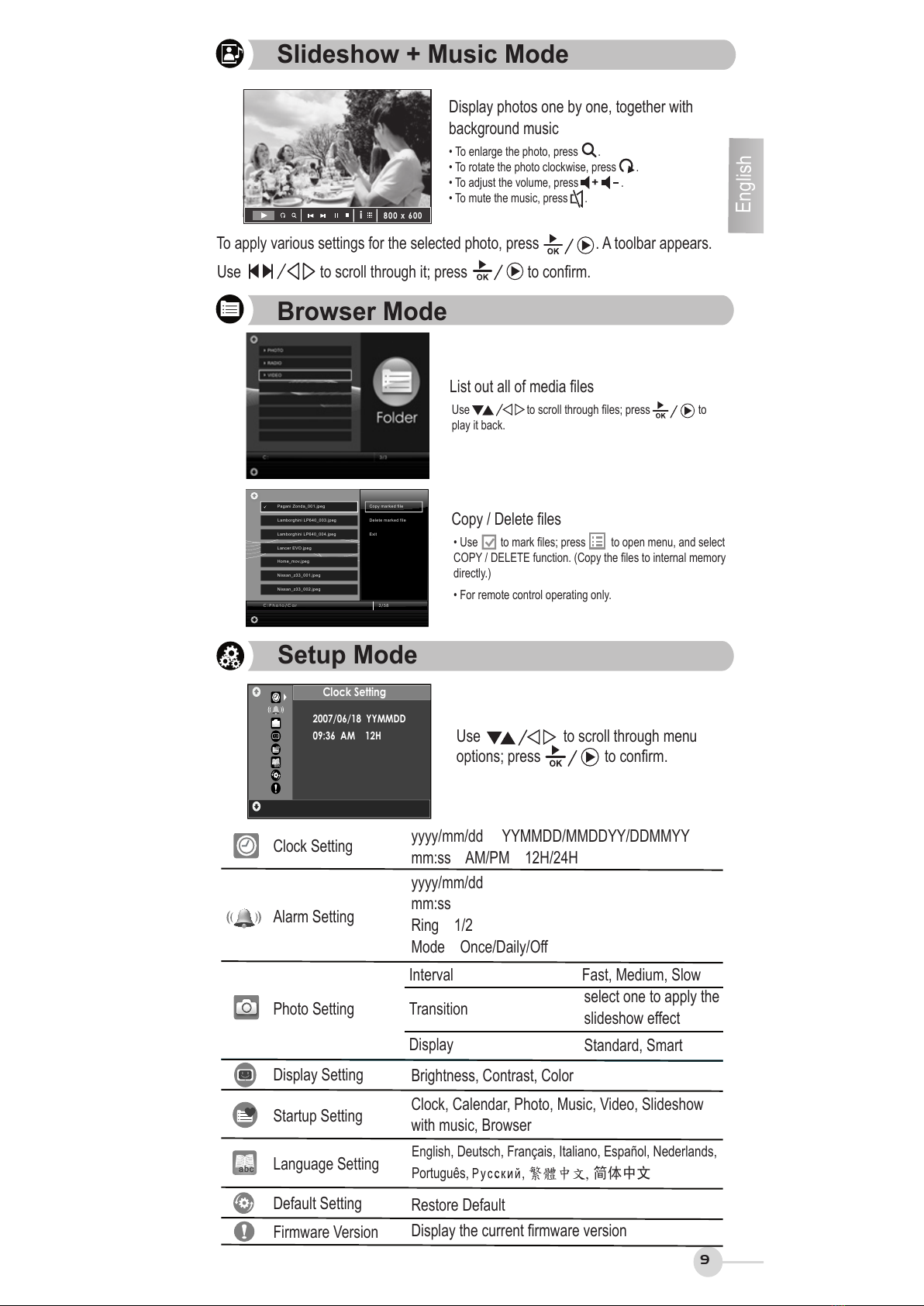

Slideshow + Music Mode

To apply various settings for the selected photo, press . A toolbar appears.

List out all of media les

Use to scroll through les; press to

play it back.

Browser Mode



2007/06/18 YYMMDD

09:36 AM 12H

Clock Setting

Use to scroll through menu

options; press to conrm.

Setup Mode

Use to scroll through it; press to conrm.

Display photos one by one, together with

background music

• To enlarge the photo, press .

• To rotate the photo clockwise, press .

• To adjust the volume, press .

• To mute the music, press .

8 0 0 x 6 0 0

Clock Setting

Alarm Setting

Photo Setting

Display Setting

Startup Setting

Language Setting

Default Setting

Firmware Version

yyyy/mm/dd YYMMDD/MMDDYY/DDMMYY

mm:ss AM/PM 12H/24H

yyyy/mm/dd

mm:ss

Ring 1/2

Mode Once/Daily/Off

Brightness, Contrast, Color

Clock, Calendar, Photo, Music, Video, Slideshow

with music, Browser

Display the current rmware version

Interval

Display Standard, Smart

select one to apply the

slideshow effect

Fast, Medium, Slow

Transition

Restore Default

C:Photo/Car

2/58


C:Photo/Car

2/58



Lamborghini LP640_004.jpeg

Lancer EVO.jpeg



Lamborghini LP640_003.jpeg

Pagani Zonda_001.jpeg

Copy marked file

Delete marked file

Exit

English, Deutsch, Français, Italiano, Español, Nederlands,

Português, , 繁體㆗文,简体中文

All manuals and user guides at all-guides.com

English

Mass Storage

Connecting to External Devices

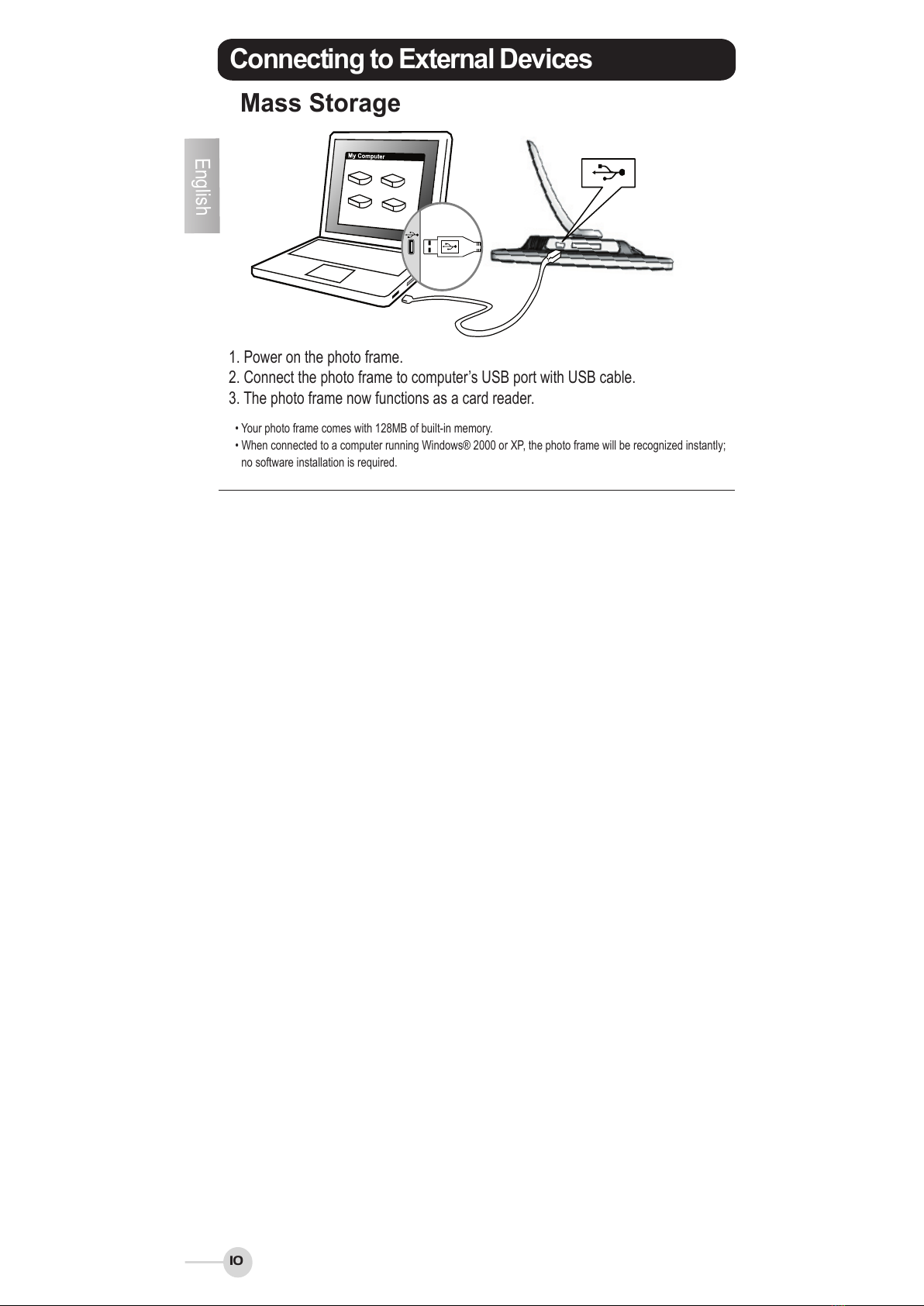

1. Power on the photo frame.

2. Connect the photo frame to computer’s USB port with USB cable.

3. The photo frame now functions as a card reader.

• Your photo frame comes with 128MB of built-in memory.

• When connected to a computer running Windows® 2000 or XP, the photo frame will be recognized instantly;

no software installation is required.

All manuals and user guides at all-guides.com

Autres manuels pour DPX704WH

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels ViewSonic Cadre photo numérique

ViewSonic

ViewSonic VFM835-52G Manuel utilisateur

ViewSonic

ViewSonic VFD1078W-11E Manuel utilisateur

ViewSonic

ViewSonic VFD820-70 Manuel utilisateur

ViewSonic

ViewSonic VS12289-1W Manuel utilisateur

ViewSonic

ViewSonic VFA770W-10 Manuel utilisateur

ViewSonic

ViewSonic VFD 820 Manuel utilisateur

ViewSonic

ViewSonic PortraitView VFM620w-50 Manuel utilisateur

ViewSonic

ViewSonic DPA709WD Manuel utilisateur

ViewSonic

ViewSonic DPG807 Manuel utilisateur

ViewSonic

ViewSonic VFM836-54 Manuel utilisateur

ViewSonic

ViewSonic VFD820-50 Manuel utilisateur

ViewSonic

ViewSonic VFM1034W Manuel utilisateur

ViewSonic

ViewSonic DPG807BK - Digital Photo Frame Manuel utilisateur

ViewSonic

ViewSonic DP701W4WH Manuel utilisateur

ViewSonic

ViewSonic VFD870-50E Manuel utilisateur

ViewSonic

ViewSonic VFM1024W Manuel utilisateur

ViewSonic

ViewSonic VFM620w-70 Manuel utilisateur

ViewSonic

ViewSonic VFM886-50E Manuel utilisateur

ViewSonic

ViewSonic VFA721w-50 Manuel utilisateur

ViewSonic

ViewSonic VFA770w-50E Manuel utilisateur

ViewSonic

ViewSonic VFM1024w-11 Guide de démarrage rapide

ViewSonic

ViewSonic VFD823-50 Manuel utilisateur

ViewSonic

ViewSonic VFD826-70 Manuel utilisateur

ViewSonic

ViewSonic VS13808 Manuel utilisateur

Manuels Cadre photo numérique populaires d'autres marques

LENCO

LENCO DF-830 Manuel utilisateur

NIX

NIX Advance X10G Manuel utilisateur

Nextar

Nextar N7S-100 Manuel utilisateur

Sungale

Sungale TD350A Manuel utilisateur

texet

texet DPF-830 Instructions de montage

Philips

Philips SPF2017 Manuel utilisateur

Philips

Philips SPF1327 Manuel utilisateur

Philips

Philips SPF7010/10 Manuel utilisateur

Digital Spectrum

Digital Spectrum MemoryVue MV-1500 Manuel utilisateur

YURAKU

YURAKU YUR.PHOTO 7B4C Manuel utilisateur

Denver

Denver PFF-710WHITE MK2 Manuel utilisateur

Pandigital

Pandigital PAN8000DWPCF1 Manuel utilisateur

Rekam

Rekam Deja View HD-850 Manuel utilisateur

Majestic

Majestic DF 918HD MP3 Manuel utilisateur

Philips

Philips SPF2527 Manuel utilisateur

Digital Foci

Digital Foci Image Moments IMT-063 Manuel utilisateur

Nokia

Nokia SU-4 Manuel utilisateur

Hama

Hama 118564 Manuel utilisateur
