ViewSonic VS16933 Manuel utilisateur

Slot in PC module

VPC10-WP

(for IFP50 series)

Quick Start Guide

Model No. VS16933

Compliance Information

NOTE: This section addresses all connected requirements and statements regarding

regulations. Confirmed corresponding applications shall refer to nameplate labels

and relevant markings on unit.

FCC Compliance Statement

This device complies with part 15 of FCC Rules. Operation is subject to the following

two conditions: (1) this device may not cause harmful interference, and (2) this

device must accept any interference received, including interference that may cause

undesired operation.

This equipment has been tested and found to comply with the limits for a Class

B digital device, pursuant to part 15 of the FCC Rules. These limits are designed

to provide reasonable protection against harmful interference in a residential

installation. This equipment generates, uses, and can radiate radio frequency

energy, and if not installed and used in accordance with the instructions, may cause

harmful interference to radio communications. However, there is no guarantee that

interference will not occur in a particular installation. If this equipment does cause

harmful interference to radio or television reception, which can be determined

by turning the equipment off and on, the user is encouraged to try to correct the

interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the

receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

Warning: You are cautioned that changes or modifications not expressly approved

by the party responsible for compliance could void your authority to operate the

equipment.

Industry Canada Statement

CAN ICES-3 (B)/NMB-3(B)

Contains FCC ID: PD93165NG

IC ID: 1000M-3165NG

CE Conformity for European Countries

The device complies with the EMC Directive 2014/30/EU and Low Voltage

Directive 2014/35/EU and Radio Equipment Directive (RED) 2014/53/EU.

Following information is only for EU-member states:

The mark shown to the right is in compliance with the Waste Electrical and

Electronic Equipment Directive 2012/19/EU (WEEE).The mark indicates

the requirement NOT to dispose the equipment as unsorted municipal

waste, but use the return and collection systems according to local law.

In all EU member states, operation of 5150-5350MHz is restricted to indoor

use only. This device should be installed and operated with a minimum distance of

20cm between the radiator and your body.

Indian Restriction of Hazardous Substances

Restriction on Hazardous Substances statement (India) This product complies

with the “India E-waste Rule 2011” and prohibits use of lead, mercury, hexavalent

chromium, polybrominated biphenyls or polybrominated diphenyl ethers in

concentrations exceeding 0.1 weight % and 0.01 weight % for cadmium, except for

the exemptions set in Schedule 2 of the Rule.

iii

Declaration of RoHS2 Compliance

This product has been designed and manufactured in compliance with Directive

2011/65/EU of the European Parliament and the Council on restriction of the use

of certain hazardous substances in electrical and electronic equipment (RoHS2

Directive) and is deemed to comply with the maximum concentration values issued

by the European Technical Adaptation Committee (TAC) as shown below:

Substance

Proposed Maximum

Concentration

Actual Concentration

Lead (Pb) 0.1% < 0.1%

Mercury (Hg) 0.1% < 0.1%

Cadmium (Cd) 0.01% < 0.01%

Hexavalent Chromium (Cr6+) 0.1% < 0.1%

Polybrominated biphenyls (PBB) 0.1% < 0.1%

Polybrominated diphenyl ethers (PBDE) 0.1% < 0.1%

**Certain components of products as stated above are exempted under the Annex III

of the RoHS2 Directives as noted below:

Examples of exempted components are:

1. Lead in glass of cathode ray tubes

2. Leadinglassofuorescenttubesnotexceeding0.2%byweight

3. Lead as an alloying element in aluminium containing up to 0.4% lead by weight

4. Copper alloy containing up to 4% lead by weight

5. Lead in high melting temperature type solders (i.e. lead-based alloys containing

85% by weight or more lead)

6. Electrical and electronic components containing lead in a glass or ceramic other

than dielectric ceramic in capacitors, e.g. piezoelectronic devices, or in a glass or

ceramic matrix compound.

7. Lead as an alloying element in steel for machining purposes and in galvanized

steel containing up to 0.35% lead by weight.

8. Lead in dielectric ceramic in capacitors for a rated voltage of 125V AC or 250V DC

or higher.

9. Cadmium and its compounds in electrical contacts.

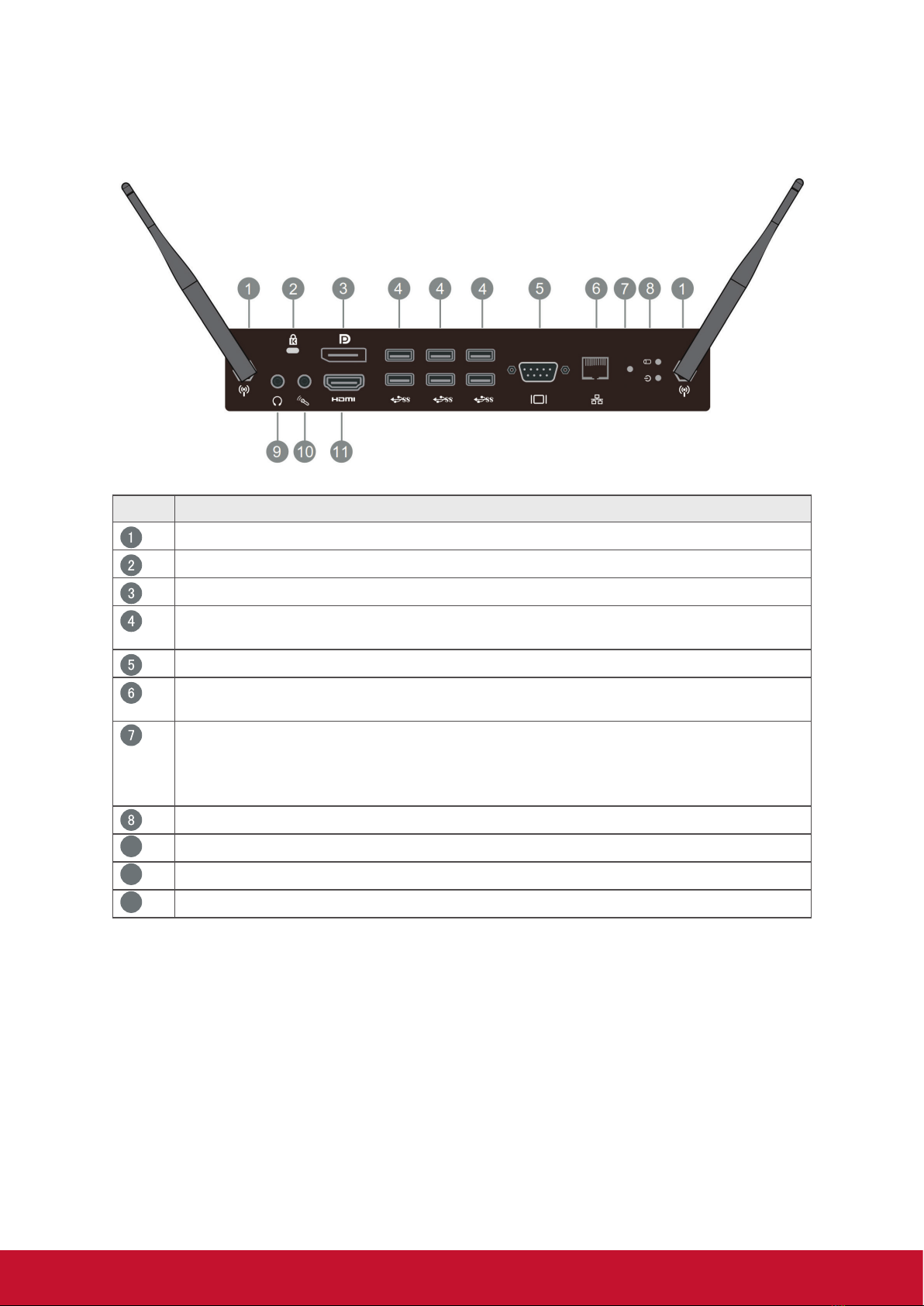

1. Interface

Item Description

WIFI antenna interface

Anti-theft lock

Connect the display to a DisplayPort connector

USB 3.0 interface , connects USB peripherals such as HDDs USB

keyboards and mice

Connects the display to a VGA-IN connector

Standard RJ45 (10M/100M/1G) Internet connection interface (This network

port is only used for PC)

Recovery the system. User needs to press and hold the button then power

on the device, device will recovery the system automatically, then user can

release the button.

Note: All settings will return to default and all data will be deleted.

Working indicator light

9Connects the device to headphones or speakers

10 Connects to a microphone

11 Connected to device with HDMI input function

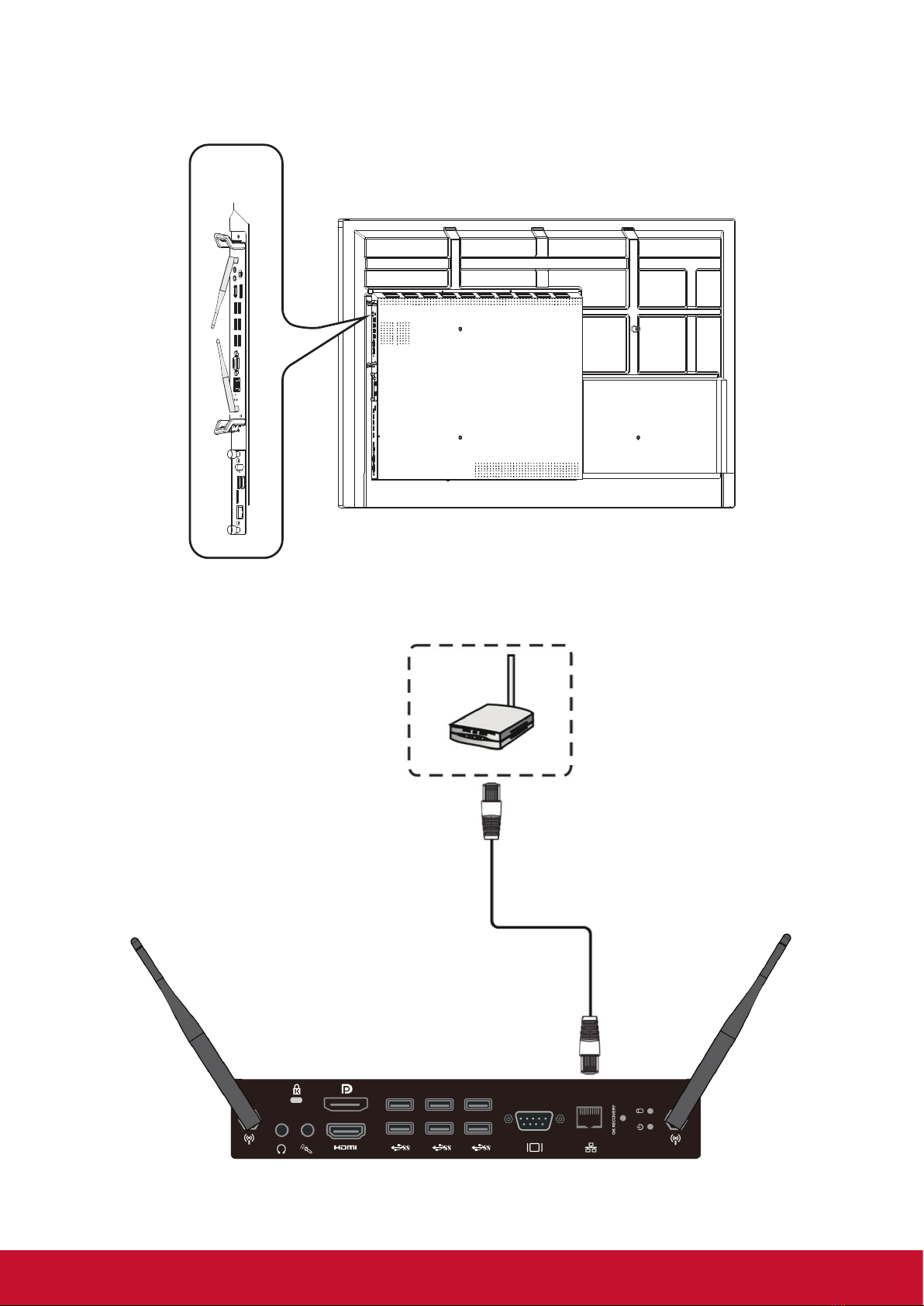

2. Installation

2-1

2-2

2-3

3. Internet Connection

4. Input Selection

1. Press INPUT button on remote control to display the input setting menu, then

press DOWN to enter the input source menu.

2. Press DOWN / UP / LEFT/ RIGHT to select PC.

3. Press Enter button on remote control or click with touch pen to select the input

source.

4. Press EXIT key on remote control or click blank area outside menu with touch

pen to quit the on-screen menu.

5. USB Connection

6. Specifications

IO ports 1 x Display Port

1 x HDMI

1 x VGA

1 x LAN

6 x USB 3.0

1 x Earphone

1 x Microphone

Power 100V-240V AC 50/60HZ

Operation

Conditions

Temperature

Humidity

Altitude

32°F to 113°F (0°C to 45°C)

10% ~ 90% non-condensing

0 meter to +5000 meters above sea level

Storage

Conditions

Temperature

Humidity

Altitude

-4°F to 140°F (-20°C to 60°C)

10% ~ 90% non-condensing

0 meter to +5000 meters above sea level

Dimensions Physical(mm) 246.2 x 265.4 x 32.2

Weight Physical(kg) 1.9

Power consumption 95W

Frequency Range and Output Power

(Max.)

2402 to 2480 MHz(BT) 2.0 dBm

2402 to 2480 MHz(LE) 3.73 dBm

2412 to 2472 MHz 17.41 dBm

5150 to 5250 MHz 18.94 dBm

5250 to 5350 MHz 18.94 dBm

5470 to 5725 MHz 18.94 dBm
