ViewSonic VPC2-O-1B Series Manuel utilisateur

VPC2-O-1B Series

Slot in PC module

Quick Start Guide

Model No. P/N Model No. P/N

VS18766 VPC2C-W33-O1-1B VS18766 VPC27-W53-O1-1B

VS18766 VPC25-W33-O1-1B VS18766 VPC27-W55-O2-1B

VS18766 VPC25-W53-O1-1B VS18766 VPC25-S33-O1-1B

VS18766 VPC25-W53-O2-1B VS18766 VPC27-S53-O1-1B

Thank you for choosing ViewSonic®

As a world-leading provider of visual solutions, ViewSonic® is dedicated to exceeding

the world’s expectations for technological evolution, innovation, and simplicity.

At ViewSonic®, we believe that our products have the potential to make a positive

impact in the world, and we are confident that the ViewSonic® product you have

chosen will serve you well.

Once again, thank you for choosing ViewSonic®!

1. Interface

1110

1 2 3 4 5 6 7 8 9

Item Descripon

1POWER BUTTON

2MIC-IN

3LINE-OUT

4HDMI

5TYPE-C (DC5V, 500mA)

6USB 2.0 (DC5V, 500mA)

7LAN

8USB 3.2 (DC5V, 500mA)

9RESET

10 HDD/POWER_LED

11 DP

2. Installaon

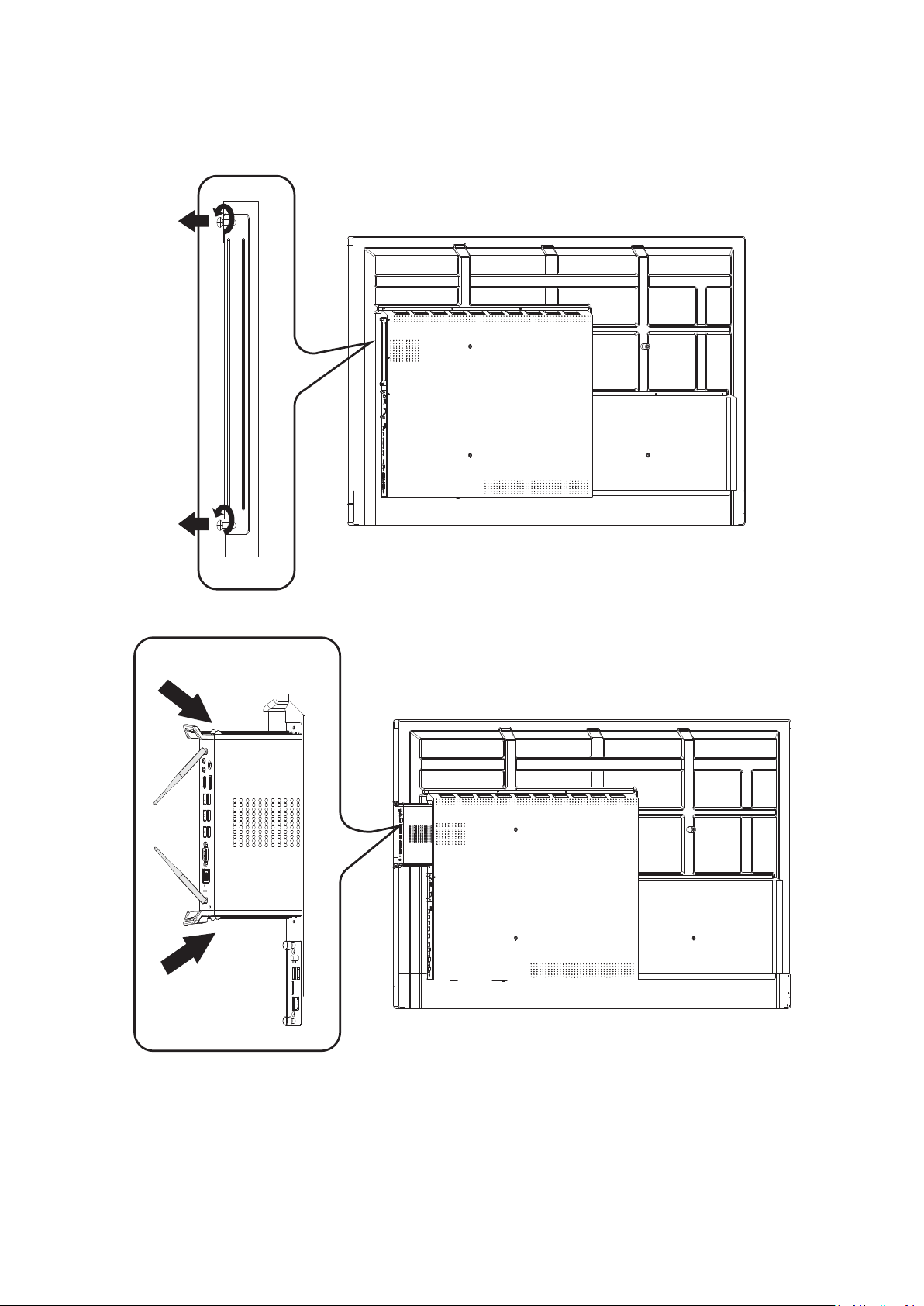

2-1

2-2

2-3

*Antennas must be installed

3. InternetConnecon

4. InputSelecon

4242

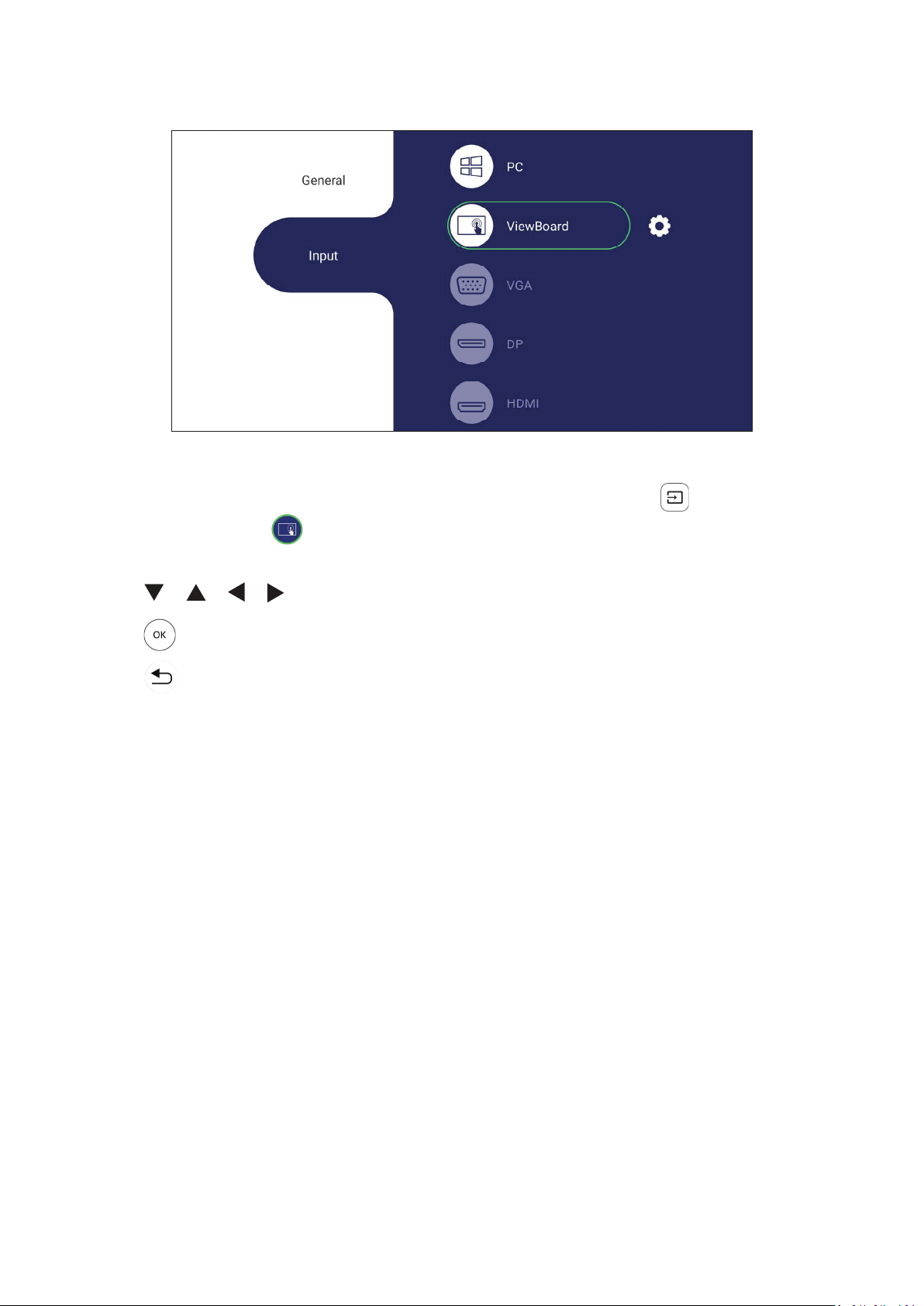

To select an Input Source:

1. Press INPUT on the remote control, press the seng buon

4242

on the front

panel, or press the

4242

seng icon from the toolbar to display the Input Sengs

menu.

2. Press

4242

to select PC.

3. Press

4242

on the remote control, or touch the input source.

4. Press

4242

on the remote control, or touch a blank area outside of the menu to

exit.

5. USBConnecon

6. Specicaons

Processor Intel® Comet Lake-S

PCH H510 Q570

Graphic Integrated Intel® UHD graphic

RAM 2 x DDR4 SO-DIMM, 32GB (Max)

Storage 1 x NVMe M.2 2280 PCIe SSD

IO ports 1 x USB Type-C

(USB 3.2 Gen1, Data Only)

3 x USB 2.0,

1 x USB 3.2 Gen1

1 x USB Type-C

(USB 3.2 Gen2x2, Data Only)

4 x USB 3.2 Gen2

1 x DP 1.2 out

1 x HDMI 1.4 out

1 x RJ45 Ethernet (with Intel I219LM)

1 x Microphone/Line out

2 x External antenna Holes

1 x Power On/O Buon

1 x Reset Buon

1 x Power LED

1 x HDD LED

1 x 80 Pin JAE OPS connector

WIFI/BT 1 x M.2 2230 (with Intel® AX200 WiFi 6 + BT 5.2 module)

Watchdog Support

vPro/AMT No Yes

BIOS AMI UEFI BIOS

Power DC in +19V @ 3.42A

65 W (Typical)

Operang

Condions

-5 °C to +45 °C

20% RH ~ 80% RH non-condensing

Storage

Condions

-20 °C to +70 °C

10% ~ 80% R.H. non-condensing

RegulatoryandServiceInformaon

ComplianceInformaon

This secon addresses all connected requirements and statements regarding

regulaons. Conrmed corresponding applicaons shall refer to nameplate labels

and relevant markings on the unit.

FCC Compliance Statement

This device complies with part 15 of FCC Rules. Operaon is subject to the following

two condions: (1) this device may not cause harmful interference, and (2) this

device must accept any interference received, including interference that may

cause undesired operaon.

This equipment has been tested and found to comply with the limits for a Class

B digital device, pursuant to part 15 of the FCC Rules. These limits are designed

to provide reasonable protecon against harmful interference in a residenal

installaon. This equipment generates, uses, and can radiate radio frequency

energy, and if not installed and used in accordance with the instrucons, may cause

harmful interference to radio communicaons. However, there is no guarantee that

interference will not occur in a parcular installaon. If this equipment does cause

harmful interference to radio or television recepon, which can be determined

by turning the equipment o and on, the user is encouraged to try to correct the

interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separaon between the equipment and receiver.

• Connect the equipment into an outlet on a circuit dierent from that to which

the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

Warning: You are cauoned that changes or modicaons not expressly approved

by the party responsible for compliance could void your authority to operate the

equipment.
