Viessmann Vitotronic 300K GW6B Manuel utilisateur

Presentation title

Foil 1, 11/2014 © Viessmann Manufacturing

Vitotronic 300K GW6B

Vitotronic 300K MW2C

Touch Screen Controls

Presentation title

Foil 2, 11/2014 © Viessmann Manufacturing

Single Boiler operation.

OA reset with three Heating

circuits + DHW + Ext dmd.

Cascade + Master

Cascade control for up to 8

boilers.

OA reset with three Heating

circuits + DHW + Ext dmd.

Slave Boiler

Part of a Cascade system.

Application type is set in the Startup

Wizard.

Three Application Configurations

Vitotronic 300K GW6B for Vitocrossal 200 CM2

Note:

Menus in control may not appear

exactly as shown in this presentation.

Single Boiler

Cascade + Master

Slave

Presentation title

Foil 3, 11/2014 © Viessmann Manufacturing

Dedicated Cascade

Cascade control for up to 8

boilers.

OA reset with three Heating

circuits + DHW + Ext dmd.

Cascade Control

Vitotronic 300K MW2C for Vitodens 200

Note:

Menus in control may not appear

exactly as shown in this presentation.

Cascade

Presentation title

Foil 4, 11/2014 © Viessmann Manufacturing

The control incorporates a Startup Wizard which speeds up the commissioning process.

Language, Date & Time, Measuring Units and Basic Coding, can be set in the Wizard.

The GW6B can be configured as one of three different control applications so the option of choosing

the Application is also available.

Startup Wizard

Vitotronic 300K GW6B for Vitocrossal 200 CM2

Measuring units

Note:

Menus in control may not

appear exactly as shown in

this presentation.

Presentation title

Foil 5, 11/2014 © Viessmann Manufacturing

The control incorporates a Startup Wizard which speeds up the commissioning process.

Language, Date & Time, Measuring Units and Basic Coding, can be set in the Wizard.

Because the MW2C is a dedicated cascade it does not need the application option the GW6B

control does.

Startup Wizard

Vitotronic 300K MW2C Cascade Control

Measuring units

Note:

Menus in control may not

appear exactly as shown in

this presentation.

Presentation title

Foil 6, 11/2014 © Viessmann Manufacturing

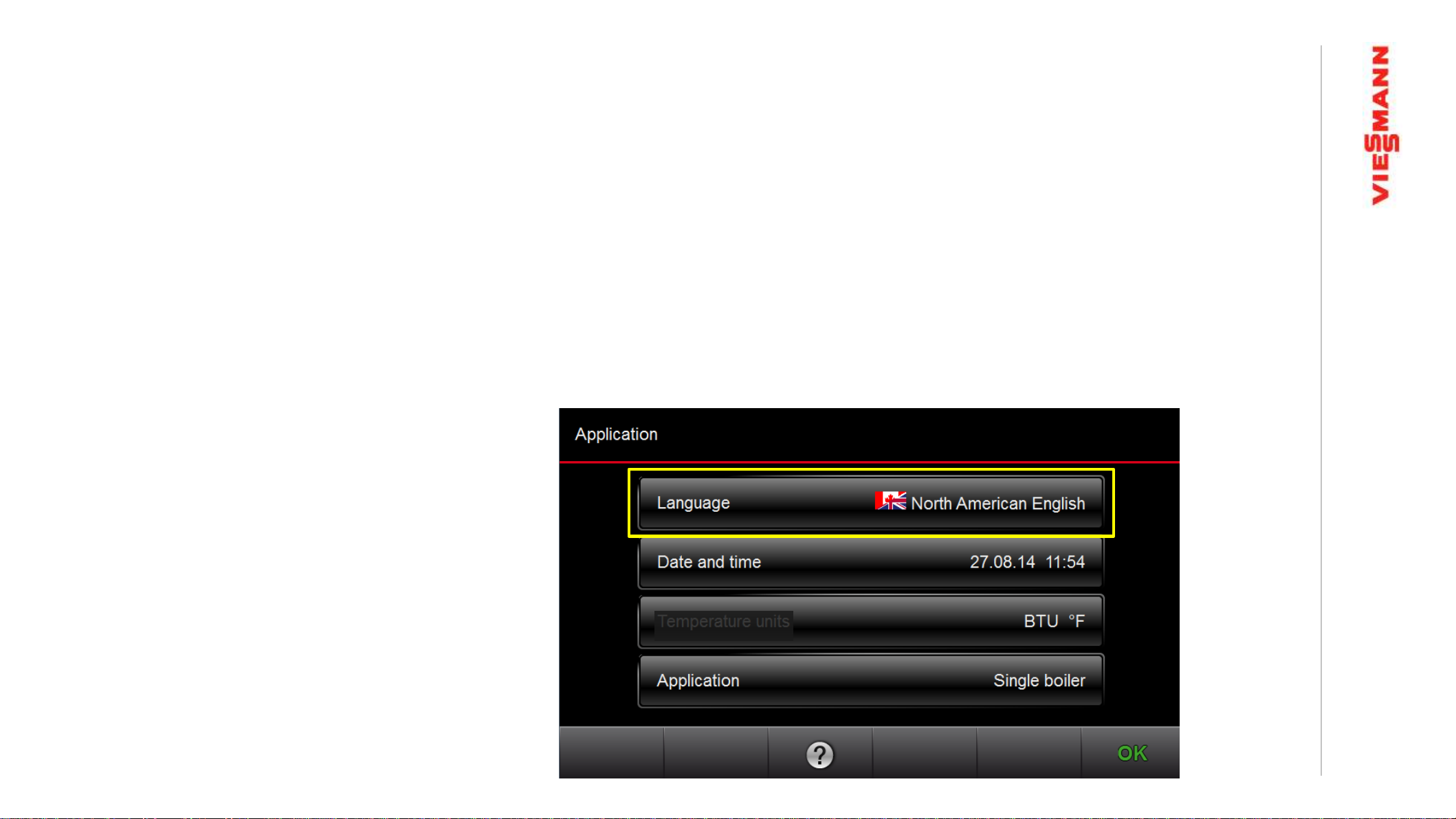

Tap Language to access the language selection screen.

Language Selection In The Startup Wizard.

Vitotronic 300K GW6B & MW2C

Measuring units

Presentation title

Foil 7, 11/2014 © Viessmann Manufacturing

The control now has:

NorthAmerican English option.

French Canadian French option.

Tap the desired language to select.

Tap OK to save the selection.

Language Selection In The Startup Wizard.

Vitotronic 300K GW6B & MW2C

Presentation title

Foil 8, 11/2014 © Viessmann Manufacturing

The Date and Time menu comes up in the Startup Wizard when the control is commissioned.

Tap “Date and time” to enter the date and time parameters.

Setting Date And Time In The Startup Wizard

Vitotronic 300K GW6B & MW2C

Measuring units

Presentation title

Foil 9, 11/2014 © Viessmann Manufacturing

Setting Date And Time

Vitotronic 300K GW6B & MW2C

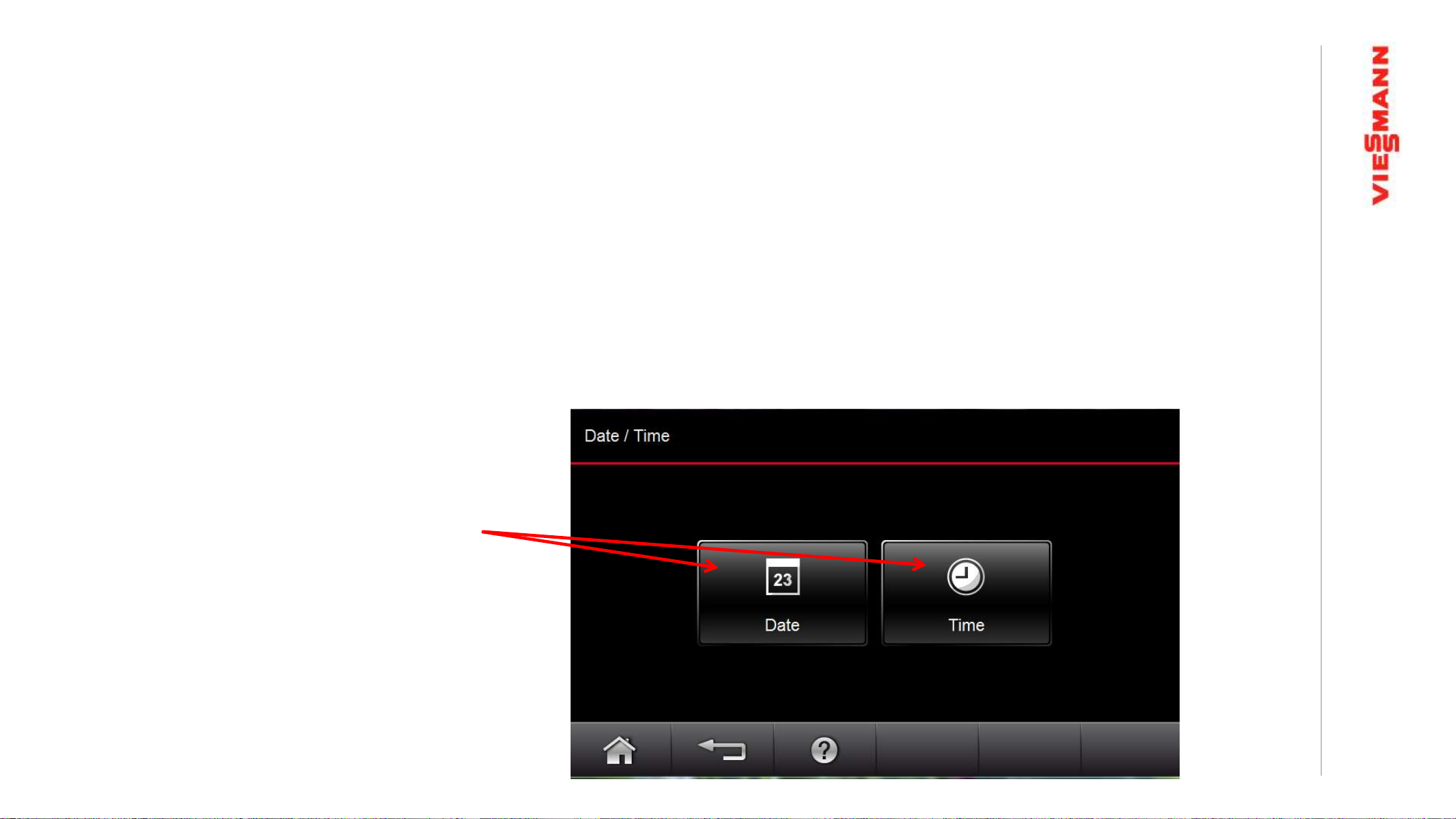

From the home screen tap the following icons:

1. “Menu”.

2. “Settings”.

3. “Date / Time”.

4. “Date” or “Time”.

Presentation title

Foil 10, 11/2014 © Viessmann Manufacturing

Setting Date And Time

Vitotronic 300K GW6B & MW2C

From the home screen tap the following icons:

1. “Menu”.

2. “Settings”.

3. “Date / Time”.

4. “Date” or “Time”.

5. Set the required

values.

6. Tap “OK” to confirm.
