VIESMANN
Service instructions
for contractors

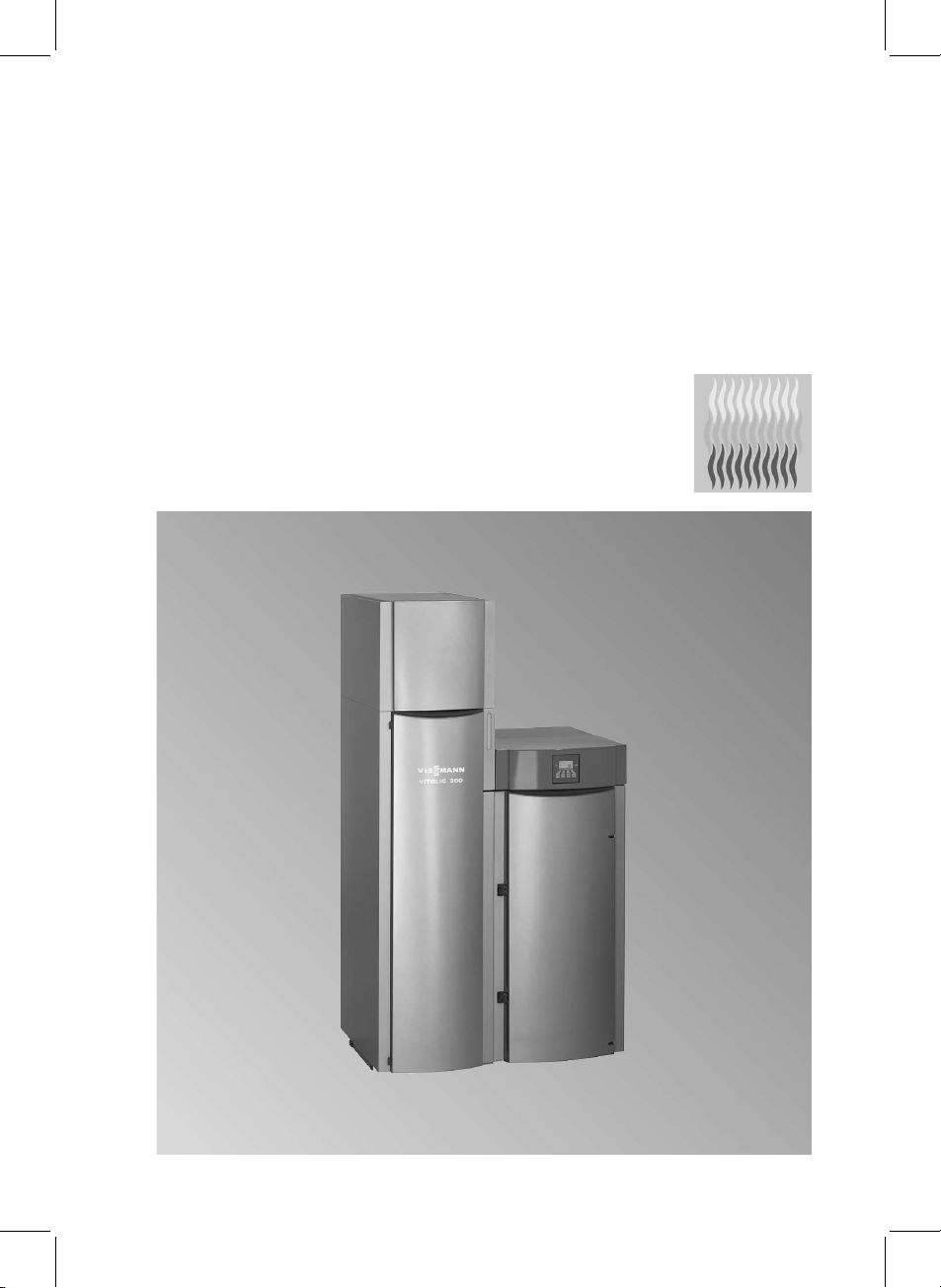

Vitolig 300
Type VL3A
Pellet boiler
VITOLIG 300
5692 618 GB 8/2005 Please keep safe.
Please follow these safety instructions closely to prevent accidents and
material losses.
Safety instructions explained
Danger
This symbol warns against the
risk of injury.
!Please note
This symbol warns against the
risk of material losses and
environmental pollution.
Note
Details identified by the word "Note"
contain additional information.
Target group
These instructions are exclusively
designed for qualified personnel.
&Work on gas equipment must only
be carried out by a qualified gas
engineer.
&Work on electrical equipment must
only be carried out by a qualified
electrician.
&The system must be commissioned
by the system installer or a qualified
person authorised by the installer.
Regulations
Observe the following when working
on this system
&all legal instructions regarding the
prevention of accidents,
&all legal instructions regarding
environmental protection,
&the Code of Practice of relevant
trade associations,
&all current safety regulations as
defined by DIN, EN, DVGW, TRGI,
TRF, VDE and all locally applicable
standards.
&
If you smell gas
Danger
Escaping gas can lead to
explosions which may lead to
serious injury.
&Never smoke. Prevent naked
flames and sparks. Never
switch lights or electrical
appliances ON or OFF.
&Close the gas shut‐off valve.
&Open windows and doors.
&Remove all people from the
danger zone.
&Notify your gas or electricity
supplier from outside the
building.
&Shut off the electricity supply
to the building from a safe
place (outside the building).
If you smell flue gas
Danger
Flue gas can lead to life‐threa-
tening poisoning.
&Shut down the heating sys-
tem.
&Ventilate the boiler room.
&Close all doors leading to the
living space.
Safety instructions
2
Safety instructions
5692 618 GB
Working on the system
&Isolate the system from the power
supply and check that it is no longer
'live', e.g. by removing a separate
fuse or by means of a mains isola-
tor.
&Safeguard the system against
unauthorised reconnection.
&When using gas as fuel, also close
the main gas shut‐off valve and
safeguard against unauthorised
reopening.
Repair work
!Please note
Repairing components which
fulfil a safety function can com-
promise the safe operation of
your heating system.
Replace faulty components
only with original Viessmann
spare parts.
Ancillary components, spare and
wearing parts
!Please note
Spare and wearing parts which
have not been tested together
with the heating system can
compromise its function. Instal-
ling non‐authorised compo-
nents and non‐approved
modifications or conversions
can compromise safety and
may invalidate our warranty.
For replacements, use only ori-
ginal spare parts from
Viessmann or those which are
approved by Viessmann.
Safety instructions (cont.)
3
Safety instructions
5692 618 GB
Commissioning and adjustment
Calling up the service level ......................................................................... 5
Changing parameters and calling up operating information.......................... 6
Commissioning........................................................................................... 8
Actuator test ............................................................................................... 8
Operating and service documents ............................................................... 9
Instructing the system user ......................................................................... 9
Inspection and maintenance
1. Shutting down the heating system ........................................................... 10
2. Combustion chamber .............................................................................. 10
3. Burner .................................................................................................... 12
4. Induced draught fan and secondary heating surface ............................... 13
5. Ash chamber, secondary heating surface ................................................ 14
6. Ash removal............................................................................................ 15
7. Pellet hopper .......................................................................................... 16
8. Boiler control .......................................................................................... 17
9. Water container of the back burning protection ........................................ 18
10. Changeover unit of the automatic charging system ................................ 19
11. Checking the diaphragm expansion vessel and system pressure ........... 19
12. Checking the function of the thermally activated safety valve ................. 20
13. Checking the mixer for obstructions and leaks ....................................... 20
14. Heating test .......................................................................................... 21
15. Checking the draught ............................................................................ 21
Troubleshooting
Fault messages .......................................................................................... 22
Repairs ...................................................................................................... 26
Connection and wiring diagrams ............................................................. 27
Parts lists
Parts list ..................................................................................................... 33
Commissioning/service reports ............................................................... 44
Specification............................................................................................. 45
Certificates
Declaration of conformity ............................................................................ 46
Keyword index .......................................................................................... 47
Index
4
Index
5692 618 GB
See also the operating instruc-
tions.
Calling up the service level
At the service level of the control unit, system parameters can be changed and
commissioning steps or actuator tests can be carried out.
For information regarding the menu controls, see the operating instructions.
1. Press "Menu". The display shows
"user level" and "service level".
2. With "V" or "v" select menu
option "service level" and confirm
with "select".
3. Hold down key "5 s" longer than
5 s. The display shows the sub-
options "Parameter", "Commis-
sioning" and "Actuator test".
4. With "V" or "v" select menu
option and confirm with "select".
5. Exit the menu with "back".
This will also occur automatically
after 45 s.
Index (cont.)
5
Commissioning and adjustment
5692 618 GB
1. In menu option "Parameter" high-
light the required sub-option with
"V" or "v" and confirm with
"select".
2. Change the required parameter
with "+" or "–".
3. Save the selected value with "yes".
The display briefly shows "Para-
meter value is being saved".
Under menu option "Parameter" you can adjust the following
parameters or call up information:
Number of burner starts
The present number of burner starts is
shown
Amount of fuel through the supply auger
The amount of fuel captured by the
combustion controller is displayed in
kg/h.
Hysteresis burner ON
Switching hysteresis for burner con-
trol.
Delivered condition: 5 K
Setting range: 0 to 20 K
Maximum value of the set temperature
Maximum set boiler water tempera-
ture in heating mode
Delivered condition: 75 °C
Setting range: 60 to 75 °C
Set temperature ext. heat demand
Set boiler water temperature in case
of external heat demand
Delivered condition: 75 °C
Setting range: 35 to 75 °C
Pellet supply
A pellet supply system must be
adjusted subject to the type of pellet
extraction from the storage room.
Delivered condition: without supply
system
Optional changes:
Changing parameters and calling up operating information
6
Commissioning and adjustment
5692 618 GB
&Suction turbine with 3 wands
&Suction turbine with 2 wands
&Suction turbine agitator
Runtime of the suction turbine
Set the runtime of the suction turbine
subject to the length of the supply line
and the head.
Delivered condition: 50 s
Setting range: 20 to 70 s
Required runtime of the suction turbine
Length of the
supply line in m
Suction head in m
0–2.8 2.8 –4.5 >4.5
5–10 40 s 50 s 60 s
10 –15 50 s 60 s —
15 –20 60 s — —
20 –25 70 s — —
Number of grate shakings
To remove the ash, the grate in the
burner pot is shaken by a motor in
specified intervals. The number of
shakes per event can be adjusted.
Rated output kW 9.9 and 15.0 21.0 and 25.9
Opera-
tion
Burnout Opera-
tion
Burnout
Delivered condition 20 40 20 30
Setting range 10 –30 15 –60 10 –30 15 –60
Ventilation air/extract air damper
The runtime of a connected ventila-
tion air or extract air damper can be
adjusted at the control unit.
Delivered condition: Control OFF, run-
time in seconds 300
Setting range: 0 to 600 s
Note
The selected runtime should be twice
as long as the actual damper runtime.
Changing parameters and calling up operating . . . (cont.)
7
Commissioning and adjustment
5692 618 GB
In menu option "Commissioning" high-
light the required sub-option with "V"
or "v" and confirm with "select".
The following functions can be adjusted under menu option
"Commissioning":
Supply auger
The supply auger is started for 6 min.
Supply
The supply and every wand is started
with a purging program subject to the
selected supply system.
Actuator test
In menu option "Actuator test" high-
light the required sub-option with "V"
or "v" and confirm with "select".
Note
The functions are respectively started
for 1 min. The control unit carries out
a self-test following the termination of
the actuator test.
The following functions can be con-
trolled:
&Induced draught fan
&Supply auger
&Grate shaking
&Ignition element
&Ash removal
&Heating surface cleaner
&Suction turbine
&Wand changeover
&Ventilation/extract air damper
Commissioning
8
Commissioning and adjustment
5692 618 GB
File all parts lists, operating and ser-
vice instructions in the folder and
hand this over to the system user.
Instructing the system user
The system installer must hand the
operating instructions to the system
user and instruct him/her in the opera-
tion of the system.
Operating and service documents
9
Commissioning and adjustment
5692 618 GB
!Please note
Hot gases can escape from the
combustion chamber.
Only open the combustion
chamber door when the system
ON/OFF switch has been
switched off.
Operating instructions
2. Combustion chamber
Note
Clean the boiler with a vacuum clea-
ner and the cleaning implements sup-
plied.
1. Shutting down the heating system
10
Inspection and maintenance
5692 618 GB
Ce manuel convient aux modèles suivants
1
Table des matières
Autres manuels Viessmann Chaudière
Viessmann
Viessmann Vitodens 200-W System Guide rapide
Viessmann
Viessmann VITOLADENS 300-W Guide rapide
Viessmann
Viessmann Vitodens 200-W System Guide de démarrage rapide
Viessmann
Viessmann Vitocrossal 200 CM2 400 Mode d'emploi
Viessmann
Viessmann KOB PYROT KRT SERIES Manuel d'instructions
Viessmann
Viessmann Vitoflex 300-RF Series Guide d'installation et d'utilisation
Viessmann
Viessmann VITOROND 100 VR1 Series Manuel d'instructions
Viessmann
Viessmann Vitodens 200-W B2HA series Manuel utilisateur
Viessmann
Viessmann VITOTRONIC 300-K Manuel utilisateur
Viessmann
Viessmann Vitodens 222-F Mode d'emploi
Viessmann
Viessmann B1KA Guide rapide
Viessmann
Viessmann Vitocrossal 300 CA3B Instructions d'installation
Viessmann
Viessmann VITOCONTROL-S, WB2B Manuel utilisateur
Viessmann
Viessmann Vitorond 100 Manuel utilisateur
Viessmann
Viessmann VITOCELL-H 100 Manuel d'instructions
Viessmann
Viessmann VITOLIGNO 300-C Guide rapide
Viessmann
Viessmann Vitomax HW Series Manuel de formation
Viessmann
Viessmann Vitodens 100-W Guide de l'utilisateur
Viessmann
Viessmann VITOGAS 050 Manuel d'instructions
Viessmann
Viessmann Vitodens 200-W WB2B Series Manuel utilisateur
Manuels Chaudière populaires d'autres marques
Vaillant
Vaillant uniSTOR VIH SW GB 500 BES Manuel utilisateur
Radijator
Radijator BIO max 23.1 Manuel utilisateur
Brunner
Brunner BSV 20 Manuel utilisateur
Buderus
Buderus Logamax GB062-24 KDE H V2 Manuel utilisateur
Potterton
Potterton 50e Fiche technique
UTICA BOILERS
UTICA BOILERS TriFire Manuel utilisateur
