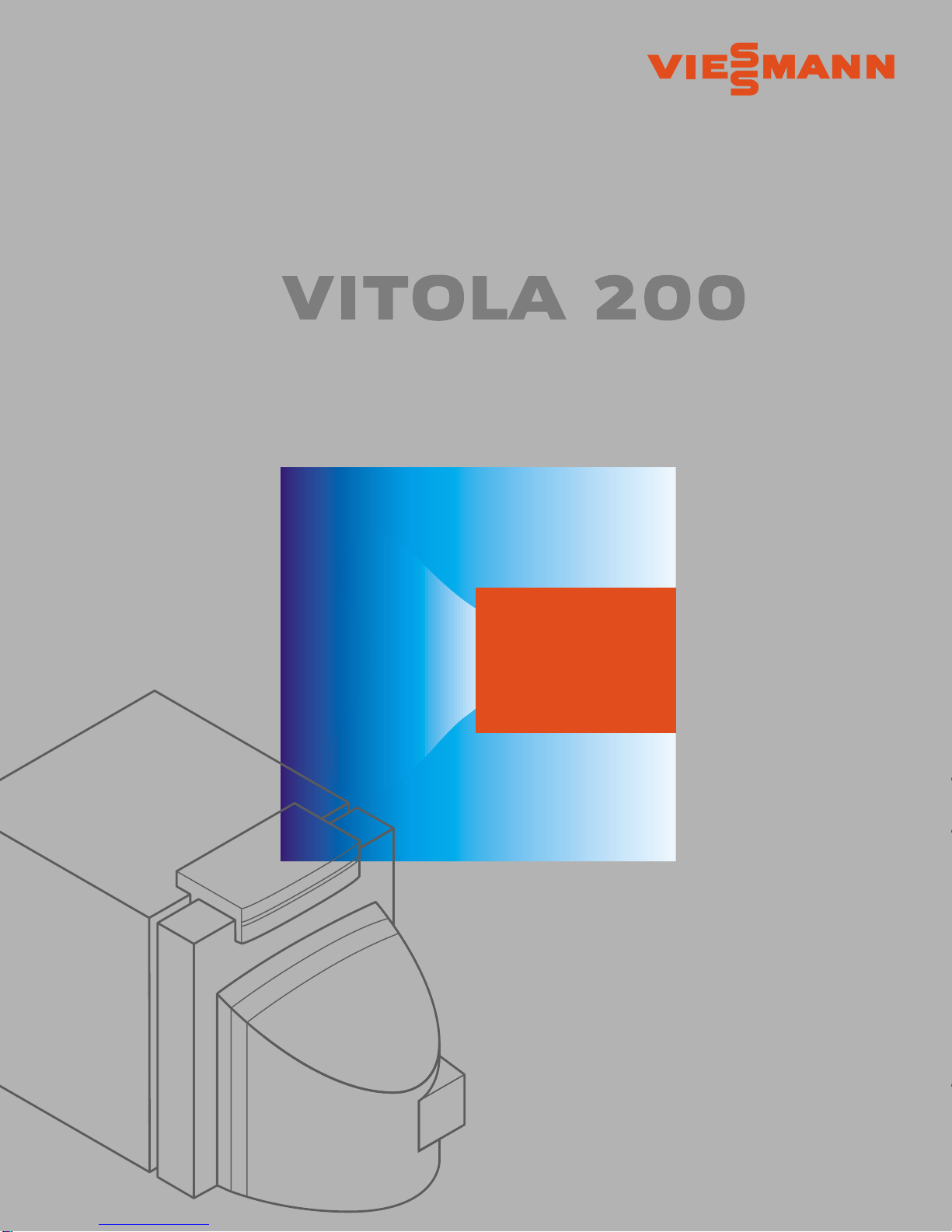

Viessmann Vitola 200 Manuel utilisateur

Oil-/Gas-fired hot water heating boiler

for modulating boiler water temperatures

Rated input: 83 to 300 MBH

Low temperature hot water heating boiler

with biferral sandwiched heat exchanger

surface

High quality and performance. The

double-wall, sandwiched heat

exchanger surface of the Vitola 200

represents a milestone in the history of

modern heating technology. The Vitola

200 combines user comfort and

convenience with economy – it even

switches off completely when no heat

is required.

The benefits at a glance:

■Biferral heat exchanger surface

of cast iron and steel for high

operational reliability and a long

service life.

■Clean combustion and clean

burnout of the flame through

optimized combustion chamber

geometry. Combustion chamber

made of stainless steel. Flue gas

temperature adjustable for oversized

chimneys.

■Meets the specifications of the

German “Blue Angel” environmental

certificate and Swiss clean air

regulations.

■Extremely economical and

environmentally friendly due to

modulating boiler water

temperatures; the boiler switches off

completely when no heat is required.

AFUE up to 87%.

■Reliable heat transfer due to wide

water walls and large water

content.

■All Viessmann burners are factory

tested at operating temperature and

matched to the rated boiler input,

facilitating adjustments and faster

start-up on site.

Oil-/Gas-fired hot water heating boiler

for modulating boiler water

temperatures without low limit

with biferral sandwiched heat exchanger

surface of cast iron and steel

Rated input: 83 to 300 MBH

5167 401 05/05 Printed in Canada

Biferral

sandwiched heat

exchanger surface

Vitotronic – the new generation of

controls: intelligent, easy to install,

operate and service

Vitola 200 boiler

with Viessmann

burner

Model VB2- 18 22 33 40 50 63

Rated input oil MBH 83 107 135 170 219 300

Rated input gas MBH 90 116 146 185 238 300

Total dimensions* Length inches 433⁄4461⁄4523⁄4531⁄4581⁄263

Width inches 251⁄4261⁄4271⁄2301⁄2301⁄2301⁄2

Height inches 323⁄4331⁄234 37 381⁄2381⁄2

Weight (incl. insulation) lbs 381 434 542 697 866 941

Boiler water content USG 18.5 23.2 31.2 37.0 52.6 59.0

Technical information subject to change without notice.

Low-emission

burner

Vitotronic 200

digital control

Biferral

sandwiched heat

exchanger surface

3” insulation

Oil-Fired

*Total dimensions with Viessmann Vitoflame 100 Burner installed. Dimensions may vary

depending on burner type. Refer to Technical Data Manual of burner for applicable dimensions.

Viessmann Manufacturing Company Inc.

750 McMurray Road

Waterloo, ON • N2V 2G5 • Canada

Tel.: (519) 885-6300 Fax: (519) 885-0887

www.viessmann.ca

Viessmann Manufacturing Company (U.S.) Inc.

45 Access Road

Warwick, RI • 02886 • U.S.A.

Tel.: (401) 732-0667 Fax: (401) 732-0590

www.viessmann-us.com

Burner may not be exactly as illustrated.
