Installation and service instructions

for contractors

VIESMANN

Vitocell 100-E/100-W

Type SVWA

Heating water buffer cylinder

VITOCELL 100-E/100-W

6150632 GB 3/2020 Please keep safe.

Please follow these safety instruc-

tions closely to prevent accidents

and material losses.

Safety instructions explained

Danger

This symbol warns against the risk

of injury.

!Please note

This symbol warns against the risk

of material losses and environmen-

tal pollution.

Note

Details identified by the word "Note"

contain additional information.

Target group

These instructions are exclusively inten-

ded for qualified contractors.

■Work on electrical equipment may only

be carried out by a qualified electrician.

■The system must be commissioned by

the system installer or a qualified per-

son authorised by the installer.

Regulations to be observed

■National installation regulations

■Statutory regulations for the prevention

of accidents

■Statutory regulations for environmental

protection

■Codes of practice of the relevant trade

associations

■Relevant country-specific safety regu-

lations

Working on the system

■Isolate the system from the power sup-

ply (e.g. by removing the separate fuse

or by means of a mains isolator) and

check that it is no longer live.

■Safeguard the system against recon-

nection.

!Please note

Electronic assemblies can be dam-

aged by electrostatic discharge.

Prior to commencing any work,

touch earthed objects such as heat-

ing or water pipes to discharge

static loads.

Danger

Hot surfaces can cause burns.

■Before maintenance and service

work, switch OFF the appliance

and let it cool down.

■Never touch the hot surfaces of

uninsulated pipes and fittings.

Safety instructions

6150632

Danger

Floors that are wet or damp with

water or glycol based liquids can

cause injury due to slipping and fall-

ing.

■Keep the floor clean and dry dur-

ing installation and maintenance

work.

■Wear non-slip shoes.

Danger

Broken-off fragments of insulation

material can cause death by suffo-

cation if inhaled or swallowed.

■Do not let children play in the

installation room.

■Keep the installation room clean

after installation and maintenance

work.

Repair work

!Please note

Repairing components that fulfil a

safety function can compromise the

safe operation of the system.

Replace faulty components only

with genuine Viessmann spare

parts.

Auxiliary components, spare and wearing parts

!Please note

Spare and wearing parts that have

not been tested together with the

system can compromise its func-

tion. Installing non-authorised com-

ponents and making non-approved

modifications or conversions can

compromise safety and may invalid-

ate our warranty.

For replacements, use only original

spare parts supplied or approved by

Viessmann.

Safety instructions

Safety instructions (cont.)

6150632

1. Information Disposal of packaging ............................................................................ 5

Symbols ................................................................................................. 5

Intended use .......................................................................................... 5

Product information ................................................................................ 6

■Vitocell 100-E/100-W, type SVWA ...................................................... 6

System examples .................................................................................. 6

Spare parts lists ..................................................................................... 6

2. Preparing for installation Unpacking and handling ........................................................................ 7

Connections ........................................................................................... 8

3. Installation sequence Cylinder installation ................................................................................ 9

■Cylinder incl. immersion heater .......................................................... 9

Connecting the equipotential bonding ................................................... 9

Fitting the cylinder temperature sensor and thermometer sensor (if

supplied) ................................................................................................ 10

4. Commissioning/service

reports

................................................................................................................ 11

5. Product characteristics ................................................................................................................ 12

6. Accessories Specification for immersion heater ........................................................ 13

7. Disposal Final decommissioning and disposal ..................................................... 14

8. Certificates Declaration of conformity ....................................................................... 15

Index

6150632

Please dispose of packaging waste in line with statu-

tory regulations.

Symbols

Symbol Meaning

Reference to other document containing

further information

Step in a diagram:

The numbers correspond to the order in

which the steps are carried out.

Warning of material losses and environ-

mental pollution

Live electrical area

Pay particular attention.

■Component must audibly click into place.

■Acoustic signal

■Fit new component.

■In conjunction with a tool: Clean the sur-

face.

Dispose of component correctly.

Dispose of component at a suitable collec-

tion point. Do not dispose of component in

domestic waste.

The steps in connection with commissioning, inspec-

tion and maintenance are found in the "Commission-

ing, inspection and maintenance" section and identified

as follows:

Symbol Meaning

Steps required during commissioning

Not required during commissioning

Steps required during inspection

Not required during inspection

Steps required during maintenance

Not required during maintenance

Intended use

The appliance is only intended to be installed and

operated in sealed unvented systems that comply with

EN 12828 / DIN 1988, or solar thermal systems that

comply with EN 12977, with due attention paid to the

associated installation, service and operating instruc-

tions. DHW cylinders are only designed to store and

heat water of potable water quality. Heating water buf-

fer cylinders are only designed to hold fill water of pot-

able water quality. Only operate solar collectors with

the heat transfer medium approved by the manufac-

turer.

Intended use presupposes that a fixed installation in

conjunction with permissible, system-specific compo-

nents has been carried out.

Commercial or industrial usage for a purpose other

than heating the building or DHW shall be deemed

inappropriate.

Any usage beyond this must be approved by the man-

ufacturer for the individual case.

Information

Disposal of packaging

6150632

Information

Incorrect usage or operation of the appliance (e.g. the

appliance being opened by the system user) is prohibi-

ted and results in an exclusion of liability.

Incorrect usage also occurs if the components in the

system are modified from their intended use (e.g.

through direct DHW heating in the collector).

Adhere to statutory regulations, especially concerning

the hygiene of potable water.

Product information

Vitocell 100-E/100-W, type SVWA

Steel cylinder for storing heating water in combination

with heat pumps and solid fuel boilers, with optional

electric heating (immersion heater)

Capacity: 200 l

Suitable for systems to EN 12828 and DIN 4753.

Vitocell 100-E: Vitosilver

Vitocell 100-W: White

System examples

Available system examples: See www.viessmann-

schemes.com.

Spare parts lists

Information about spare parts can be found at

www.viessmann.com/etapp or in the Viessmann

spare part app.

Information

Intended use (cont.)

6150632

Information

Fig. 1

Preparing for installation

Unpacking and handling

6150632

Service

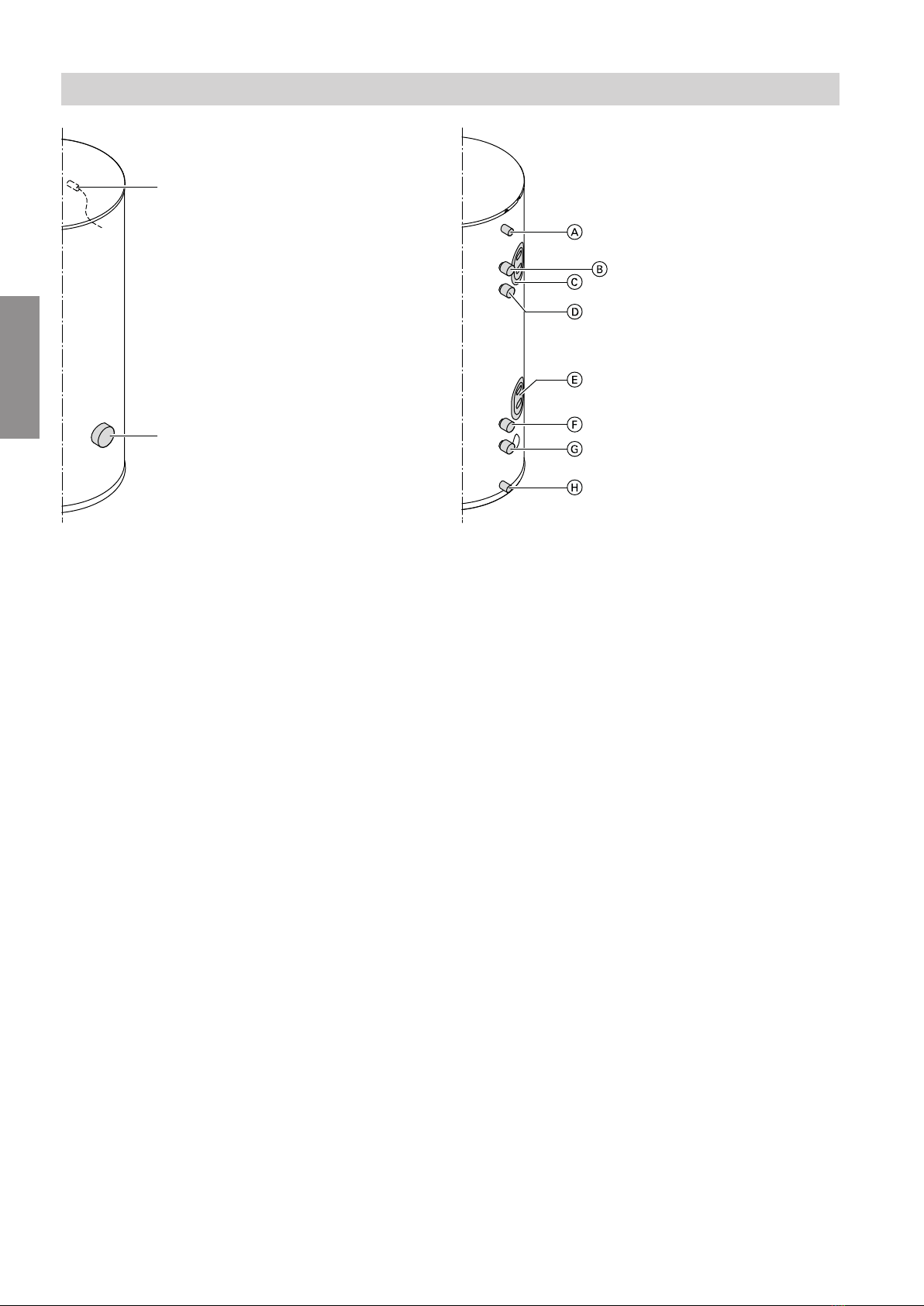

Fig. 2 Front

AThermometer sensor retainer

BFemale connection for immersion heater (EHE)

Fig. 3 Back cover

AAir vent valve (EL)

BHeating water flow 1 (HV1)

to the heating circuits

CClamping device 1 (SPR1)

for cylinder temperature sensor

DHeating water flow 2 (HV2)

from the heat generator

EClamping device 2 (SPR2)

for cylinder temperature sensor

FHeating water return 2 (HR2)

from the heating circuits

GHeating water return 1 (HR1)

to the heat generator

HDrain outlet (E)

Preparing for installation

Connections

6150632

Service

!Please note

The thermal insulation must not come into con-

tact with naked flames.

Exercise caution when welding and brazing

!Please note

To prevent material damage, install the buffer

cylinder in a draught-free room free from the risk

of frost.

Otherwise the buffer cylinder will have to be

drained if there is a risk of frost and it is not in

use.

■Provide adequate clearance from the wall so that the

thermostat can be operated (if supplied).

■Placing the cylinder on a plinth will make the room

easier to clean.

■Level the buffer cylinder with its adjustable feet.

Note

Only use one or two of the adjustable feet to level the

cylinder. At least one of the adjustable feet must

remain fully screwed in.

≤35

Fig. 4

Never extend the adjustable feet beyond a total length

of 35 mm.

Cylinder incl. immersion heater

650

Fig. 5

Installation instructions, immersion heater

Note

Maintain the minimum clearance.

Note

The unheated length of any threaded immersion

heater installed on site must be at least 100 mm.

Cylinder capacity: 200 l.

Immersion heater output: 6 kW.

Connecting the equipotential bonding

Connect the equipotential bonding in accordance with

the requirements stipulated by your local power supply

utility and VDE [or local] regulations.

CH: Connect the equipotential bonding in accordance

with the requirements stipulated by your local power

supply utility and current SEV [or local] regulations.

Installation sequence

Cylinder installation

6150632

Installation

Fig. 6

ARecess for thermometer cable

Note

The cylinder temperature sensor is supplied in the control unit pack.

01. Insert the cylinder temperature sensor as far as it

will go into the opening of the clamping device.

02. Hand-tighten the cylinder temperature sensor with

the screw provided.

Note

Hold the cylinder temperature sensor in place in

the sensor terminal until the screw is screwed in.

!Please note

Overtightening the fixing screw may dam-

age the cylinder temperature sensor.

Torque: Max. 2 Nm

03. Remove the top cover.

04. Clamp the thermometer sensor in the clamping

bracket.

05. Guide the thermometer cable through the groove

in the thermal insulation and the hole in the sheet

steel casing.

06. Secure the thermometer (accessory) to the wall.

Installation instructions for wall thermometer

07. Refit the top cover.

Note

The recess A in the top cover is intended for the

thermometer cable.

08. For heating water flow temperatures in excess of

95 ºC, remove the pipe collars from the pipe out-

lets (pipe collars have l.h. threads).

09. If no immersion heater is being installed, seal the

front female connection with the plug supplied and

fit the cover.

10. Affix supplied type plate to the back of the cylin-

der.

Installation sequence

Fitting the cylinder temperature sensor and thermometer sensor (if supplied)

6150632

Installation

Autres manuels pour VITOCELL 100-V

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Viessmann Chaudière

Viessmann

Viessmann Vitocrossal 300 Series Manuel d'instructions

Viessmann

Viessmann Vitola 200 Manuel utilisateur

Viessmann

Viessmann VITOCELL 300B Manuel d'instructions

Viessmann

Viessmann VITOROND 200 Manuel d'instructions

Viessmann

Viessmann Vitocaldens 222-F Manuel utilisateur

Viessmann

Viessmann VITOROND 200 Type VD2 Manuel d'instructions

Viessmann

Viessmann VITOROND 200 Manuel d'instructions

Viessmann

Viessmann Vitodens 222-F B2TB Guide de l'utilisateur

Viessmann

Viessmann VITOLADENS 300-W Guide rapide

Viessmann

Viessmann Vitodens 100-W B1HF Series Guide rapide

Viessmann

Viessmann Vitodens 100 WB1A Guide rapide

Viessmann

Viessmann VITOCROSSAL 300 Mode d'emploi

Viessmann

Viessmann VITOFLEX 300-UF Manuel utilisateur

Viessmann

Viessmann VITOCELL-H 100 Manuel d'instructions

Viessmann

Viessmann Vitodens 200-W System Guide rapide

Viessmann

Viessmann Vitoladens 300-C Mode d'emploi

Viessmann

Viessmann VITODENS 200 WB2 Series Mode d’emploi

Viessmann

Viessmann Vitorond 200 Series Manuel utilisateur

Viessmann

Viessmann Vitodens 200-W System Mode d'emploi

Viessmann

Viessmann ECV Series Guide rapide

Viessmann

Viessmann VITOCROSSAL 300 Manuel utilisateur

Viessmann

Viessmann VITOCROSSAL 300 Mode d'emploi

Viessmann

Viessmann VITOCELL-V 100 Manuel utilisateur

Viessmann

Viessmann VITOCROSSAL 200 Manuel utilisateur

Manuels Chaudière populaires d'autres marques

Vaillant

Vaillant uniSTOR VIH SW GB 500 BES Manuel utilisateur

Radijator

Radijator BIO max 23.1 Manuel utilisateur

Brunner

Brunner BSV 20 Manuel utilisateur

Buderus

Buderus Logamax GB062-24 KDE H V2 Manuel utilisateur

Potterton

Potterton 50e Fiche technique

UTICA BOILERS

UTICA BOILERS TriFire Manuel utilisateur

Joannes

Joannes LADY Series Manuel

ECR International

ECR International UB90-125 Manuel d'instructions

Froling

Froling FHG Turbo 3000 Manuel utilisateur

Froling

Froling P4 Pellet 8 - 105 Manuel utilisateur

U.S. Boiler Company

U.S. Boiler Company K2 Manuel utilisateur

Henrad

Henrad C95 FF Manuel utilisateur

NeOvo

NeOvo EcoNox EF 36 Manuel utilisateur

Potterton

Potterton PROMAX SL 12 Manuel utilisateur

Eco Hometec

Eco Hometec EC 25 COMPACT Manuel utilisateur

Baxi

Baxi Prime 1.24 Manuel utilisateur

REXNOVA

REXNOVA ISA 20 BITHERMAL Manuel utilisateur

Radiant

Radiant R2K 55 Manuel
