Videology 24C708AF Manuel utilisateur

Doc # INS-SFT15003

Issue Date: 04/09/2015

Revision: 2.1.0.0 Preliminary

Page 1 of 9

Prior to Using This Document: Videology reserves the right to modify the information in this

document as necessary and without notice. It is the user’s responsibility to be certain they possess the

most recent version of this document by going to www.videologyinc.com, searching for the model

number, and comparing revision letters on the respective document, located in the document’s footer.

For technical assistance with this product, please contact the supplier from whom the product was

purchased.

Videology Imaging Solutions, Inc. USA

Videology Imaging Solutions, B.V. Europe

37M Lark Industrial Parkway

Greenville, RI 02828

Tel: 401-949-5332

Fax: 401-949-5276

www.videologyinc.com

Neutronenlaan 4

NL-5405 NH Uden, Netherlands

Tel: +31 (0) 413-256261

Fax: +31 (0) 413-251712

www.videology.nl

5MP Camera with Flash

Instruction Manual

24C708AF

SFT-15003 Rev 2.1.0.0

Preliminary

IMAGING SOLUTIONS INC.

Original Equipment Manufacturer

Doc # INS-SFT15003

Issue Date: 04/09/2015

Revision: 2.1.0.0 Preliminary

Page 2 of 9

Table of Contents

1. Document History....................................................................................................................3

2. About the Camera ...................................................................................................................3

3. Specifications..........................................................................................................................3

3.1. Flash Support ...................................................................................................................4

3.2. Still Image Capture ...........................................................................................................4

3.3. Camera / Flash .................................................................................................................4

4. Demonstration Viewer Installation .............................................................................................5

5. Contact Information.................................................................................................................9

Doc # INS-SFT15003

Issue Date: 04/09/2015

Revision: 2.1.0.0 Preliminary

Page 3 of 9

1. Document History

2. About the Camera

The 24C7085AF is an UVC compliant, robust, high resolution (up to 5 MP), USB, and autofocus camera

ideally suited to Photo ID Badging applications.

The camera (and flash unit) are powered directly from the USB port of the computer and no external

power supply is required.

The camera supports both raw and compressed video output.

3. Specifications

Image Sensor Size

1/4"

Video Output

USB 2.0

Compression

MJPEG / JPEG

Data Format

YUV 422

Resolution / Frame rate

Resolution

Frame Rate

2592x1944

2.5

2048x1536

2.5

1920x1080

1600x1200

1280x720

7.5

1024x768

800 x 600

640x 480

352x288

320x240

Image Control Functions

Exposure

Auto/ Manual

Focus

Auto (push to Focus)/ Manual

White Balance

Auto/ Manual

Brightness

via UVC Interface

Contrast

via UVC Interface

Hue

via UVC Interface

Saturation

via UVC Interface

Backlight Compensation

via UVC Interface

Power Requirements

Supply Voltage

5V DC (VIA USB)

Power Consumption

750 mW

Revision

Issue Date

Reason

CN#

Rev

2.1.0.0

07-01-13

Initial release

15-0003

Doc # INS-SFT15003

Issue Date: 04/09/2015

Revision: 2.1.0.0 Preliminary

Page 4 of 9

3.1. Flash Support

The camera supports one or two Videology LED Flash units.

The flash units are powered from the USB camera

3.2. Still Image Capture

The camera supports a single image "snapshot" mode with optional JPEG compression.

The resolution of the still image is user definable.

3.3. Camera / Flash

The camera is fully UVC compliant and all basic camera controls can be accessed via the standard UVC

command protocol.

However, automatic Flash control is NOT part included as part of the standard UVC interface.

To overcome this problem, the 24C708AF, includes an internal processor that automatically detects when

a snapshot command has been issued, and triggers the flash at the appropriate time.

Some applications however do not issue a snapshot command to the camera, and in this case, the

application needs to be modified to include the necessary flash control commands.

This and other control features are included in an SDK (part Number SFT15003-SDK) which is available by

request from Videology.

The full capabilities of the camera can be demonstrated using the simple viewer application provided.

Doc # INS-SFT15003

Issue Date: 04/09/2015

Revision: 2.1.0.0 Preliminary

Page 5 of 9

4. Demonstration Viewer Installation

The 24C708AF is shipped with a simple demonstration viewer application that can be installed by running

the "setup.msi" file found in the accompanying CD.

If the camera is to be used with a third party application, there is no need to install the Videology

software.

Insert CD into PC. If the disc does not autorun, open folder and double click setup.msi to start the

install process.

Select “Next”.

Doc # INS-SFT15003

Issue Date: 04/09/2015

Revision: 2.1.0.0 Preliminary

Page 6 of 9

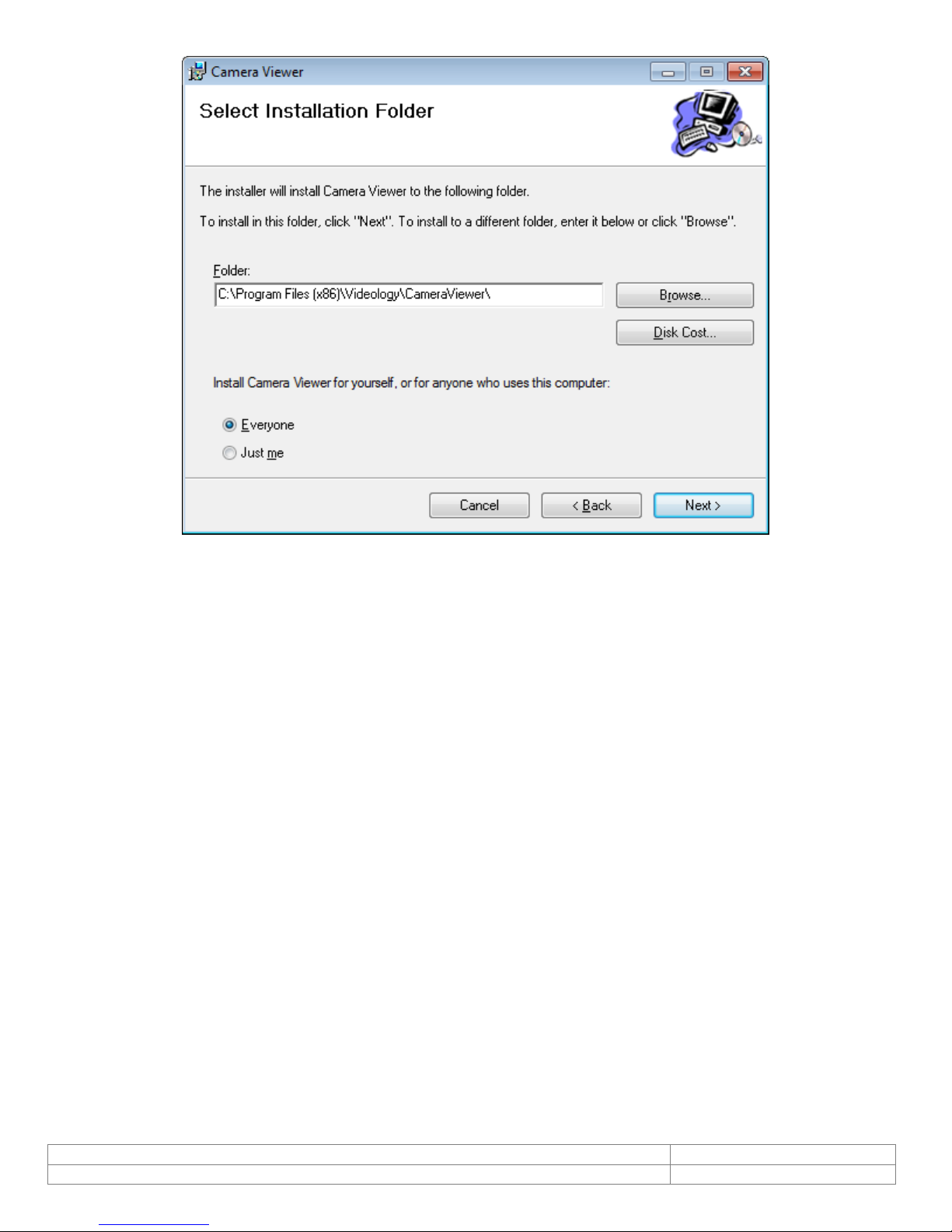

Pick the file directory you would like to install Videology software.

The default folder is C:\Program Files (x86)\Videology\CameraViewer\

You also have an option to install for everyone or just the user currently logged in.

Choose Everyone and click “Next”

Doc # INS-SFT15003

Issue Date: 04/09/2015

Revision: 2.1.0.0 Preliminary

Page 7 of 9

Select “Next” to continue. Another progress window will show status of install.

Doc # INS-SFT15003

Issue Date: 04/09/2015

Revision: 2.1.0.0 Preliminary

Page 8 of 9

Once complete, a window will display that the 5MP Camera Viewer has sucessfully been installed.

Select “Close” to finalize the installation.

The USB camera can now be connected to the camera.

Doc # INS-SFT15003

Issue Date: 04/09/2015

Revision: 2.1.0.0 Preliminary

Page 9 of 9

5. Contact Information

For technical assistance with this product, please contact the supplier from whom the product

was purchased.

For OEM inquiries, contact Videology Imaging Solutions:

North / South America:

Europe:

Videology Imaging Solutions Inc.

37M Lark Industrial Parkway

Greenville, RI 02828

USA

Tel: (401) 949-5332

Fax: (401) 949-5276

Videology Imaging Solutions Europe

Neutronenlaan 4

NL-5405 NH Uden,

Netherlands

Tel: +31 (0) 413 256 261

Fax: +31 (0) 413 251 712

Please visit our website at: http://www.videologyinc.com

VIDEOLOGY IMAGING SOLUTIONS is an ISO 9001 registered video camera developer and

manufacturer serving industrial, machine vision, biometric, security, and specialty OEM markets.

Videology designs, develops, manufactures, and distributes video, image acquisition, and display

technologies and products to OEMs worldwide.
