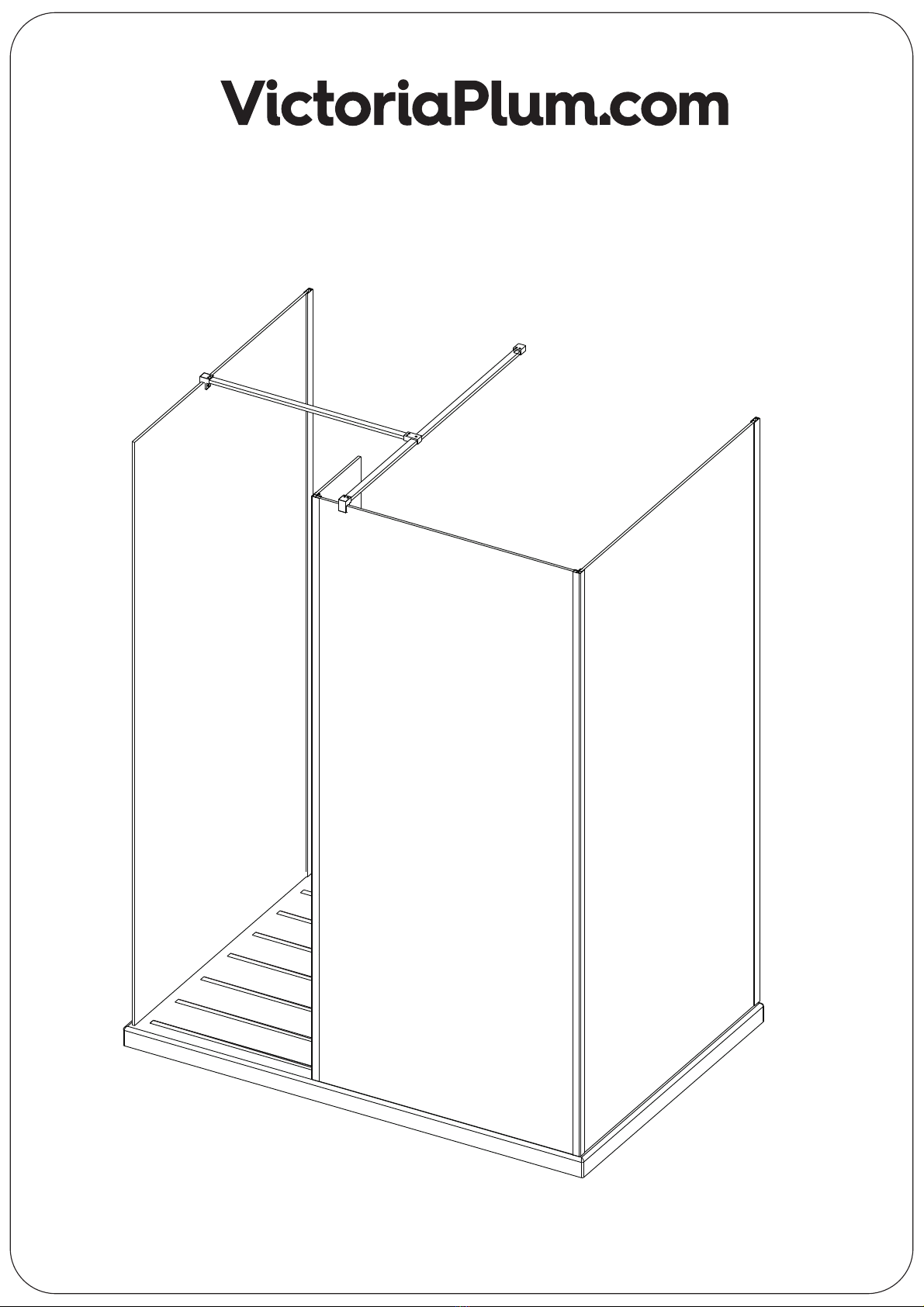

ASSEMBLY INSTRUCTIONS
8mm Wet Room / Walk In
V02/09/2015
BEFORE YOU START, HERE IS SOME IMPORTANT INFORMATION
1) General Information
2) Additional Notes
Please inspect this product upon delivery. any missing parts or manufacturing
defects must be reported immediately to the supplier. Damage or defects reported
later will not be accepted. TAKE CARE WHEN HANDLING GLASS PARTS-AVOID
HEAVY CONTACT BETWEEN THE GLASS EDGES AND ANY HARD SURFACE.
Glass breakage claims will not be accepted after the product has been unpacked.
Please note: Aluminium is a soft metal, and undergoes a series of extrusion.
fabrication, polishing and anodising processes in order to create your finished
shower enclosure. Some light surface marks are normal, and is a result of the
manufacturing processes. Quality control has ensured that this item is of a good
standard, and is fit for purpose.
Please read these instructions carefully before starting installation.
Special care should be taken when drilling walls to avoid hidden pipes or electrical cables.
Note: this product is heavy and may require two people to install.

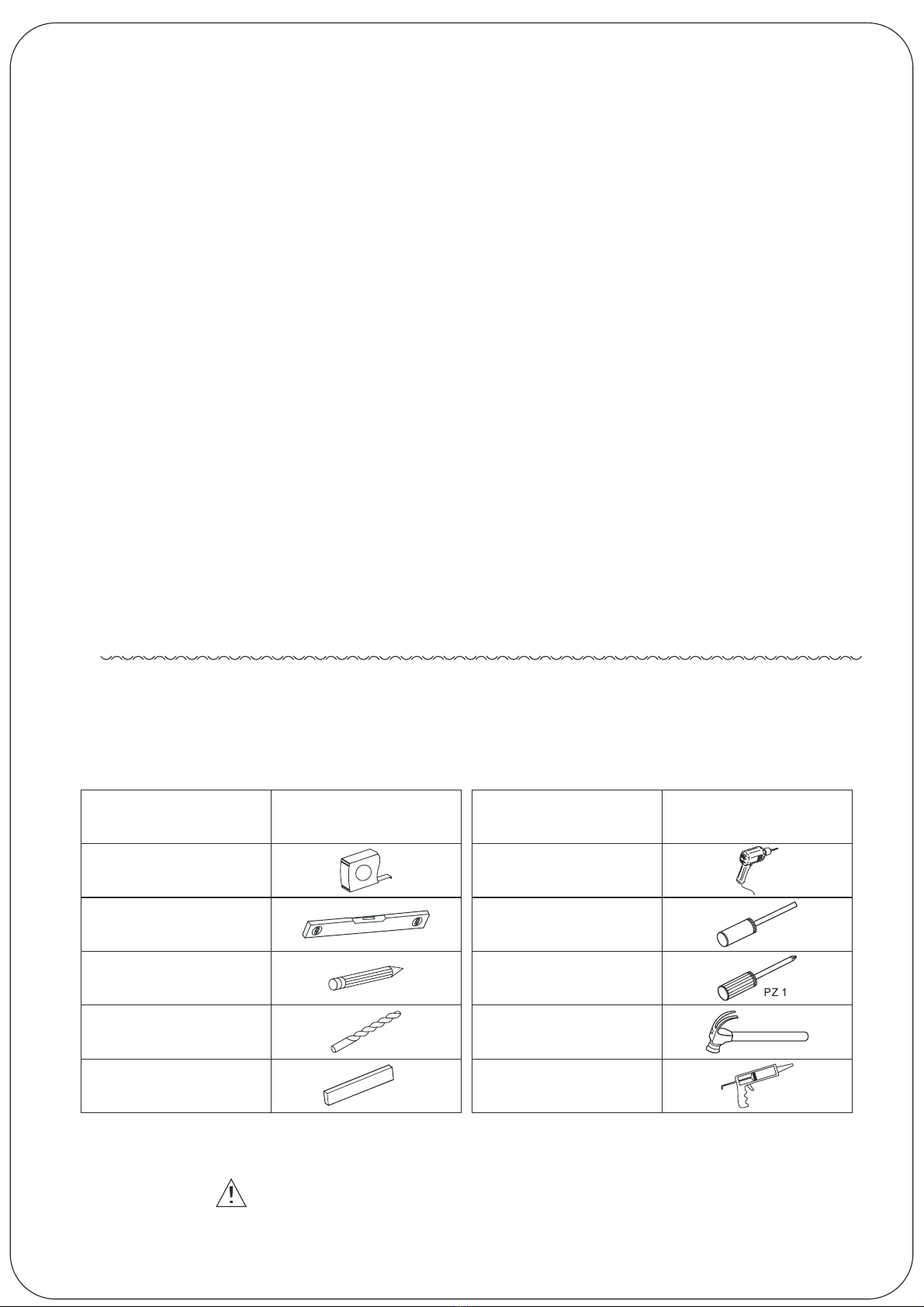

TOOLS REQUIRED
This product is heavy and may require two people to install.
Ø6mm Drill bit
Pencil
Spirit level
Tape measure
DESCRIPTION DESCRIPTIONPART IMAGE PART IMAGE
Drill
Flat-head
Screwdriver
Cross head
Screwdriver
Hammer
Silicone Sealant
1
Wedge Seal Tool
(Supplied with Pack1 glass packs)
1
3
ASSEMBLY INSTRUCTIONS
If you require help, we advise you to contact a competent plumber
Installation Steps

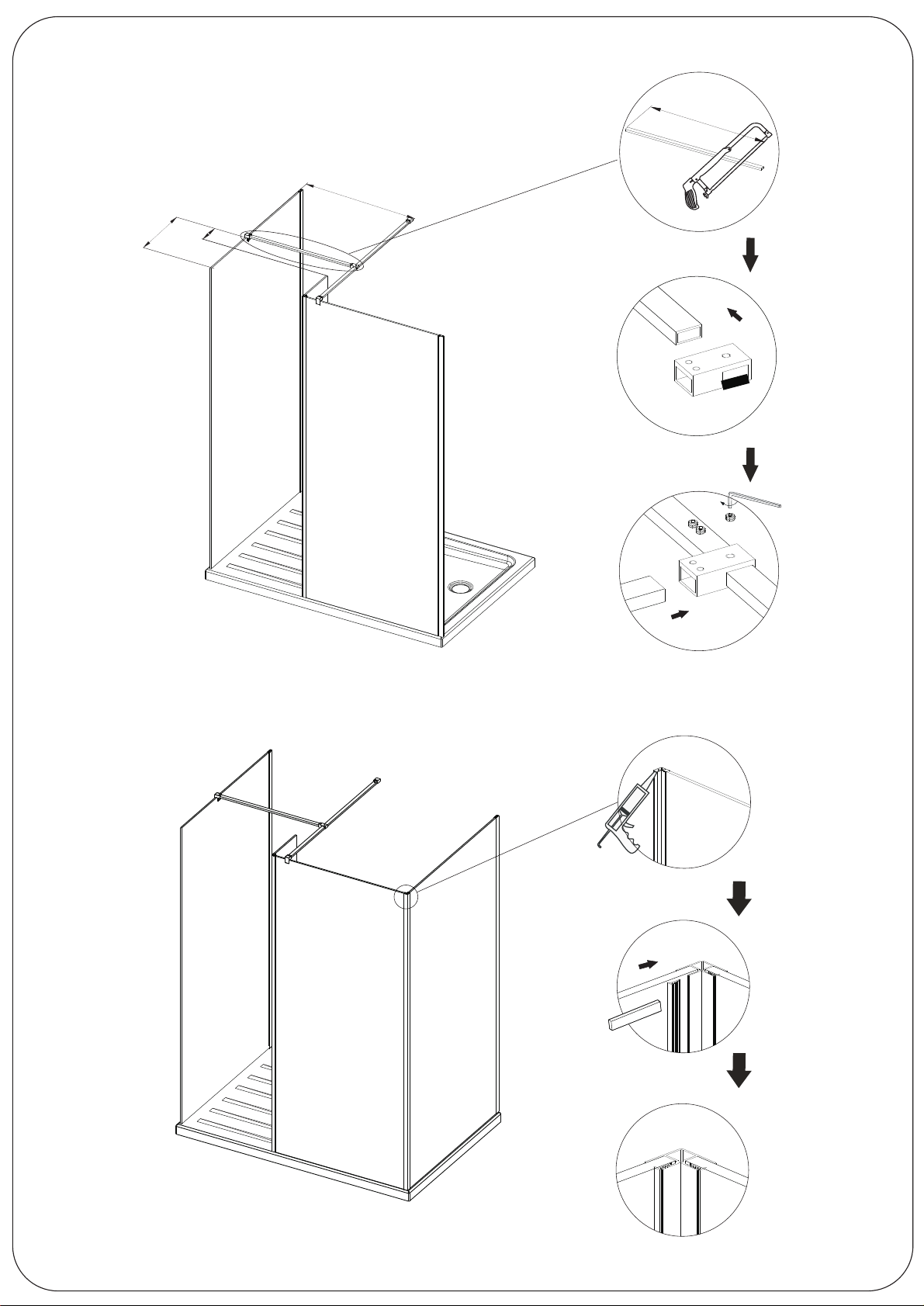

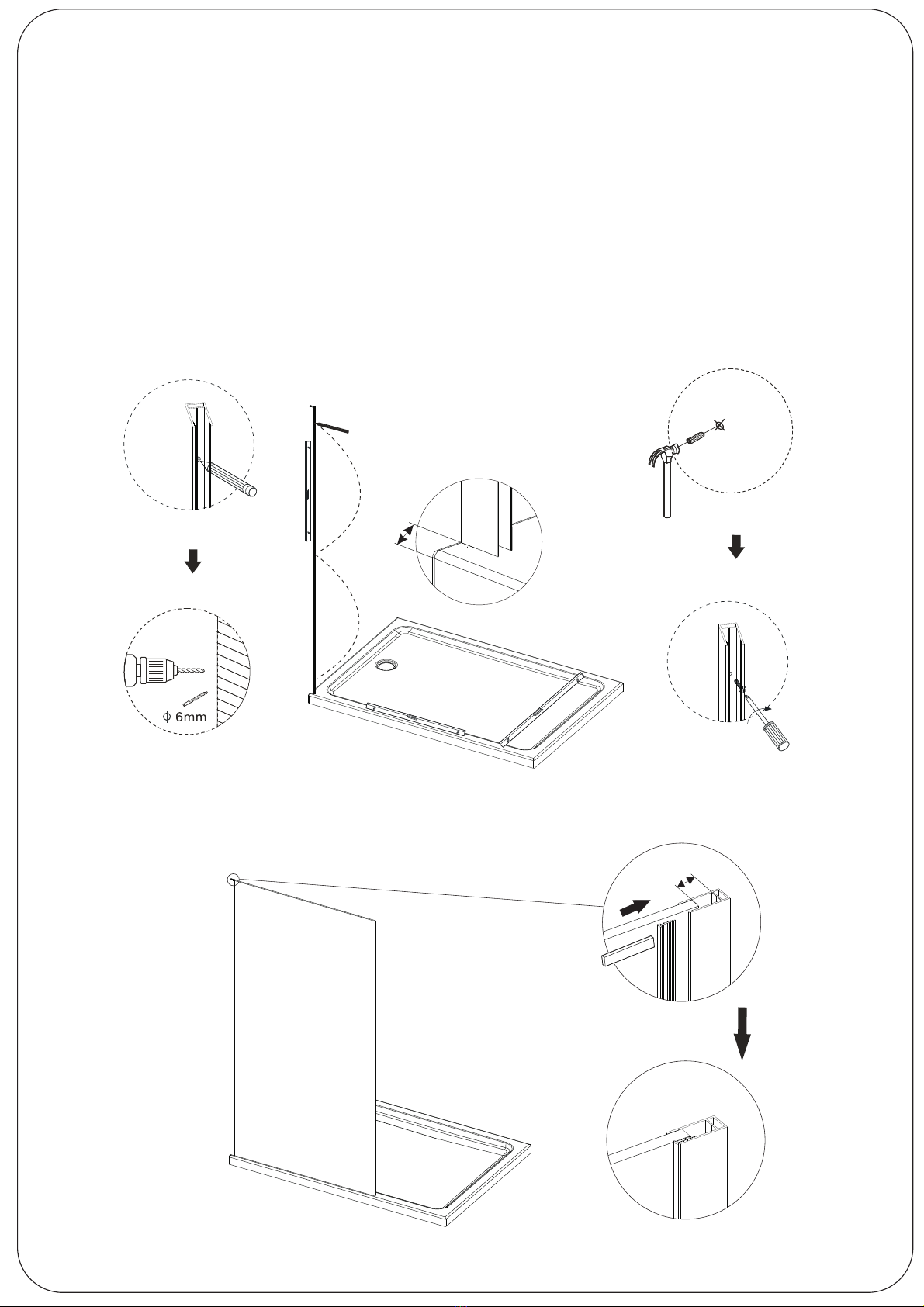

Step 1 - INSTALLING FRONT PANEL
15mm
x3
1A
1B
1C 1E
Step 2
MAKE SURE THE TRAY IS LEVEL, USING A SPIRIT LEVEL, BEFORE INSTALLING THIS
SHOWER PANEL / DOORTHIS. PRODUCT CAN ALSO BE INSTALLED DIRECTLY ONTO
15mm MAXIMUM
ADJUS TMENT
A WET ROOM FLOOR
1D
2

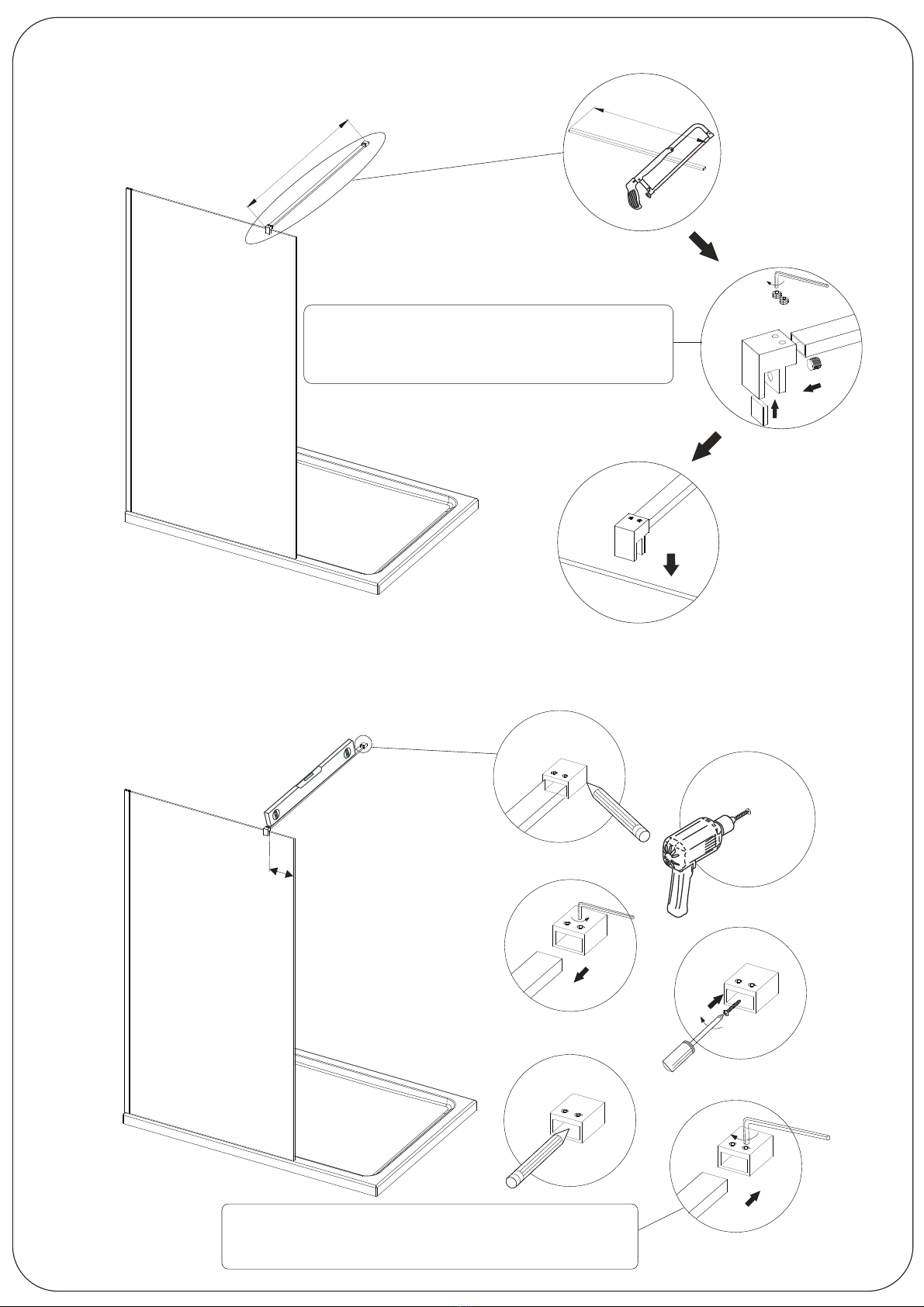

Step 3
Step 4
4B
4
150mm
4A
4C
4D
Ø6.0mm
4E
4F
L
3B
3C
L-10mm
3A
L=DISTANCE FROM WALL TO FRONT OF GLASS
ENSURE BAR IS FULLY PUSHED INTO GLASS CLAMP BEFORE
ALLEN KEY
TIGHTENING GRUB SCREWS. ONCE SCREWS NIPPED TO
HAND TIGHT THEN TIGHTEN BY 1-1.5 FULL TURNS OF THE
ENSURE BAR IS FULLY PUSHED INTO WALL BRACKET BEFORE
TIGHTENING GRUB SCREWS. ONCE SCREWS NIPPED TO
HAND TIGHT THEN TIGHTEN BY 1-1.5 FULL TURNS OF THE
ALLEN KEY
3
Step 5

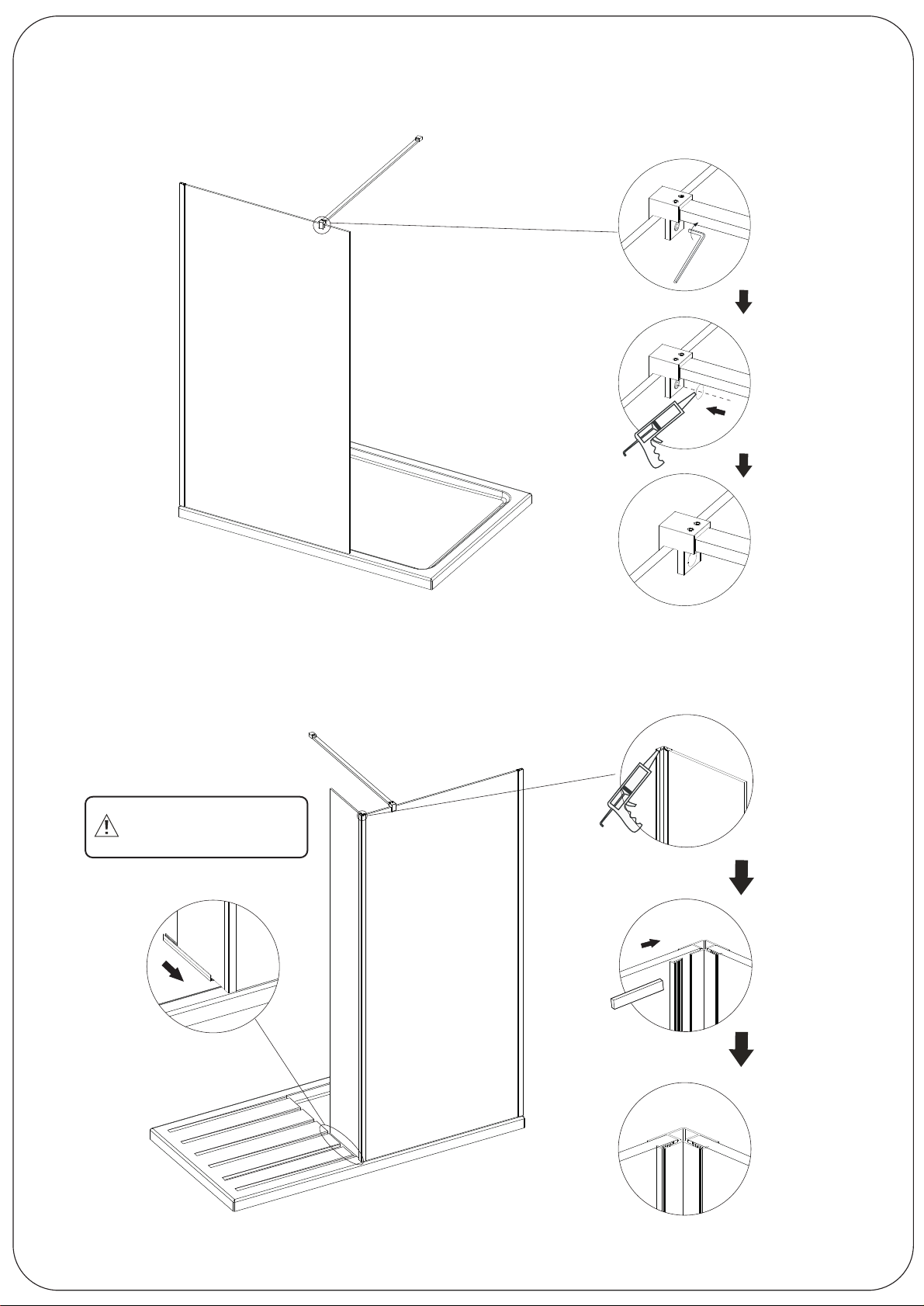

Step 6 - INSTALLING RETURN PANEL
5
5A
5B
5C
6A
6B
6C
6D
Cut the bottom spacer seal down
if it is too long for your application.
Not required when fitted directly
to a wetroom floor.
4
Step 7 - CONNECTING SIDE PANEL TO FRONT PANEL
Step 8 - CONNECTING FRONT PANEL TO SIDE PANEL USING CORNER POST
6
L
L-32mm
7A
7B
7C
L=DISTANCE OF OUTSIDE EDGES
200- 300mm FROM FRONT
IF NO RETUR N PANEL
100m m IF FIXED W ITH
RETURN PANEL
8A
8B
8C
5

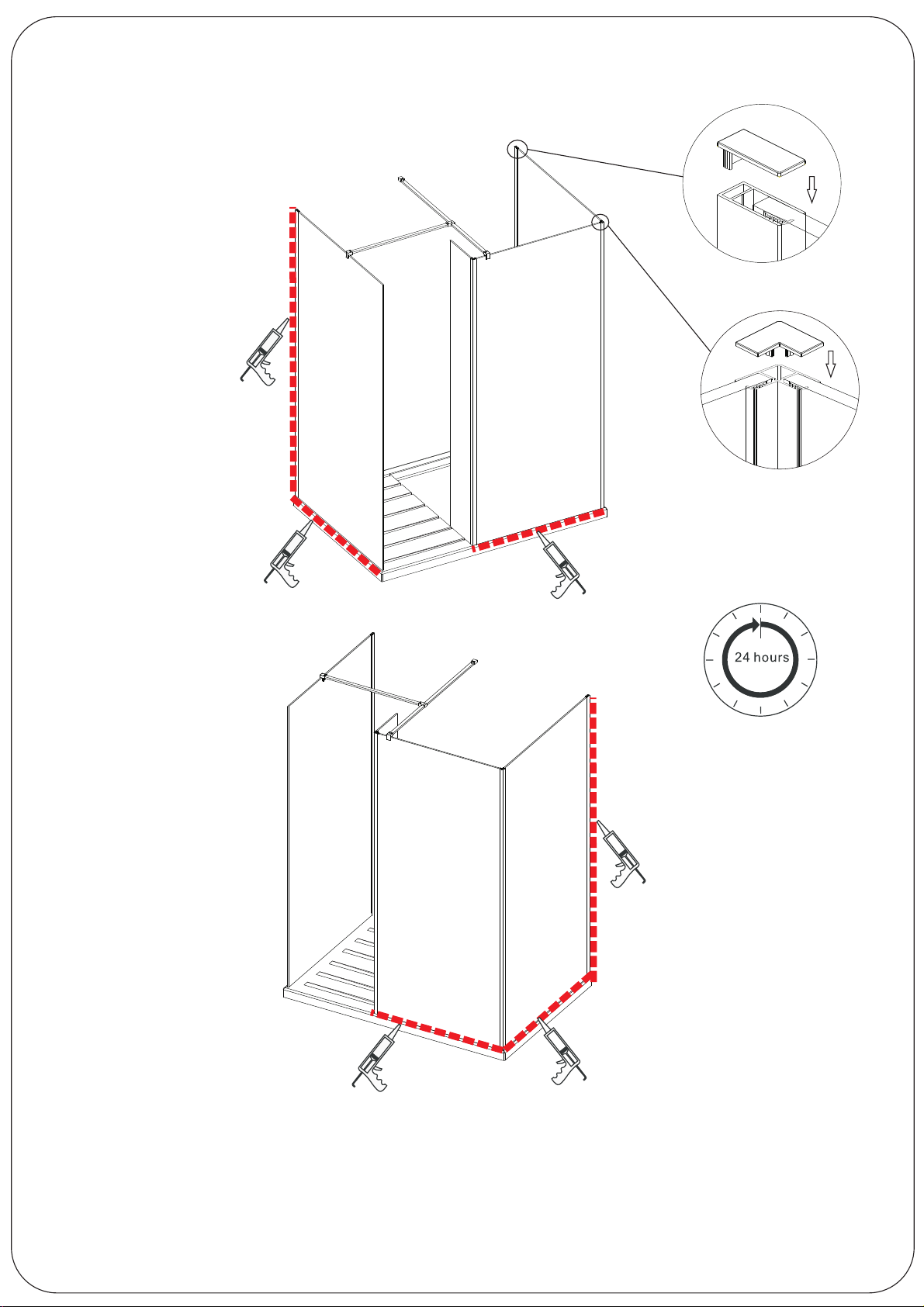

Step 9
7
Silicone (outside edge only) where the
vertical profiles meet the wall, and the
glass panels sit on the tray.
6
8
CARE AND MAINTENANCE
COMMITMENT TO QUALITY
1) AFTER CARE INSTRUCTIONS
2) MAINTENANCE
Regularly clean your shower product with warm soapy water
Clean the plastic parts with a cloth and mild detergent. Never
use any abrasive creams, dissolvents, acetone or detergents
and disinfectants that contain chlorine. The supplier accepts
no liability for any type of use of care other than those contained
in these instructions. The supplier reserves the right to introduce
technical changes without notice.
It is our intention that the quality and functions of this product
are of the highest standard. If you require help we advise you
firstly contact a competent plumber. However we understand that
this may not always be the case, so should you experience
any problems please contact out customer services quoting
the following:
Product name: 8mm Wet Room / Walk In
Product code: V8SUPP V8TCON V8SWP4003 V8SWC08 V8SWC09 V8SWC10
Customer help line number:0344 804 48 48
to prevent lime scale build up. Do not use abrasive cleaning
fluids or materials, or strong chemical cleaners as this will
damage the product surface.
V8SWC11 V8SWC12 V8SWG0419 V8SWG0719 V8SWG0819
V8SWG0919 V8SWG01019 V8SWG01119 V8SWG01219
7
INSTALLERS NOTES
9
8
INSTALLERS NOTES
10
9
