Vicoustic VicFix Frame 3x1 Guide de référence

VicFix Frame 3x1

INSTALLATION PROCEDURES

Required Apparatus:

VicFix Frame 3x1 Items:

2 x Wood Part (160cm)

6 x Wood Part (40cm)

4 x Triangular Part

6 x Metal Spike Part

Accessories

12 x Screws (3x20 Philips Head)

8 x Nails

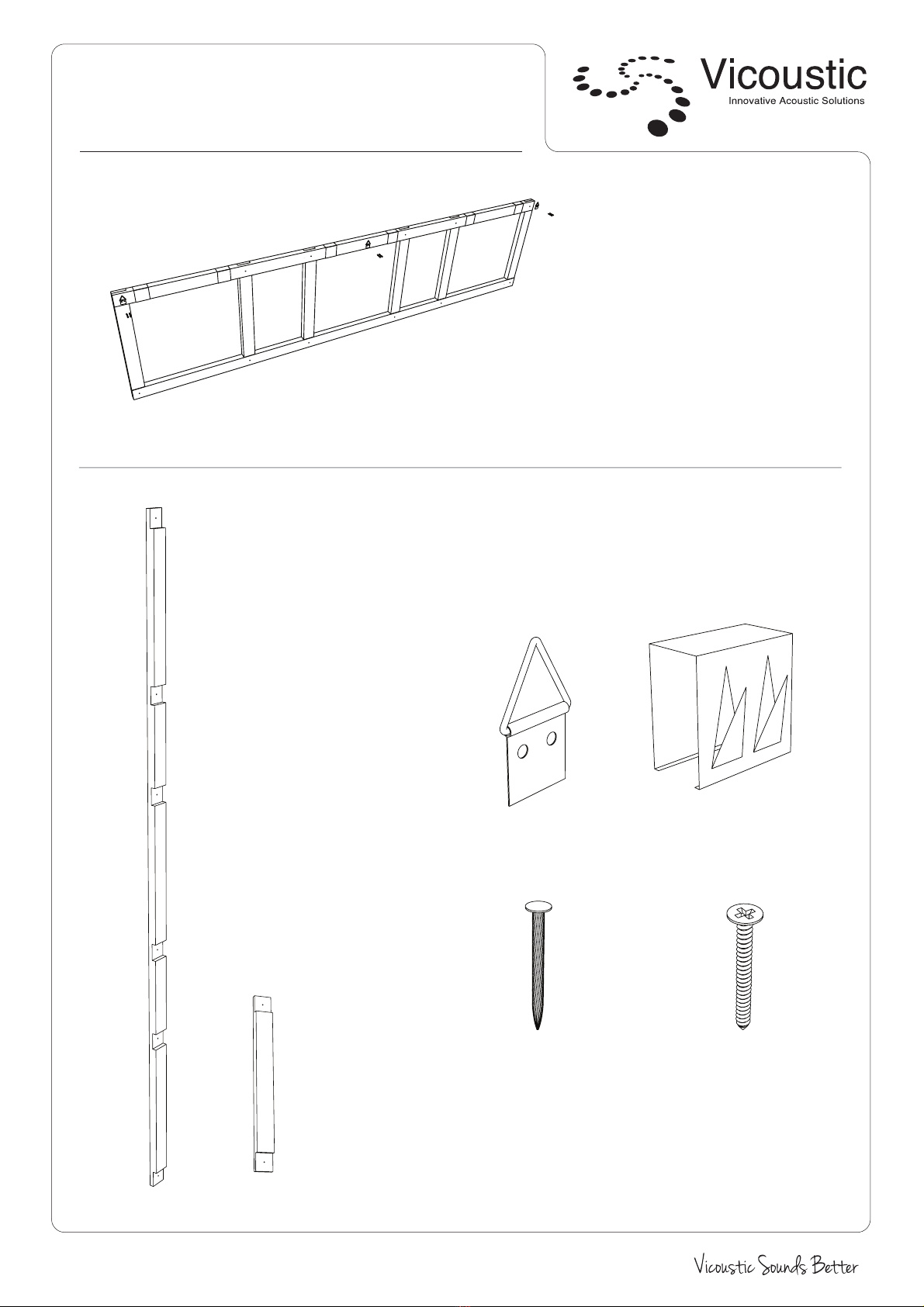

Bill of Materials

Metal Spike Part

Triangular Part

Screws

Nails

Wood Part (40cm)

Wood Part (160cm)

VicFix Frame 3x1 (Vertical Assembly)

INSTALLATION PROCEDURES

Hammer the two nails per each triangular part. Then, ﬁt

two screws (not included) onto your wall and use these

triangular parts to hold your frame in place. Make sure

the two screws are correctly levelled on your wall.

Step 3 (Vertical Assembly)

Push two spike parts on three diﬀerent wooden 40cm pieces.

Step 1 (Vertical Assembly)

Push your Vicoustic acoustic panels into the

spiked pieces at a 45º angle for the best ﬁt.

Step 2 (Vertical Assembly)

Fit in all screws as shown on the pictures.

Step 4 (Vertical Assembly)

VicFix Frame 3x1

INSTALLATION PROCEDURES

Push the six spiked parts on one of the wooden

160cm pieces.

Step 1 (Horizontal Assembly)

Hammer the two nails per each triangular

part. Then, ﬁt two to three screws (not

included) on your wall and use these

triangular parts to hold your frame in

place.

Step 3 (Horizontal Assembly)

Push your Vicoustic acoustic panels into the

spiked pieces at a 45º angle for the best ﬁt.

Step 4 (Horizontal Assembly)

Step 2 (Horizontal Assembly)

Fit in all screws as shown on the pictures.
