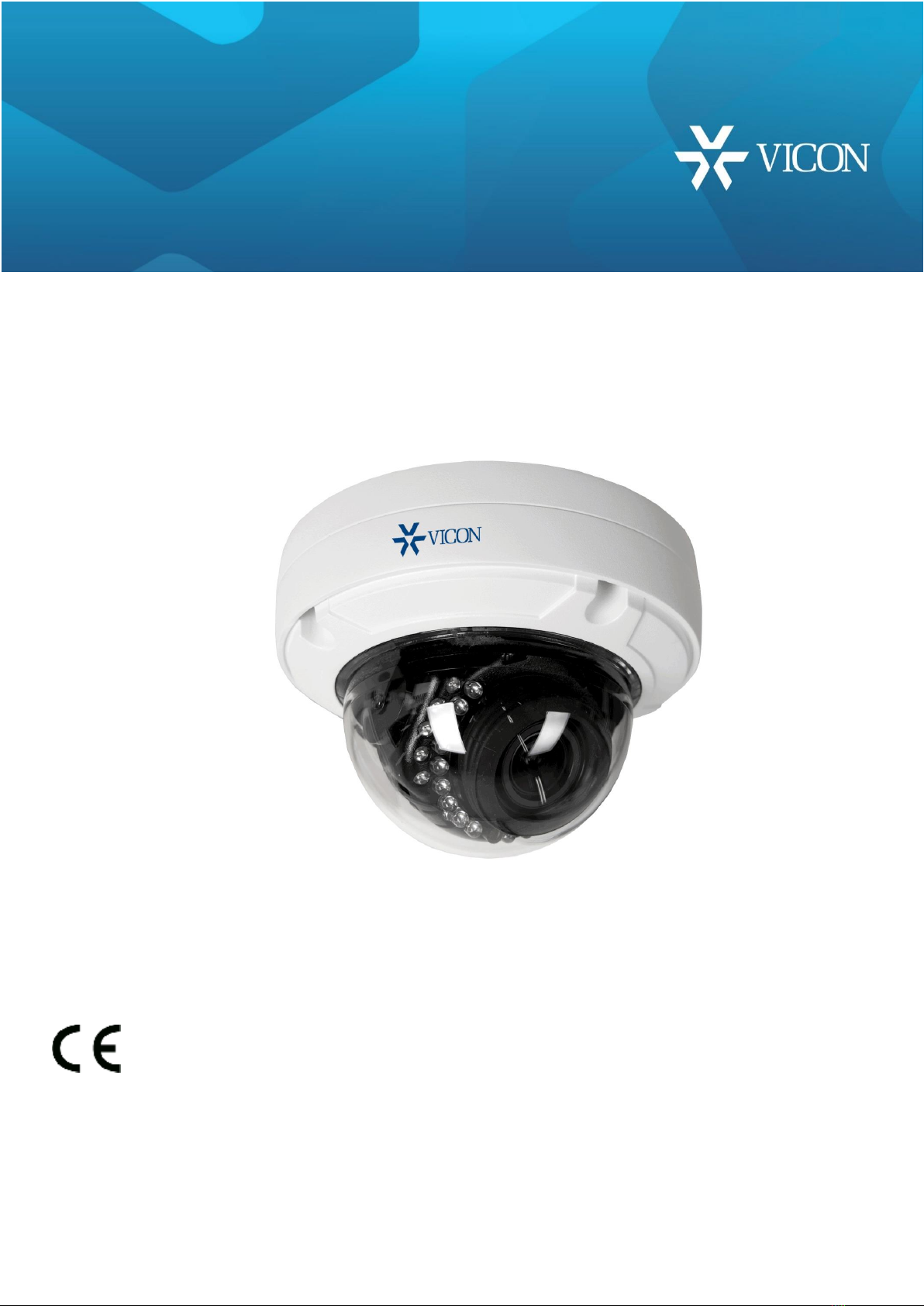

V672V-1 HD Analog Vandal Dome Cameras

Installation and Operation Guide

XX299-41

Vicon Industries Inc. does not warrant that the functions contained in this equipment will meet

your requirements or that the operation will be entirely error free or perform precisely as

described in the documentation. This system has not been designed to be used in life-critical

situations and must not be used for this purpose.

Document Number: 8009-8299-41-00 Product specifications subject to change without notice.

Vicon Industries Inc.

Tel: 631-952-2288) Fax: 631-951-2288

Toll Free: 800-645-9116

24-Hour Technical Support: 800-34-VICON

(800-348-4266) UK: 44/(0) 1489-566300

www.vicon-security.com

FCC COMPLIANCE STATEMENT

CE COMPLIANCE STATEMENT

WARNING: This is a Class A product. In a domestic environment this product may

cause radio interference in which case the user may be required to take adequate

measures.

CAUTION: Changes or modifications not expressly approved by the party

responsible for compliance could void the user’s authority to operate the equipment.

FCC INFORMATION: This equipment has been tested and found to comply with the

limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits

are designed to provide reasonable protection against harmful interference when the

equipment is operated in a commercial environment. This equipment generates,

uses, and can radiate radio frequency energy and, if not installed and used in

accordance with the instruction manual, may cause harmful interference to radio

communications. Operation of this equipment in a residential area is likely to cause

harmful interference in which case the user will be required to correct the interference

at his own expense.

This device complies with Part 15 of the FCC Rules. Operation is subject to the

following two conditions: (1) this device may not cause harmful interference, and (2)

this device must accept any interference received, including interference that may

cause undesired operation.

IMPORTANT SAFETY INSTRUCTIONS

1. Read these instructions.

2. Keep these instructions.\

3. Heed all warnings.

4. Follow all instructions.

5. Do not block any ventilation openings. Install in accordance with the manufacturer’s

instructions.

6. Do not install near any heat sources such as radiators, heat registers, stoves, or other

apparatus (including amplifiers) that produce heat.

7. Only use attachments/accessories specified by the manufacturer.

8. Use only with the cart, stand, tripod, bracket, or table specified by

The manufacturer, or sold with the apparatus. When a cart is used,

Use caution when moving the cart/ apparatus combination to avoid

Injury from tip-over.

9. CAUTION –THESE SERVICING IN STRUCTIONS ARE FOR USE BY QUALIFIED

SERVICE PERSONNEL ONLY. TO REDUCE THE RISK OF ELECTRIC SHOCK DO

NOT PERFORM ANY SERVICING OTHER THAN THAT CONTAINED IN THE

OPERATING INSTRUCTIONS UNLESS YOU ARE QUALIFIED TO DO SO.

10. Use satisfy clause 2.5 of IEC60950-1/UL 60950-1 or Certified/Listed Class 2

power source only.

11. Indoor use only.

EXPLANATION OF GRAPHICAL SYMBOLS

The lighting flash with arrowhead symbol, within an equilateral triangle, is

Intended to alert the user to the presence of uninsulated “dangerous voltage”

within the product`s enclosure that may be of sufficient magnitude to constitute

a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user

to the presence of important operating and maintenance (servicing)

instructions in the literature accompanying the appliance.

LIMITATION OF LIABILITY

THE INFORMATION IN THIS PUBLICATION IS BELIEVED TO BE ACCURATE IN ALL

RESPECTS; HOWEVER, WE CANNOT ASSUME RESPONSIBILITY FOR ANY

CONSEQUENCES RESULTING FROM THE USE THEREOF. THE INFORMATION

CONTAINED HEREIN IS SUBJECT TO CHANGE WITHOUT NOTICE. REVISIONS OR

NEW EDITIONS TO THIS PUBLICATION MAY BE ISSUED TO INCORPORATE SUCH

CHANGES.

PRECAUTIONS

Before installation, carefully read the manual to ensure correct operation and setup,

heeding all warnings and instructions.

Do not block any ventilation openings. Install in accordance with the manufacturer's

instructions.

Ensure manual is kept in good condition for future use.

Do not install the device near any heat sources such as radiators, heat registers, stoves,

or other equipment(including amplifiers) that produce heat.

Only use attachments/accessories specified by the manufacturer.

Should any liquid get into the housing, immediately disconnect the device from the power

supply and have it checked by authorized personnel before reusing.

Do not install the device in a place where it is exposed to gas or oil.

Installation and servicing by authorized personnel only, adhering to local safety regulations.

Unless you are an authorized technician, never try to dismantle the device. To avoid

electric shock, never remove the screws or covers.

If a camera, do not expose the device to radioactivity. It will cause serious damage to the

CCD.

Use Certified/Listed Class 2 power source only.

Cleaning

Clean the device with a slightly damp soft cloth. Use a mild household detergent. Never

use strong solvents such as thinner or benzene as they might damage the finish of the unit.

TABLE OF CONTENTS

INTRODUCTION ------------------------------------------------------------------------- 6

CAMERA CONNECTION -------------------------------------------------------------- 7

LENS ADJUSTMENT ------------------------------------------------------------------- 7

CONTENTS OF PACKAGE ----------------------------------------------------------- 8

INSTALLATION --------------------------------------------------------------------------- 9

STRUCTURE OF THE SETUP MENU --------------------------------------------- 10

DC AUTO IRIS LENS ------------------------------------------------------------------- 16

SPECIFICATIONS ----------------------------------------------------------------------- 17

EXTERNAL DIMENSION ------------------------------------------------------------ 18

６

INSTRUCTION

The 1/2.8” 2.1M Full HD CMOS camera, especially for closed circuit television

CCTV and security surveillance application.

Features:

•High performance SONY 1/2.8” 2.1M STARVIS CMOSTM

•Min. illumination 0.03 lux (Color), 0 lux(BW, IR LED ON)

•Auto electronic shutter [1/30 (1/25) ~ 1/30,000] and manual electronic shutter

modes

•WDR (Wide Dynamic Range)

•D-WDR (Digital Wide Dynamic Range)

•BLC (Back-light compensation)

•HLC (High-light compensation)

•Auto and manual white balance modes (AUTO/AUTOext/Manual/AWB)

•Day & Night (ICR) : Auto/Color/BW/EXTERN

•OSD (on screen display)

•DNR (Digital Noise Reduction)

•IR Range distance up to 30M

•28EA, 850nm IR LEDs

•Privacy Mask function (16 zones)

•Motion Detection ( 4zones)

•Defog

•Composite Video Output (700 TV Lines)

•Operates in 24 VAC ± 10%/12 VDC ± 10%

•Use Certified/Listed Class 2 Power source only

IMPORTANT: The user of this camera is responsible for checking and

complying with local, state, and federal laws and statutes concerning the

recording and monitoring of audio signals.

７

CAMERA CONNECTION

①Lens: Allows a wide area to be monitored.

②Power: 24V AC/ 24 VAC/12 VDC power source from a 12 VDC or 24 VAC ±10%,

60/50Hz±1Hz; use Certified/Listed Class 2 power source only.

12 VDC Type => 12 VDC ±10% (12 VDC is polarity dependent)

*If using 12 VDC power adaptor, use power supply capable of supplying 8 Watts.

③Video (HD): BNC (Black) connector used to connect the camera to a DVR, etc.

④Video CVBS): BNC Yellow) connector used to connect the camera to a DVR, etc.

⑤SPOT: Spot connector used to check video (CVBS) output.

８

LENS ADJUSTMENT

Tact Switch for motorized lens control

without being in the OSD:

Up –Zoom in

Down –Zoom out

The lens will then autofocus

based on the overall scene being viewed.

CONTENTS OF PACKAGE

Installation of the camera must be performed by qualified service personnel in accordance

with all local and national electrical and mechanical codes.

Carefully remove the camera and its accessories from the carton and verify that they were

not damaged in shipment.

The content of the package includes:

1. Camera in housing

2. This manual

3. Accessory kit for installing

4. Drilling guide label

９

INSTALLATION

See the line diagram at the end of this manual for dimensions.

1. Loosen the four torx screws located the front of the housing; do not remove the screws.

2. Drill the mounting holes and cable hole in the proper location (ceiling or wall) using the drilling

guide label.

3. Attach the housing to the ceiling/wall using suitable fasteners. Tapping screws are supplied;

only use if they are suitable for the mounting surface.

4. Secure the housing by tightening the loosened Torx screws.

１０

STRUCTURE OF THE SETUP MENU

Use the joystick switch on the rear of the camera to navigate the setup menus. Use up or down to

move the cursor to select the menu option, left or right to view setting options; press Enter to

select.

<MENU>

FOCUS SETUP

EXPOSURE

BACKLIGHT

DAY&NIGHT

AWB

DNR


SYSTEM

EXIT

AF MODE

SCANNING

ONPUSHAF

SYNC TDN

INITIAL

RETURN

IRIS

BRIGHTNESS

SHUTTER

SENS-UP

AGC

RETURN

OFF

HLC

BLC

WDR

<DAY&NIGHT>

EXTERN

AUTO

COLOR

B&W

<AWB>

AUTO

AUTOext

PRESET

MANUAL

<DNR>

OFF

LOW

MIDDLE

HIGHT

<IMAGE>

COLOR GAIN

SHARPNESS

GAMMA

MIRROR

FLIP

D-WDR

DEFOG

PRIVACY

MOTION

RETURN

OUTPUT

FRAME RATE

FREQ

LANGUAGE

SETUP

RESET

RETURN
