T-BERD/MTS 2000 Handheld Modular Test Set

T-BERD/MTS-2000 Handheld Modular Test Set

QUICK CARD

►Use the VIAVI P5000i or FiberChek Probe

microscope to inspect both sides of every

connection being used (Nano OSA Port,

Launch Cable, bulkhead connectors, patch

cables, etc.)

►Focus fiber on the screen. If dirty, clean the

end-face.

►If it appears clean, run inspection test.

►If it fails, clean the fiber and re-run inspection

test. Repeat until it passes.

Tuning and Testing DWDM Optics with the Nano OSA

This quick card describes how to tune and test DWDM Optical transceivers using a

T-BERD/MTS-2000 equipped with a Nano OSA module.

EQUIPMENT REQUIREMENTS

FIBER INSPECTION GUIDELINES

►T-BERD/MTS 2000 equipped with the

following:

•Fiber Optics Software Release V21.14 or

greater

•Nano OSA Module

(OCV-4100 or OSA-4100 )

•41SFP Software Option

•Fiber optic cleaning and inspection tools

►Fiber optic patch cable or Launch Cable

►Optical Coupler to connect patch cable to

Fiber Under Test

Figure 2: Inspect Before You Connect

Figure 1: Equipment Requirements

VIAVI//Public

T-BERD/MTS 2000 Handheld Modular Test Set

T-BERD/MTS-2000 Handheld Modular Test Set

QUICK CARD

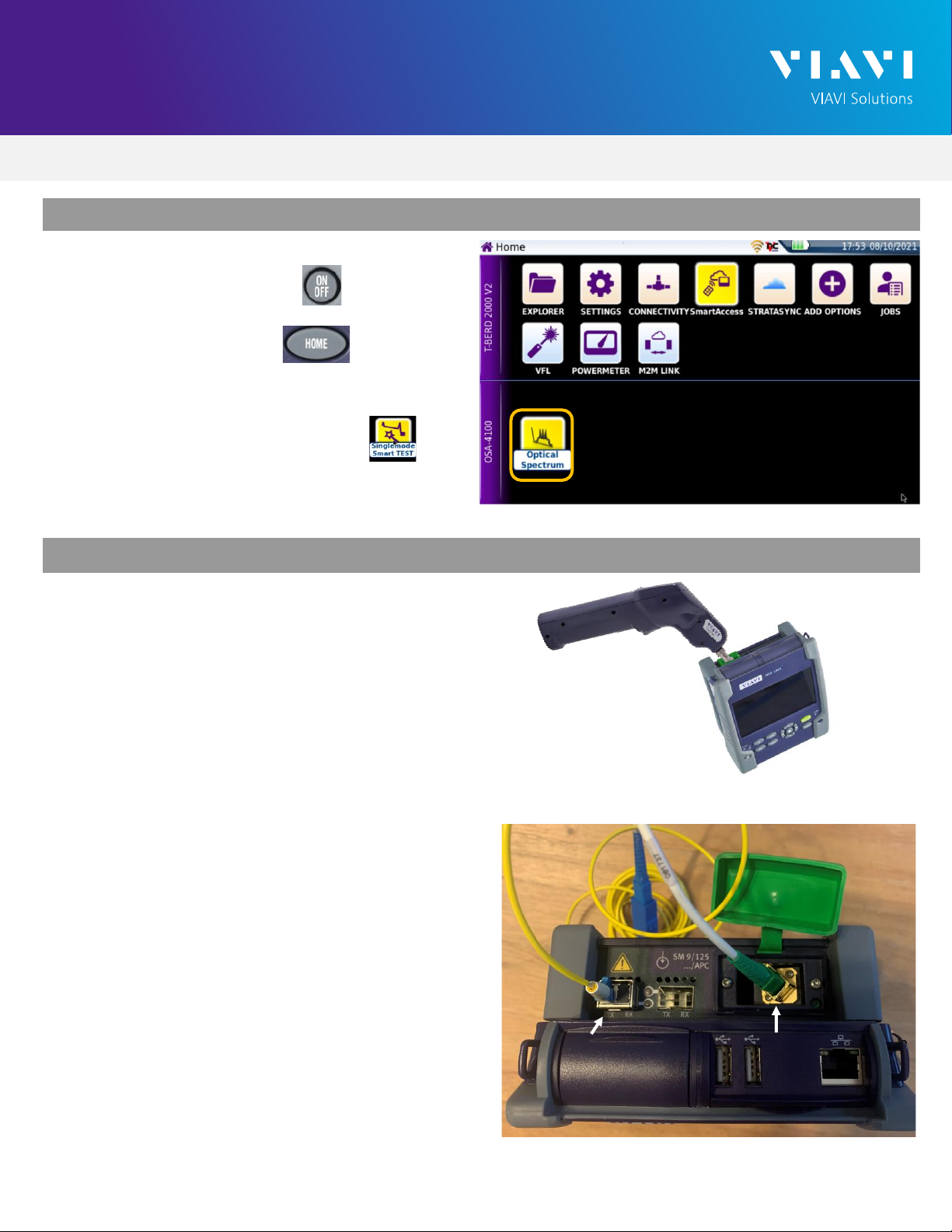

CONNECT SFP+ TO NANO OSA PORT

LAUNCH TEST

1. Press the ON/OFF button to start the

test set.

2. Press the Home button to display

the Home view with the Optical Spectrum

icon.

3. Tap the Optical Spectrum icon

until it is yellow and highlighted.

Figure 3: Home Screen

All fibers and connectors should be cleaned

and inspected prior to connection, as

described on page 1.

1. Insert SFP+ into SFP bay on top of

module.

2. Connect fiber patch cable to the SFP+ Tx

port and Nano OSA Port.

Figure 4: Inspect Nano OSA port

SFP+ Tx Nano OSA

Figure 5: Connect SFP+ Tx to Nano OSA port

VIAVI//Public

T-BERD/MTS 2000 Handheld Modular Test Set

T-BERD/MTS-2000 Handheld Modular Test Set

QUICK CARD

Product specifications and descriptions in this

document are subject to change without notice.

Patented as described at viavisolutions.com/patents

To reach the VIAVI office nearest you,

visit viavisolutions.com/contact

+1 844 GO VIAVI

(+1 844 468-4284)

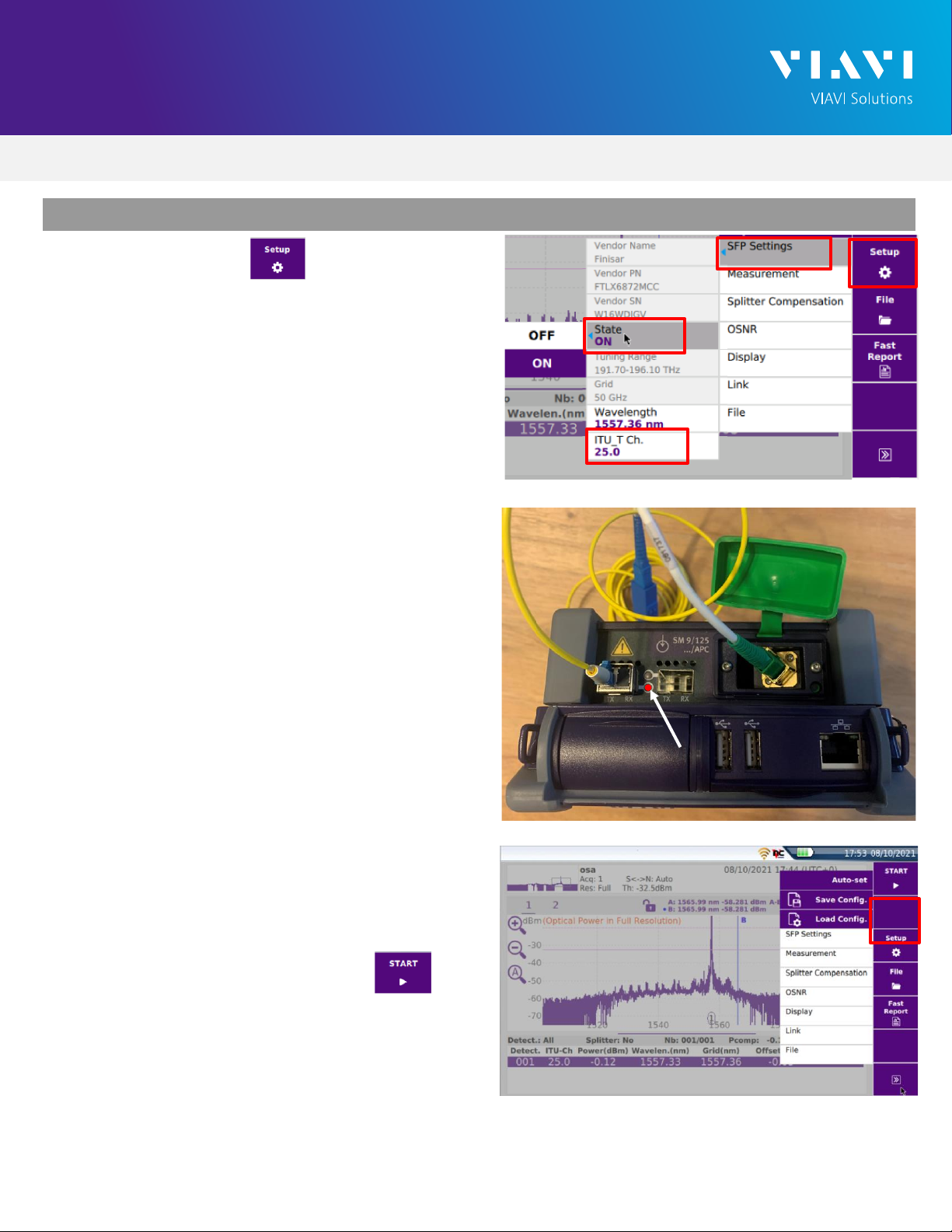

TUNE AND TEST SFP+

1. Tap SETUP icon

2. Tap SFP Settings (SFP must be

inserted for this selection to appear).

3. If tunable DWDM SFP, tap ITU_T Ch and

set the DWDM Channel.

Note: SFP Must use standard MSA

compliant tuning method.

4. Tap State and select State = ON.

5. Verify red light next to SFP+ is now on.

6. To verify wavelength and power level,

connect the fiber patch cable from the

SFP+ Tx port to the Nano OSA Port.

7. Tap START icon to run sweep

8. View Results (ITU-Ch, power, offset)

to verify optic.

SFP light (red=ON)

Figure 6: Setup

Figure 7: SFP Light

Figure 8: Sweep
