Ethernet Y.1564 Layer 2 Traffic

This quick card describes how to set up the OneAdvisor 800 400G Module or OneAdvisor 1000 400G

Module to run an ITU Y.1564 Layer 2 Traffic Test for Metro Ethernet service activation.

LAUNCH TEST

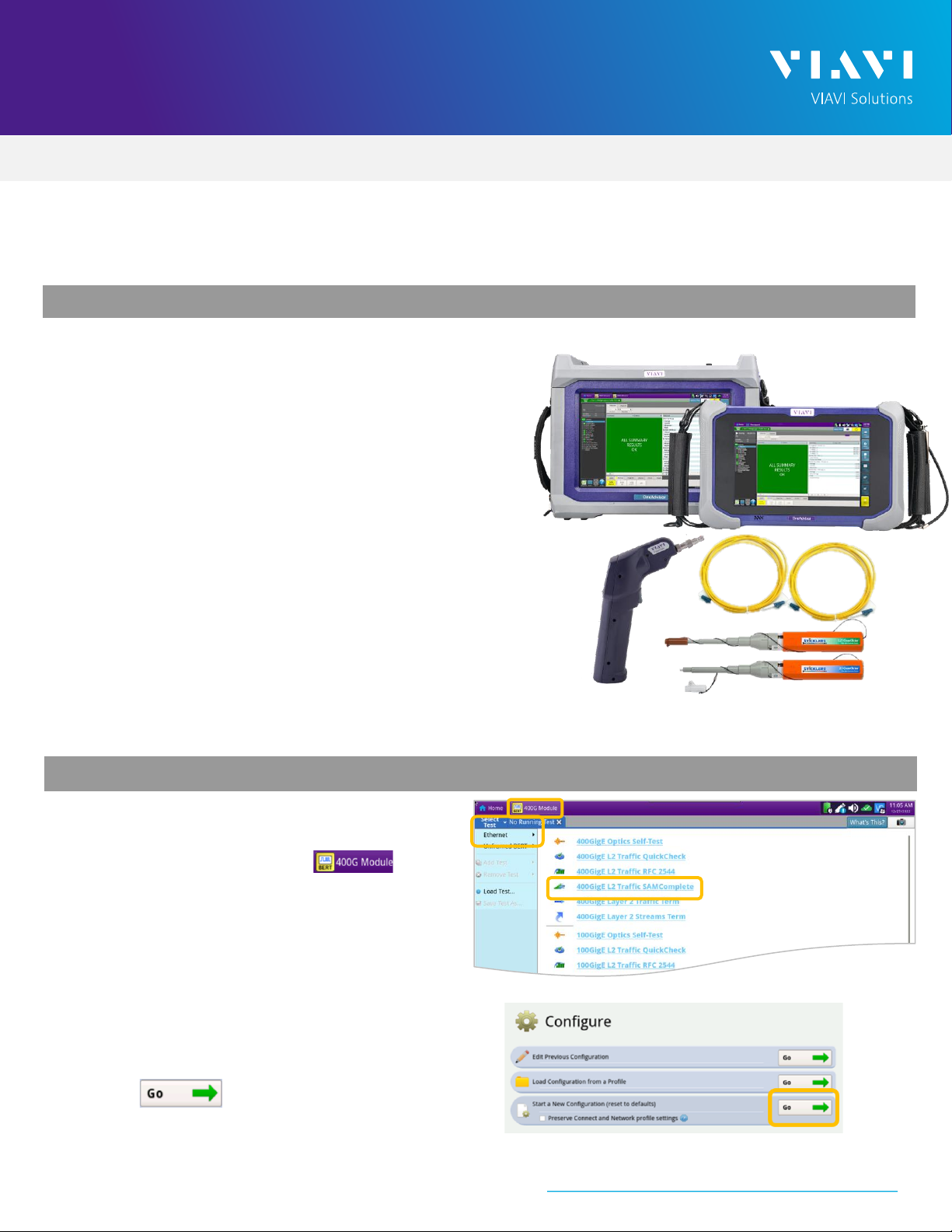

1. Press the Power button to turn on the

OneAdvisor.

2. Press the 400G Module icon

at the top of the screen.

3. Using the Select Test menu, Quick Launch

menu, or Job Manager, launch the Ethernet

Layer 2 Traffic test for the desired data rate on

the desired port (P1 or P2). For example:

Ethernet ►400GigE Optical

►Y.1564 SAMComplete ►Layer 2 Traffic

►P2 Terminate.

4. Tap the button next to “Start a New

Configuration (reset to defaults)”

Figure 2: Launch Test

Figure 3: Start a New Configuration

Figure 1: Equipment Requirements

•OneAdvisor 800 or OneAdvisor 1000 equipped with the following:

o400G Transport Module

oTransport software release V4.0.0 or greater

oSoftware option for data rate to be tested:

✓CA10M1GE test option for 10/100/1000M

Copper or 1 Gigabit Optical Ethernet

✓CA10GELAN test option for 10 Gigabit Ethernet

✓CA25GE test option for 25 Gigabit Ethernet

✓CA40GE test option for 40 Gigabit Ethernet

✓CA50GE test option for 50 Gigabit Ethernet

✓CA100GE test option for 100 Gigabit Ethernet

✓CA200GE test option for 200 Gigabit Ethernet

✓CA400GE test option for 400 Gigabit Ethernet

•Optical Transceiver supporting the Ethernet data rate

to be tested (SFP, QSFP, or OSFP)

•Cables to match the optical transceiver and the line under test

•Fiber optic inspection microscope (P5000i or FiberChek Probe)

•Fiber optic cleaning supplies

VIAVI//Public

OneAdvisor High-Speed Network Testing Platforms

QUICK CARD

►The following Information is needed to

configure the test:

•Frame Size

•VLAN ID, if VLAN tagging is used.

•Committed Information Rate (CIR)

•Pass/Fail Threshold for Frame Loss

Ratio, Delay, and Delay Variation (Jitter)

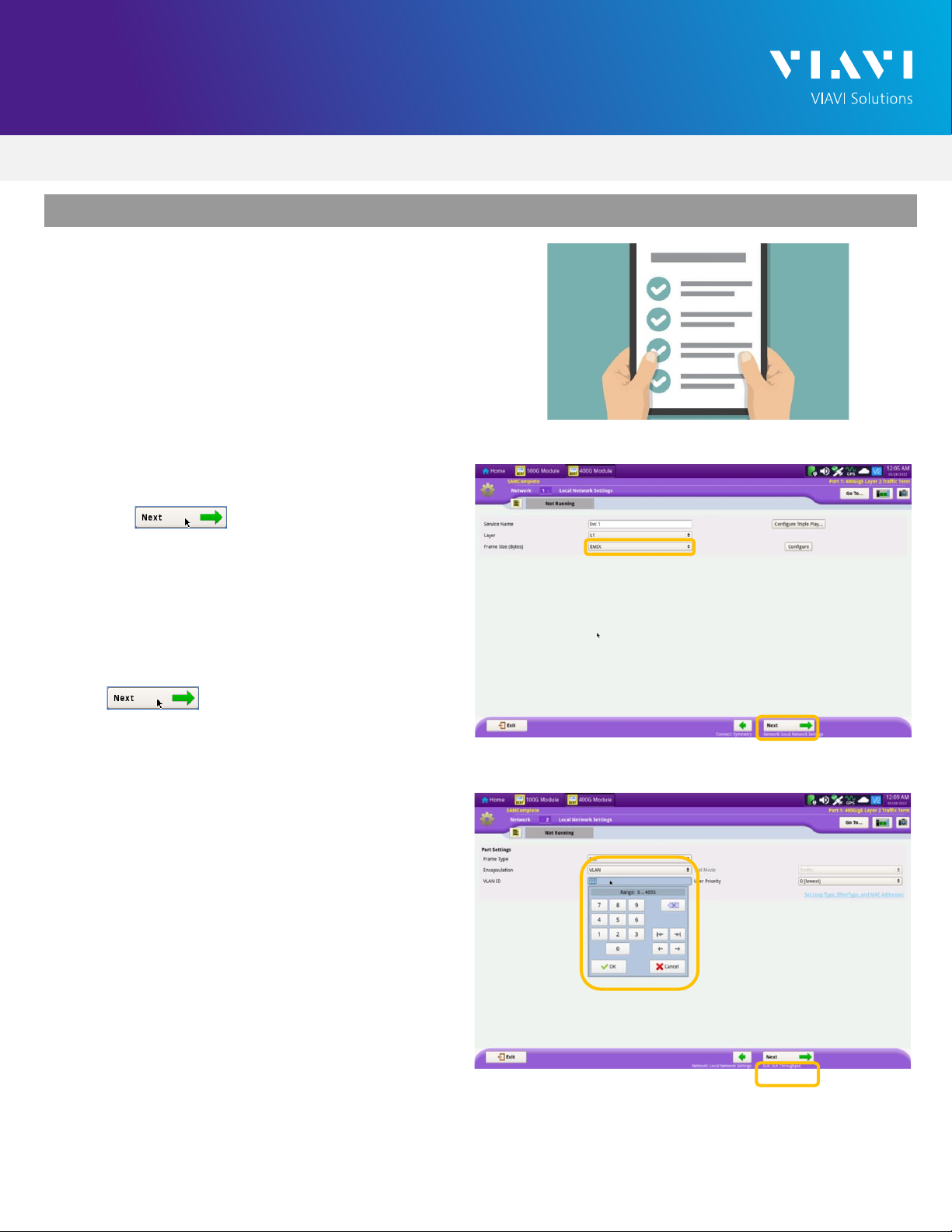

1. Tap the button to display the

Local Network Settings 1 screen.

►Select the Frame Size you wish to

generate.

2. Tap to display the

Local Network Settings 2 screen.

►If you are testing a VLAN, set

Encapsulation to VLAN and enter

the VLAN ID.

CONFIGURE TEST

Figure 4: Work Order

Figure 6: Local Network Settings 2

Figure 5: Local Network Settings 1

VIAVI//Public

OneAdvisor High-Speed Network Testing Platforms

QUICK CARD

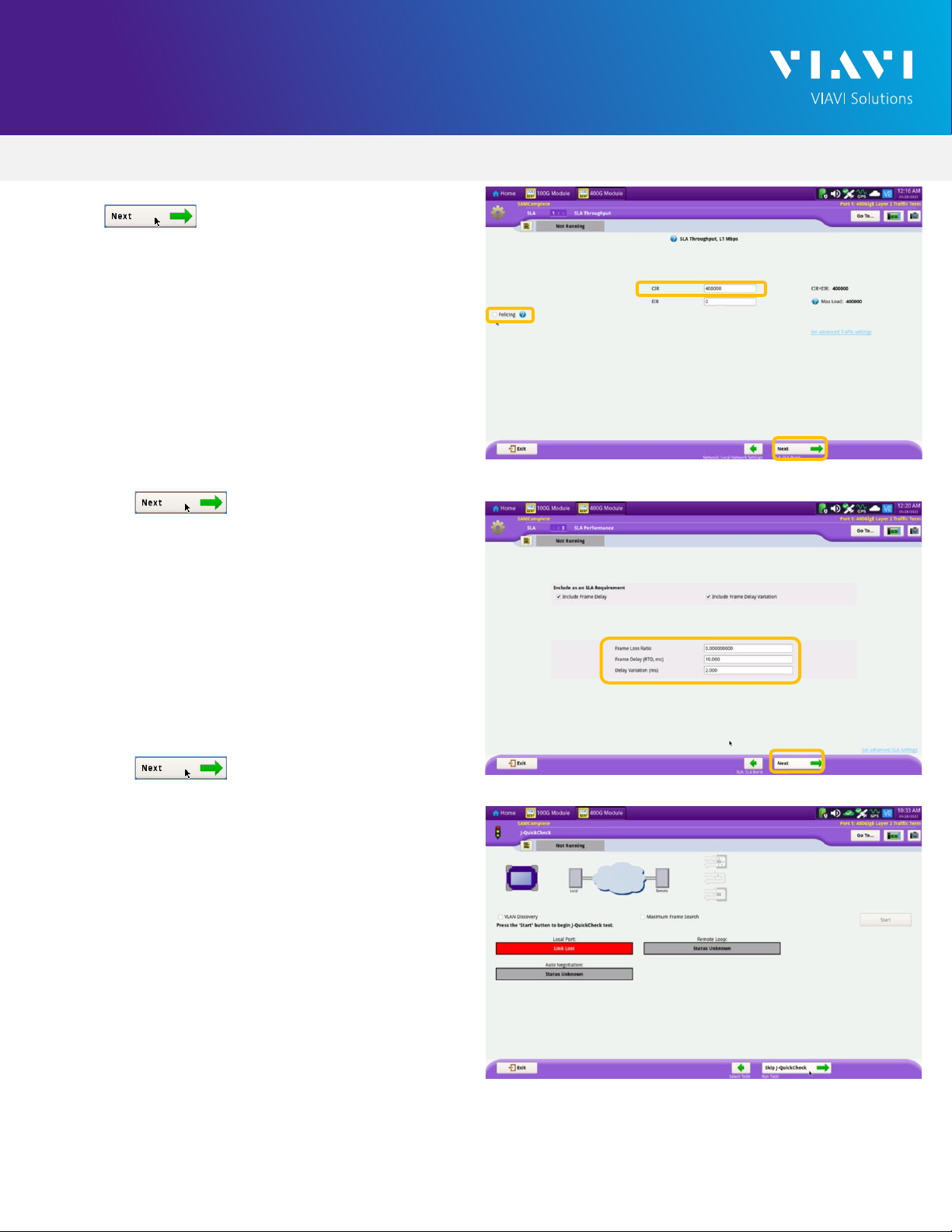

4. Tap to display the SLA Throughput

screen.

►Enter the Committed Information Rate

(CIR).

►If the you are testing at full line rate or if

traffic is not being policed, uncheck the

Policing checkbox.

5. Tap the button twice to display the

SLA Performance screen.

►Enter the Frame Loss Ratio, Frame Delay,

and Delay Variation pass/fail criteria.

6. Tap the button 5 times to display the

J-QuickCheck screen. Figure 8: SLA Performance

Figure 9: J-QuickCheck

Figure 7: SLA Throughput

VIAVI//Public

OneAdvisor High-Speed Network Testing Platforms

QUICK CARD

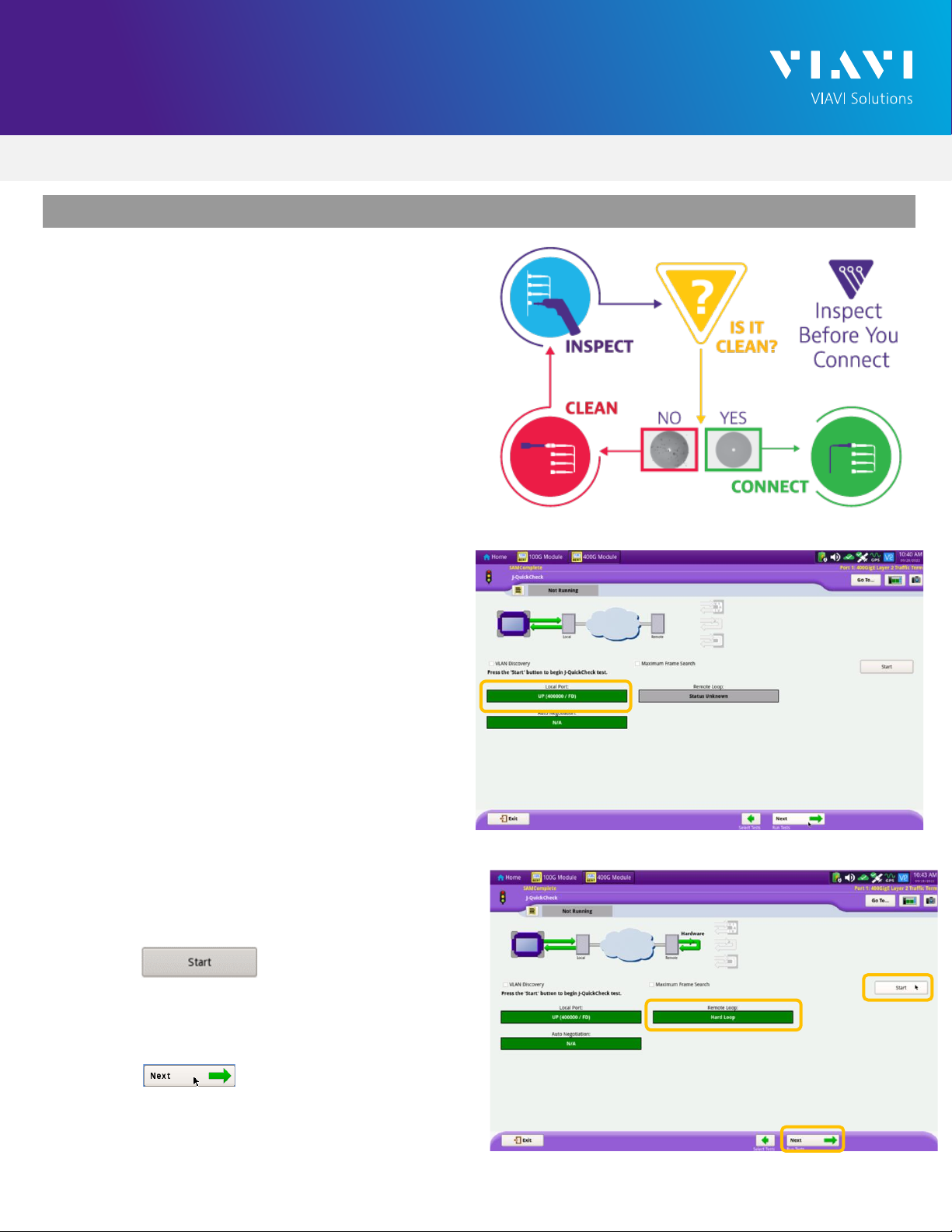

►For Optical Interfaces:

1. Use the VIAVI P5000i or FiberChek Probe

microscope to inspect both sides of every

connection being used (SFP, attenuators,

patch cables, bulkheads)

oFocus the fiber on the screen.

oIf it appears dirty, clean the fiber end-face

and re-inspect.

oIf it appears clean, run the inspection test.

oIf it fails, clean the fiber and re-run

inspection test. Repeat until it passes.

2. Insert desired Optical Transceiver into the

Port 1 SFP or QSFP slot on the top of the

OneAdvisor.

3. If necessary, insert optical attenuators into

the SFP/QSFP TX and/or RX ports.

4. Connect the SFP/QSFP to the port under

test using a jumper cable compatible with

the line under test.

►For Copper 10/100/1000BASE-T interfaces:

1. Insert Copper SFP into the Port 1 SFP or

slot on the top of the OneAdvisor.

2. Connect the copper SFP to

the port under test using CAT 5E or better

cable.

►Verify that Local Port status UP and Full

Duplex (FD)

►Tap the button.

►Verify that the Remote Loop is recognized.

►Tap the button to display the

Run Y.1564 Tests screen.

Figure 11: Local Port status

Figure 10: Inspect Before You Connect

CONNECT TO LINE UNDER TEST AND LOOP BACK DEVICE

Figure 12: Run J-QuickCheck

VIAVI//Public

OneAdvisor High-Speed Network Testing Platforms

QUICK CARD

Product specifications and descriptions in this

document are subject to change without notice.

Patented as described at viavisolutions.com/patents

To reach the VIAVI office nearest you,

visit viavisolutions.com/contact

+1 844 GO VIAVI

(+1 844 468-4284)

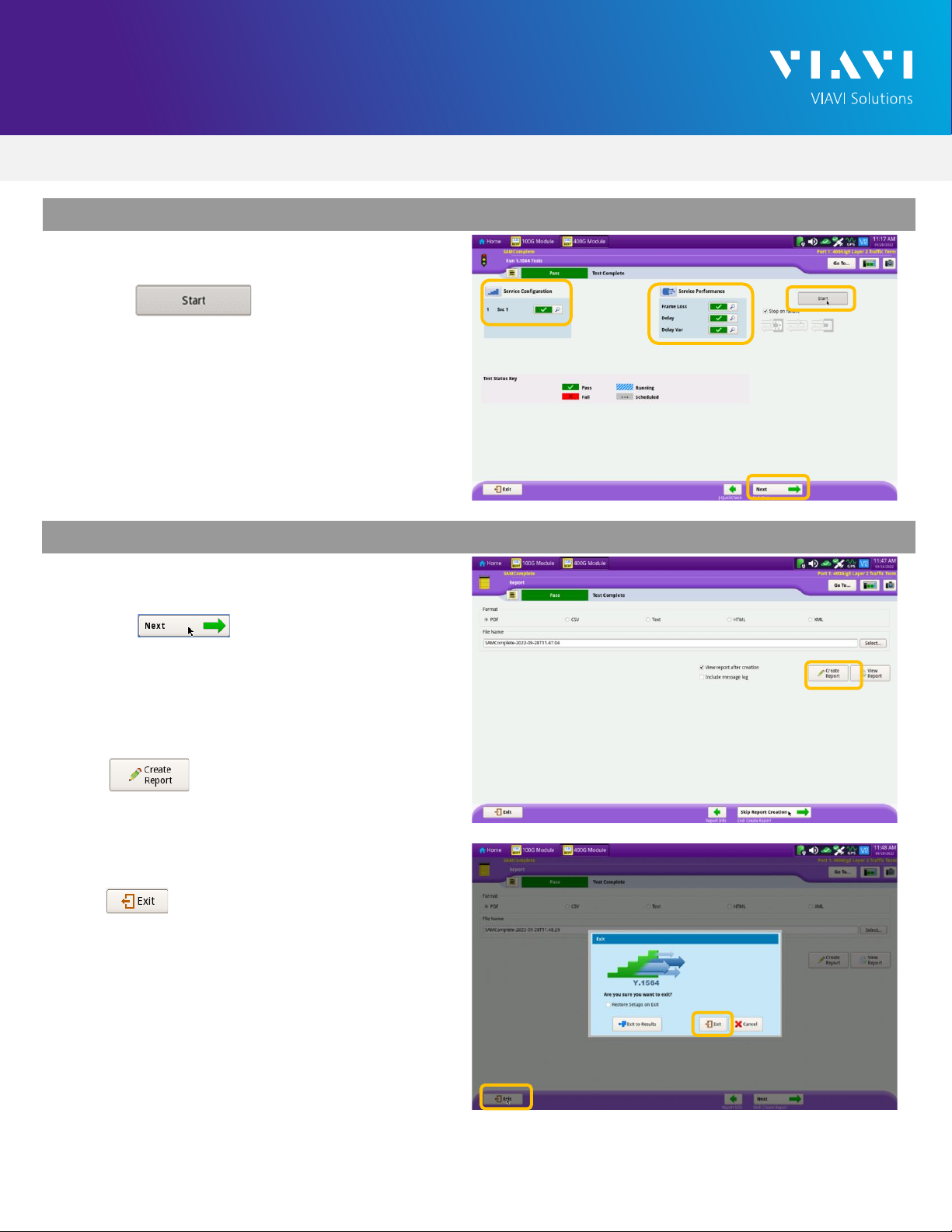

1. Tap the button three times to

display the Report screen.

2. Tap .

3. Tap buttons three times to

close the report and exit the Y.1564 test.

RUN TEST

1. Tap the button.

2. Wait for the test to complete and verify that

all tests pass or complete as indicated by a

green or blue checkmark.

CREATE REPORT

Figure 13: Run Y.1564 Tests

Figure 14: Create Report

Figure 15: Exit
