VHD-J1600SE
DATASHEET - MANUAL
OPERATING TIPS
Press “MENU” button and then to electricity
and keep holding down the “MENU” button 8
seconds, the camera will restore factory Settings.
OSD MENU OPERATION
Toggle the buttons up and down (▲▼) Choose a
menu item, press MENU to enter sub MENU.
Choose [Exit] press MENU button to exit menu.
EXPOSURE
OPERATING TIPS
Mode: Set the camera exposure mode.
Optional items: Full Auto, Bright, Shutter Priority.
Shutter: Set the Shutter values, only when
the Mode for the Shutter Priority Mode and
Manual Mode effective, Optional items:
1/10000s,1/6000s,1/4000s,1/3000s,1/2000s,1/1
500s,1/1000s,1/725s,1/500s,1/350s,1/250s,1/20
0s,1/125s,1/100s,1/90s,1/60s,1/30s.
GainLimit: Set the Gain value, Optional items:
0~15.
Bright: Set the brightness values, only when
the effective Mode for Bright Mode, Optional
items: 0~17.
ExpCompMode: Set the exposure compensation
mode, can be installed: On, Off.
ExpComp: Set the exposure compensation value,
only when ExpCompMode item to On effective,
Optional items: -7~7.
Backlight: Set the backlight compensation,
Optional items: On, Off.
DRC Strength: Set up digital wide dynamic
strength, can set up different levels of wide
dynamic effect, Optional items: 0~8.
Anti Flicker: Set the ashing function,
Optional items: 50Hz, 60Hz, Off.
Style: Optional items: Manual, DC.
Return: get back
COLOR
OPERATING TIPS
Luminance: Brightness adjustment.
Optional items: 0~14.
Contrast: Contrast adjustment.
Optional items: 0~14.
Sharpness: Sharpness adjustment.
Optional items: Auto, 0~15.
Flip-H: Image ipped horizontally.
Optional items: On, Off.
Flip-V: Image Flip Vertical.
Optional items: On, Off.
Gamma: Gamma adjustOptional items:
Default, 0.45, 0.5, 0.56, 0.63.
Style: Optional items: Norma, Clarity, Bright, Soft.
LDC: Optional items: Off, 1-10.
Return: get back.
NOISE REDUCTION
OPERATING TIPS
2D NR: 2D noise reduction,
Optional items: 1 ~ 5, Close, Auto.
3D NR: 3D noise reduction,
Optional items: 1 ~ 8, Close.
Return: get back.

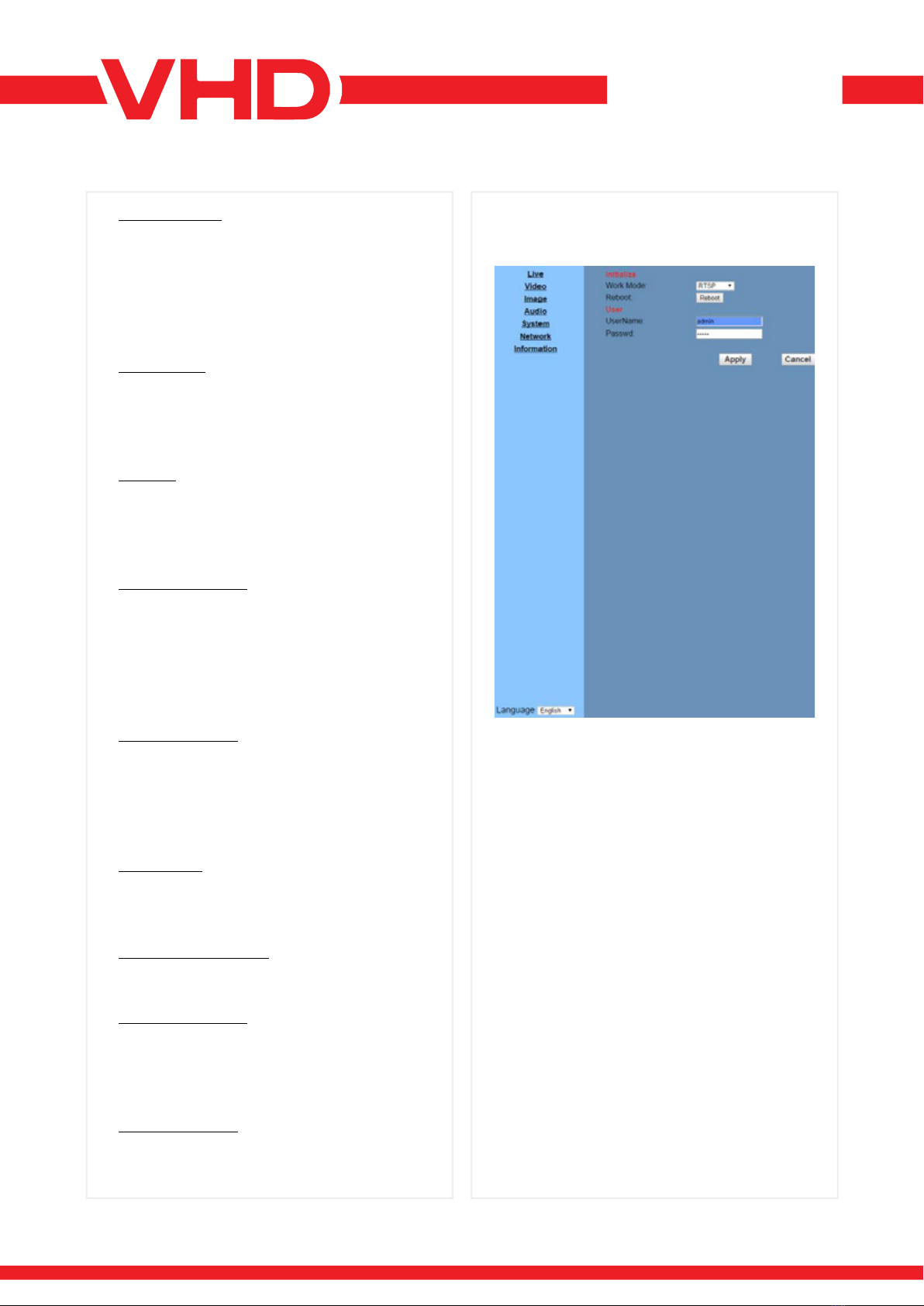

SETTING
OPERATING TIPS
Language: Language Settings.
Optional items: English, Chinese.
Protocol: Communication protocol Settings.
Optional items: VISCA, PELCO-D,PELCO-P.
VISCA Address: Address of the Visca.
Settings, Optional items: 0~7.
P-D Address: P-D address settings, valid in PELCO-D.
Optional items: 0~254.
P-P Address: P-P address settings, valid in PELCO-P.
Optional items: 0~31.
► Mode Full Auto
► ExpCompMod On
► ExpComp -1
► Gain Limit 3
► Backlight Off
► DRC Strength 3
► Anti Flicker 50Hz
► Style Manual Return
► 2D NR 3
► 3D NR 3
► RETURN
► LANGUAGE ENGLISH
► PROTOCOL VISCA
► VISCA ADDRESS 1
► BAUDRATE 9600
► VIDEO FORMAT 1080P30
► EPTZ OFF
► RETURN
► WB Mode Auto
► AWB sens Low
► RG Tuning 2
► BG Tuning -1
► Saturation 100%
► Hue 7
► Return
