AKG 317 - AKG 377
Instructions for use
2
GB
In case this appliance contains hydrocar-
bon refrigerant please refer to guidelines
listed below.
As the appliance contains a ammable
refrigerant, it is essential to ensure that the
refrigerant pipes are not damaged.
Standard EN378 species that the room in
which you install your appliance must have
a volume of 1m³ per 8 g of hydrocarbon
refrigerant used in the appliances. This is
to avoid the formation of ammable gas/
air mixtures in the room where the appli-
ance is located in the event of a leak in the
refrigerant circuit. The quantity of the refrig-
erant used in your appliance is indicated on
the rating plate.
WARNING: Keep ventilation openings in
the appliance’s cabinet or in
the built-in structure clear of
obstruction
WARNING:Do not use other mechanical
devices or other means to ac-
celerate the defrosting process
than those recommended by
the manufacturer
WARNING: Do not damage the refrigerant
system
WARNING:Do not use electrical appli-
ances inside the refrigerated
storage compartment, unless
they are of a type recommend-
ed by the manufacturer
WARNING: Do not expose the appliance
to rain
WARNING:This appliance is not intended
for use by young children or
inrm persons unless they have
been adequately supervised by
a responsible person to ensure
that they can use the appliance
safely. Young children should be
supervised to ensure that they
do not play with the appliance
● Always keep the keys in a separate place
and out of reach of children
● Before servicing or cleaning the appli-
ance, unplug the appliance from the
mains or disconnect the electrical power
supply
● If the supply cord is damaged, it must be
replaced by the manufacturer, its service
agent, or similarly qualied persons in
order to avoid a hazard
●Relevant for Australia: Supply cord
tted with a plug complies with AS/NZS
3112.
● Frost formation on the interior evaporator
wall and upper parts is a natural phenom-
enon. Therefore, the appliance should
be defrosted during normal cleaning or
maintenance
● Directions for replacing the illuminating
lamps are to be included in the instruction
●Please note that changes to the appli-
ance construction will cancel all warranty
and product liability
Warning.
3
GB
Get to know your pharmaceutical refrigerator:
Top lighting
Control panel
Rating plate
Shelf
Door handle
Glass door
Kickplate
4
GB
Before operating your new appliance,
please read the following instructions care-
fully as they contain important information
on safety, installation, operation and main-
tenance. Keep the instructions for future
reference.
On receipt, check to ensure that the appli-
ance has not been damaged during trans-
port. Transport damage should be reported
to the local distributor before the appliance
is taken into use.
Remove the packaging. Clean the inside of
the cabinet using warm water with a mild
detergent. Rinse with clean water and dry
thoroughly (see cleaning instructions). Use
a soft cloth.
If during transport the appliance has been
laid down, or if it has been stored in cold
surroundings (colder than +5°C), it must be
allowed to stabilise in an upright position for
at least an hour before being switched on.
Note: If the appliance is to be laid down, the
door must face upwards and the appliance
must be enclosed in the original packaging.
Before starting the
appliance
Contents
Warning ..................................................2
Get to know ............................................3
Before starting the appliance..................4
Installation and start-up ..........................5
Operation and function. ..........................7
Technical data.........................................8
Reversing the door .................................9
Replaceable lamp strip......................... 11
Defrosting, cleaning and maintenance..12
Fault nding..........................................13
Warranty, spare parts ...........................14
Disposal................................................15
5
GB
Installation and start-up.
25
1530 / 1850 150
Min. 2000
Table height width depth
AKG 317 1530 600 595
AKG 377 1850 600 595
1180
600
max. 548
The appliance can be installed as a free-
standing unit against a wall or side-by-side
with other appliances
The surface on which the appliance is to be
placed must be level. Do not use a frame or
similar.
If the appliance is to be placed beside a
wall, there must be at least 1180 mm clear-
ance on the hinge side to allow the shelves
to be removed. To ensure that the door can
be opened, the appliance must be pushed
no further in than max. 548 mm.
Side by side
In side-by-side arrangements, there must
be a clearance of at least 25 mm between
the appliances to allow their doors to be
opened freely.
6
GB
Ventilation
It is important that the appliance be well
ventilated and that air can circulate unhin-
dered above, below and behind it.
Note that there must be a clearance of 150
mm above the appliance (see page 5)

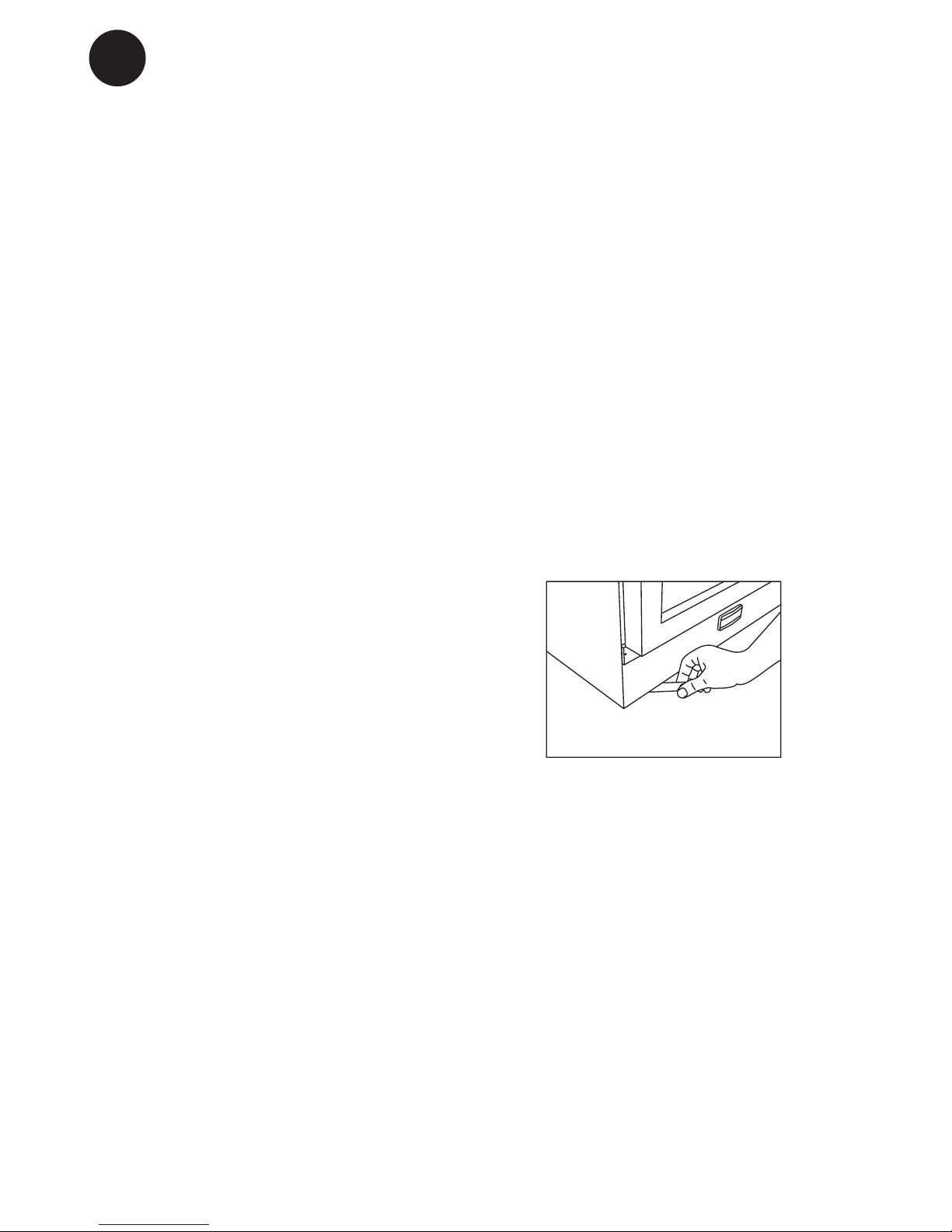

Levelling the appliance
It is important that the appliance be abso-
lutely level.
It can be levelled in the following way:
1. Level the appliance sideways by screw-
ing the adjustable feet up or down using the
accompanying spanner.
2. Check that the appliance is absolutely
level.
If the appliance is to be placed on a soft
surface, e.g. oorboards or a carpet, it is
best to recheck whether the appliance is
still level after a period of time as the under-
lying surface may give under the weight of
the appliance.
Placement
For safety and operational reasons, the ap-
pliance must not be installed outdoors.
The appliance should be placed on a level
surface in a dry, well ventilated room (max.
70% relative air humidity). Never place
the appliance close to sources of heat and
avoid placing it in direct sunlight.
Applications
The appliance has been specially designed
to maintain a temperature of between 2°C
and 8°C inside the cabinet. To ensure that
the products are kept within this empera-
ture range, set the thermostat to 4 initially.
Whether the thermostat should subse-
quently be adjusted can then be determined
by measuring the temperature inside the
cabinet using a thermometer in a glass of
water.
The ambient temperature must be kept be-
tween 20°C and 25°C. Important: Note that
the door opening frequency will inuence
the temperature inside the cabinet. Avoid
keeping the door open for long periods un-
necessarily.
The appliance is not designed to be used
for cooling warm products. Placing such
items in the cabinet may cause the tem-
perature of products already in the cabinet
to rise. Medicine to be kept between 2°C
and 8°C should not be placed in the cabinet
higher than the stacking mark or on the
bottom shelf.
Frost protection
If the fan inside the cabinet fails, the ther-
mostat will ensure that the temperature of
the products stored in the bottom half of the
cabinet does not fall below 0°C. The tem-
perature in the top half of the cabinet will,
however, rise to ambient temperature.
7
GB
Operation and function.
Starting up
Connect the appliance to the socket outlet.
Press the on/off switch . A green light indi-
catet that the appliance has been switched
on.

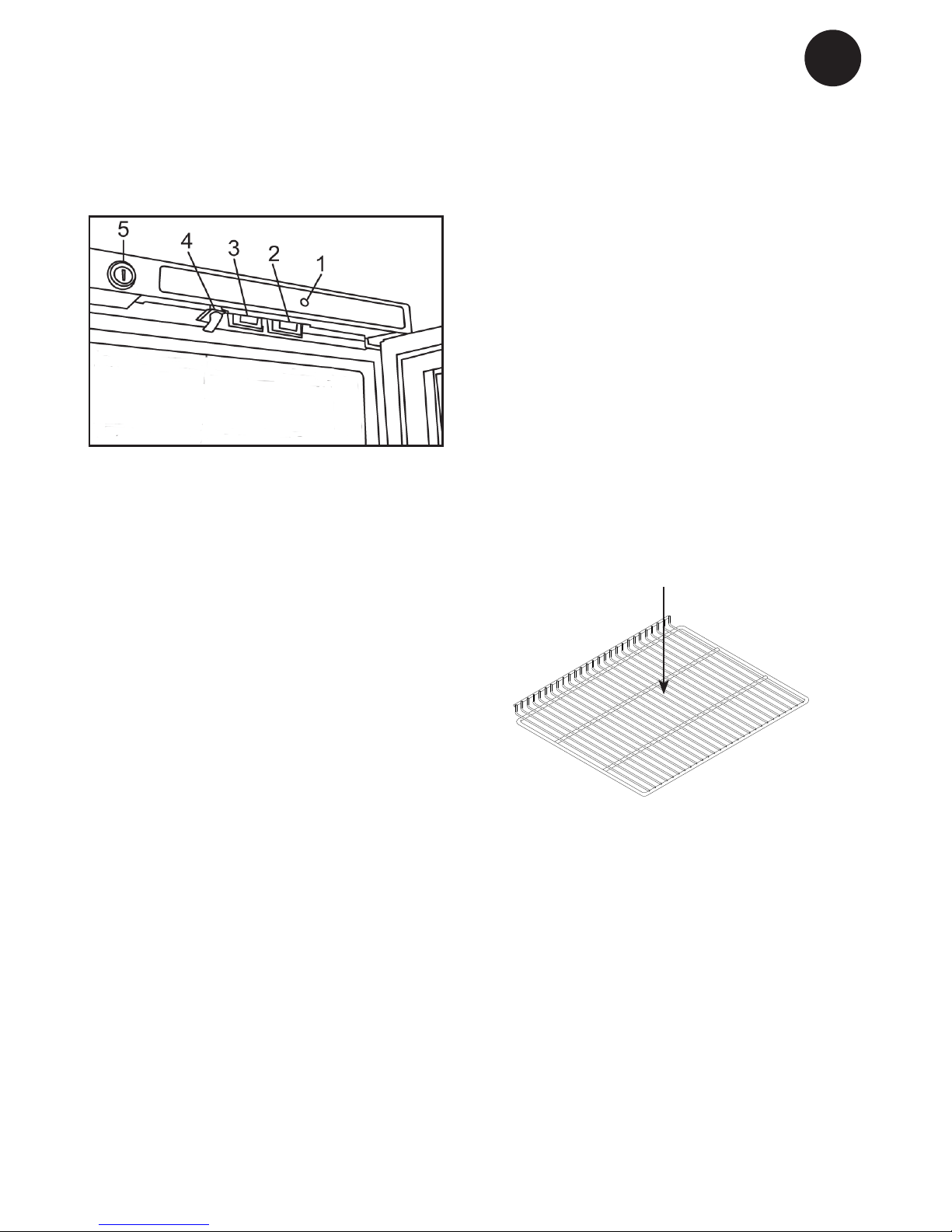

See control panel Fig 3
1 Green light indicating power on
2 Light switch
3 On/off switch
4 Door switch for internal fan
5 Lock
The switch (2) on the top right of the control
panel is for turning the top lighting on and
off. The switch (3) on the top left of the
control panel is for turning the appliance
on and off. The door switch (4) stops the
internal fan when the door is open in order
to minimise the amount of warm air entering
the cabinet.
Fig 3
Technical data.
This device complies with relevant EU
directives including Low Voltage Directive
2006/95 EEC. and Electromagnetic Com-
patibility Directive 2004/108/EC
The rating plate provides various techni-
cal information as well as type and serial
number.
Max. 36 kg
8
GB
Temperature control
1: Actual temperature at the top of the cabinet
2: Selection of temperature. Press for 2 seconds
3+4: Temperature +/-
5: Unit on/off
Press rst button “SET” (2) for about two seconds (until the ° C begins to ash). You can then
adjust the temperature using buttons (3) and (4).
The calibration can be adjusted between the set points No. 1 and No. 3, the set point No. 1
being the coldest temperature.
The temperature at the bottom of the cabinet appears on the display. If you want the tempera-
ture at the top of the cabinet to be shown, press button No. 1 for a short while.
The temperature is then shown for about 5 seconds, then the display returns to showing the
temperature at the bottom of the cabinet.
Low temperature alarm:
If the temperature is below 1 ° C for more than 4 minutes, an alarm appears on the screen.
The audible alarm is reset when the temperature is restored above +1 ° C or when a button is
pressed. The visual alarm alternates between LA (= low) and the current temperature of the
cabinet. This alarm is switched off when the temperature is back above 1 ° C.
High temperature alarm:
If the temperature rises above 9 ° C for more than 10 minutes, an alarm appears on the
screen. The audible alarm is reset when the temperature is restored above +9 ° C or when a
button is pressed. The visual alarm alternates between HA (= high) and the current tempera-
ture of the cabinet. This alarm is switched off when the temperature is back above 9 ° C.
1
2
3
4
5
9
GB
1. Remove the lock pin using a
at-headed screwdriver.
2. Remove the lock housing. 3. Loosen the top panel. Do not
remove the screws, just loosen
them.
4. Tilt the top panel forwards to
remove it (it is secured in tree
places)
5. Lay the appliance on its back
and remove the upper hinge,
using the hex key.
6. Pull the torsion spring out
of the door together with the
hinge.
7. Remove the bottom hinge
using the hex key.
8. Move the door handle to the
opposite side.
9. Move the hinge pin to the op-
posite side of the bottom hinge.
10. Ret the bottom hinge on
the opposite side.
11. Move the palstic door guard
to the opposite side. 12. Insert the hinge pin and
tosion spring into the the top of
the door on the opposite side.
Reversing the door.
(Not all appliances have lock.)
10
GB
14. Secure the top hinge in
position.
15. Raise the appliance into
uppight possion. Click the top
panel into place (it is secured in
three places.)
16. Retighten the top panel
screws using a screwdriver.
17. Ret the lock housing and
lock pin.
18. After reversing the door, it is important to check that the sealing strip provides a tight seal
all the way round. If it does not, carefully heat the strip all the way round using a hair dryer.
Then ease the strip outwards slightly so that it forms a tight seal against the cabinet. Be care-
ful not to heat the strip so much that it melts!
13. Fit the left-side top hinge (avail-
able as extra). Tighten the tosion
spring approx. 1/2 turn (anticlock-
wise on left side, clockwise on rigth.)
Table des matières
Autres manuels Vestfrost Réfrigérateur
Vestfrost
Vestfrost VF566ESBL Manuel utilisateur
Vestfrost
Vestfrost VICF 11177 DOD NoFrost Manuel utilisateur
Vestfrost
Vestfrost VR-FB373-2E1BG Manuel utilisateur
Vestfrost
Vestfrost VIC 11177 S Manuel utilisateur
Vestfrost
Vestfrost VLS200 Guide d'installation et d'utilisation
Vestfrost
Vestfrost FW M Series Manuel utilisateur
Vestfrost
Vestfrost CMR 085 W Manuel utilisateur
Vestfrost
Vestfrost VR-FW916-1E0I Manuel utilisateur
Vestfrost
Vestfrost VLS 054 SDD Manuel utilisateur
Vestfrost
Vestfrost R-138 Manuel utilisateur
Vestfrost
Vestfrost VIC 11177 DOD Manuel utilisateur
Vestfrost
Vestfrost CNF 379 X Manuel utilisateur
Vestfrost
Vestfrost VCF 10144 TF Manuel utilisateur
Vestfrost
Vestfrost VCF 10186-L Manuel utilisateur
Vestfrost
Vestfrost VCF 10186 X Manuel utilisateur
Vestfrost
Vestfrost R-90 Manuel utilisateur
Vestfrost
Vestfrost SZ...R Manuel utilisateur
Vestfrost
Vestfrost VR-FF375-2H0I Manuel utilisateur
Vestfrost
Vestfrost VC 1084 TT Manuel utilisateur
Vestfrost
Vestfrost VF 473 EBH Manuel utilisateur
