Service Manual

Air Band Transceiver

Operating Manual Reprint ...................................2

Specifications ..........................................................6

Installation of the SU-1..........................................7

CE41 Programming Software ...............................8

Exploded View & Miscellaneous Parts ..............9

Block Diagram.......................................................10

Circuit Description ...............................................11

Alignment ............................................................. 13

Board Unit (Schematics, Layouts & Parts) ...... 17

Main Unit ......................................................... 17

Contact Unit..................................................... 31

VR Unit............................................................. 32

SW Unit ............................................................ 33

The Vertex Standard VXA-210 Pilot is a compact, stylish, solid hand-held transceiver providing communication (transmit

and receive) capability on the International Aircraft Communication Band (“COM” band: 118 ~ 136.975 MHz), and it addi-

tionally provides VOR and CDI navigation features on the “NAV” band (108 ~ 117.975 MHz).

The VXA-210 includes Temperature display with our exclusive Omni-GlowTM display back-light for minimal degrada-

tion of your night vision, NOAA weather band monitoring, 8-character Alpha/Numeric Display, 50 Memory Channels, and

100 “Book Memory” Channels. And the optional Barometric Pressure Unit (SU-1) provides readout of barometric pressure,

altitude, and density altitude.

The following pages describe the Controls & Connectors, Accessories & Options, and Specification of the VXA-210.

With proper care and operation, the transceiver will provide many years of reliable communications.

VXA-210

VERTEX STANDARD CO., LTD.

4-8-8 Nakameguro, Meguro-Ku, Tokyo 153-8644, Japan

VERTEX STANDARD

US Headquarters

17210 Edwards Rd., Cerritos, CA 90703, U.S.A.

International Division

8350 N.W. 52nd Terrace, Suite 201, Miami, FL 33166, U.S.A.

YAESU EUROPE B.V.

P.O. Box 75525, 1118 ZN Schiphol, The Netherlands

YAESU UK LTD.

Unit 12, Sun Valley Business Park, Winnall Close

Winchester, Hampshire, SO23 0LB, U.K.

VERTEX STANDARD HK LTD.

Unit 5, 20/F., Seaview Centre, 139-141 Hoi Bun Road,

Kwun Tong, Kowloon, Hong Kong

Contents

Operating Manual Reprint (Partial)

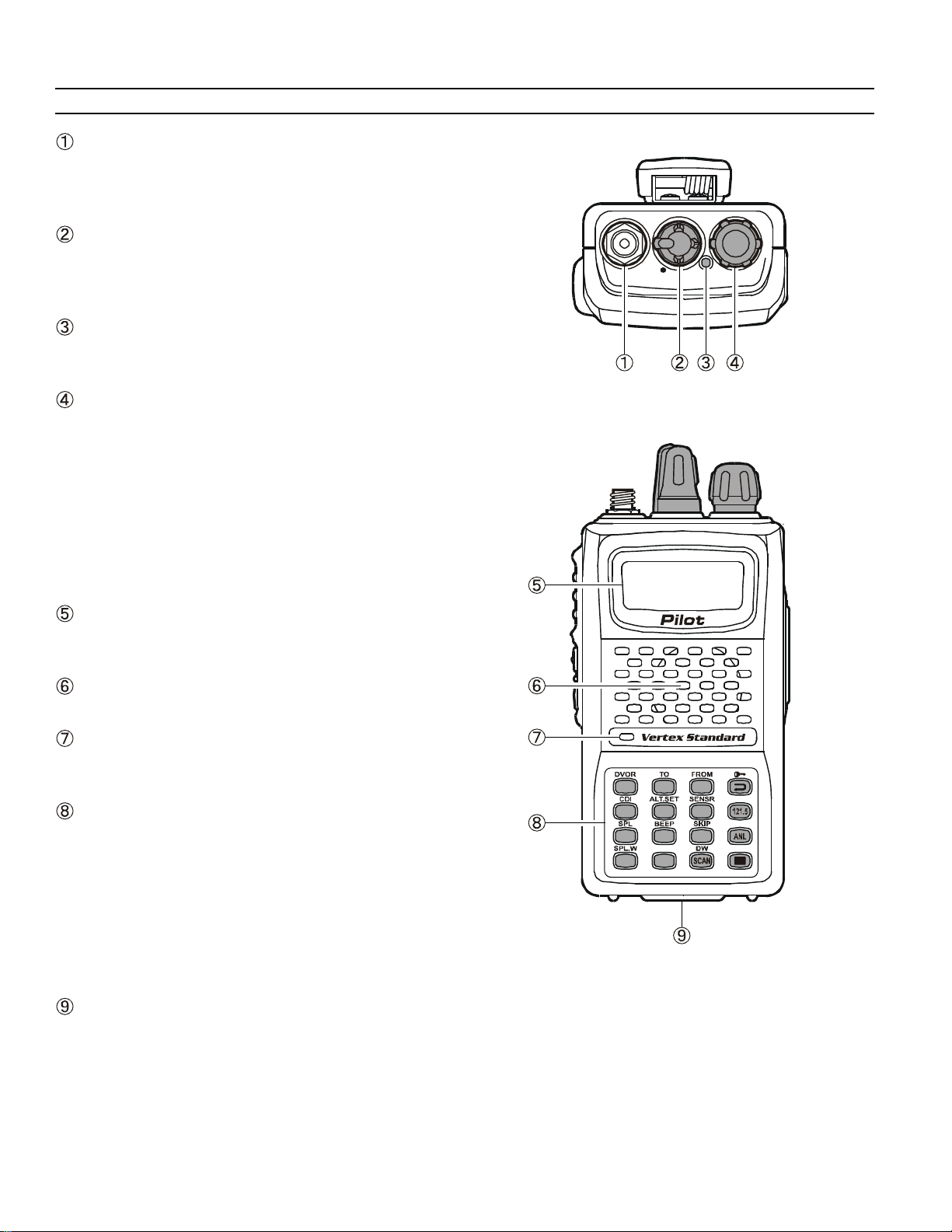

CONTROLS & CONNECTORS

Antenna Jack

This SMA jack accepts the supplied flexible antenna,

or another antenna designed to provide 50 Wimped-

ance on the Aircraft Communication Band.

POWER/VOLUME Knob

Turn this control clockwise to turn the radio on and to

increase the volume. Counterclockwise rotation into the

click-stop will turn the radio off.

BUSY/TX Indicator Lamp

This lamp glowsgreen when a signal is being received

and red when transmitting.

DIAL Selector Knob

This 20-position detended rotary switch tunes the op-

erating frequency or selects the memory channels.

Pressing this knob downward momentarily selects the

tuning methods among the VFO (Variable Frequency

Oscillator), MR (Memory Recall), BOOK (Pre-Pro-

grammed Memories), and WX (Weather Channel

Memories) mode.

Note: The WX mode is available in the USA version

only.

LCD (Liquid Crystal Display)

The display shows the selected operating conditions

as indicated on the next page.

Loudspeaker

The internal speaker is located in this position.

Microphone

Speak across this opening in a normal voice level while

pressing the PTT switch, to transmit.

Keypad

Several keys have dual functions.

The primary functions are labeled on the key top (ac-

tivated by simply pressing the key momentarily), while

the secondary functions are labeled in yellow above

the top edge of the key (activated by pressing the [F]

key first, then the indicated key).

These functions are described in detail on next page.

Battery Pack Latch

Open this latch for battery removal.

VOL

DIAL

LCD DISPLAY

Primary Function

(Press Key)

Secondary Function

(Press +)

Primary Function

(Press Key)

Primary Function

(Press Key)

Primary Function

(Press Key)

Frequency Entry

Digit 1 Frequency Entry

Digit 2 Frequency Entry

Digit 3

Frequency Entry

Digit 4 Frequency Entry

Digit 5 Frequency Entry

Digit 6

Frequency Entry

Digit 7 Frequency Entry

Digit 8 Frequency Entry

Digit 9

Frequency Entry

Digit 0

Selects Memory

Display Type

Locks the Keypad

Selects Emergency

Channel (121.5 MHz)

Activates the

Altimeter Set function Activates the Sensor

Function None

None

NoneNone

Activates Automatic

Noise Limiter

Activates Split (Duplex)

mode On/Off Switch for

Keypad Beeper Allows Skipping of

Channel during Scan

Activates Scanning Activates “Secondary”

Key mode

Activates Dual Watch

Memory “Write”

Command

Split-Memory “Write”

Command

Secondary Function

(Press +)

Secondary Function

(Press +)

Secondary Function

(Press +)

Selects

“FROM” VOR mode

Selects

“TO” VOR mode

Activates DVOR mode

Activates Course

Deviation Indicator mode

Operating Manual Reprint (Partial)

This field displays the course

heading in degrees. This is the Course Deviation Indicator, used

during VOR Navigation.

This icon indicates that

the “Book” Memory Bank

is in use.

This icon is the “Low Bat-

tery” indicator, which

blinks when the battery

voltage becomes too low

for proper operation. These digits provide frequency or alphanumeric

information about the channel you are using.

This indicator confirms

that Secondary Key Func-

tion is active.

This icon is used

during VOR naviga-

tion, to indicate that

the displayed infor-

mation is based on

a course from the

VOR station.

This icon is used

during VOR naviga-

tion, to indicate that

the displayed infor-

mation is based on

a course to the VOR

station.

This indicator con-

firms that the AUTO-

MATIC NOISE LIMITER is

activated.

This indicator con-

firms that the “Split”

(Duplex) mode is

activated during

VOR operation.

This indicator con-

firms that DUAL

WATCH is active.

This indicator confirms

that this channel will be

skipped during scan.

KEYPAD

PTT (PUSH TOTALK)Switch

Press this button to transmit when you are operating

in the “COM” band. Release this button to return to

the “RECEIVE” mode.

MONITOR Switch

This button may be pressed to “open” the squelch

manually, allowing you to listen for very weak sig-

nals. Press and hold this button for 2 seconds to “open”

the squelch continuously. Press this button again to

resume normal (quiet) monitoring.

LAMP Switch

Press this switch momentarily to activate the back-

lighting lamp for the display. Press and hold this switch

for 2 seconds to activate the back-lighting lamp con-

tinuously. To turn the lamp off, press this switch again.

The LAMPswitch may be configured in several ways

via the Menu.

MIC/EAR Jack

You may connect the supplied CT-60 Headset Cable

or the (optional) MH-44A4B Speaker/Microphone to

this jack.

Never connect any Speaker/Microphone that

is not recommended by the manufacturer. Be-

cause these jack connections are unique, using a

Speaker/Microphone that is not specified by Vertex

Standard may damage the VXA-210. Accessories for

the VertexStandardAmateur orVertex Standard Com-

mercial radios will not work with the VXA-210.

EXT DC Jack

When an external 12-Volt DC power source is avail-

able, you may connect the (optional) E-DC-5B Ex-

ternal DC Cable here. Do not connect any wire to

this jack if that wire is connected directly to a 28-

Volt DC source. Connecting the VXA-210 directly to

a source which exceeds 15.0 Volts DC will result in

damage to the unit.

Operating Manual Reprint (Partial)

CONTROLS & CONNECTORS

MIC

/SP

EXT

Operating Manual Reprint (Partial)

FIELD PROGRAMMING MODE

The VXA-210’s Book Memories also allow the user to

store, label, and recall channel frequencies which you may

want to use frequently while the VXA-210 is in the Field

Programming mode.

Memory Storage into the Book Memory

rPress and hold the PTT and LAMP switches while

turning the radio on, to activate the Field Program-

ming Mode.

rSelect the desired frequency to be stored in the Book

Memory.

rPress and hold the [MW(SPL.W)]key for 2 seconds.

The display will indicate “BOOK-” and a channel num-

ber will blink on the LCD.

rWithin five seconds of pressing the [MW(SPL.W)]

key, rotate the DIAL selector knob to select the de-

sired memory channel number for storage.

rNow press and hold in the [MW(SPL.W)]key for 2

seconds; you will now see “--------” on the LCD.

To attach an alpha/numeric name (label) to the

memory, proceed to the next step; otherwise press and

hold the [MW(SPL.W)]key for 2 seconds to save the

entry and exit.

rTo label a memory with an alpha/numeric name, the

next step is to use the DIAL selector knob to select

any of the 48 available characters (including letters,

numbers, and special symbols). When the desired first

character appears, press down on the DIAL selector

knob momentarily to move on to the next character.

rSelect succeeding characters in the same manner,

pressing down on the DIAL selector knob momentarily

after each selection.

rAfter entering the entire name (eight characters maxi-

mum), press the [MW(SPL.W)]key for 2 seconds to

save all data for the channel.

rTurn the radio off, then turn the radio back on again

to begin normal operation.

ACCESSORIES & OPTIONS

Supplied Accessories

Ni-Cd Battery Pack

(7.2V, 700mAh)

FNB-64

Overnight Desktop Charger NC-77B/C/Uø

Helical Antenna ATV-7

Headset Cable CT-60

Operating Manual

Warranty Card

ø:“B” suffix is for use with 120 VAC,

“C” suffix is for use with 230-240 VAC, or

“U” suffix is for use with 230 VAC.

Available Options

MH-44A4B Speaker Microphone

FNB-V57 Ni-Cd Battery Pack

(7.2V, 1100mAh)

FBA-25 Alkaline Battery Case

VAC-800 Desktop Rapid Charger

E-DC-5B External Power Cable

SU-1 Barometric Pressure Sensor Unit

CN-3 Antenna Adapter (SMA to BNC)

Availability of accessories may vary. Some accessories are supplied as standard per local requirements, while others may

be unavailable in some regions. Consult your Vertex Standard Dealer for details regarding these and any newly-available

options.

Connection of any non-Vertex Standard-approved accessory, should it cause damage, may void the Limited Warranty on

this apparatus.

CT-60 Headset Cable

CN-3 Antenna Adapter (Option)

Headset

(not supplied)

áExternal Antenna

E-DC-5B External Power Cable

PTT Switch

(not supplied)

Specifications

General

Frequency Range:TX: 118.000 - 136.975 MHz, RX: 108.000 - 136.975 MHz,

Weather Channels (WX-01 - WX-10: USA version only)

Channel Spacing:25 kHz

Emission Type:TX: AM,

RX: AM & FM (FM: for receiving the Weather Channels, USA version only)

Supply Voltage:6.0 - 15.0 VDC

Current Consumption (approx.): 10 µA (power off), 30 mA (battery saver on, saver ratio 1:5)

65 mA (squelch on), 190 mA (receive), 1 A (transmit 1.5 W Carrier)

Temperature Range:+14 °F to + 140 °F (–10 °C to +60 °C)

Case Size (WxHxD): 2.3 x 4.3 x 1.2 inch (58 x 109 x 30 mm) w/FNB-64

Weight (approx.): 12.2 oz (345 grams) with FNB-64, antenna, and belt clip

Receiver

Circuit Type:Double-conversion superheterodyne

IFs:35.4 MHz & 450 kHz

Sensitivity:<0.8 µV (for 6 dB S/N with 1 kHz, 30 % modulation)

Selectivity:>8 kHz/–6 dB

Adjacent CH. Selectivity:<25 kHz/–60 dB

AF Output (@7.2 V): 0.4 W @ 8 Ohms, 10 % THD

Transmitter

Power Output (@ 7.2 V): 5 W (PEP), 1.5 W (Carrier Power)

Frequency Stability:Better than ±10 ppm (+14 °F to + 140 °F [–10 °C to +60 °C])

Modulation System:Low Level Amplitude Modulation

Spurious Emission:> 60 dB below carrier

Int. Microphone Type:Condenser

Ext. Mic. Impedance:150 Ohms Specifications are subject to change without notice or obligation.

Installation of the SU-1

1. Make sure that the transceiver is off. Remove the hard

or soft case, if used.

2. Remove the two screws affixing the belt clip and re-

move the belt clip, then remove the battery pack.

3. Locate the connector for the SU-1 under the “Cau-

tion” label in the battery compartment on the back of

the radio, just carefully peel off the “Caution” label.

4. Remove the small Rubber Cushion from the “Cau-

tion” label. Keep this Rubber Cushion for future use,

because this Rubber Cushion must be replaced on the

connector board of the transceiver if you remove the

SU-1 from the transceiver. We recommend that this

Rubber Cushion be put on the bottom of the SU-1.

5. Align the connector on theSU-1with the transceiver’s

connector and gently press the unit into place.

6. Affix the “Caution” label, and replace the battery and

the belt clip.

7. Installation is now complete.

Important Note

The Barometric pressure/Altitude feature of the op-

tional SU-1 are designed to be supplemental aids

for the information of the user, and are not intend-

ed to be a substitute for accurate, calibrated Ba-

rometer or Altimeter devices used for navigation

critical to personal safety.

MADE IN JAPAN

VERTEX STANDARD CO., LTD.

FCCID:K66VXA-200

CANADA:

ÛÛÛÛÛÛÛÛÛ

ÛÛÛÛÛÛ

SER NO. 00000000

4909969000000

MADEIN JAPAN

VERTEX STANDARD CO., LTD.

FCCID:K66VXA-200

CANADA:

ÛÛÛÛÛÛÛÛÛ

ÛÛÛÛÛÛ

SER NO. 00000000

4909969000000

MADE IN JAPAN

VERTEX STANDARD CO., LTD.

FCC ID:K66VXA-200

CANADA:

ÛÛÛÛÛÛÛÛÛ

ÛÛÛÛÛÛ

SER NO. 00000000

4909969000000

MADE IN JAPAN

VERTEX STANDARD CO., LTD.

FCCID:K66VXA-200

CANADA:

ÛÛÛÛÛÛÛÛÛ

ÛÛÛÛÛÛ

SER NO. 00000000

4909969000000

Peel off the CAUTION Label

Press the

SU-1

Connector

Affix the CAUTION Label

Device restricted to occupational use to

satisfy FCC RF exposure compliance.

See owner's manual for specific operat-

ing requirement.

CAUTION

Device restricted to occupational use to

satisfy FCC RF exposure compliance.

See owner's manual for specific operat-

ing requirement.

CAUTION

CE41 Programming Software

CE41 Programming Software Instructions

With the CE41 programming Software you can quickly and easily program the features and memories of the Vertex

Standard VXA-210 heavy duty air band transceiver from your personal computer. The CE41 Programming Software

allows custom memory files to be stored, saved, merged, and edited for convenience when planning a journey. In the

event of an accidental memory failure, transceiver memory and configuration data may be re-loaded in a matter of min-

utes.

The CE41 Programming Software diskette contains the following files:

¦CE41.EXE - The executable programming software;

¦CE41.HLP - The “Help” file used with the main program; and

¦CE41.CFG - The “Configuration” file for the main program.

Before connecting the VXA-210 for programming, turn off both the computer and the VXA-210. Now connect the

CT-42A PC Programming Cable to the computer’s serial port and the VXA-210 as shown in the illustration. Then it will

be safe to restart the computer; turning off the equipment during interconnection avoids damage to the electronics caused

by voltage spikes.

Insert the distribution diskette into your 3½” drive (after booting DOS), and make a copy of the diskette; use the

distribution diskette for archive purposes, and use the disk copy for programming.

Place the CE41 (copy) diskette into your 3½” drive (usually “Drive A”), and log onto this drive by typing A:[ENTER]. At

this point, you may make a directory for the CE41 software, if you like, according to standard DOS procedures (using the

“MKDIR” command). Load the contents of the CE41 diskette into this directory, using the “COPY” command (e.g. COPY

A:*.*C:\ [directory name]).

Now type CE41 [ENTER]to start the program. The introductory screen will appear, and you may press any key to enter

the main screen, as shown below.

Choose the “Help” contents option from the program’s Menu for assistance with program operation.

Important Note!

Do not work directly with the CE41 programming diskette. Make a copy of it and use the copy when programming the

VXA-210. Keep it and the original distribution diskette in a safe place in case you need to make another copy of it later.

CE41 Main ScreenCE41 Programming Setup

Personal

Computer

MIC/EAR

VXA-210

CT-42A PC Programming Cable

Exploded View & Miscellaneous Parts

RA0123500

LATCH NAIL B

RA0210200

RUBBER PACKING (CASE)

CP7033001

REAR CASE ASSY

[w/TERMINAL PLATE (L)]

Main Unit

RA0322100

RUBBER KNOB (16KEY)

RA0322000

RUBBER (PTT)

RA0110200

HOLDER RUBBER (MIC)

RA0389400

FRONT CASE ASSY

RA0389200

WINDOW

RA0321900

RUBBER CAP

RA0111400

RING NUT

RA0111500

SPECIAL NUT

RA0325300

KNOB (DIAL)

RA0325200

VOL KNOB

RA0210600

RUBBER PACKING

•

••

•

‚

„

…

†

Non-designated parts are available only

as part of a designated assembly. †

Qty.

VXSTD P/N

U9900068

U9900086

U9900063

U07230107

U9900051

U02206007

No.

•

‚

„

…

†

Description

TAPTITE SCREW M2×4 NI #3

TAPTITE SCREW M1.7×2.5B

TAPTITE SCREW 2×3.3 NI

PAN HEAD SCREW M2×3B #1

TAPTITE SCREW M2×4B #3

SEMS SCREW SM2.6×6B

Connector Unit

RA0338000

RUBBER SPACER

RA0324700

INTER CONNECTOR (LCD)

RA0324800

REFLECTOR SHEET

RA032090A

LCD HOLDER

RA0107000

TERMINAL PLATE R

RA03227000

HOLDER

RA0211200

INTER CONNECTOR (PCB)

RA0107000

TERMINAL PLATE (ANT)

RA0106900

TERMINAL PLATE (L)

RA008890A

O RING

Screw List

CP7035001

BELT CLIP ASSY

M4090142A

SPEAKER

G6090133

LCD

CAUTION

The mic element must be desoldered and re-

moved from the PCB on order to reinstall its

protective rubber cover.

Therefore, be careful

not to remove this cov-

er unless mic element

replacement is neces-

sary.

‚•

Block Diagram

Autres manuels pour Pilot VXA-210

Table des matières

Autres manuels Vertex Standard Émetteur-récepteur

Vertex Standard

Vertex Standard VX-4200 Series Manuel utilisateur

Vertex Standard

Vertex Standard VX-160E Manuel utilisateur

Vertex Standard

Vertex Standard VX-160E/ Manuel utilisateur

Vertex Standard

Vertex Standard VXR-9000U-A Manuel utilisateur

Vertex Standard

Vertex Standard VX-230 Series Manuel utilisateur

Vertex Standard

Vertex Standard Spirit VXA-700 Manuel utilisateur

Vertex Standard

Vertex Standard VX-920 series Manuel utilisateur

Vertex Standard

Vertex Standard Spirit VXA-700 Manuel utilisateur

Vertex Standard

Vertex Standard VX-410E Series Manuel utilisateur

Vertex Standard

Vertex Standard VXR-9000V-A Manuel utilisateur

Vertex Standard

Vertex Standard VX-410 Series Manuel utilisateur

Vertex Standard

Vertex Standard VX-210AU Manuel utilisateur

Vertex Standard

Vertex Standard VX-4000 Series Manuel utilisateur

Vertex Standard

Vertex Standard VX-2200 Series Manuel utilisateur

Vertex Standard

Vertex Standard VXA-150 Manuel de référence

Vertex Standard

Vertex Standard VX-6000L Manuel utilisateur

Vertex Standard

Vertex Standard VX-2000V Manuel utilisateur

Vertex Standard

Vertex Standard FT-8800R Manuel utilisateur

Vertex Standard

Vertex Standard VX-2100 Series Manuel utilisateur

Vertex Standard

Vertex Standard VX-520U Manuel utilisateur

Vertex Standard

Vertex Standard VXA-300 Pilot III Manuel utilisateur

Vertex Standard

Vertex Standard VX-2R Manuel utilisateur

Vertex Standard

Vertex Standard VXA-710 SPIRIT Manuel utilisateur

Vertex Standard

Vertex Standard VX-350 series Manuel utilisateur

Manuels Émetteur-récepteur populaires d'autres marques

Yaesu

Yaesu FT-7B Manuel utilisateur

Kenwood

Kenwood ProTalk TK-3201 Manuel utilisateur

Texas Instruments

Texas Instruments TLK10232 Manuel utilisateur

Mizuho

Mizuho MX-2 Guide produit

Kenwood

Kenwood TK-3180 Manuel d'utilisation et d'entretien

Blitz

Blitz MJ-398U Manuel utilisateur

Utilicom

Utilicom LongRanger 2050 Manuel utilisateur

Standart

Standart HX290UKA Manuel utilisateur

Altronix

Altronix Pace1PTM Manuel utilisateur

Kirisun

Kirisun PT2208 Manuel utilisateur

ELECRAFT

ELECRAFT KX2 Manuel utilisateur

Zodiac

Zodiac K3 Manuel utilisateur

Assa Abloy

Assa Abloy SecureComm HKC GSM-WIFI U Manuel utilisateur

Kenwood

Kenwood TK-2217 Manuel utilisateur

Siemens

Siemens PSO 4000 Manuel utilisateur

Kenwood

Kenwood TS-590SG Manuel utilisateur

Midland

Midland G8E-BT Manuel

ComNav

ComNav Mariner X2 Manuel utilisateur
