Replacing a power supply: Veritas 2U12 Storage Shelf
Document Number: 159
Version: 4.1 (05/04/2020)
Purpose
This document describes the process for replacing a power supply in the Veritas 2U12 Storage Shelf.
Affected appliance models
• 5240 Appliance
• 5250 Appliance
Electrical Safety
The static discharged by human bodies can damage static-sensitive components on the boards.
When installing and maintaining the equipment, observe appropriate electrostatic safety precautions
to prevent personnel injuries or device damage.
When operating a device in an electrostatic sensitive area, you must take electrostatic-discharge
(ESD)-preventive measures. These include wearing ESD-preventive gloves, an ESD-preventive wrist
strap, and ESD-preventive clothes to avoid personnel injury or device damage.
To prevent damage to the device, pay attention to the following during operations:
• Do not touch devices with bare hands because ESD from the human body may damage the
electrostatically sensitive elements on a board.
• When dealing with the server or any of the internal components, wear an ESD-preventive wrist
strap, ESD-preventive gloves, and ESD-preventive suit.
About replacing a Veritas 2U12 Storage Shelf power supply
This section describes how to remove and replace a power supply in a Veritas 2U12 Storage Shelf.
Access the power supplies from the rear of the storage shelf. The power supplies are located on each
side of the shelf as indicated in the diagram below. The power supplies are numbered 0 and 1.
1
Veritas Appliance
Hardware Service Procedure
Caution: You must complete a power supply swap within three minutes. Leaving the power supply
slot open for longer than three minutes can result in the appliance overheating and cause other
components to fail.
Warning: Swap one power supply at a time only. If you need to remove all the two power supplies,
make sure that the storage shelf is turned off before you proceed.
Requirements
Verify you have the following items:
• 2U12 Storage Shelf replacement power supply
• ESD wrist strap
Locating the appliance with the faulty component
Use the following steps to locate the appliance with the faulty component.
To locate the appliance with the faulty component
1Have the customer take you to the unit with the faulty component.
2Verify the appliance compute node serial number. The serial number is located on the rear panel
of the appliance and begins with letters SYM or VTAS.
The 2U12 storage shelf serial number - Verify the storage shelf serial number. The storage shelf
serial number is located on a white tab on the left side of the rear panel, between the left power
supply and the chassis case. Pull out the tab to display the serial number.
2
HSP 159: Power supply replacement: Veritas 2U12 Storage Shelf
Removing a Veritas 2U12 Storage Shelf power supply
To remove a Veritas 2U12 Storage Shelf power supply
1Put on an ESD-compliant wrist strap or take other ESD-protective measures.
2Do the following to verify that it is safe to remove the power supply before you disconnect the
power:
• Check that the power switch on the target power supply is turned off. The LED is out and the
fan is off.
• Check that the LED on the opposite power supply is green.
3
HSP 159: Power supply replacement: Veritas 2U12 Storage Shelf
3Disconnect the power cable from the faulty power supply. Do not disconnect the power cable
from the power supply that is running.
Warning: Swap one power supply at a time only. If you need to remove all the two power supplies,
make sure that the storage shelf is turned off before you proceed.

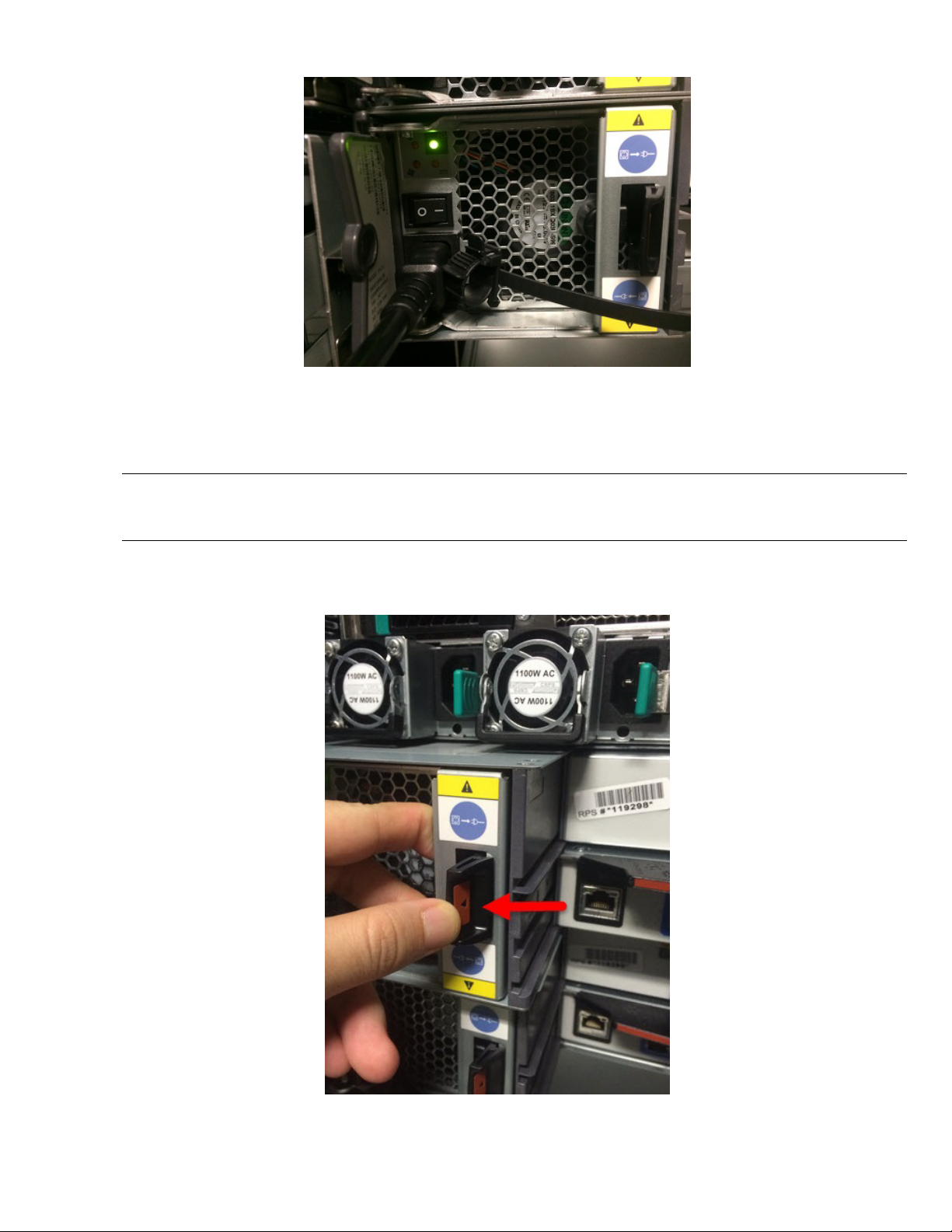

4Press in and hold the lever on the right side of the power supply to release the module.
5Grasp the handle and pull the power supply out of the slot.
4
HSP 159: Power supply replacement: Veritas 2U12 Storage Shelf
Caution: You must complete a power supply swap within three minutes. Leaving the power supply
slot open for longer than three minutes can result in the appliance overheating and cause other
components to fail.
Warning: Swap one power supply at a time only. If you need to remove all the two power supplies,
make sure that the storage shelf is turned off before you proceed.
Installing the replacement Veritas 2U12 Storage Shelf power supply
Use the following procedure to install the replacement power supply in the Veritas 2U12 Storage
Shelf.
To install the replacement Veritas 2U12 Storage Shelf power supply
1Remove the replacement power supply from any wrapping.
2Insert the power supply into a power supply slot.
5
HSP 159: Power supply replacement: Veritas 2U12 Storage Shelf
3Slide the power supply into the slot complete. The power supply clicks when it is properly installed.
4Plug the power cable into the power supply.
5Turn on the power supply switch. Verify that the LED on the replacement power supply is green
and that the air flows from the power supply.
6
HSP 159: Power supply replacement: Veritas 2U12 Storage Shelf
7
HSP 159: Power supply replacement: Veritas 2U12 Storage Shelf
